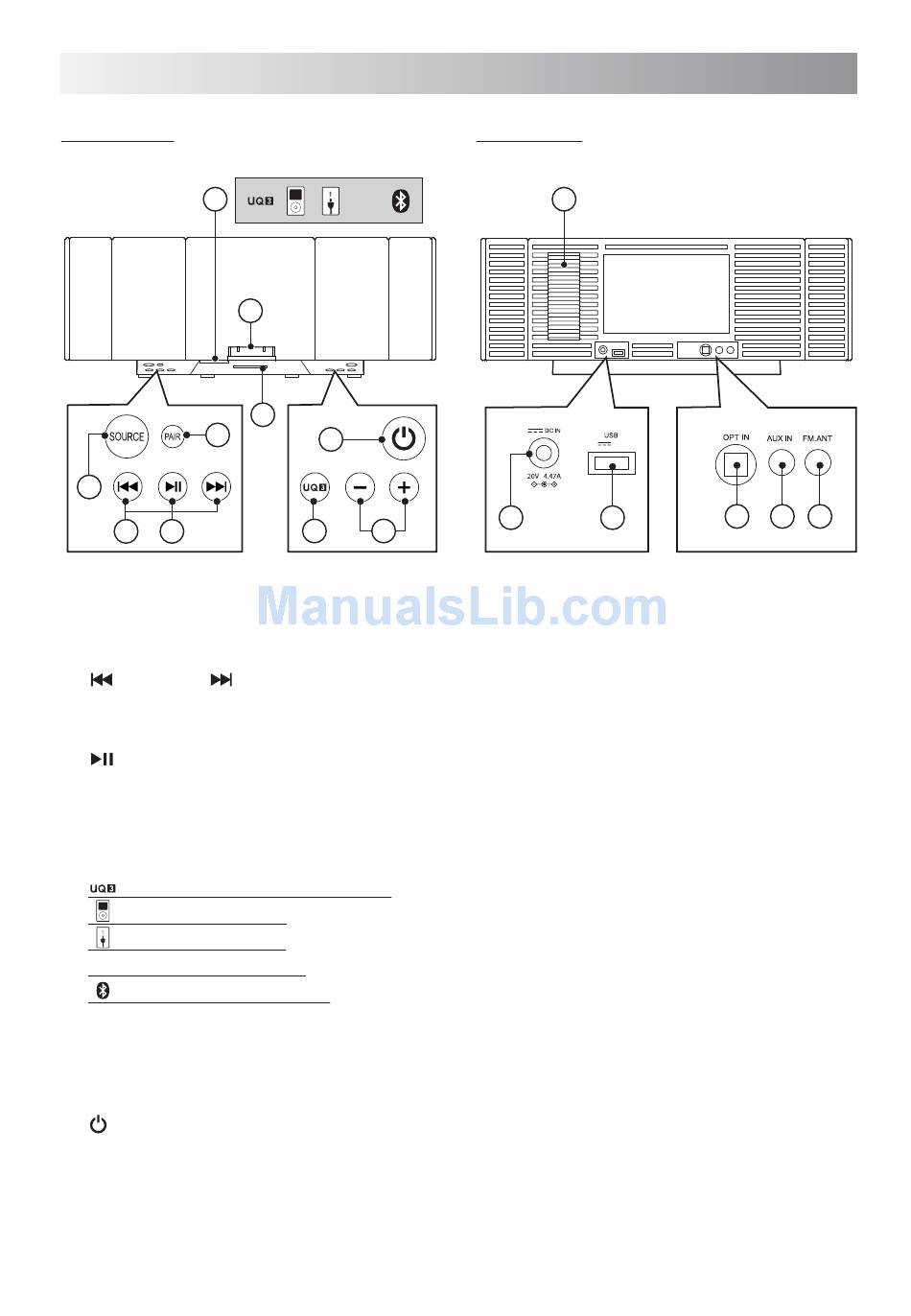

System Overview

Front View

5
4
1
2 3
1. SOURCE button
Toggle among iPod, AUX, Optical and
Bluetooth modes.
2. (Previous) /
Skip to the previous/next track in iPod and
Bluetooth modes.
3. (Play/Pause) button
Press to play or pause a track.
4. PAIR button
Put the system into Bluetooth mode.
5. Indicators
Lights when the UQ3 is activated.
Lights in iPod mode
Lights in AUX mode
OPT
Lights in opticle mode
Lights in Bluetooth mode
6. 30-pin Apple connector
Connect with iPod.
7. Pair indicator
To indicate the Bluetooth connection status.
8. (on/Standby) button
Switch between standby and power-on
modes.
9. U-Cubed button
Press to activate or deactivate the U-Cubed
(High Definition Wide Stereo) sound effect.
OPT
6
7
8
VOL
9
10
(Next) button

Back View

11
5V 500mA
12 13
10. Vol +/- button
Press to increase (+) or decrease (-) the
volume level.
11. Remote control storage Area
12. DC IN jack
13. USB power jack
The jack can be used to charge most devices
that allow for USB charging (including many
mobile phones, smart phones and wireless
headsets).
Note: Please use the USB power cord that
came with your device to connect to Sound
Stack to charge.
14. OPT IN optical input jack
For connecting a digital optical device (such
as Apple TV or Blu Ray player).
Note: Simply insert an optical cable and the
plastic door will open into the jack.
15. AUX IN jack
For transmitting an audio input signals from
auxiliary source.
16. ANT Antenna jack
For FM reception, connect the FM antenna to
the jack.
.8.
14 15 16
