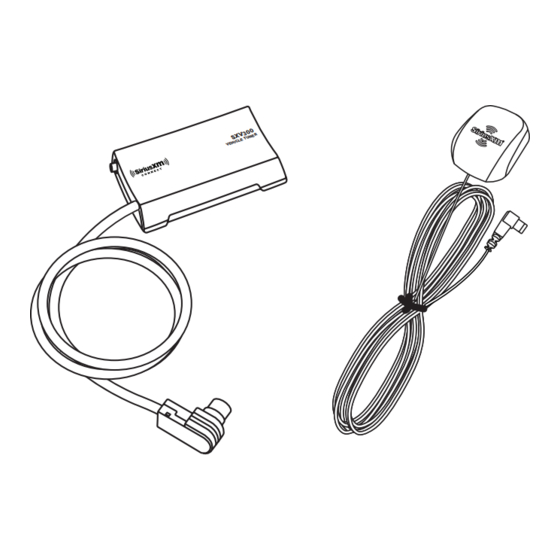

SXV300 Connect Vehicle Tuner

INSTALLATION GUIDE

3
WITH THIS TUNER, YOU'RE ELIGIBLE FOR
MONTHS
F R E E S E RV I C E
Minimum subscription and credit card required.
See Offer Details on page 10.
70 VALUE
$
INCLUDES ALL ACCESS
AND ACTIVATION!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXV300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirius XM RAdio SXV300

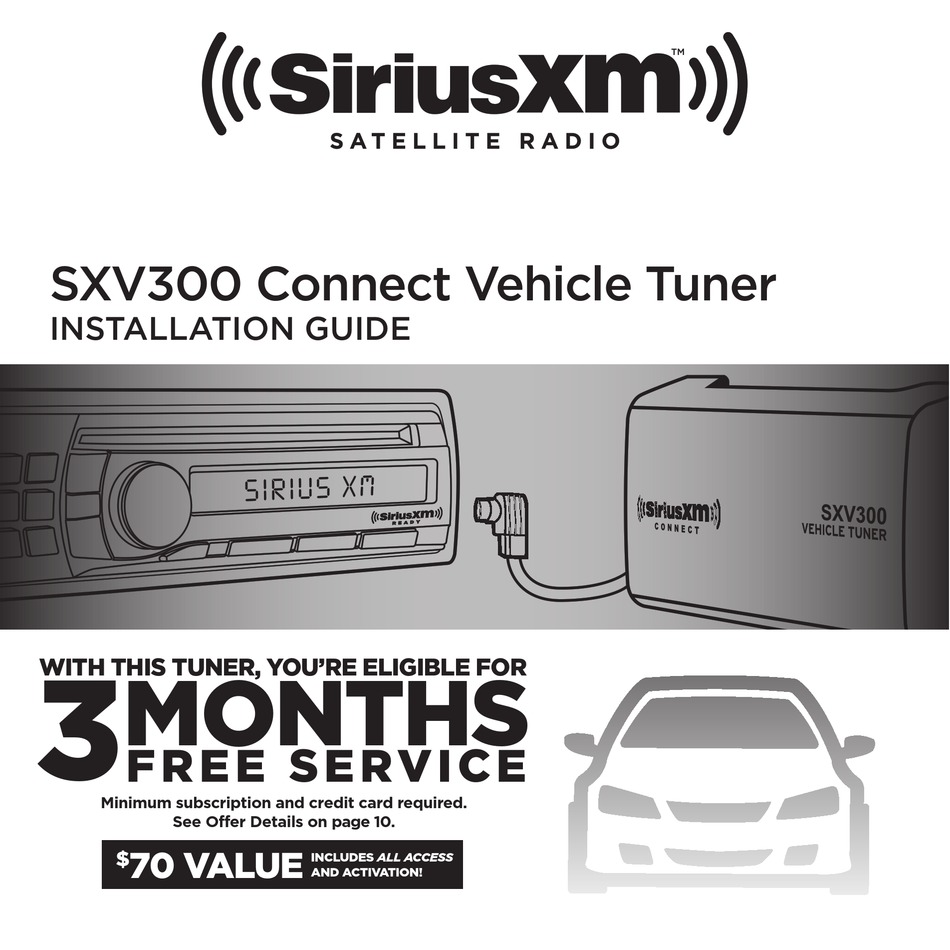

  • Page 1: Installation Guide

    SXV300 Connect Vehicle Tuner INSTALLATION GUIDE WITH THIS TUNER, YOU’RE ELIGIBLE FOR MONTHS F R E E S E RV I C E Minimum subscription and credit card required. See Offer Details on page 10. 70 VALUE INCLUDES ALL ACCESS...
  • Page 2 If your headunit has the official SiriusXM- Ready logo it is compatible with the Products with this logo are compatible SXV300 Vehicle Tuner. All SiriusXM- Ready headunits include a dedicated connector, allowing for quick and easy connection of the SXV300 tuner.
  • Page 3 Install the Magnetic Mount Antenna Proper placement of the Magnetic Mount Antenna is very important. Consult a professional installer if you are uncomfortable with installing the antenna yourself. More detailed installation instructions and illustrations can be found at www.siriusxm.com/installation and clicking on the XM Vehicle Installation link. • Place the Magnetic Mount Antenna on the outside of your vehicle on a horizontal surface that always faces the sky.
  • Page 4 Route the Antenna Cable Use care when routing the antenna cable into and through the vehicle interior, avoiding sharp objects that can damage the cable. Keep the antenna cable away from moving parts such as gas and brake pedals, trunk and door hinges, and sliding seat brackets.
  • Page 5 Make the Connections You’ll need to access the back of the SiriusXM-Ready headunit so you can plug the SXV300 Vehicle Tuner into it. This may require you to remove the headunit from the dashboard. If you are uncomfortable with this step, consult a professional installer.
  • Page 6 Secure the Tuner Secure the SXV300 Vehicle Tuner behind the vehicle headunit location or under the dash using wire ties (not included). Thread the wire ties through the molded brackets on the underside of the Tuner as shown. Then secure it to a bracket or wiring harness using the wire ties.
  • Page 7 Make a note of your Radio ID. You can find it on channel 0, on a label on the bottom of the packaging, and on the label on the bottom of your SXV300 Vehicle Tuner. NOTE! The Radio ID does not use the letters I, O, S, or F.
  • Page 8: Troubleshooting

    Check Antenna (Chek • Make sure that the Magnetic Mount Antenna cable is firmly Antenna, CHK Antena, and securely plugged into the SXV300 Vehicle Tuner. Chek Ant) • Make sure the antenna cable is not bent or broken. • Turn the headunit off, then on, to reset this message.
  • Page 9: Specifications

    • If you have not yet activated your service, call channels to which you 1-866-635-2349. subscribe • Go to www.siriusxm.com/refresh and follow the directions to refresh your SXV300 Vehicle Tuner. No song title or artist The information may not be available or updates may name is displayed be in progress.
  • Page 10 • Consult the dealer or an experienced radio/TV technician for help. WARNING! The FCC and FAA have not certified Satellite Radio Receiver use in any aircraft (neither portable nor permanent installation). Therefore, Sirius XM Radio Inc. cannot support this type of application or installation. Patent Information...
  • Page 11 Copyrights and Trademarks ©2014 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All other marks and logos are the property of their respective owners. All rights reserved.
  • Page 12 This warranty covers defects in material and workmanship for 12 months from the date of purchase by the original retail purchaser only. Sirius XM Radio Inc., at its sole option, will repair or replace the product with a new or reconditioned product without charge for parts and labor. Products replaced under this warranty become the property of SiriusXM.
