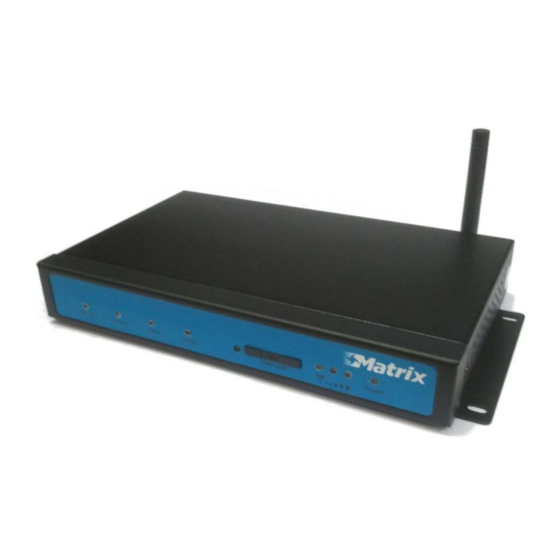

Matrix MTX-ROUTER GPRS User Manual

Mtx-router series
Hide thumbs
Table of Contents

Advertisement

Quick Links

MTX-Router Series
User Manual
MTX-ROUTER Series User Manual
The user manual is suitable for the following model:
Documentation No.
Product Name：Router
Model
MTX-ROUTER GPRS
MTX-ROUTER CDMA
MTX-ROUTER 3G
MTX-ROUTER 3G WIFI
MTX-ROUTER LTE WIFI
Matrix Electroncia S.L
C/Alejandro Sánchez 109.
28019 Madrid. ESPAÑA - SPAIN
Teléfono/Phone: 902.19.81.46 / +34-91.560.27.37
Fax: 902.99.54.14 / +34-91.565.28.65
http://www.matrix.es
Product Version
A
Product Type
GPRS ROUTER
CDMA ROUTER
HSPA ROUTER
HSPA WIFI ROUTER
LTE/WCDMA WIFI ROUTER
Page
Total:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTX-ROUTER GPRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MTX-ROUTER GPRS

Summary of Contents for Matrix MTX-ROUTER GPRS

  • Page 1 MTX-Router Series User Manual Product Name：Router Total: MTX-ROUTER Series User Manual The user manual is suitable for the following model: Model Product Type MTX-ROUTER GPRS GPRS ROUTER MTX-ROUTER CDMA CDMA ROUTER MTX-ROUTER 3G HSPA ROUTER MTX-ROUTER 3G WIFI HSPA WIFI ROUTER...
  • Page 2 MTX-ROUTER User Manual Matrix Electronica S.L Page 2 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 3 MTX-ROUTER User Manual Files Revised Record Date Version Remark Author 2012-09-16 V1.00 Initial Draft 2012-11-1 V1.01 Add Packet Filter Matrix Electronica S.L Page 3 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 4: Copyright Notice

    User Manual Copyright Notice All contents in the files are protected by copyright law, and all copyrights are reserved by Matrix Electrónica S.L. Without written permission, all commercial use of the files from Matrix are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 5 MTX-ROUTER User Manual Matrix Electronica S.L Page 5 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 6: Table Of Contents

    OPENVPN ....................48 3.3.4.4 IPSEC ...................... 53 3.3.4.5 GRE ......................55 3.3.5 Security ......................56 3.3.5.1 Firewall ....................56 3.3.5.2 VPN Passthrough ..................59 Matrix Electronica S.L Page 6 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 7 WAN ....................75 3.3.11.3 LAN....................77 3.3.11.4 Wireless ................... 80 3.3.11.5 Bandwidth ..................81 3.3.11.6 Sys-Info ................... 83 Chapter 4 Appendix ........................86 Matrix Electronica S.L Page 7 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 8: Chapter 1 Brief Introduction Of Product

     Ethernet port: 1.5KV magnetic isolation protection  RS232/RS485/RS422 port: 15KV ESD protection  SIM/UIM port: 15KV ESD protection  Power port: reverse-voltage and overvoltage protection Matrix Electronica S.L Page 8 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 9  Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.  Schedule Reboot, Schedule Online and Offline,etc. Matrix Electronica S.L Page 9 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 10: Working Principle

    10/100M Ethernet Power Indicator lights Interface Interface 1.4 Specifications Cellular Specification Standard and Band Bandwidth TX power sensitivity MTX-ROUTER GPRS ROUTER 85.6Kbps GSM850/900： <-107 EGSM900/GSM1800MHz, <33dBm GSM850/900/1800/1900MHz (optional) GSM1800/1900： Compliant to GSM phase 2/2+ <30dBm GPRS class 10, class 12(optional) MTX-ROUTER CDMA 153.6Kbps...
  • Page 11 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, (space, mark) (optional) Baud rate: 2400~115200 bps Matrix Electronica S.L Page 11 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 12 Iron, providing IP30 protection Dimensions 157x97x25 mm Weight 440g Environmental Limits Item Content Operating -35~+75ºC（-31~+167℉） Temperature Storage -40~+85ºC（-40~+185℉） Temperature Operating 95% ( Non-condensing) Humidity Matrix Electronica S.L Page 12 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 13: Chapter 2 Installation Introduction

    WIFI antenna (Female SMA) Network cable Console cable optional Power adapter Manual CD Certification card Maintenance card 2.3 Installation and Cable Connection Installation of SIM/UIM card: Matrix Electronica S.L Page 13 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 14: Installation Of Antenna

    The signal connection of the console cable is as follows: RJ45 DB9F The signal definition of the DB9F serial communication interface is as follows: RS232 signal name The direction for Router Matrix Electronica S.L Page 14 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 15: Power

    /Communicating WIFI WIFI is not active WIFI is active One Light Signal strength is weak Signal Strength Two Lights Signal strength is medium Matrix Electronica S.L Page 15 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 16: Reset Button Introduction

    “Reset” button for up to 15s, the router will restore to its original factory default settings and restart automatically. Chapter 3 Configuration and Management This chapter describes how to configure and manage the router. Matrix Electronica S.L Page 16 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 17: Configuration Connection

    Users have to click "change password" to make it work if they modify user name and password. Matrix Electronica S.L Page 17 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 18 User Manual After access to the information main page Users need to input user name and password if it is their first time to login. Matrix Electronica S.L Page 18 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 19: Management And Configuration

    Name, Password, IP Address, Default Gateway Address, or DNS IP Address. These information can be obtained from your ISP, if required. 3.3.1.1 Basic Setting WAN Connection Type Seven Ways: Disabled, 3G/UNMTS/4G/LTE Disabled Matrix Electronica S.L Page 19 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 20 "Detection Interval", "Primary Detection Server IP" and "Backup Detection Server IP" items. PPP: Detect connection with PPP method, when choose this method, users should also Matrix Electronica S.L Page 20 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 21 Domain Name: ISP provides MTU: auto (1500) and manual (1200-1492 in PPPOE/PPTP/L2TP mode, 576-16320 in other modes) Router Internal Network Settings Router IP Matrix Electronica S.L Page 21 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 22 Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the router's DHCP server option. If users have Matrix Electronica S.L Page 22 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 23 They can change to adjust time by manual to achieve adjust time by the system if the system fails to get NTP server Matrix Electronica S.L Page 23 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 24: Dynamic Dns

    Do not use external ip check: enable or disable the function of 'do not use external ip check' Force Update Interval: unit is day, try forcing the update dynamic DNS to the server by setted days Status Matrix Electronica S.L Page 24 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 25: Clone Mac Address

    LAN and wireless side, select LAN&WLAN. To enable the feature for both the WAN and LAN, select Both. To disable the Dynamic Routing feature for all data transmissions, keep the Matrix Electronica S.L Page 25 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 26: Networking

    WAN (Internet), or Loopback (a dummy network in which one PC acts like a network, necessary for certain software programs) Show Routing Table 3.3.1.5 Networking Matrix Electronica S.L Page 26 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 27 'Add'. Bride properties is as below: Enter relewant bridge IP address and subnet mask, click 'Add' to create a bridge. Note: Only create a bride can apply it. Matrix Electronica S.L Page 27 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 28 To make br1 bridge has the same function with DHCP assigned address, users need to set multiple DHCP function, see the introduction of multi-channel DHCPD: Port Setup: Set the port property, the default is not set Matrix Electronica S.L Page 28 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 29: Wireless

    Note: Only configure and click 'Save' can configure the next, can not configure multiple DHCP at the same time. 3.3.2 Wireless 3.3.2.1 Basic Settings Matrix Electronica S.L Page 29 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 30 The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard Matrix Electronica S.L Page 30 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 31: Wireless Security

    Disabled by default, not safe mode is enabled. Such as changes in Safe Mode, click Apply to take effect immediately. Matrix Electronica S.L Page 31 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 32 HEX, the keys is 10bit/26 bit hex digits. Passphrase：The letters and numbers used to generate a key. Key1-Key4：Manually fill out or generated according to input the pass phrase. Matrix Electronica S.L Page 32 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 33 Radius Auth Sever Address：The IP address of the RADIUS server. Radius Auth Server Port：The RADIUS Port (default is 1812)。 Radius Auth Shared Secret：The shared secret from the RADIUS server。 Key Renewal Interva(in seconds): 1-99999。 Matrix Electronica S.L Page 33 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 34: Wireless Mac Filter

    The Wireless MAC Filter allows you to control which wireless-equipped PCs may or may not communicate with the router depending on their MAC addresses. For information how to get MAC addresses from Windows-PCs, see MAC Address Cloning for detailed instructions。 Matrix Electronica S.L Page 34 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 35: Advance Settings

    The Wireless Advanced Settings screen allows you to customize data transmission settings. In most cases, the advanced settings on this screen should remain at their default values。 Matrix Electronica S.L Page 35 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 36 Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the router and a wireless client. Matrix Electronica S.L Page 36 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 37 Wireless GUI Access: The default value is Enabled. The setting allows access to the routers setup (GUI) from wireless clients. Disable this if you wish to block all wireless clients from accessing the setup pages. Matrix Electronica S.L Page 37 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 38 No-Acknowledgement:This refers to the acknowledge policy used at the MAC level. Enabling no-acknowledgement can result in more efficient throughput but higher error rates in a noisy Radio Frequency (RF) environment Matrix Electronica S.L Page 38 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 39: Wds

    WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which WDS APs communicate only with each other only (without allowing for Matrix Electronica S.L Page 39 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 40 6. Go to the Wireless Status page. You should see WDS Link and the Wireless MAC of the other router listed, with a signal reading. If the signal is "0dBm" then there may be something wrong. Matrix Electronica S.L Page 40 of 87 Add：...

  • Page 41: Services

    DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. Matrix Electronica S.L Page 41 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 42 Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: when enabled, it can prevent an external attacker to access the router's internal Web interface. It is a security measure Matrix Electronica S.L Page 42 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 43 Enable Syslogd to capture system messages. By default they will be collected in the local file /var/log/messages. To send them to another system, enter the IP address of a remote syslog server. Matrix Electronica S.L Page 43 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 44: Pppoe Server

    Ttraff Daemon: enable or disable wan traffic counter function 3.3.3.2 PPPoE Server PPPoE Server RP-PPPoEServer Daemon: enable or disable PPPoE server RP-PPPoEServer Options Matrix Electronica S.L Page 44 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 45 User: set PPPOE client's user name Password: set PPPOE client's user password IP Address: set PPPOE client's user IP address Enable: enable or disable this setting Radius Matrix Electronica S.L Page 45 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 46: Vpn

    Server IP: input IP address of the router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx CHAP Secrets: user name and password of the client using PPTP service Matrix Electronica S.L Page 46 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 47: L2Tp

    Password: password to log into PPTP Server. 3.3.4.2 L2TP L2TP Server Force MPPE Encryption: enable or disable force MPPE encryption of L2TP data Matrix Electronica S.L Page 47 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 48: Openvpn

    Refuse PAP: enable or disable refuse to support the pap authentication Require Authentication: enable or disable support authentication protocol 3.3.4.3 OPENVPN OPENVPN Server Start Type: WAN UP----start after on-line, System----start when boot up Matrix Electronica S.L Page 48 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 49 Encryption Cipher: Blowfish CBC，AES-128 CBC，AES-192 CBC，AES-256 CBC，AES-512 Hash Algorithm: Hash algorithm provides a method of quick access to data, including SHA1， SHA256，SHA512，MD5 Advanced Options Matrix Electronica S.L Page 49 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 50 CA Cert: CA certificate Public Server Cert: server certificate Private Server Key: the key seted by the server DH PEM: PEM of the server Matrix Electronica S.L Page 50 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 51 Encryption Cipher: Blowfish CBC，AES-128 CBC，AES-192 CBC，AES-256 CBC，AES-512 Hash Algorithm: Hash algorithm provides a method of quick access to data, including SHA1, SHA256, SHA512, MD5 nsCertType verification: support ns certificate type Matrix Electronica S.L Page 51 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 52 Additional Config: additional configurations of OPENVPN server Policy based Routing: input some defined routing policy CA Cert: CA certificate Public Client Cert: client certificate Private Client Key: client key Matrix Electronica S.L Page 52 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 53: Ipsec

    Type: to choose IPSEC mode and relevant functions in this part, supports tunnel mode client, tunnel mode server and transfer mode currently Connection: this part contains basic address information of the tunnel Matrix Electronica S.L Page 53 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 54 Timeout: set the timeout of connect detection Action: set the action of connect detection Advanced Settings: this part contains relevant setting of IKE, ESP, negotiation mode, etc. Matrix Electronica S.L Page 54 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 55: Gre

    (IP)transmission. GRE Tunnel (tunnel) technology, Layer Two Tunneling Protocol VPN (Virtual Private Network). GRE Tunnel: enable or disable GRE function Matrix Electronica S.L Page 55 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 56: Security

    Fail Action：The action would be exec after keeping alive failed Click on “View GRE tunnels” keys can view the information of GRE 3.3.5 Security 3.3.5.1 Firewall Matrix Electronica S.L Page 56 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 57 Block WAN SNMP access: This feature prevents the SNMP connection requests from the WAN. After Complete the changes, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes. Matrix Electronica S.L Page 57 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 58 Options: When select Enable, the corresponding connection will be recorded in the journal, the disabled are not recorded. Incoming Log: To see a temporary log of the Router's most recent incoming traffic, click the Incoming Log button. Matrix Electronica S.L Page 58 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 59: Vpn Passthrough

    L2TP Passthrough is enabled by default. To disable L2TP Passthrough, select Disable. Click the Save Settings button to save your changes. Click the Cancel Changes button to cancel Matrix Electronica S.L Page 59 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 60: Access Restrictions

    Days: Choose the day of the week you would like your policy to be applied. Times: Enter the time of the day you would like your policy to be applied. Matrix Electronica S.L Page 60 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 61 Website Blocking by Keyword: You can block access to certain website by the keywords contained in their webpage set up Internet access policy 1. Select the policy number (1-10) in the drop-down menu. Matrix Electronica S.L Page 61 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 62: Packet Filter

    Discard The Following--Discard packets conform to the following rules, Accept all other packets Only Accept The Following-- Accept only the data packets conform to the following rules, Discard all other packets Matrix Electronica S.L Page 62 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 63: Nat

    When users send this type of request to your network via the Internet, the router will forward those requests to the appropriate PC. If you want to forward a whole range of ports, see Port Range Forwarding. Matrix Electronica S.L Page 63 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 64: Port Range Forward

    Triggering rules, you can allow inbound traffic to arrive at a specific LAN host, using ports different than those used for the outbound traffic. This is called port triggering since the outbound traffic triggers to which ports inbound traffic is directed. Matrix Electronica S.L Page 64 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 65: Dmz

    IP address in the DMZ Host IP Address field. To disable the DMZ, keep the default setting： Disable Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes. Matrix Electronica S.L Page 65 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 66: Qos Setting

    Downlink (kbps)： In order to use bandwidth management (QoS) you must enter bandwidth values for your downlink. These are generally 80% to 90% of your maximum bandwidth. 3.3.8.2 Classify Netmask Priority Matrix Electronica S.L Page 66 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 67: Applications

    Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a DTU which has application protocol and hear beat mechanism. Matrix Electronica S.L Page 67 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 68: Administration

    If you choose to disable this feature, a manual reboot will be required.You can also activate or not the router information web page. It's now possible to password protect this page (same username and password than above). Matrix Electronica S.L Page 68 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 69 If the Remote Router Access feature is enabled, anyone who knows the router's Internet IP address and password will be able to alter the router's settings. Telnet Management：Enable or disable remote Telnet function Matrix Electronica S.L Page 69 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 70: Keep Alive

    TCP Timeout: 3600 sec UDP Timeout: 120 sec 3.3.10.2 Keep Alive Schedule Reboot You can schedule regular reboots for the router : Regularly after xxx seconds. Matrix Electronica S.L Page 70 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 71: Commands

    Any settings you have saved will be lost when the default settings are restored. After restoring the router is accessible under the default IP address 192.168.1.2 and the default password admin. Matrix Electronica S.L Page 71 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 72: Firmware Upgrade

    Backup Settings：You may backup your current configuration in case you need to reset the router back to its factory default settings.Click the Backup button to backup your current configuration. Matrix Electronica S.L Page 72 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 73: Status

    LAN Domain Name: domain name of LAN, unavailable to modify Current Time: local time of the system Uptime: operating uptime as long as the system is powered on Matrix Electronica S.L Page 73 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 74 IP Filter Maximum Ports: preset is 4096, available to re-management Active IP Connections: real time monitor active IP connections of the system, click to see the table as blow: Matrix Electronica S.L Page 74 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 75: Wan

    Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 Connection Type: disabled, 3G/UMTS Connection Uptime: connecting uptime; If disconnect, display Not available Matrix Electronica S.L Page 75 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 76 Module Type: module type in 3G/UMTS way Signal Status: signal intensity of the module in 3G/UMTS way Network: network type of the module in 3G/UMTS way Matrix Electronica S.L Page 76 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 77: Lan

    Last Month: the flow of last month Next Month: the flow of next month Backup: backup data administration Restore: restore data administration Delete: delete data administration 3.3.11.3 Matrix Electronica S.L Page 77 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 78 Ending IP Address: the ending IP Address of the DHCP server’s Address pool Client Lease Time: the lease time of DHCP client Host Name: host name of LAN client Matrix Electronica S.L Page 78 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 79 Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local PPTP Remote IP: tunnel IP address of PPTP server Delete: click to disconnect PPTP Matrix Electronica S.L Page 79 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 80: Wireless

    Encryption-Interface wl0: enable or diasbal Encryption-Interface wl0 PPTP Status: show wireless pptp status Received (RX): received data packet Transmitted (TX): transmitted data packet Matrix Electronica S.L Page 80 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 81: Bandwidth

    Dtim: delivery traffic indication message of the wireless nearby Rate: speed rate of the wireless nearby Join Site: click to join wireless network nearby 3.3.11.5 Bandwidth Matrix Electronica S.L Page 81 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
  • Page 82 MTX-ROUTER User Manual Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate Matrix Electronica S.L Page 82 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...

  • Page 83: Sys-Info

    WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of WAN port LAN IP: IP address of LAN port Matrix Electronica S.L Page 83 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 84 Signal: the signal of wireless client Noise: the noise of wireless client SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client Matrix Electronica S.L Page 84 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...
  • Page 85 Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of he client Expires: the expiry the client rents the IP address Matrix Electronica S.L Page 85 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 86: Chapter 4 Appendix

    3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Data bits: 8 Matrix Electronica S.L Page 86 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com...

  • Page 87: Matrix Electronica S.l

    MTX-ROUTER User Manual Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following Matrix Electronica S.L Page 87 of 87 Add： Alejandro Sanchez 109, 28019 Madrid. ESPAÑA http：//www.mtx-terminals.com Tel：+34-91.560.27.37 Fax：+34+34-91.565.28.65...
