Page 1 SIMADO GFXD1111S System Manual...
Page 3 SIMADO GFXD1111S Fixed Cellular Terminal and Router with Data Port System Manual...
Page 4 Neither Matrix Comsec nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by the purchaser or third parties as a result of: accident, misuse or abuse of this product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix Comsec's operating and maintenance instructions.
Page 5: Table Of Contents
Introduction..............................1 Welcome ................................1 About this System Manual ..........................1 Knowing SIMADO GFXD1111S ........................5 Overview of SIMADO GFXD1111S ........................5 Programming SIMADO GFXD1111S ........................7 Applications of SIMADO GFXD1111S ........................ 8 Getting Started .............................. 11 Protecting SIMADO GFXD1111S ........................11 Installing SIMADO GFXD1111S ........................
Page 6 PCO Application ..............................99 Port Parameters-FXO ............................. 111 Port Parameters-FXS ............................116 Port Parameters-Mobile ..........................121 Port Released Timer ............................124 Programming the System through COM Port ....................125 Programming the System through FXS Port ....................130 Programming the System through Mobile Port ....................132 Programming the System using SMS ......................
Page 7: Introduction
We have made the best efforts to let you know your SIMADO GFXD1111S so that it becomes a fun for you to use it.
Page 8 Either GSM or CDMA module can be installed in the Mobile Port of SIMADO GFXD1111S as per the requirement of the user. Therefore, the Mobile Port can be either GSM or CDMA. In GSM Port, SIM Card is installed and in CDMA port, RUIM Card is installed.
Page 9 Callee/Called party: A person to who receives the call. Using this System Manual, you will be able to install, operate and make optimum use of SIMADO GFXD1111S. In case you face any technical difficulties, you are advised to contact our dealers for help. All Matrix dealers are properly trained and ready to give you support whenever needed.
Page 10 Matrix SIMADO GFXD1111S V3 System Manual...
Page 11: Knowing Simado Gfxd1111S

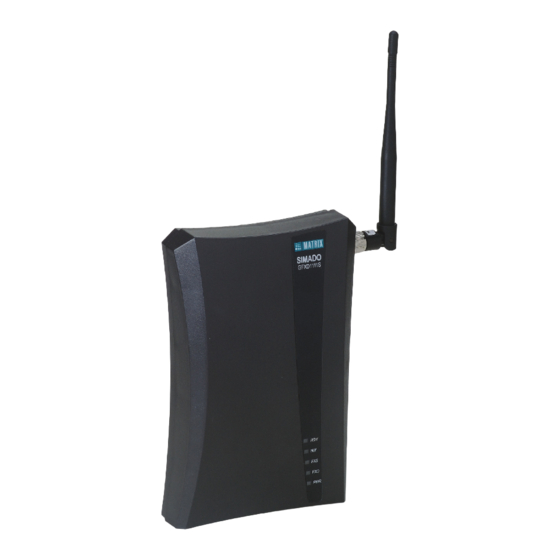

SIMADO GFXD1111S is a compact device that interfaces GSM network to the PSTN network. SIMADO GFXD1111S supports quad-band operation allowing it to work with any GSM network. SIMADO GFXD1111S is the most versatile product, providing Data, Fax, SMS and GPRS service through its mobile port. It finds its application in corporate business establishments, STD/PCO booth, SOHO etc.
Page 12: Fxs Port
FXS port labeled as FXS is used to connect telephone instrument with CLI display to SIMADO GFXD1111S. It is also used to connect GFXD1111S to the FXO Port of the PBX. FXO Port FXO Port labeled as FXO is used to connect SIMADO GFXD1111S to the PSTN network or to the FXS Port of the PBX. Communication Port Communication Port labeled as 'COM 10101' is used to connect SIMADO GFXD1111S to a computer.
Page 13: Programming Simado Gfxd1111S
Programming SIMADO GFXD1111S SIMADO GFXD1111S can be configured either in Mobile-FXS Mode or Mobile-FXO Mode. In Mobile-FXS Mode, all three ports viz. Mobile, FXO and FXS are functional. By default, system is configured in this mode of operation. SE should configure GFXD1111S in one of the following three modes of operation as per the requirement of the...
Page 14: Applications Of Simado Gfxd1111S
Applications of SIMADO GFXD1111S SIMADO GFXD1111S finds its applications in corporate business establishments, STD/PCO booth, SOHO etc… Various applications of SIMADO GFXD1111S are as shown below: Case 1: SIMADO GFXD1111S as Stand-alone (Mobile-FXO Mode) Port Port PSTN FSK/DTMF RJ-11 Telephone...
Page 15 Case 4: SIMADO GFXD1111S interfaced with FXO Port of PBX (Mobile-FXO Mode) Port Port PSTN RJ-11 GSM/ GSM/ CDMA CDMA Network GFXD1111S Case 5: SIMADO GFXD1111S interfaced with FXO Port of PBX (Mobile-FXS Mode) Port Port PSTN RJ-11 GSM/ GSM/...
Page 16 Case 7: SIMADO GFXD1111S interfaced with FXS Port of PBX (Mobile-FXS Mode) Port Port PSTN RJ-11 RJ-11 GSM/ GSM/ CDMA CDMA GFXD1111S Matrix SIMADO GFXD1111S V3 System Manual...
Page 17: Getting Started
Getting Started CHAPTER 3 Protecting SIMADO GFXD1111S You should take following measures to protect your SIMADO GFXD1111S. Installation Precautions: • Do not turn on the power supply until the installation is complete. • Do not install the system in direct sunlight and the place where there is excessive cold or humid atmosphere.
Page 18 • Hence, the system should be installed with lightning protectors. In addition, grounding (connection to earth ground) is very important to the system. Matrix SIMADO GFXD1111S V3 System Manual...
Page 19: Installing Simado Gfxd1111S
GFXD1111S. In case any of the part is missing or damaged, contact the vendor from whom you have purchased the system. Mounting on Wall • Select a suitable place on the wall for mounting the SIMADO GFXD1111S. • Put the mounting template on the wall and mark the nail hole on the wall. •...
Page 20 Connecting SIMADO GFXD1111S SIMADO GFXD1111S can be used as stand-alone system as well as it can also be interfaced with the PBX. It should be installed at the airy, dust free and moisture free place. Follow the steps given below to connect GFXD1111: •...
Page 21: Switching On Simado Gfxd1111S
Fast SIM module is ON but is not registered with the network i.e. network not available. a. Applicable only when Call Minutes feature is enabled for Mobile Port. (Refer “Call Minutes” for more details) Matrix SIMADO GFXD1111S V3 System Manual...
Page 22 105-1234-#*. To reprogram the system, enter programming mode and default the system by dialing 106-4321-#* first and then reprogram the system. For detailed description of all the features of SIMADO GFXD1111S and to configure each of them, please refer the respective topics under the chapter “Features of SIMADO...
Page 23: Test Calls
Test Calls Making a Call • Lift the handset of the telephone instrument connected to SIMADO GFXD1111S. You will get the dial tone. • Dial the desired number. You will hear the RBT. • Talk when the called party answers the call.
Page 24 Matrix SIMADO GFXD1111S V3 System Manual...
Page 25: Features Of Simado Gfxd1111S
Two digits will be used for programming each alpha-numeric digits. For e.g. to program character A in the number string, you should program #4. Therefore, while programming telephone number you will be able to program a number string of maximum 8 digits only if it consists of all alphanumeric characters. Matrix SIMADO GFXD1111S V3 System Manual...
Page 26 GFXD1111S uses best match found logic while comparing the number with Allowed and Denied Number list. • GFXD1111S does not compare the dialed number string with Allowed-Denied Number lists if it matches with any Emergency number. Relevant Topics: “Programming the System through FXS Port” “Emergency Number Dialing” Matrix SIMADO GFXD1111S V3 System Manual...
Page 27 ALLOWED LIST 01-01-2009(Thu) AT 18:02 ------------------------------------------------------------------------------- NUMBER ID NUMBER ------------------------------------------------------------------------------- 0265 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 28 DENIED LIST 01-01-2009(Thu) AT 18:01 ------------------------------------------------------------------------------- NUMBER ID NUMBER ------------------------------------------------------------------------------- 9824 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 29: Automatic Number Translation
Suppose user dials 952668263172 from the telephone instrument connected to the FXS port of the system since he is habituated to dial numbers in this way on the POTS network. SIMADO GFXD1111S routes this call through GSM/CDMA port to the desired destination depending on the programming done. But GSM/CDMA network does not understand the dialed number string.
Page 30 Use following command to clear all the entries from Automatic Number Translation table: 290-Port Type-#* Where, Port Type Meaning Both the Ports Mobile Port FXO Port Use following command to print Mobile/FXO Port ANT Table Report: 546-Port Type-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 31 “Least Cost Routing” “Multi-Stage Dialing” “Port Parameters-Mobile” “Port Parameters-FXO” “System Parameters” MOB NUMBER TRANSLATION TABLE 01-01-2009(Thu) AT 18:04 ------------------------------------------------------------------------------- NUMBER ID | DIALED STRING/SUBSTRING | SUBSTITUTE STRING ------------------------------------------------------------------------------- | 96 | 94 | 97 | 9898906338WP123P456P789P0ABCD Matrix SIMADO GFXD1111S V3 System Manual...
Page 32 MATRIX SIMADO GFXD1111 V3R20 PAGE:01 FXO NUMBER TRANSLATION TABLE 01-01-2009(Thu) AT 18:04 ------------------------------------------------------------------------------- NUMBER ID | DIALED STRING/SUBSTRING | SUBSTITUTE STRING ------------------------------------------------------------------------------- | 96 | 94 | 97 | 9898906338WPP123ABCD890 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 33: Call Back
It will not retry callback. • Callback request will be served only when Mobile Port is idle. How to Program? • Use following command to disable/enable ‘Callback’ feature: 116-Code-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 34 Index is from 01-50 • Use following command to clear the 'Destination Number' for all indexes of Callback Table: 118-*-#* Callback Table should be as given below: Calling Destination Index Number Number “Mode of Operation” “Mobile-FXO Mode” Matrix SIMADO GFXD1111S V3 System Manual...
Page 35: Call Divert
Mobile Port does not answer the call. Call Divert-When SIMADO GFXD1111S is Off or there is no coverage means all incoming calls are diverted to the destination number programmed if GFXD1111S is off or there is no network coverage.
Page 36 • You cannot set more than one type of call divert simultaneously. • This feature is not supported if CDMA module is installed in SIMADO GFXD1111S. Relevant Topic: “Programming the System through FXS Port” Matrix SIMADO GFXD1111S V3 System Manual...
Page 37: Call Minutes
Mobile Service providers offer various schemes to its customers. One of the scheme which most service providers offers to its customers is to provide first few minutes free every month. SIMADO GFXD1111S supports Call Minutes feature on Mobile Port to utilize the benefit of this scheme.
Page 38 On-Hook, your phone will ring and Minutes Used will be displayed on the LCD of your telephone instrument. If FSK CLI is set on the FXS Port of SIMADO GFXD1111S then the Minutes Used will be displayed in the format as...
Page 39: Call Duration Display
Call Duration Display SIMADO GFXD1111S enables you to display, the duration of calls made and received on the FXS Port, on the LCD of your telephone instrument using call duration display feature. It supports display of call duration of following types of calls: •...
Page 40 • If CDMA module is installed in SIMADO GFXD1111S, call duration displayed for outgoing calls would not be accurate and some missed calls would also be stored in the outgoing calls buffer. • Call duration will reset to 00:00:00, if total call duration exceeds 99:59:59.
Page 41: Call Progress Tones
Ring Back Tone (RBT). The cadence and frequency for different countries are as per Table. Above mentioned tones are country specific and SE can program Call Progress Tones specific to the country of installation. SIMADO GFXD1111S will play tones as per the country selected. Frequency and Cadence of the tones are not programmable.
Page 42 • 'Cont.' is abbreviation for continuous. Confirmation tone for all countries is: 400Hz, 0.1 on 0.1 off Programming tone for all countries is: 400Hz, 0.1 on 0.9 off By default, Code is 10 (India) Matrix SIMADO GFXD1111S V3 System Manual...
Page 43: Data Services
Data Services The GSM Data Services allows GSM users to send and receive data files over the GSM network. Matrix SIMADO GFXD1111S supports sending and receiving of data from its Mobile Port. For this application, SIMADO GFXD1111S should be in SMS + Internet + Fax + Data mode. (Refer “Mode of Operation”...
Page 44 Control Panel window will open up as shown below. Double click on the 'Phone and Modem Options' icon. 'Phone and Modem Options' window will open as shown below. Click on Add button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 45 'Add Hardware Wizard' window will open. Check 'Don't detect my modem; I will select from a list' option in the window. Click on 'Next' button. Select 'Standard 9600bps Modem' from the available modem options in the window and click on 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 46 Select 'COM1' port in the window and click on 'Next' button. Click on 'Finish' button. Modem will be installed as shown below: Matrix SIMADO GFXD1111S V3 System Manual...
Page 47 Create Connection Type using HyperTerminal: Click on Start  Programs  Accessories  Communications  HyperTerminal. New Connection window will appear. Enter name for the connection in 'Name' field as shown below and then click OK. Matrix SIMADO GFXD1111S V3 System Manual...
Page 48 'Connect' window will appear on the screen. Click on 'Modify' button, if phone number is to be modified else click on 'Cancel' button. Click on File  Properties of HyperTerminal screen. Uncheck 'Use country/region code and area code' checkbox. Uncheck 'Redial on busy' checkbox and click on OK. Matrix SIMADO GFXD1111S V3 System Manual...
Page 49 To connect HyperTerminal of your computer to the receiving computer, ensure that the HyperTerminal of the receiving computer is set to 'Wait for a call' mode, when you click on 'Call' as shown below else you will not be able to send or receive any file. Matrix SIMADO GFXD1111S V3 System Manual...
Page 50 Click Transfer File Send File. Select your file to be sent for browser and setup protocol as 'Zmodem'. Click Send. Message 'Sending' will appear as shown below: Receiving Data Files: On HyperTerminal, click on Call Wait for a call. Matrix SIMADO GFXD1111S V3 System Manual...
Page 51 Choose location to store received file. When a remote GFXD1111S unit or some other GSM terminal, transmits data on user's GFXD1111S unit, the message appears as shown below. Relevant Topics: “System Parameters” “Mode of Operation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 52: Date And Time
Date and Time SIMADO GFXD1111S is equipped with built in Real Time Clock (RTC) circuit. This circuit is to be set once with current date and time values. It then updates itself regularly to keep track of the parameters. However, the RTC circuit can drift over a long period.
Page 53: Emergency Number Dialing
When SIMCOM-2G engine (SIM340-B01 or higher) or SIMCOM-3G engine (Version V1.18 or higher) is installed, SIMADO GFXD1111S will dial out only the numbers available in the Emergency Number Table as emergency numbers. SIMADO GFXD1111S will dial out the fixed numbers available in the emergency number table even in the following situations: •...
Page 54 Emergency Number Dialing feature works in both Mobile-FXO mode and Mobile-FXS mode. In Mobile- FXS mode, Emergency Number Dialing works only in Speech + SMS mode. • SIMADO GFXD1111S does not support Emergency Number Dialing when RUIM Card is not inserted in the CDMA module. Relevant Topics: “Mode of Operation”...
Page 55: Fax Services
Fax Services The GSM Fax and Data Service allow GSM users to send and receive fax over the GSM network. Matrix SIMADO GFXD1111S supports sending and receiving of Fax from its Mobile port. For this application, SIMADO GFXD1111S should be configured in SMS + Internet + Fax + Data mode. (Refer “Mode of Operation”...
Page 56 Control Panel window will open up as shown below. Double click on the 'Phone and Modem Options' icon. 'Phone and Modem Options' window will open as shown below. Click on Add button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 57 'Add Hardware Wizard' window will open. Check 'Don't detect my modem; I will select from a list' option in the window. Click on 'Next' button. Select 'Standard 19200bps Modem' from the available modem options in the window and click on 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 58 Select 'COM1' port in the window and click on 'Next' button. Click on 'Finish' button. Modem will be installed as shown below. Click on 'Properties' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 59 Select Maximum port speed, as '19200' and click OK. Setup for Sending FAX Click on Start Program  Symantec WinFax PRO  WinFax PRO Message Manager. Click Tools  Program Setup. Matrix SIMADO GFXD1111S V3 System Manual...
Page 60 Modems and Communication Devices window will appear as shown below. Select 'Standard 19200' bps Modem and tick the 'Active' check box of the selected modem and click on OK. Following message will appear on the screen. Click on 'Yes' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 61 Modem Configuration Wizard: Ready to Test window will appear on the screen. Click on 'Next' button. Modem Configuration Wizard: Testing modem window will appear. Again click on 'Next' button. Select 'Class 1 (Hardware Flow Control)' in the window that appears on the screen. Click on 'Next'. Matrix SIMADO GFXD1111S V3 System Manual...
Page 62 Now, select location for the standard modem and click OK. Modems and Communication Devices Properties window will appear on the screen. Select 'Standard 19200' Modem and click on active box for it. Click on 'Properties' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 63 Select 'COM1' in communication port, initialize at 19200 bps and Modem Type: Class 1.0. Click on 'FAX'. Enter Initializing string sequence: AT&C1&D2S7=55 and Reset=ATZ. Click on 'Apply' button and OK. Matrix SIMADO GFXD1111S V3 System Manual...
Page 64 Device as Standard 19200 bps Modem and check 'Active' Box as shown below. Click on 'Receive Setup' button. In 'Receive Properties', ensure that: When answering on = Standard 19200bps Modem, Answer after = 2 rings. Click on 'Apply' and OK. Matrix SIMADO GFXD1111S V3 System Manual...
Page 65 Sending and Receiving Fax To Send Fax: Open WinFax PRO Message Manager screen. Click on 'Send' To: Matrix (or Name), Number: Enter the number where fax is to be sent. Enter the text content of the Fax message on the 'Cover Page'. Click 'Send'.
Page 66 While sending the operation message is displayed as shown below: Following screen shown that sending is in progress: Matrix SIMADO GFXD1111S V3 System Manual...
Page 67 On successful transmitting, you can check the 'Send Log' as shown below: To Receive Fax: On receiving Fax, you can check the 'Receive Log' as shown: Matrix SIMADO GFXD1111S V3 System Manual...
Page 68 Relevant Topics: “System Parameters” “Mode of Operation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 69: Gprs (General Packet Radio Service)
This feature is not supported if CDMA Module is installed in the Mobile port. To surf the Internet using SIMADO GFXD1111S, it should be configured in SMS + Internet + Fax + Data mode. GPRS service for the SIM Card used in the system must be enabled by the Service Provider.
Page 70 Control Panel window will open up as shown below. Double click on the 'Phone and Modem Options' icon. 'Phone and Modem Options' window will open as shown below. Click on Add button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 71 'Add Hardware Wizard' window will open. Check 'Don't detect my modem; I will select from a list' option in the window. Click on 'Next' button. Select 'Standard 33600bps Modem' from the available modem options in the window and click on 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 72 Select 'COM1' port in the window and click on 'Next' button. Click on 'Finish' button. Phone and Modem Options window will appear on the screen as shown below. Select the installed modem and click on 'Properties' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 73 In Modem Properties window, click on 'Advanced' tab and enter 'Extra Initialization Commands' as given by the service provider. For example enter: AT+CGDCONT=1, "IP", "airtelgprs.com". Establish a GPRS Dial-Up Connection: Click on Start  Control Panel. Matrix SIMADO GFXD1111S V3 System Manual...
Page 74 Control Panel window will open up. Click on 'Network Connections' icon. New Connection Wizard will open up. Click 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 75 Select 'Connect to the Internet' option and click on 'Next' button. Select 'Set my connection manually' and click 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 76 Select 'Connect using a dial up modem' and click 'Next' button. Enter name of your ISP in 'ISP Name' field and click on 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 77 Enter phone number in 'Type phone number below' field and click 'Next' button. Select 'Anyone's Use' radio button and click 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 78 Enter User Name and Password in Username, Password and Confirm Password field respectively. Tick other two check boxes given on Internet Account Information page and click 'Next' button. Tick 'Add a shortcut to this connection to my desktop' check box and click on 'Finish' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 79 Connection process will be displayed as shown below. Once the connection is established, you can access the Internet through GPRS connection. For example access Matrix web site by entering: www.MatrixTeleSol.com in the URL of the web browser. Matrix SIMADO GFXD1111S V3 System Manual...
Page 80 Relevant Topics: “System Parameters” “Mode of Operation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 81: Hotline
Timer is the time period in seconds for which the system will wait before dialing out hotline destination number. Timer can be from 1 to 9 seconds. By default, hotline delay timer is set to 3 seconds. Relevant Topic: “Programming the System through FXS Port” Matrix SIMADO GFXD1111S V3 System Manual...
Page 82: International Mobile Equipment Identity (Imei)
Network will allow the GSM module to access the GSM network only if the IMEI code is registered in the white list of EIR. This number is useful in case SIMADO GFXD1111S is lost or stolen. When the GFXD1111S is lost or stolen, the network operator can block IMEI number of the GSM module installed in the system.
Page 83: Least Cost Routing
Least Cost Routing SIMADO GFXD1111S supports Least Cost Routing feature which enables the SE to program the system in such a way that the telephone costs are reduced tremendously. LCR table is the key telephone cost cutting factor. SE shall program LCR table such that the system chooses the cheapest path to route the outgoing calls.
Page 84 Use following command to program the service provider sequence for each time zone: 422-Time Zone Index-SP1-SP2-#* Where, Time Zone Index is from 01 to 10. SP1: SP1 is the cheapest service provider. SP2: SP2 is the costlier service provider. By default, Service Provider is SP1=1; SP2=2. Matrix SIMADO GFXD1111S V3 System Manual...
Page 85 Number Index is from 001 to 100. SP1: SP1 is the cheapest service provider. SP2: SP2 is the costlier service provider. By default, Service Provider is SP1=1; SP2=2. Use following command to default number wise LCR table: 433-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 86 442-Number Index-Number String-#* Where, Number index is from 001 to 100. Number string can be a telephone number, a truncated telephone number or an area code of maximum 16 digits. By default, Number String is blank. Matrix SIMADO GFXD1111S V3 System Manual...
Page 87 Use following table to print LCR table, time zone wise, number wise or mixed: 547-LCR Type-#* Where, LCR Type Meaning Time based LCR Number based LCR Mixed LCR Relevant Topics: “Port Parameters-FXO” “Port Parameters-Mobile” Matrix SIMADO GFXD1111S V3 System Manual...
Page 88 23:59 08 | 00:00 23:59 09 | 00:00 23:59 10 | 00:00 23:59 ------------------------------------------------------------------------------- ENABLED: NO ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 LCR-NUMBER BASED 01-01-2009(Thu) AT 18:06 ------------------------------------------------------------------------------- NUMBER ID NUMBER PREFERENCE ------------------------------------------------------------------------------- 0265 Matrix SIMADO GFXD1111S V3 System Manual...
Page 89 05 | 00:00 | 23:59 06 | 00:00 | 23:59 07 | 00:00 | 23:59 08 | 00:00 | 23:59 09 | 00:00 | 23:59 10 | 00:00 | 23:59 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:02 Matrix SIMADO GFXD1111S V3 System Manual...
Page 90: Location Information Indication
Location Information Indication Location Information Indication feature is used to display the location of installation of SIMADO GFXD1111S, when the location information display command is issued. This feature is service provider dependent and must be enabled by the service provider so as to use it. Network updates the current location information of the system, when the location of installation of the system is changed.
Page 91: Metering On Fxs Port
Metering on FXS Port Simado GFXD1111S supports billing facility in the form of 'Metering pulses' in case a billing equipment is connected to the FXS Port of the system to generate the accurate bills. For this purpose, the metering pulses of 12/16 KHz are generated by the system on the FXS Port.
Page 92: Mobile Network Selection
For example, Airtel, a GSM network operator in India, has different MNC assigned to its networks in various states. The MNC for Airtel in the state of Maharashtra is 90, while the same for the state of Gujarat is 98. Matrix SIMADO GFXD1111S V3 System Manual...
Page 93 By default, Mobile Frequency Band Selection for GSM will be '900 + 1800' and for CDMA it will be 'Any CDMA'. • Frequency Band selection not required if 3G module is installed in SIMADO GFXD1111S. • In 'Manual' mode, network is not selected as per the field strength but is selected as per the priority network codes.
Page 94: Mobile-Fxo Mode
GFXD1111S will not check Emergency Number Table even if the emergency number is programmed in 'Mobile Port-Destination Number' field. • Allowed Denied Number logic will not apply. • Automatic Number Translation (ANT) logic will not apply. Matrix SIMADO GFXD1111S V3 System Manual...
Page 95 Mobile Port and connect the speech path when called party answers the call. • If no number is programmed in Mobile Port-Destination Number field then GFXD1111S will not dial any number on Mobile Port and will wait till the caller disconnects the call. Matrix SIMADO GFXD1111S V3 System Manual...
Page 96 Maximum length of the number string is 16 digits. By default, the destination number is blank. Use following command to clear Mobile Port-Destination Number String: 162-#* Relevant Topics: “Programming the System through FXS Port” “Mode of Operation” “Port Parameters-FXO” “System Parameters” Matrix SIMADO GFXD1111S V3 System Manual...
Page 97: Mode Of Operation
SIMCOM-3G module does not support Baud Rate values 0 (Autobauding), 14400 bps and 28800 bps. Hence, if SIMCOM-3G module is installed in SIMADO GFXD1111S and user tries to set one of the above mentioned baud rate, system will give error tone to the user.
Page 98 Range of Baud Rate is 00 to 11. Baud Rate Meaning 0 (Autobauding) 1200 2400 4800 9600 14400 19200 28800 38400 57600 115200 By default, Baud Rate (SMS + Internet + FAX + Data) is set to '0 (Autobauding)'. Matrix SIMADO GFXD1111S V3 System Manual...
Page 99 Relevant Topics: “GPRS (General Packet Radio Service)” “SMS (Short Message Service)” “Getting Started” “Fax Services” “System Parameters” “System Report” “Mobile-FXO Mode” Matrix SIMADO GFXD1111S V3 System Manual...
Page 100: Multi-Stage Dialing
 the destination number. (Some service providers also prompt the caller to select the language before navigating further in the menu). This is lengthy and tiresome. Multi-Stage Dialing feature of SIMADO GFXD1111S relieve the user from this tiresome exercise. GFXD1111S can be programmed in such a way that the user has to dial the destination number only and the system takes care of the rest.
Page 101: How It Works
GFXD1111S gets the station number of the other PBX. • Also the FXO Ports of PBX to which GFXD1111S are connected should be programmed in DID/DISA mode. Matrix SIMADO GFXD1111S V3 System Manual...
Page 102 • After the pause timer, the system would dial 107920015656. Again it will wait for the pause timer and will dial out 00449652324256. • The call will be placed on the dialed destination number. Matrix SIMADO GFXD1111S V3 System Manual...
Page 103 Call Proceeding Tone for Mobile Port and FXO Port. Automatic Number Translation Table for Mobile Port: (Refer “Automatic Number Translation” feature for details) Automatic Number Translation Table for FXO Port: (Refer “Automatic Number Translation” feature for details) Matrix SIMADO GFXD1111S V3 System Manual...
Page 104 “System Parameters” feature for details) DTMF Out Dial Level: (Refer “System Parameters” feature for details) Call Proceeding Tone: (Refer “System Parameters” feature for details) Relevant Topics: “Automatic Number Translation” “Port Parameters-Mobile” “Port Parameters-FXO” “System Parameters” Matrix SIMADO GFXD1111S V3 System Manual...
Page 105: Pco Application
One of the most common applications of SIMADO GFXD1111S is to connect it with the PCO machine for routing the call through the cheapest route and provide the correct bill for the same to the caller. SIMADO GFXD1111S is connected to the PCO machine as shown in the figure given below:...
Page 106 FXS port is set to 12/16 KHz. In order to make the call through, first area code entry in the area code table is to be kept blank. Area code Entry column in database1 table is as shown below: Area Code Entry Pulse Rate Index Blank Matrix SIMADO GFXD1111S V3 System Manual...
Page 107 Program 012 code for area code 0124 as it have different pulse rate. After compressing the area codes as mentioned above, program the codes in Area Code Entry in the database as shown below: Area Code Entry Pulse Rate Index 0113 0012 Matrix SIMADO GFXD1111S V3 System Manual...
Page 108 Mapping Area Codes and the Pulse Rate Types: Use following command to program a pulse rate type for an area code: 532-Area Code Index-Pulse Rate Type-#* Where, Area Code Index is from 0001 to 1000. Matrix SIMADO GFXD1111S V3 System Manual...
Page 109 Use following command to program Concessional dates: 538-Index-Date-Month-#* Where, Index is from 01 to 16. Date is from 01 to 31. Month is from 01 to 12. By default, No Concessional dates are programmed. Matrix SIMADO GFXD1111S V3 System Manual...
Page 110 Use following command to delete all the entries from the pulse rate table: 516-00-#* Mapping Area Codes and the Pulse Rate Types: Use following command to program a pulse rate type for an area code: 512-Area Code Index-Pulse Rate Type-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 111 22:00 09:00 Use following command to assign default concessional timings: 517-#* Concessional Dates: Use following command to program Concessional dates: 518-Index-Date-Month-#* Where, Index is from 01 to 16. Date is from 01 to 31. Matrix SIMADO GFXD1111S V3 System Manual...
Page 112 Use following command to invoke ZModem to download data through COM Port: (Refer “Programming the System through COM Port” to invoke ZModem to download data through COM port.) Relevant Topics: “Metering on FXS Port” “Least Cost Routing” “Port Parameters-Mobile” “Port Parameters-FXO” “Port Parameters-FXS” “Allowed-Denied Numbers” Matrix SIMADO GFXD1111S V3 System Manual...
Page 113 0001 022 01 | ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 FXO AREA CODE 01-01-2009(Thu) AT 18:21 ------------------------------------------------------------------------------- CODE PRT| CODE PRT| CODE PRT| CODE ------------------------------------------------------------------------------- 0001 0265 01 | ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 114 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 MOB PULSE RATE TYPE 01-01-2009(Thu) AT 18:21 ------------------------------------------------------------------------------- PULSE RATE TYPE | NORMAL PULSE RATE | CONCESSIONAL PULSE RATE ------------------------------------------------------------------------------- 180.00 002.50 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 115 FXO CONCESSIONAL TIME ZONE 01-01-2009(Thu) AT 18:22 ------------------------------------------------------------------------------- | CONCESSIONAL START TIME | CONCESSIONAL END TIME ------------------------------------------------------------------------------- 00:00 23:59 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 116 MOB CONCESSIONAL TIME ZONE 01-01-2009(Thu) AT 18:22 ------------------------------------------------------------------------------- | CONCESSIONAL START TIME | CONCESSIONAL END TIME ------------------------------------------------------------------------------- 00:00 23:59 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 22:00 09:00 ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R20 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 117: Port Parameters-Fxo
Calling Line Identification and Presentation on FXO: SIMADO GFXD1111S has the ability to detect the calling party number when the call originates on its FXO Port. Different types of signaling are used by different exchanges of different countries for sending the calling party number to the FXO Port.
Page 118 By default, it is 4 seconds. DTMF Out Dial ON Time: (Refer “System Parameters” feature for details) Inter Digit Pause Time: (Refer “System Parameters” feature for details) DTMF Out Dial Level: (Refer “System Parameters” feature for details) Matrix SIMADO GFXD1111S V3 System Manual...
Page 119 It is recommended to set the same answer signaling on FXO Port as supported by the CO (PSTN) network else the system might fail to detect the correct signaling on the FXO Port resulting in inaccurate billing etc. Matrix SIMADO GFXD1111S V3 System Manual...
Page 120 When the called party disconnects the call, the PSTN sends a tone after some time to the calling party. On detecting this tone, the system releases the FXO Port. This tone is called 'Disconnection Tone'. Matrix SIMADO GFXD1111S V3 System Manual...
Page 121 Use the following command for checking the FXO port line status i.e whether line is connected or not: 323-Flag-#* Where, Flag Meaning Do not check the line status Check line status By default, it is 0 for India and 1 for Italy. Relevant Topics: “Port Parameters-Mobile” “Automatic Number Translation” “System Parameters” Matrix SIMADO GFXD1111S V3 System Manual...
Page 122: Port Parameters-Fxs
Port Parameters-FXS SE should program various FXS port parameters for smooth and proper functioning of SIMADO GFXD1111S. All these parameters are described below: Call Forward: Call Forward feature enables the user to forward his calls to another destination number when he is unable to attend the calls at his extension.
Page 123 Calling Line Identification and Presentation on FXS: SIMADO GFXD1111S has capability to detect and present the calling party number on the LCD display of the telephone instrument connected to its FXS Port. This is called Calling Line Identification and Presentation.
Page 124 If '#' is not programmed as End of Dialing Digit then it can be dialed in the number string for calling GSM/ CDMA number, along with other digits. Use following command to use # as end of dialing digit: 110-Code-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 125 Reversal on the FXS port. In Polarity Reversal, battery polarity of FXS port is reversed. For example, suppose the battery polarity of the FXS port is negative for TIP and positive for RING in speech condition. Matrix SIMADO GFXD1111S V3 System Manual...
Page 126 Open Loop Disconnect timer is from 001 to 999 ms. By default, it is 500 ms. When call is disconnected, the user will get error tone. Relevant Topics: “Mobile-FXO Mode” “Programming the System through FXS Port” “System Parameters” Matrix SIMADO GFXD1111S V3 System Manual...
Page 127: Port Parameters-Mobile
Enable/Disable CLIR on the Mobile Port: SIMADO GFXD1111S supports the facility of the GSM/CDMA network by which the user can keep his identity secret from the remote party when he makes a call. This is known as Calling Line Identification Restriction. This feature enables user to make anonymous calls.
Page 128: Receive Gain
By default, the notification of incoming SMS is disabled. Enable/Disable Location Information Indication: SE should enable Location information indication feature to display the location of SIMADO GFXD1111S on the LCD of conventional phone. This feature is service provider dependent and must be enabled by the service provider to use it.
Page 129 Baud Rate (SMS + Internet + FAX + Data): (Refer “Mode of Operation” for details) Relevant Topics: “Automatic Number Translation” “Location Information Indication” “Multi-Stage Dialing” “Mobile Network Selection” “Port Parameters-FXS” “SMS (Short Message Service)” Matrix SIMADO GFXD1111S V3 System Manual...
Page 130: Port Released Timer
256-Port Release Timer-#* Where, Port Release Timer is in minutes from 000 to 255 minutes. '000' is programmed to disable the Port Release Timer. By default, it is 255 minutes. Relevant Topics: “Port Parameters-FXO” “Port Parameters-FXS” Matrix SIMADO GFXD1111S V3 System Manual...
Page 131: Programming The System Through Com Port
Programming the System through COM Port SIMADO GFXD1111S allows the user to program the system through communication port. To Program the system through Communication Port: • Program the SIMADO GFXD1111S in 'Report Generation' mode using command 231-3-#*. • Prepare a text file (*.txt) containing programming commands in note pad.
Page 132 In the 'COM1 Properties' Window, make the following entries: Bits per seconds = 9600, Data bits = 8, Parity = None, Stop bits = 1 and Flow control = None. Click on OK button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 133 Click on 'Transfer' tab and in the dropdown menu click on Send File option. In response window named 'Send File' opens. Choose the file to be transferred. Ensure that the protocol selected is 'Zmodem'. Matrix SIMADO GFXD1111S V3 System Manual...
Page 134 After the selection of file don't click on 'Send' button. Instead give command 510-#* by phone to invoke Zmodem in the SIMADO GFXD1111S. The system responds with the strings as shown in the figure below. Click 'Send' button before the last i.e. the 20th string is displayed. Else, you will have to issue command 510-#* again.
Page 135 • 544-Print Concessional dates. • 545-Print Allowed/Denied List. • 546-Print Mobile/FXO number translation table report. • 547-Print LCR Table. • 610-View the Last Call Duration. • 620-Set Call Forward. Relevant Topic: “Mode of Operation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 136: Programming The System Through Fxs Port
(Passwords)” feature. • If SIMADO GFXD1111S is set to Mobile-FXO mode and both Mobile Port and FXO port are busy, then no dial tone is available at the FXS port for programming the system. • System will play error tone and will get out of the programming mode, if an incoming call arrives on the FXS port of the system while it is in the programming mode.
Page 137 It plays confirmation tone when a valid command is entered and will play error tone if an invalid command is entered or an inappropriate action is performed. Relevant Topics: “System Security (Passwords)” “Call Progress Tones” “Mobile-FXO Mode” “Allowed-Denied Numbers” “Automatic Number Translation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 138: Programming The System Through Mobile Port
• Prepare a text file (*.txt) containing programming commands in notepad. • Get data services enabled for the SIM Card used in the SIMADO GFXD1111S to be programmed from the Service Provider. • Ensure that the SIMADO GFXD1111S to be programmed is in 'Speech + SMS mode' (Mode 1).
Page 139 Control Panel window will open up as shown below. Double click on the 'Phone and Modem Options' icon. 'Phone and Modem Options' window will open as shown below. Click on Add button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 140 'Add Hardware Wizard' window will open. Check 'Don't detect my modem; I will select from a list' option in the window. Click on 'Next' button. Select 'Standard 9600bps Modem' from the available modem options in the window and click on 'Next' button. Matrix SIMADO GFXD1111S V3 System Manual...
Page 141 Select 'COM1' port in the window and click on 'Next' button. Click on 'Finish' button. Modem will be installed as shown below: Matrix SIMADO GFXD1111S V3 System Manual...
Page 142 Create a connection type Click on Start  Programs  Accessories  Communications  HyperTerminal. New Connection window will appear. Enter name for the connection in 'Name' field as shown below and then click OK. Matrix SIMADO GFXD1111S V3 System Manual...
Page 143 In the "Connect To" window, enter the destination number (Data Service Number of the SIM card used in the SIMADO GFXD1111S to be programmed) and select the modem that is installed for connection. Click Click File  Properties. GFXD1111 Properties window will open. Select modem in 'Connect Using' field.
Page 144 When the connection is established, the login window shown below appears. The status bar of the window displays 'Connected'. Establishing the Connection Enter valid Login code and Press Enter. The computer asks for password. Enter valid password. Matrix SIMADO GFXD1111S V3 System Manual...
Page 145 The computer responds with success. The user should transfer the file (within 10 sec.) immediately on receipt of the string 'Success' else he will have to establish call again. Transferring the File (Containing programming commands) Click Transfer  Send File. Matrix SIMADO GFXD1111S V3 System Manual...
Page 146 Once the data transfer is over the connection can be disconnected and re-established if and when required. How to program? Login Code and Login Password are used to invoke the Z-Modem in the SIMADO GFXD1111S while programming the system through Mobile Port. The Login Code and the Login Password protect the system from unauthorized alterations.
Page 147 • 544-Print Concessional dates. • 545-Print Allowed/Denied List • 546-Print GSM/FXO number translation table report. • 547-Print LCR Table. • 610-View the Last Call Duration. • 620-Set Call Forward. Relevant Topic: “Mode of Operation” Matrix SIMADO GFXD1111S V3 System Manual...
Page 148: Programming The System Using Sms
SMS are executed. • If during SMS configuration, system is required to be defaulted or restarted than the remaining SMS which are not executed will be executed once the system is restarted or defaulted. Matrix SIMADO GFXD1111S V3 System Manual...
Page 149 For SMS Based Configuration, maximum length of SMS allowed is 160 characters. Each such SMS should start with #*19-SE Password (command to enter programming mode) and end with 00#* (command for exiting programming mode). Matrix SIMADO GFXD1111S V3 System Manual...
Page 150: Reinstate The Default Settings
GFXD1111S will restart as soon as command to load the default configuration is issued. • Ensure that SIMADO GFXD1111S is set to Speech + SMS mode, when command to restore the default configuration is issued else the system will not be defaulted.
Page 151: Restart The System
Restart the System Sometimes it becomes necessary for the SE/User to restart SIMADO GFXD1111S. Many a times it is difficult to walk down to the system and restart it. GFXD1111S gives facility to the SE/User to issue a command in SE mode to restart the system from its extension without physically walking down to the system.
Page 152: Ring Type
Ring Type SIMADO GFXD1111S gives flexibility to the SE to match the frequency and cadences of the rings supported by the system to that of the country standard. GFXD1111S has inbuilt ring cadences of various countries that enables the SE to match the ring type of the system to that supported by the exchange of the country in which it is installed.
Page 153: Sms (Short Message Service)
SIMADO GFXD1111S supports Short Messaging Services (SMS) feature. You can send and receive SMS using GFXD1111S. SMS received on SIMADO GFXD1111S can be read on a computer as well as on the LCD of the telephone instrument. The receipt of new message is indicated in the form of a signal on both the computer and the telephone instrument.
Page 154 In response to the above command, message will be displayed on the screen as shown below. Entering (editing) the messages to be sent: To enter/edit messages to be sent using a computer, SIMADO GFXD1111S should be configured in SMS+Internet+FAX+Data mode.
Page 155 'OK' button. • COM1 Properties window will appear on the screen. Select following values: Bits Per Second= 9600, Data Bits = 8, Stop Bit = 1 and Flow Control = None. Matrix SIMADO GFXD1111S V3 System Manual...
Page 156 'AT+CSCA?' command to check whether the SMS service center number is set to SIM card and press Enter. • To display incoming message on the hyper terminal window immediately, enter command 'AT+CNMI=2,2,0,0,0 and press Enter. Relevant Topics: “Mode of Operation” “Port Parameters-FXS” “Port Parameters-Mobile” Matrix SIMADO GFXD1111S V3 System Manual...
Page 157: Signal Strength
If DTMF CLI is set on the FXS Port of GFXD1111S, only the numbers will be displayed as follow: 111111111111 The numbers indicate the strength of the network. Outgoing calls should be made only when the available network strength is high or maximum. Relevant Topic: “Port Parameters-FXS” Matrix SIMADO GFXD1111S V3 System Manual...
Page 158: Sim Balance And Recharge
SIM Balance and Recharge SIMADO GFXD1111S facilitates the user to check balance of the pre-paid SIM and recharge the same, if required. This feature depends on the network as well as the services of the Service Provider. It will work only when either of the following modules are installed in the system: •...
Page 159 Use following command for a Recharge request for a Mobile Port: 355 - #* • SIMADO GFXD1111S will execute command to recharge a Mobile Port only if the Mobile Port is enabled, registered and idle. • Recharging response will be displayed on the FXS Port only if CLI type is programmed as FSK.
Page 160: Sim Pin
New SIM PIN can be of minimum 4 digits and maximum 8 digits. Valid digits for SIM PIN are 0 to 9. By default, it is 1234. Use following command to register Personal Unlock Key: 114-PUK Number-SIM PIN-#* Where, Matrix SIMADO GFXD1111S V3 System Manual...
Page 161 PUK number is unique 8 digit number assigned to the SIM card. SIM PIN is old/(default) four to eight digit PIN number of SIM card. Relevant Topic: “Getting Started” Matrix SIMADO GFXD1111S V3 System Manual...
Page 162: Software Version And Revision Display
If software version is 03 and software revision is 02 the display would be as under: 0302 V03R02 Since DTMF CLI supports only numerals, if CLI type set on the FXS port is DTMF, the format of display would be as under: 0302 Relevant Topic: “Port Parameters-FXS” Matrix SIMADO GFXD1111S V3 System Manual...
Page 163: System Parameters
System Parameters In SIMADO GFXD1111S, certain global parameters are to be configured which are related to the entire system. These parameters are called System Parameters. SIMADO GFXD1111S supports following System Parameters: • Configuration Type • First Digit Wait Timer •...
Page 164 Inter Digit Pause Time signifies the time gap between dialing of two digits when DTMF digits are outdialed by the system on the FXO/Mobile Port. Use following command for programming Inter Digit Pause Time for Mobile/FXO Port: 242-Code-#* Where, Code Inter Digit Pause Time (ms) Matrix SIMADO GFXD1111S V3 System Manual...
Page 165 Due to this silence, user might think that the call is disconnected and might hang up. To avoid this silence received from the network while processing a call, Call Proceeding Tone feature is used. SIMADO GFXD1111S support following two Call Proceeding Tones: Network tone and Silence. •...
Page 166 Outgoing call routed from FXO Port But SIMADO GFXD1111S has a limitation that it can handle only one call on FXS Port at a time. Thus, when FXS Port is busy with Mobile Port, it cannot entertain call received on FXO Port. Similarly, when FXS Port is busy with FXO Port, it cannot entertain call received on Mobile Port.
Page 167 Relevant Topics: “Least Cost Routing” “Mobile-FXO Mode” “Mode of Operation” “Multi-Stage Dialing” “Port Parameters-FXO” “Port Parameters-Mobile” “PCO Application” Matrix SIMADO GFXD1111S V3 System Manual...
Page 168: System Report
System Report SIMADO GFXD1111S supports generation of system reports. It facilitates the SE to verify the programming done by him and troubleshoot the problem, if any. The system should be configured in 'Report Generation' mode at the time of generating reports. (Refer “Mode of Operation”...
Page 169 :DIAL & CONNECT (08) MOB FXO MODE:FXO DEST. NUMBER (09) PCO APPLICATION STATUS :DISABLED (10) CALL PROGRESS TONE :NETWORK TONE (11) MODIFIED ROUTING :DISABLED (12) SMS BASED CONFIGURATION :ENABLED (13) SMS+INT+FAX+DATA MODE-BAUD RATE :0 (Autobauding) Matrix SIMADO GFXD1111S V3 System Manual...
Page 170 (62) FXO DISCONNECT TONE DET STATUS :ENABLED (63) FXO DISCONNECT TONE DET ON TIMER :0750 mS (64) FXO DISCONNECT TONE DET OFF TIMER :0750 mS (65) FXO Line Check Status :Disabled ------------------------------------------------------------------------------- MATRIX SIMADO GFXD1111 V3R23 PAGE:01 Matrix SIMADO GFXD1111S V3 System Manual...
Page 171: System Security (Passwords)
System Security (Passwords) SIMADO GFXD1111S is a flexible system and programming in it is secured at two levels: System Engineer Level (SE) and System Administrator Level (SA). SE level is protected by SE password and SA level is protected by SA password.
Page 172 Matrix SIMADO GFXD1111S V3 System Manual...
Page 173: Appendix
Private Branch Exchange Public Call Office Personal Identification Number PSTN Public Switched Telephone Network Ring Back Tone Real Time Clock RUIM Re-Usable Identification Module System Administrator System Engineer Subscriber Identification Module Short Messaging Services Matrix SIMADO GFXD1111S V3 System Manual...
Page 174: Faqs
ANS: Yes. You can connect SIMADO GFXD1111S with your existing EPABX. When connected with FXO port of EPABX, it enables you to make calls from the extensions of EPABX, directly to GSM network which bypass the PSTN exchange and results in significant saving in call costs.
Page 175: Features At Glance
To know the IMEI code #*-13 To enter into SA mode #*-18-SA Password To enter into SE mode #*-19-SE Password To exit SE/SA mode 00-#* Reading SMS using telephone instrument #*-21-Index Deleting SMS using telephone instrument #*-22-Index Matrix SIMADO GFXD1111S V3 System Manual...
Page 176: Product Specifications
Pulse Dialing : 10PPS +/- 5%, Make/Break=33:67 DTMF Dialing and Reception : ITU-T Q.23 and Q.24 Return Loss : >18dB Longitudinal balance : >50dB CLI Reception : DTMF, FSK ITU-T V.23 and FSK Bellcore 202 Matrix SIMADO GFXD1111S V3 System Manual...
Page 177: Led Indications
Request To Send (RTS) Clear To Send (CTS) LED Indications: LED Indications : Power Supply, Network, SIM, FXS, FXO Power Supply: Power Supply : 12VDC, 1.25 Amp. Power Consumption: Power Consumption : 5W (Typical) Matrix SIMADO GFXD1111S V3 System Manual...
Page 178: Environmental Conditions
: IEC 61000-4-5 Conducted RF Immunity : IEC 61000-4-6 Power Frequency Magnetic Field : IEC 61000-4-8 Voltage Dips and Interruption : IEC 61000-4-11 Conducted Emission : FCC part15 Radiated Electromagnetic Field : FCC part15 Matrix SIMADO GFXD1111S V3 System Manual...
Page 179: System Commands
To clear all Destination Numbers 118-*-#* Call Duration Display To view the duration type of the last call 610-Call Type-#* To clear duration timer for all types 610-0-#* Call Divert To set call divert 620-Option-Flag-Destination Number-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 180 To program number index for mixed LCR 442-Number Index-Number String-#* To program SP sequence for number and time zone 443-Number Index-TZ Index-SP1-SP2-#* To set default mixed LCR table 444-#* To print LCR for number wise, TZ wise/mixed 547-LCR Type-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 181 537-Index-Concessional Start Time- To program concessional timing for the day Concessional End Time-#* To assign default concessional timings 537-#* To program concessional dates 538-Index-Date-Month-#* To delete particular concessional date 539-Index-#* To delete all concessional dates 539-00-#** Matrix SIMADO GFXD1111S V3 System Manual...
Page 182 To clear the digit programmed 301-#* To use # as end of dialing 110-Code-#* To program answer signaling to be generated on FXS port 221-Answer Signaling-#* To program disconnect signal to be generated on FXS Port 248-Disconnect Signal-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 183 To clear Balance Inquiry number for a Mobile port 351- #* To make a Balance Inquiry 352- #* To program Recharge Number for a Mobile port 353-Recharge Number- #* To clear Recharge Number for a Mobile port 353-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 184 246-Call Proceeding Tone-#* To enable/disable Modified Routing 111-Code-#* System Report To print the configuration report 540-#* System Security (Passwords) To change the SE password 107-New SE Password-#* To change the SA password 108-New SA Password-#* Matrix SIMADO GFXD1111S V3 System Manual...
Page 185: Warranty Statement
Matrix has been advised of the possibility of such damages or losses or for any claim by any other party.
Page 186 This warranty is not transferable and applies only to the original consumer purchaser of the Product. Warranty shall be void if the warranty card is not completed and registered with Matrix within 30 days of installation. All legal course of action subjected to Vadodara (Gujarat, India) Jurisdiction only.
Page 187: Regulatory Information
Regulatory Information Matrix SIMADO GFXD1111S V3 System Manual...
Page 188 Matrix SIMADO GFXD1111S V3 System Manual...
Page 189 Matrix SIMADO GFXD1111S V3 System Manual...
Page 190 Matrix SIMADO GFXD1111S V3 System Manual...
Page 191: Index
AC Mains Socket 6 Acronyms 167 Allowed-Denied Numbers 19 Getting Started 2 Antenna Connecter 6 GPRS Applications of SIMADO GFXD1111S 8 Establish a GPRS Dial-Up Connection Installing Modem Automatic Number Translation 23 Sending/Receiving GPRS Data Call Divert 29 Hotline 75...
Page 192 Network and System Engineer (SE) 1 Switching ON SIMADO GFXD1111S Note 2 At Power ON (During Reset Sequence) During Normal Functioning Overview of SIMADO GFXD1111S 5 System Administrator (SA) 1, 3 System Commands 173 PCO Application 99 System Engineers (SE) 3...
Page 194 MATRIX COMSEC PVT. LTD. Corporate Office: 394-GIDC, Makarpura, Vadodara - 390010, India. Tel.:+91 265 2630555, Fax: +91 265 2636598 E-mail: Info@MatrixComSec.com Factory: 39-GIDC, Waghodia - 391760, Dist. Vadodara, India. Tel.: +91 2668 262056/57 Technical Support: Tel.: +91 2668 263172/73, Fax: +91 2668 262631 E-mail: Support@MatrixComSec.com...
