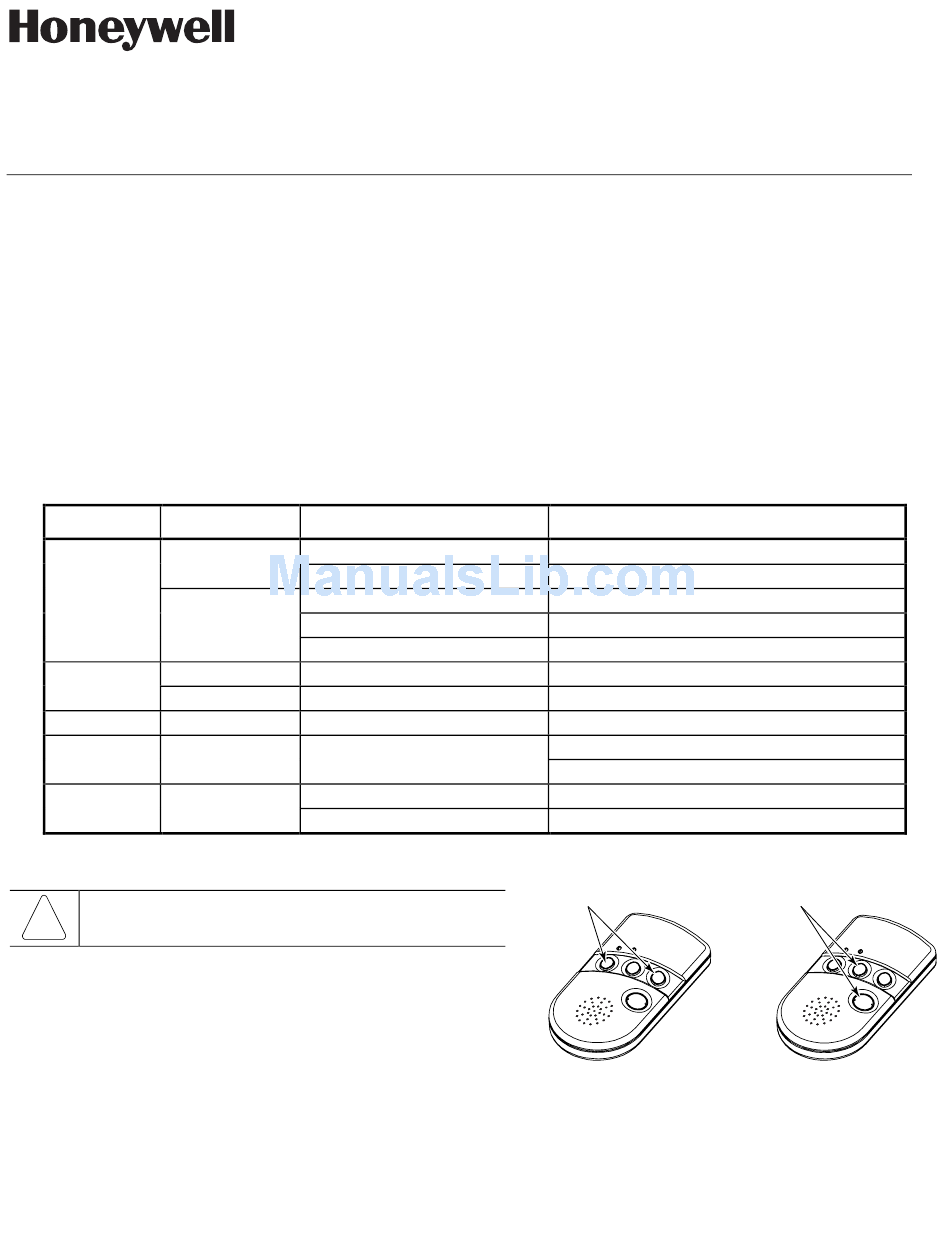

About the 5804BDV
The 5804BDV is a four-button remote control for your alarm system. It can send a command to the alarm system, such as to arm or disarm, as well as
receive system status. Two LEDs and a speaker indicate system status. The 5804BDV is typically used for arming, disarming, and home automation.
Check with your installer to understand which functions the buttons have been assigned on your unit.
Operating the Buttons
Activating a Function
To activate a function, press and hold the appropriate button down until the yellow LED flashes, and then release it.
Requesting System Status
You can check system status before arming or disarming your system.
Check your system status by momentarily pressing and releasing any button. The yellow LED will flash after you release the button. After a second or
two, the 5804BDV will display the system status through the LEDs and speaker (see the System Status Indications Table, below). If the 5804BDV does
not receive system status from the panel for approximately 5 seconds, it will shut itself down. It will also shut itself down if you do not press a button
within 5 seconds of receiving a status update.
LED LED Condition
Red On Steady
Flashing
Green On Steady
Flashing
Yellow (right) Flashing
Red & Green Alternately
Flashing
NA NA
Multiple Button Operations
WARNING! The 5804BDV should not be used for silent

panic operation.
The 5804BDV can generate the same responses as keypad panic key pairs
of [*] + [#] and [*] + [1] by depressing "A" + "C" and "B" + "D" button pairs,
respectively. You must depress the button pair for at least 2 seconds for the
5804BDV to recognize the button pair command. These button pairs allow
you to activate panic, fire, and medical alarms depending on control panel
programming.
Adjusting the Volume Level
To enter the Volume Level mode, press and hold down the A, B, and D buttons at the same time until the unit's red and green LEDs flash alternately. If
no button is pressed within 5 seconds, the unit will automatically shut down and no change to the volume level is made. Press the A button for low
volume level, the B button for mid volume level, and the C button for maximum volume level. You will hear the word "Alarm" at the selected volume. Then
press the D button to accept the selected sound level. Note that volume level affects the life of the battery. Use low volume for maximum battery life.

Low Battery Indication

When the unit goes into a Low Battery condition, the yellow LED will not flash when a button is pressed. Change both batteries immediately.
TWO-WAY WIRELESS KEY with VOICE STATUS

USER GUIDE

System Status Indications Table
Speech
System Armed Away
System Armed Stay
Fire Fire Zone (Faulted Zone)
Alarm Alarm Zone (Faulted Zone)
Alarm Alarm Zone (Faulted Zone)
System Disarmed Ready To Arm
System Disarmed Not Ready To Arm
—
—
System AC Loss
Low Battery
ADEMCO 5804BDV
System Status
Armed Away or Maximum
Armed Stay or Instant
Fire Alarm in progress
Armed, Burglary Alarm in progress
Alarm Memory
Disarmed, Ready to Arm
System Not Ready, Zones Faulted
Indicates RF transmission
In Enter House ID Mode
In Set Volume Level Mode
AC Loss Condition
Low Battery Condition
A + C Button Pair
