KitchenAid KUIS155HPB0 Parts List

Ice cube maker
Hide thumbs Also See for KUIS155HPB0:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

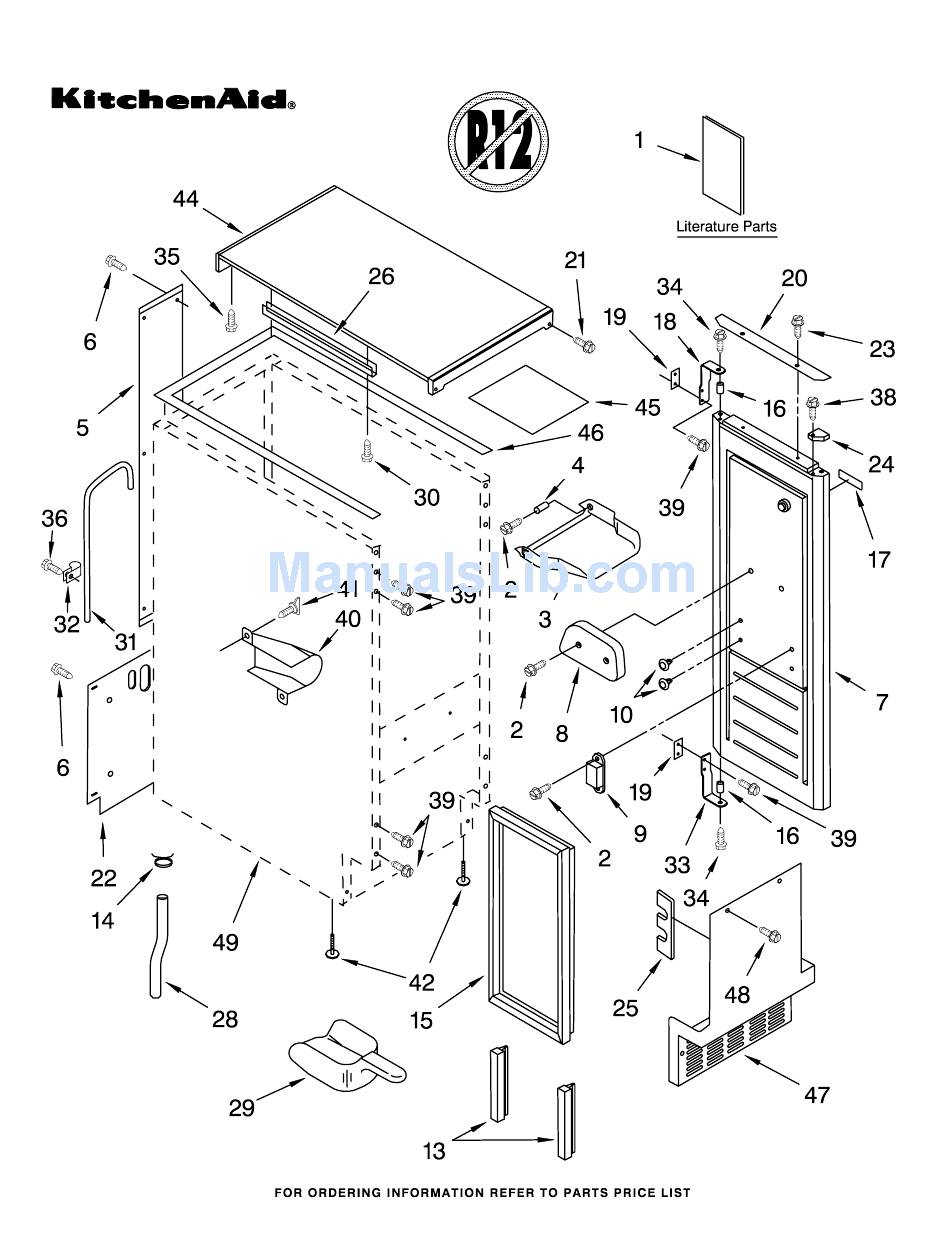

CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: KUIS155HPW0, KUIS155HPB0
(WHITE−PUMP MODEL) (BLACK−PUMP MODEL)
4−01 Litho In U.S.A. (cre)
Part No. 4398491 Rev.C
1

Advertisement

loading

Related Manuals for KitchenAid KUIS155HPB0

Summary of Contents for KitchenAid KUIS155HPB0

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 4−01 Litho In U.S.A. (cre) Part No. 4398491 Rev.C...
  • Page 2 2208492W White 2208492B Black Screw 8−18 X 1/2 8281137 Front (2) 3400887 Rear (2) 2185730 Assembly, Unit Cover 8281137 Screw, Handle For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION Filler, Endcap Left Side 2185655W White 2185655B Black...
  • Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2185669 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208328 Evaporator 627018 Nut, Compression 841707 Insert, Tube...

  • Page 5: Pump Parts

    4388318 Wiring Harness 2185751 Bracket, Pump 3400883 Screw 8−32 X 1/2 2185750 Sleeve 3400909 Nut, Push−In 2185677 Cover, Pump 2185585 Bracket, Connector Assembly 2185754 Impeller, Pump 2185749 Cap, Pump 4398491 PUMP PARTS For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL)

  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) Overlay 2208317W White 2185947 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness...

  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) 4398491...
  • Page 8 UNIT PARTS For Models: KUIS155HPW0, KUIS155HPB0 (WHITE−PUMP MODEL) (BLACK−PUMP MODEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2183437 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2...

This manual is also suitable for:

Kuis155hpw0
