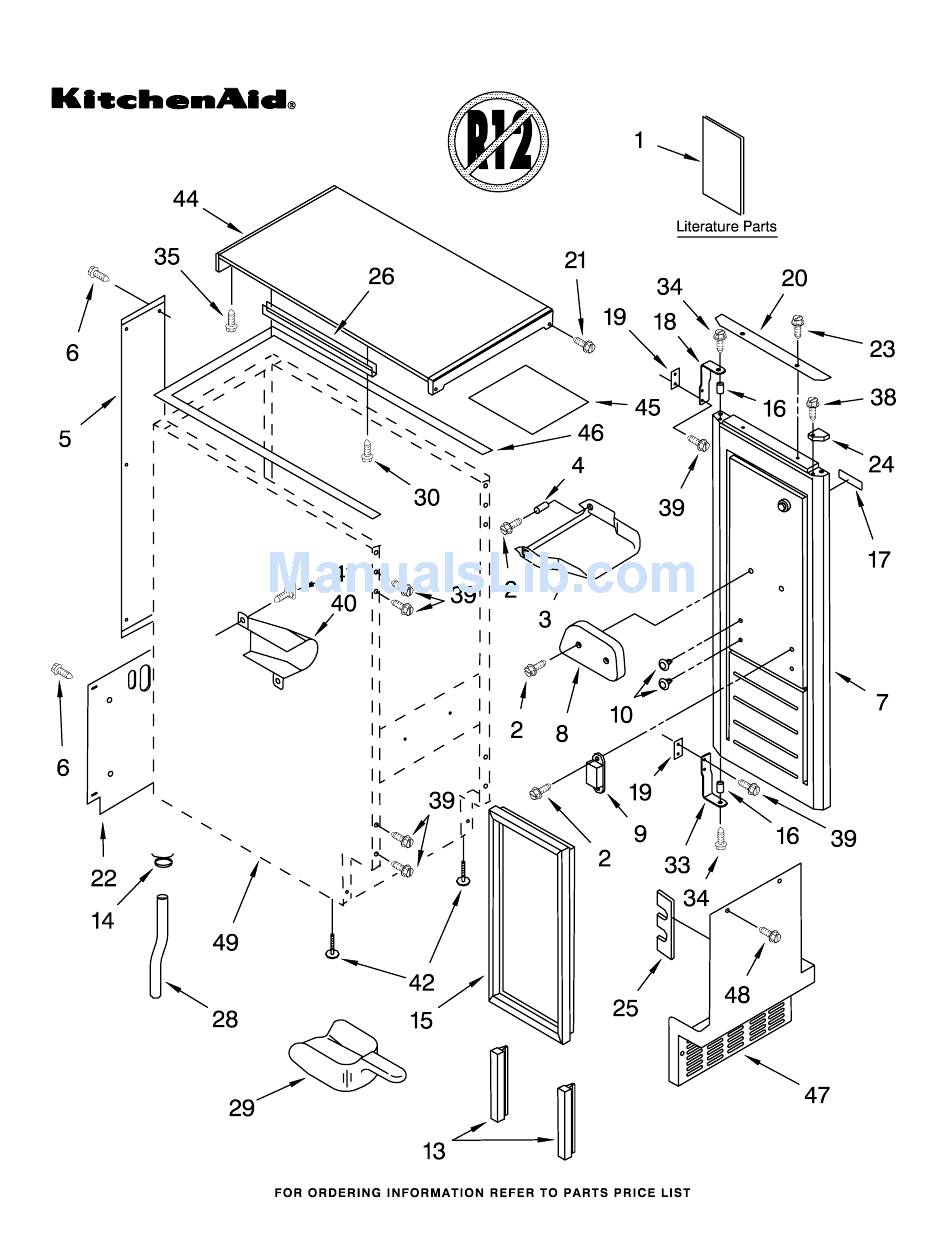

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 5−00 Litho In U.S.A. (cre) Part No. 4398474 Rev.A...
- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 Illus. Part DESCRIPTION Literature Parts LIT2185993 Use & Care Guide LIT2185734 Service & Wiring Sheet 3400886 Screw 8−18 X 1 1/4 2185742 Bin, Door 2185678 Spacer 2185575 Cover, Wiring...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 4398474...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2185669 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 2208328 Evaporator 627018 Nut, Compression...
- Page 5 For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 Illus. Part DESCRIPTION 2185531 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 3400885 Screw 8−16 x 1/2 2185752 Housing, Motor 2185753 Blade, Fan 2185748 Motor, Pump 4388318 Wiring Harness 2185751 Bracket, Pump 3400883 Screw 8−32 X 1/2 2185750 Sleeve 3400909 Nut, Push−In...
-
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch 4 2208317W Overlay 2185947 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 4398474... - Page 8 UNIT PARTS For Models: KUIS155HWH1, KUIS155HBT1, KUIS155HBL1, KUIS155HBS1 (WHITE) (BISCUIT) Illus. Part 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2183437 Motor, Fan 304392 Screw 8−18 X 1/2 2176659 Compressor A201435 Clip, Mounting A201441 Shim (8) 2185960 Clamp (Power Cord)
