KitchenAid KUIC18NNTS0 Parts List

Ice cube maker (stainless steel)
Hide thumbs

Advertisement

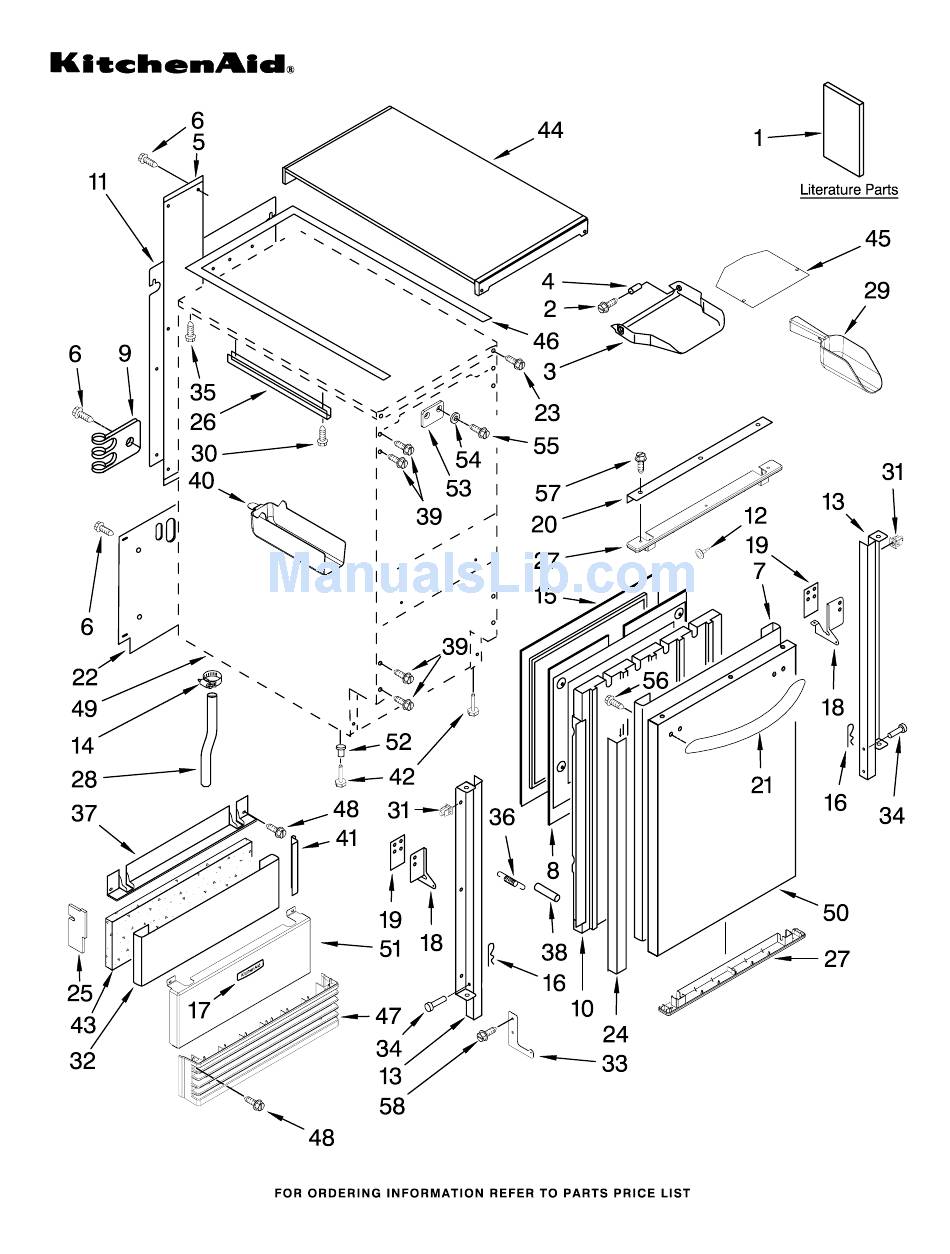

CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: KUIC18NNTS0
(Stainless Steel)
Part No. W10128500 Rev.A
5−09 Litho In U.S.A. (rrm) (eeb)
1

Advertisement

loading

  Also See for KitchenAid KUIC18NNTS0

  Related Manuals for KitchenAid KUIC18NNTS0

  Summary of Contents for KitchenAid KUIC18NNTS0

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIC18NNTS0 (Stainless Steel) Part No. W10128500 Rev.A 5−09 Litho In U.S.A. (rrm) (eeb)
  • Page 2 2217227 Ballast−Back, I.M. 941839 Hole Plug Bracket, Door 2217466 (Left Side) 2217465 (Right Side) 489503 Clamp 2217295 Gasket, Door 2208535 Clip 17 W10046610 Nameplate For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION Hinge 2208425 (Left Side) 2208426 (Right Side) 2208401 Shim, Hinge...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC18NNTS0 (Stainless Steel) W10128500...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION 2313741 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water W10218037 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump 2172593 Tube, Water Fill...
  • Page 5: Pump Parts

    W10128500 PUMP PARTS For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Motor 2324307 Clip−Retainer (3) 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly...
  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS Illus. Part DESCRIPTION 2185738 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 2313693 Overlay For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION 2321774 Control Board 2149705 Switch, Plunger Grid/ Light 745362 Bulb 2313633 Thermostat, Bin Illus.
  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIC18NNTS0 (Stainless Steel) W10128500...
  • Page 8 Illus. 11,18, 20,21 & 23) A201435 Clip, Mounting A201441 Shim (4) 1115375 Clip−Wiring Grommet (4) 2217318 Production 4387558 Service UNIT PARTS For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION 2208415 Tube, Process 489423 Screw 489472 Screw 759112 Coil, Solenoid 2313806 Hot Gas Valve...
  • Page 9 OPTIONAL PARTS (NOT INCLUDED) W10128500 For Models: KUIC18NNTS0 (Stainless Steel) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs. 3/16" x 7") 479976 Kit, Insulation (5 Pcs.
