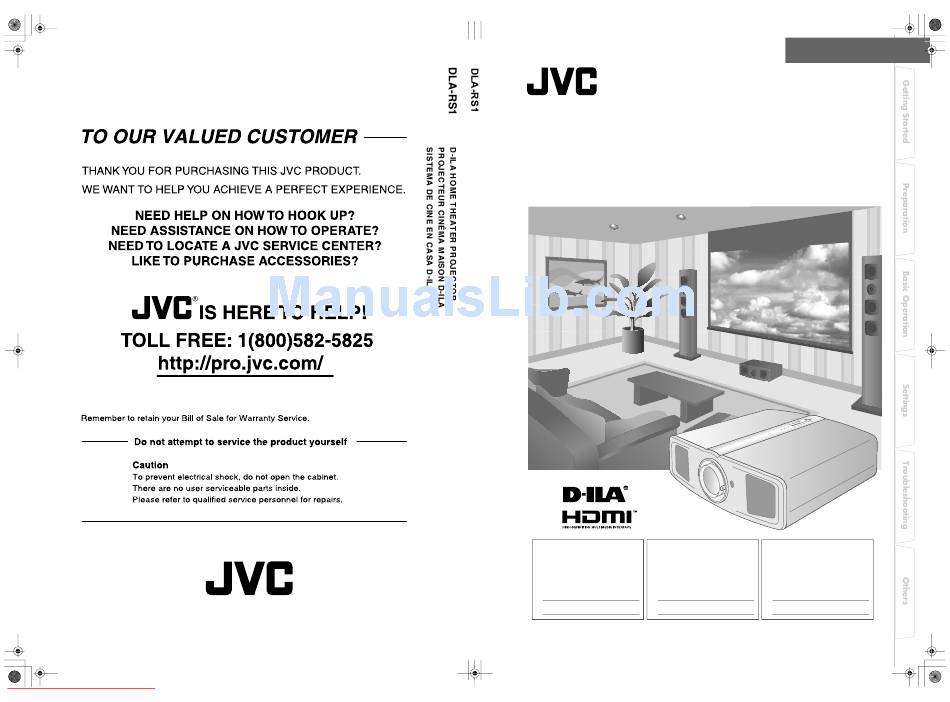

DLA-RS1_MainCover426x297.fm Page 1 Monday, January 22, 2007 12:01 PM
FOR SERVICING (Only in U.S.A.)
© 2007 Victor Company of Japan, Limited
Downloaded From projector-manual.com JVC Manuals

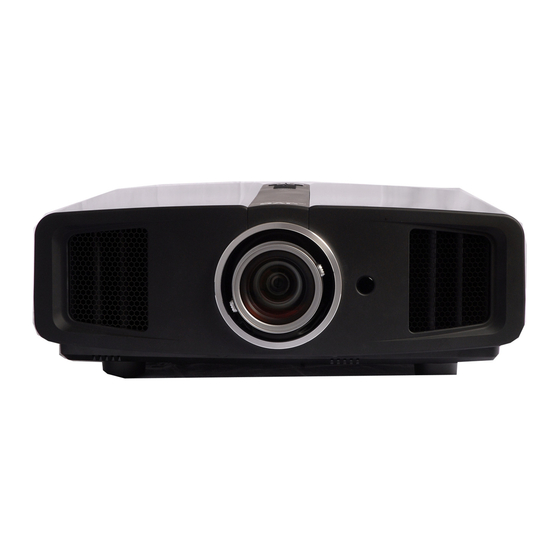

D-ILA HOME THEATER PROJECTOR
PROJECTEUR CINÉMA MAISON D-ILA
SISTEMA DE CINE EN CASA D-ILA
DLA-RS1
For Customer use :
Enter below the serial No. which is
located on the bottom side of the
cabinet. Retain this information for
future reference.
Model No. DLA-RS1
Serial No.
Printed in Japan
0107TTH-SW-VP
ENGLISH FRANÇAIS ESPAÑOL
INSTRUCTIONS
MANUEL D'INSTRUCTIONS
MANUAL DE INSTRUCCIONES
Pour utilisation par le client :
Instrucción para el cliente :
Entrer ci-dessous le N° de série qui
Introduzca a continuación el nº de
est situé sous le boîtier. Garder
serie que aparece en la parte
cette information comme référence
inferior lateral de la caja. Conserve
pour le futur.
esta información como referencia
para uso ulterior.
N° de modèle DLA-RS1
Modelo Nº DLA-RS1
N° de série
Nº de serie
LCT2253-001A

Advertisement

Table of Contents
loading

Related Manuals for JVC DLA-RS1

Summary of Contents for JVC DLA-RS1

  • Page 1 Conserve future reference. pour le futur. esta información como referencia para uso ulterior. Model No. DLA-RS1 N° de modèle DLA-RS1 Modelo Nº DLA-RS1 Serial No. N° de série Nº de serie Printed in Japan © 2007 Victor Company of Japan, Limited...

  • Page 2: Getting Started

    CAUTION: temperature, as this causes condensation, which may Changes or modification not approved by JVC could result in fire, electric shock, or other hazards. void the user’s authority to operate the equipment.
  • Page 3 - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Downloaded From projector-manual.com JVC Manuals...

  • Page 4: Power Connection

    The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black. The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red. Downloaded From projector-manual.com JVC Manuals...
  • Page 5 DLA-RS1_EN.book Page 5 Wednesday, January 24, 2007 9:23 AM ENGLISH Downloaded From projector-manual.com JVC Manuals...

  • Page 6: Main Features

    DLA-RS1_EN.book Page 6 Wednesday, January 24, 2007 9:23 AM Main Features Supports Multiple Digital Devices Comes with a dual HDMI terminal that allows digital transmission of high definition signals. (pP14) Downloaded From projector-manual.com JVC Manuals...
  • Page 7 Enjoy smooth and high resolution video images with no visible grid, brought about by full high definition resolution of 1920 c 1080 pixels. (pP20) Perfect for Any Location Comes with an 80 % vertical and 34 % horizontal lens shift function. (pP18) Downloaded From projector-manual.com JVC Manuals...

  • Page 8: Table Of Contents

    Setting the Screen Size...........22 Masking the Surrounding Area of an Image ....22 Settings Setting Menu .............24 Procedures for Menu Operation ........24 Setting Menu..............25 Customizing Projected Images......32 Changing the Default Image Profile Values ......32 Registering User-defined Image Profiles......33 Downloaded From projector-manual.com JVC Manuals...

  • Page 9: How To Read This Manual/Accessories/Optional Accessories

    AAA size Batteries (for operation confirmation) Instruction manual, warranty card and other printed material are also included. Optional Accessories Please check with your authorized dealer for details. Replacement Lamp: BHL5009-S (Lamp Unit) Replacement Filter: LC32058-002A (Inner Filter) Downloaded From projector-manual.com JVC Manuals...

  • Page 10: Controls And Features

    Do not throw away the buffer material, retain for future use. (pP46) Front Side/Left Side Remote Sensor (pP13) Air inlets Lamp Cover (pP38) Lens Cap Exhaust Vent Rear Side/Top Surface Remote Sensor (pP13) To connect the power cord (pP20) Downloaded From projector-manual.com JVC Manuals...
  • Page 11 To display the menu (pP24) To select or confirm Feet: The height (0 - 5 mm) can be adjusted by turning the foot. Bottom Surface Air Inlets/Filter (pP41) To adjust the position of the image (pP19) Downloaded From projector-manual.com JVC Manuals...
  • Page 12 To display information To hide the image temporarily (pP21) To return to the previous menu To display the menu (pP24) To illuminate buttons on the remote control To display test patterns To select or confirm Downloaded From projector-manual.com JVC Manuals...

  • Page 13: How To Use The Remote Control

    7 m. As the efficiency of signals reflected from the remote control unit differ with the type of screen used, operable distance may This unit decrease. Screen Remote Control Downloaded From projector-manual.com JVC Manuals...

  • Page 14: Preparation

    DVD Recorder DVD Player To connect via HDMI terminal (pP16) To connect RS-232C terminal (for servicing) To connect via component video terminals (pP16) To connect via video terminal (pP15) To connect via S-video terminal (pP15) Camcorder Downloaded From projector-manual.com JVC Manuals...

  • Page 15: Connecting

    Connecting via Video Cable This unit VCR and camcorder Video cable (sold separately) Video output To video input terminal Connecting via S-video Cable This unit VCR and camcorder S-video cable (sold separately) S-video output To S-video input terminal Downloaded From projector-manual.com JVC Manuals...

  • Page 16: Connecting Via Hdmi Cable Or Hdmi-Dvi Conversion Cable

    This unit DVD player Component video output terminals (Red) Component video cable (sold separately) (Blue) To component video input terminals Y (Green) Set ACOMPB in the setting menu to AY Pb/Cb Pr/CrB. (pP27 - P) Downloaded From projector-manual.com JVC Manuals...

  • Page 17: Connecting Via Scart-Rca Cable

    RGB video cable (sold separately) B (Blue) To RGB video input terminals G (Green) (Includes sync signal) Set ACOMPB in the setting menu to ARGBB. (pP27 - P) For information on compatible input signals, see ASpecificationsB. (pP48) Downloaded From projector-manual.com JVC Manuals...

  • Page 18: Installing The Projector And Screen

    Approximately 80 % (maximum) of the projected image (Turn the dial to the left for maximum) Approximately 80 % (maximum) of the projected image (Turn the dial to the right for maximum) Shifting range of projected image Downloaded From projector-manual.com JVC Manuals...

  • Page 19: Screen Size And Projection Distance

    3.93 m 7.93 m The projection distances in the table are provided only as a guide. Use them as a reference during installation. To adjust the installation, use a projected image of aspect ratio 16:9. Downloaded From projector-manual.com JVC Manuals...

  • Page 20: Basic Operation

    You can also select the input mode by pressing the [INPUT] button on the unit. (pP11) Play back the selected device Adjust the position of the projection screen See AInstalling the Projector and ScreenB for procedures on adjusting the position. (pP18) Downloaded From projector-manual.com JVC Manuals...

  • Page 21: Adjust The Focus

    You can also press the [STANDBY/ON] button on the unit to turn off the malfunction. power. (pP11) Put back the lens cap after use to prevent the lens from dirt. Pull out the power plug when the unit will not be used for a prolonged time. Downloaded From projector-manual.com JVC Manuals...

  • Page 22: Convenient Features During Projection

    Images for which quality at the outer area has deteriorated can be projected by masking (hiding) the surrounding area of the projected image. Project the image iImage for which quality at the outer area has deteriorated. Downloaded From projector-manual.com JVC Manuals...
  • Page 23 Set a mask value Image Setup Video Install. Func. Info. ASELECT Image Profile 2.5% Profile Memory Picture Position HDMI Input Level BCONFIRM Mask Example: When the AMaskB value is changed from AOffB g A5%B To end Downloaded From projector-manual.com JVC Manuals...

  • Page 24: Settings

    HDMI 16:9 Aspect Zoom Film Mode BCONFIRM Color System Black Level Set to “16:9” Image Setup Video Install. Func. Info. ASELECT COMP HDMI 16:9 Aspect Zoom Film Mode BCONFIRM Color System Black Level To end Downloaded From projector-manual.com JVC Manuals...

  • Page 25: Setting Menu

    (Less green) b255 f 0 (More green) Blue (Less blue) b255 f 0 (More blue) * The red, green and blue colors can be adjusted and registered respectively. This setting can also be configured from the remote control. (pP12) Downloaded From projector-manual.com JVC Manuals...
  • Page 26 Select this to view images with clear quality in a bright room. User1 Selects image profile registered in AUser1B. User2 Selects image profile registered in AUser2B. User3 Selects image profile registered in AUser3B. This setting can also be configured from the remote control. (pP12) Downloaded From projector-manual.com JVC Manuals...
  • Page 27 Select this when RGB video signals are input. Select this when RGB video signals and sync signals are input from SCART plug for SCART European market. This setting is available only when projecting the component video input. Downloaded From projector-manual.com JVC Manuals...
  • Page 28 Select this when the dark portions of an image appears washed out with the 0 % setting. This setting can only be adjusted when NTSC signals are input to the video or S-video input terminal. Downloaded From projector-manual.com JVC Manuals...
  • Page 29 Do not flip image to the left or right. Install.>Flip V Flip V Select this when the projector is hung from the ceiling. Flips image up or down. Do not flip image up or down. Downloaded From projector-manual.com JVC Manuals...
  • Page 30 The setting cannot be changed within approximately 90 seconds after this unit has been turned on. Settings cannot be changed within approximately 60 seconds after they are made. Func.>Test Pattern Test Pattern Displays 6 types of test patterns. This can also be displayed from the remote control. (pP12) Downloaded From projector-manual.com JVC Manuals...
  • Page 31 Displays the currently selected video input. Source Displays the types of the current input video signals. Lamp Time Displays the accumulated hours of usage of the light-source lamp. This can also be displayed from the remote control. (pP12) Downloaded From projector-manual.com JVC Manuals...

  • Page 32: Customizing Projected Images

    AGammaB can also be adjusted from the remote control. (pP12) Other items can also be adjusted To end To return to the default values, reset the registered settings with AProfile MemoryB in the setting menu. (pP27 - L) Downloaded From projector-manual.com JVC Manuals...

  • Page 33: Registering User-Defined Image Profiles

    Reset Dynamic HDMI Input Level Clear User1 BCONFIRM Mask Clear User2 Clear User3 To end To return to the default values, reset the registered settings with AProfile MemoryB in the setting menu. (pP27 - L) Downloaded From projector-manual.com JVC Manuals...

  • Page 34: Troubleshooting

    Is the video image temporarily hidden? Press the [HIDE] button to display the video image again. pP21 Color does not appear or looks strange Is the image correctly adjusted? Adjust AColorB and ATintB in the setting menu. pP25 - Downloaded From projector-manual.com JVC Manuals...
  • Page 35 Hold the remote control closer to the sensor when using. pP13 from the unit? Power is cut off suddenly Has setting been performed for sleep Set the ASleep TimerB in the setting menu to AOffB. pP30 - time? Downloaded From projector-manual.com JVC Manuals...

  • Page 36: What To Do When These Messages Are Displayed

    The message is displayed when the accumulated lamp time has exceeded 2000 hours. The message is displayed each time during projection. Lamp replacement To clear the message, press the [EXIT] button. Warning EXIT gReplace with a new lamp unit and reset the lamp time. (pP38f40) Downloaded From projector-manual.com JVC Manuals...

  • Page 37: About Warning Indicators

    After that, turn on the power again. If the warning indication is displayed again, wait for the cooling fan to stop. Then pull out the power plug from the power outlet. Call your authorized dealer for repair. Downloaded From projector-manual.com JVC Manuals...

  • Page 38: Replacing The Lamp

    If the image is dark or the color tone is abnormal, replace the lamp unit as soon as possible. Purchasing the Lamp Unit Please consult your authorized dealer. Lamp Unit Part No. : BHL5009-S Handle Downloaded From projector-manual.com JVC Manuals...
  • Page 39 Follow your local community rules for disposal. Attach the lamp cover Insert the top part (with 2 claws) of the lamp cover into the unit. Fasten the screws with a + screwdriver. Claws Downloaded From projector-manual.com JVC Manuals...

  • Page 40: Resetting Lamp Time

    Reset the lamp time only when you have replaced the lamp. Never reset it when the lamp is still in use. Otherwise, the approximate standard for gauging replacement time may be inaccurate and lamp blowout may occur. Downloaded From projector-manual.com JVC Manuals...

  • Page 41: Cleaning And Replacing The Filter

    Do not clean the filter with a vacuum cleaner or air duster. The filter is soft and may be damaged. Reinstall the inner filter Check that the left and right claws are locked onto the unit Downloaded From projector-manual.com JVC Manuals...

  • Page 42: Others

    Reference command This unit Response command This unit This unit (When the command is accepted without error, it returns to PC) Unit ID This code specifies the unit. The binary code is fixed at A8901B. Downloaded From projector-manual.com JVC Manuals...
  • Page 43 32: During Cool Down mode 34: Warning mode During power on 30: S-VIDEO 31: VIDEO 4950 Input 32: COMP. 36: HDMI 1 37: HDMI 2 This code indicates the end of communication. The binary code is fixed at A0AB. Downloaded From projector-manual.com JVC Manuals...
  • Page 44 37 33 37 43 CINEMA 37 33 36 39 COLOR (b) 37 33 37 44 NATURAL 37 33 36 41 SHARP (a) 37 33 37 45 DYNAMIC 37 33 36 42 SHARP (b) 37 33 37 46 Downloaded From projector-manual.com JVC Manuals...

  • Page 45: Rs-232C Communication Examples

    This unit: 3F 89 01 49 50 0A When information on S-VIDEO input is Input (S-VIDEO) This unit PC: 06 89 01 49 50 0A acquired This unit PC: 40 89 01 49 50 30 0A Downloaded From projector-manual.com JVC Manuals...

  • Page 46: Copyright And Caution

    This unit contains parts (optical part, cooling fan, etc.) that require replacement to maintain its functioning. The estimated time for parts replacement varies greatly depending on the usage and environment. Please consult your authorized dealer for replacement. Downloaded From projector-manual.com JVC Manuals...

  • Page 47: Mounting This Unit

    Precautions for Mounting Special expertise and techniques are required for Regardless whether the unit is still under guarantee, JVC mounting this unit. Be sure to ask your dealer or a is not liable for any product damage caused by mounting specialist to perform mounting.

  • Page 48: Specifications

    Design and specifications are subject to change without prior notice. • Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension. Images may differ from the actual product. Downloaded From projector-manual.com JVC Manuals...

  • Page 49: Dimensions

    DLA-RS1_EN.book Page 49 Wednesday, January 24, 2007 9:23 AM ENGLISH Dimensions (Unit: mm) Top Surface Bottom Surface Front Left Side Center of Lens Downloaded From projector-manual.com JVC Manuals...
  • Page 50 DLA-RS1_EN.book Page 50 Wednesday, January 24, 2007 9:23 AM Others Memo Downloaded From projector-manual.com JVC Manuals...

Table of Contents
