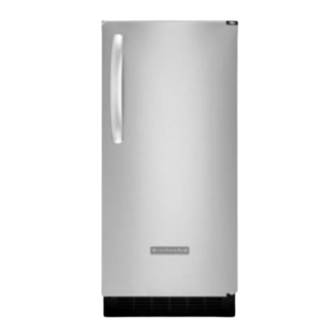

KitchenAid KUIC15NLTS2 Parts List

Ice cube maker (stainless steel)
Hide thumbs

Advertisement

CABINET LINER AND DOOR PARTS
ICE CUBE
For Model: KUIC15NLTS2
MAKER
(Stainless Steel)
5−09 Litho In U.S.A. (rrm)(mek)(bay)
Part No. W10237275 Rev.A
1

Advertisement

loading

  Also See for KitchenAid KUIC15NLTS2

  Related Manuals for KitchenAid KUIC15NLTS2

  Summary of Contents for KitchenAid KUIC15NLTS2

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Model: KUIC15NLTS2 MAKER (Stainless Steel) 5−09 Litho In U.S.A. (rrm)(mek)(bay) Part No. W10237275 Rev.A...
  • Page 2 2217393 Assembly, Magnetic Catch 941839 Plug, Hole 2208136 Clamp 2313816 Wrap, Door 2217367 Gasket, Bottom 489503 Clamp 2217294 Gasket, Door For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION 2185640 Sleeve, Hinge 17 W10046610 Nameplate 2185710 Hinge, Top 2185709 Shim, Hinge...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Model: KUIC15NLTS2 (Stainless Steel) W10237275...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION 1 W10217917 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 5 W10218037 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump 2172593 Tube, Water Fill...
  • Page 5: Pump Parts

    W10237275 PUMP PARTS For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly...
  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION 2185738 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 2313693 Overlay 5 W10141364 Control Board 2149705 Switch, Plunger Grid/Light 2187585 Wire Assy−Active Overlay Jumper 745362 Bulb 2313633 Thermostat, Bin...
  • Page 7: Unit Parts

    UNIT PARTS For Model: KUIC15NLTS2 (Stainless Steel) W10237275...
  • Page 8 UNIT PARTS For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2315558 Motor & Mounting Plate Assembly 5 W10209470 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 7 W10136195 Compressor (Includes Illus.
  • Page 9 OPTIONAL PARTS (NOT INCLUDED) W10237275 For Model: KUIC15NLTS2 (Stainless Steel) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.
