Summary of Contents for KitchenAid KCDB250S0

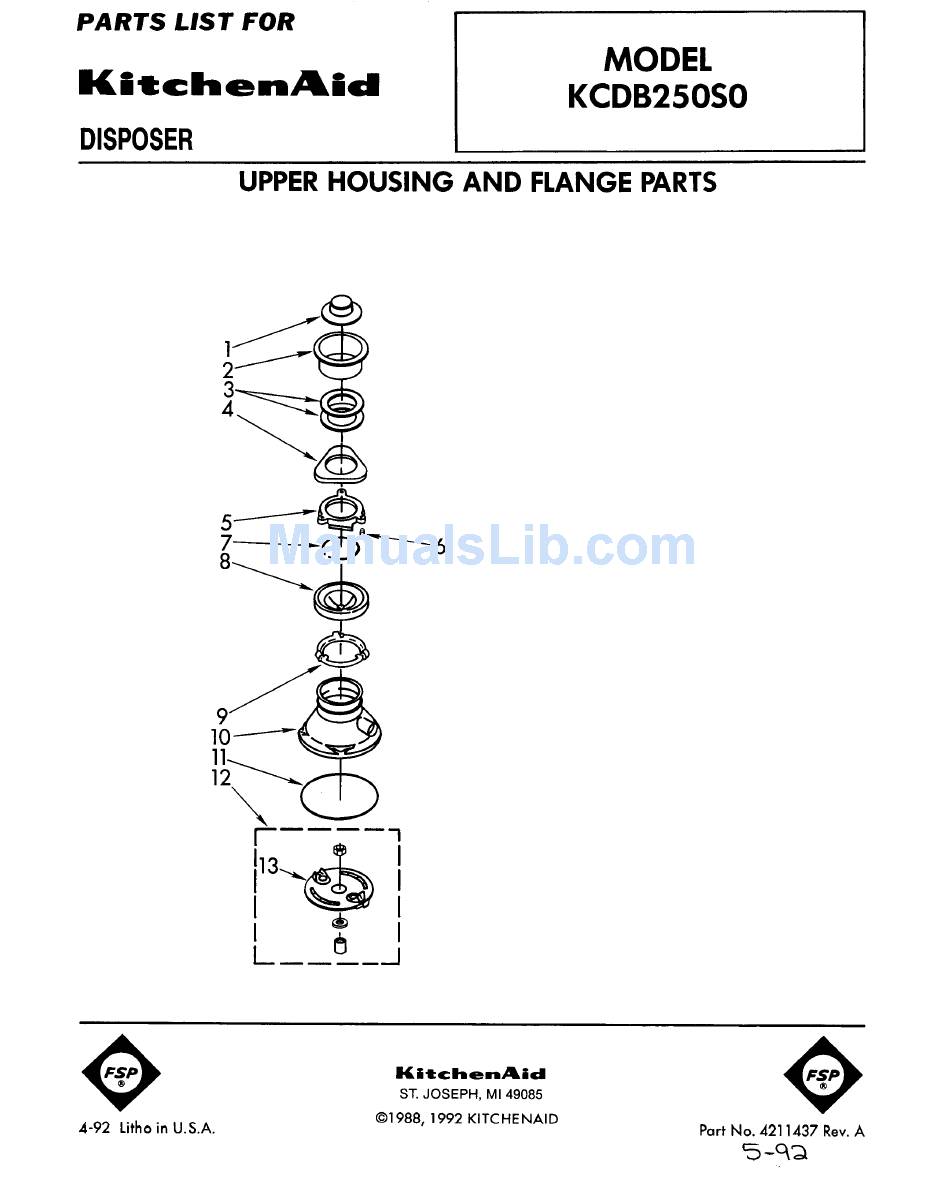

- Page 2 4211300 Stopper Assembly 4211301 Flange, Strainer 4211302 Seal, Sink Flange (2) 4211303 Flange, Backup 4211304 Flange, Mounting 4211305 Screw, Backup (3) 4211306 Ring, Retaining 4211307 Gasket, Mounting 4211308 Flange, Body 4211309 Container, Body Assembly 4211310 O-Ring 4211311 Kit, Sleeve And Seal (Includes Nut, Slinger & Sleeve) 4211312 Shredder Assembly, Rotating...
- Page 4 4211313 End Bell Assembly, Upper 4211314 Seal, Water & Oil 4211315 Washer, Thrust 4211320 Rotor & Shaft Assembly 4211321 Washer 4211322 Actuator Assembly, Centrifugal 4211323 Stator Assembly 4211324 Switch Assembly, Start 4211325 Protector, Overload 4211327 End Frame Assembly, Lower 4211331 Bolt, Thru (4) 4211316 Gasket, Tailpipe...
