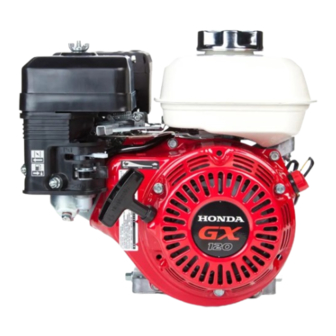

Honda GX120 Quick Reference Manual
Hide thumbs
Also See for GX120:
- Owner's manual (65 pages) ,
- Tech manual (21 pages) ,
- Assembly information (1 page)
Advertisement
Quick Links
Starting the Engine
C heck t he fu e l a nd e ng i ne oi l l eve l before st ar t ing t he e ngine .
(single cylinder GX models)
Turn the fuel valve lever
to the ON position.
Move the choke lever
to the CLOSED position.
Move the throttle control lever
slightly to the left.
Engine
Turn the engine switch
to the ON position.
Pull the starter grip lightly
until you feel resistance,
and then pull briskly.
Gradually move the choke lever
to the OPEN position as the engine
warms up.
Advertisement
Related Manuals for Honda GX120
Summary of Contents for Honda GX120
- Page 1 Starting the Engine (single cylinder GX models) Engine C heck t he fu e l a nd e ng i ne oi l l eve l before st ar t ing t he e ngine . Turn the fuel valve lever Turn the engine switch to the ON position.
- Page 2 How to stop How to start Switch ON Check engine oil Choke ON/OFF Fill the oil to the upper limit. Fuel cock ON Throttle lever Start Choke off 2nd step 2nd step 1st step 1st step ©Honda Motor Co., Ltd.2012 S2Z0T100...
- Page 3 Fuel filtration cup clean Idle speed check readjust Take the engine to Valve Clearance a Honda servicing dealer. check readjust Combustion chamber Every 500Hours Fuel tank and filter clean Fuel tube Every 2years Clean the aircleaner when used in dusty areas every 10hours or once a day...
