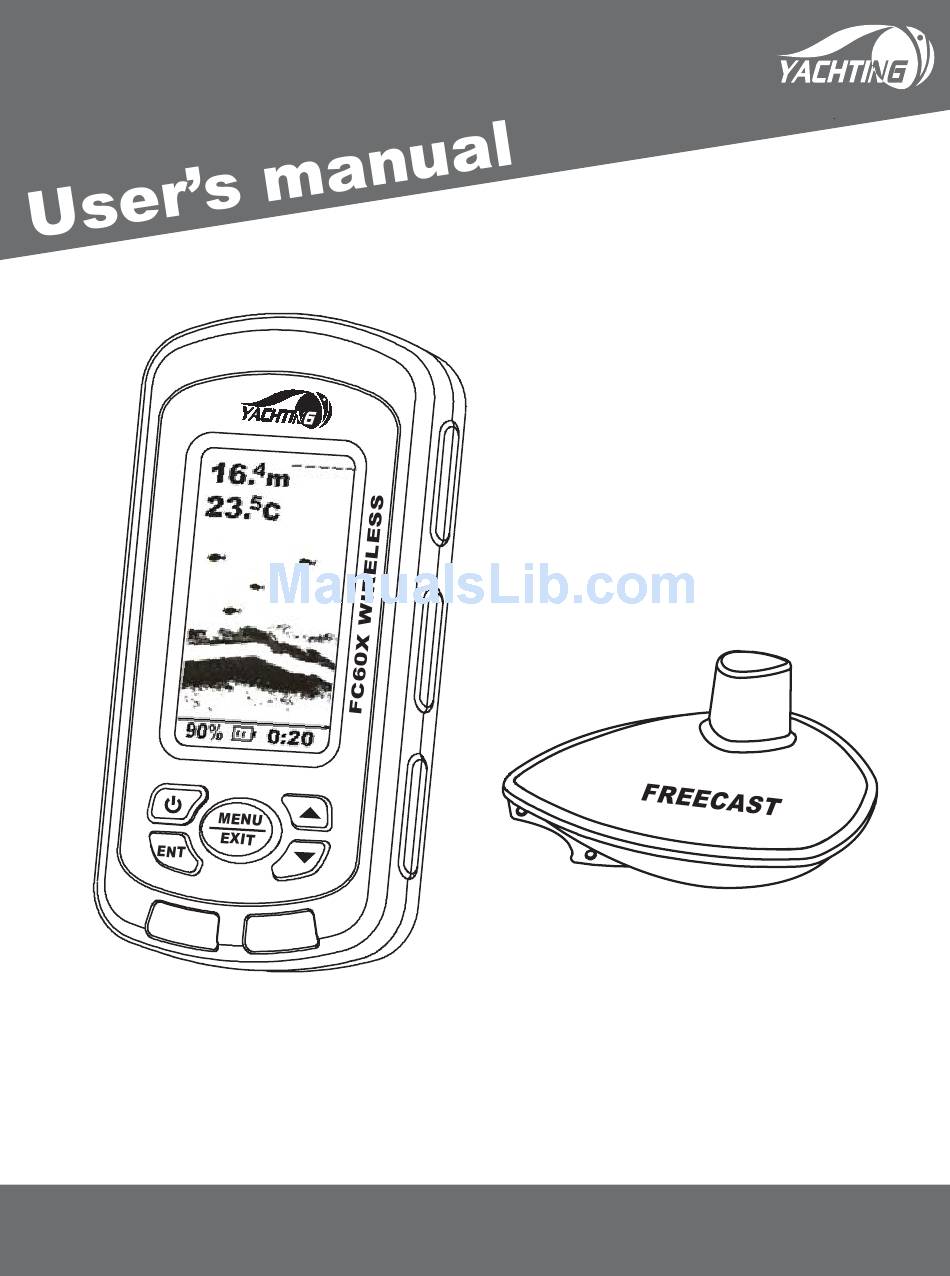

- Page 1 FC60X Wireless Fishfinder www.goyachting.cn...
- Page 2 FC60X is designed to facilitate fishing on the bank, along the seashore,and on-board in a variety of water areas. We offer one year charge-free main-tenance against any damages induced by non-human factors;...
- Page 3 Warning: Warning: Children under six may not use the sensor without an adult’s watch. Warning: Warning: Although FC60X is designed waterproof, it is strongly warned not immerge it into in water, whcih may cause damage of inner electronic part.
- Page 4 Installing the battery Installing the battery Warning: Warning: do not split the battery cover with strength in the vertical directiion! To take off the battery cover, put and slide it with some strenth 1. Turn the screw anti-clockwise with a screw driver. Then slide the Battery Door towards the bottom of the unit and remove it from the main housing.
- Page 5 Attach the sensor to the fishing thread’s extreme and throw them into water as you do with float and lure. After switching on the main unit’s power,you are ready to fish. With sonar technologies employed, the FC60X sensor transmits ultrasonic waves to water, and the...
- Page 6 To pick up the sensor working in water, take hold of the antenna post at the sensor’s top. Warning Warning: FC60X is designed to work durably in normal service. However, in water areas where there are significant water level fluctuations, the sensor may be subject to...
- Page 7 Operational modes FC60X features two operational modes: 1) Sonar Graphic Mode FC60X renders real-time conditions at the sea bottom with sonar graphic. Cast the sensor into water, drag it slowly and at stable speed, and you can view accurate information displayed on the screen, including sea bottom contour, structure, depth, fish location, size, etc.
- Page 8 1. Power 1. Power supply supply The FC60X sensor is provided with a separate, built-in, and irremovable lithium battery that has a continuous service time of 550 hours in normal operation. When the battery’s service life ends and becomes out of service, it should be handled in a way compliant with local provisions regarding discarding used batteries and relevant electronic products.
- Page 9 1) When the sensor is casted into water, with the three pins touching water, the sensor begin working. 2) When the sensor is droped out from water, after wiping off the remained water on pin surface, the sensor stop working automatically. Three pins for electronic switch Warning: Warning: do not place your Freecast sensor in a wet area...
- Page 10 Note: Note: store it in a dry, nonmetal container! A toolbox, for example, may be used for storage and placed in a separate room far away from any metal equipment. Note: Note: Rinse its surface with fresh water after the sensor has worked in salt water for some time.
- Page 11 U U sing the Freecast sensor sing the Freecast sensor The two holes at the FC60X front end is for tying fishing thread. If you desire to use it in the Stationary float Mode, bind the fishing hook with light threads to the second hole.
- Page 12 Handle the sensor by the antenna post when trying to draw it out from the water Use a thread tied to the first hole, tackled to be rotatable Use the second hole in the Stationary float Mode, bind the fishing hook with light threads to the second hole.
- Page 13 Operational Panel Basic Operational Panel Basic (1) Transducer plug (8) Sensitivity Reading For NAKI8850B model (9) Battery Strength (2) Depth Reading (10) Power Key (3) Water surface line (11) Ent Key (4) Temperature Reading (12) Menu and Exit Key (5) Fish Icon (13) Down Arrow Key.
- Page 14 Display Display 1. Understand 1. Understanding th ing the display e display Water surface Depth reading line Temperature reading Sonar information scroll from right to Fish icon left Bottom Sensitivity Depth range Battery strength (1) Depth reading: indicate water depth (2) Temperature reading: indicate atmosphere temperature (3) Sensitivity: the curren sensitivity setting (4) Water surface line: display the position of water surface...
- Page 15 (7) Depth range: the current Depth range setting (8) Battery strength: indicate the remained battery strength The detection graph is shown from the right corner from top to down. It would scroll forwards to left continuously. The most present and newest signals are displayed on the rightmost screen.
- Page 16 change in depth. New returns graphed at a different scale will not match up with the historic data already graphed at a higher or lower scale. 3. Water surface line 3. Water surface line The water surface line indicate the displayed position of water surface on the screen, which is very helpful for you to estimate the depth of detected fish.
- Page 17 Underwater conditions vary greatly, so some experience is needed to get the most benefits of FC60X. Use the message displayed in the screen as a helpful tools for your judgment, thus you could exert the full function of FC60X.
- Page 18 Menu O Menu Operation Instr peration Instruction uction The menu setting of FC60X is convenient and friendly. You can get various function setting by simle operation. 1. Power key: Power on / Power off Note: Note: to shut off the unit, press the Power key and keep it for 3s, then release it.
- Page 19 Note: Note: when you enter into some a menu setting, pressing Ent key, then you are able to change the setting then the frame line of current menu will look thicker then non-setting. see following: thicker non-setting setting To exit the setting condition, press ENT key again. 3.
- Page 20 Sensitivity Sensitivity Sensitivity determines how echoes will be displayed on the screen. Increasing the sensitivity will make you see more details on the screen. In such situations when you see too much clutter on the screen, decreasing the sensitivity will play an effect.
- Page 21 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Sensitivity option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to increase / decrease the value 5) Press ENT to confirm the setting. 6) Press EXIT to exit.
- Page 22 6) Press EXIT to exit. Shallo Shallow The Fishfinder sound an alarm tone when the bottom goes shallower or equal than the alarm’s setting. You also could exit alarm mode by enter into Shallow menu and artificially increase the current depth alarm value to a safe grade.
- Page 23 Depth Range Depth Range Depth Range determine in which portion the bottom will display in the screen. (For example, if the actual depth is 10m, and the current Depth Range is 20m, then the bottom will display on 50% portion of the screen). To set the Depth Range: 1) Press MENU to enter into menu setting,...
- Page 24 Fish ID. Fish ID. Fish ID control the way the detected target is displayed on the screen. 1) If Fish ID is on, a fish icon will be displayed when some fish and other object is detected. 2) If Fish ID is off, a arch will be displayed on the screen. Fish ID is On Fish ID is Off Note:...
- Page 25 suggest you turn off the Fish ID, and only study the sonar returns which is displayed as archs. To set the Fish ID.: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Fish ID. . option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to change the value.
- Page 26 To set the Units. . : 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Units. option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to change the value. 5) Press ENT to confirm the setting.
- Page 27 4) Use the Up / Down Arrow to increase / decrease the value. 5) Press ENT to confirm the setting. 6) Press EXIT to exit. Contrast Contrast Contrast is used to let you get a most suitable display when you operate the unit. To set the Contra Contrast st: 1) Press MENU to enter into menu...
- Page 28 Load D d DFT Load DFT is used to restore to the factory settings. To set the Load Load DFT DFT: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Load DFT Load DFT option.
- Page 29 Trouble shooting Trouble shooting You are not supposed to fix the FC60X handheld or the sensor. The product contains no customizable parts. On the other hand, the waterproof performance is enabled by unique techniques, functions of which may be disabled by unau- thorized disassembly.
- Page 30 1. No signal on FC60X screen 1. No signal on FC60X screen If the FC60X fails to receive signals from the sensor, it will stop updating the screen (which will then remain unchanged). Under any circumstances, if the handheld can not receive signals transmitted by the sensor or the...
- Page 31 A total weight over 5.8g can submerge the sensor and cause signal loss in consequence. e) With relatively quite water areas, FC60X is able to obtain a 130ft (40m) remote-control distance in maximum; with significant fluctuations on water surface, the distance may be reduced slightly.
- Page 32 The FC60X sensor has a normal detection depth ranging from 1 to 100 feet (0.4~30m). Abnormal display and inconsistent depths may occur when used in areas with depth less than 0.3m.
- Page 33 The picture vibrates because the sea bottom depth being scanned is changing. Since the depth range used by the current test signal and by the previous test signal differs, plus the varying height of the sea bed contour, pictures displayed on the screen will occupy different heights, causing the vibrating phenomenon.
- Page 34 Maintenance Maintenance With a view to making most of your Fishfinder, we reco- mmend you follow the steps bellow and carry out maint- enance. 1. For the case Cleaning the sonar unit’s outer case (except for the screen) with a cloth dipped mild detergent solution, and then wipes it dry.
- Page 35 concentrated air in hot days can pose damage to internal electronic parts. Guarantee Conditions Guarantee Conditions 1. We assure you this product is free from defects in materials and workmanship. The warranty coverage is One Year from the date of purchase, during which if the unit fails to perform as described in the product’s written specifications, we will repair or replace it free of charge.
- Page 36 Specifications and feature Specifications and feature 1. Specifications: 1. Specifications: 1) Display Display size: 3.0in / 76mm, High-contrast Dot Matrix LCD Display Resolution: 128 x 64 (H ×W) Backlighting 2) Sonar & Radio Depth Capability: 1~100ft / 0.3~30m Wireless Operating Range: 130ft / 40m Sonar Frequency: 115KHZ Sonar Beam Angle: 80deg @-10db Radio Frequency: 433.9 MHz...
- Page 37 Water Switch technology applied: Sensor could shut down when the Sonar Sensor is out of water. Handheld power off automatically in 10minutes without any using Units: °f/ft °f/m °C/ft °C/m Unit Dimensions: 138mm × 69mm × 32mm. Casing: Sealed and waterproof 4) Power Power Supply: 4×AAA Alkaline Batteries FREECAST sensor battery life: 550 hours of in-the-water...
- Page 38 7) Fresh/Salt Water Environment 8) True Changing Water Bottom Graph. 9) Big/small fish identification 10) Waterproof casing design...
- Page 39 Contact Us Contact Our Resource Center in any of the following days: By telephone: Monday - Friday: 8.am. to 5:30 pm. (Central Standard Time) 0086 25 84680809 Or by e-mail: Typically we respond to you in 2 business days support@goyachting.cn For direct shipping, our address is: No.508, Heyan Road, Nanjing, 210038, China...
- Page 40 www.goyachting.cn...
