Summary of Contents for Yachting Electronic Co. NAKI8850B

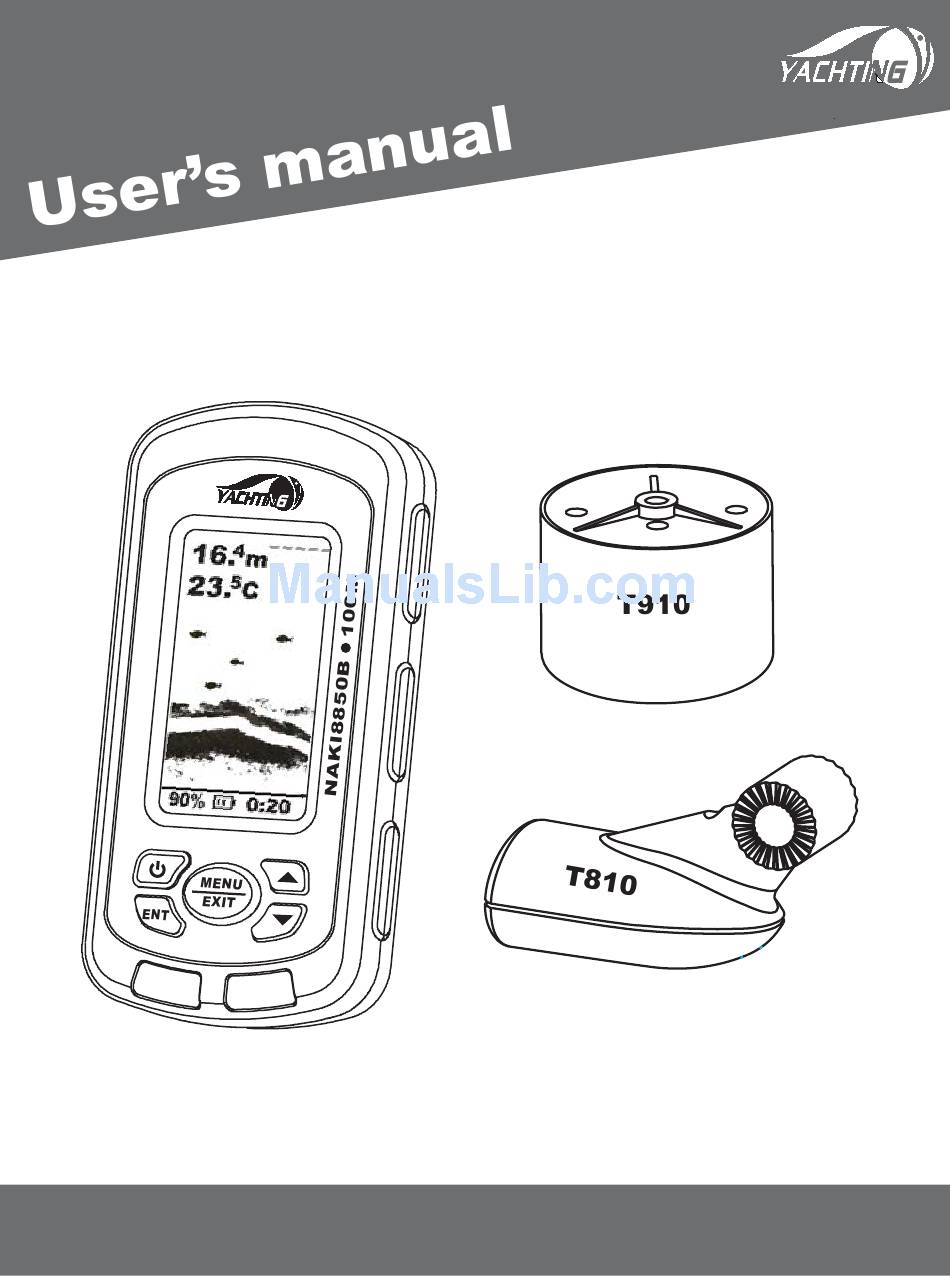

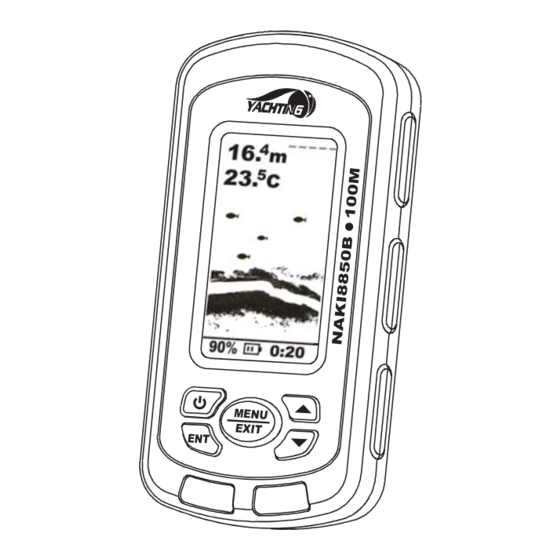

  • Page 1 NAKI8850B (optional) www.goyachting.cn...
  • Page 3 All right reserved! Except as expressly provided herein, no part of this manual may be copied, reproduced, repub- lished, transmitted or distributed for any purpose, without prior written consent of Yachting Electronic Co., Ltd. Yachting Electronic may find it necessary to change or end our policies, regulations, and special offers at any time.

  • Page 4: Table Of Contents

    Content Content Introduction ..............1 Packing list................2 General attention...............2 Understanding Sonar............3 Installation.................5 Installing the battery.............5 Installing the transducer..........7 Transom installation..........7 (for T810 transducer) Shoot-thru-hull installation.........16 (for T810 transducer) fishing installation......21 (for T910 transducer) Using the transducer........22 Ice fishing............23 Boat fishing...........25 Operational Panel Basic..........27 Display................28...
  • Page 5 Understanding the display.........28 Depth Range..............29 Water surface line............30 Operation................32 Menu Operation Instruction........32 Sensitivity..............34 Chart Speed...............35 Shallow..............36 Depth Range..............37 Fish ID...............38 Units................39 Backlight..............40 Contrast..............41 Load DFT..............42 Trouble Shooting............43 Maintenance..............47 Guarantee Conditions.............48...
  • Page 6 Specfications and Feature..........49 Specfications..............49 Features................50 Contact us................51...

  • Page 7: Introduction

    Introduction Introduction Thank you for choosing our Fish Finder. and welcome to the innovations of Yachting Electronic Co., Ltd! We has been committed to fish finder R&D activities all the way and its products have been reputed for their cutting-edge technologies and reliable performance.

  • Page 8: Packing List

    2) A transducer with 6m cable 3) A copy of User’s Guide Note: Note: the standard matched transducer of NAKI8850B is T910, which can be used with ice/bank fishing. However there is another T810 transducer can be used in boat fishing, which is optional for customer.

  • Page 9: Understanding Sonar

    Warn Warning: ing: Although the unit is designed waterproof, it is strongly warned not immerge it into in water, whcih may cause damage of inner electronic part. Under Understanding s standing sonar onar If you are familiar with how sonar works, skip ahead to the next segment.
  • Page 10 spreads forming a cone (think flashlight). The sound wave bounce back to the transducer when it strikes any object, the object could be fish, structure, bottom or any other object with density being different from the water. The transducer amplifies the return signal and sends it back to the Fishfinder.

  • Page 11: Installation

    Installation Installation Installing the battery Installing the battery Warning: Warning: do not split the battery cover with strength in the vertical directiion! To take off the battery cover, put and slide it with some strenth 1. Turn the screw anti-clockwise with a screw driver. Then slide the Battery Door towards the bottom of the unit and remove it from the main housing.
  • Page 12 it is completely closed. Then turn the screw clockwise with a screw driver until snug before continuing. Be certain not to over-tighten it.

  • Page 13: Installing The Transducer

    Installing the transducer Installing the transducer Trans Transom installati om installation (for T810 transducer) on (for T810 transducer) 1. Select the 1. Select the mounti mounting location ng location When you select a mounting location for the transducer, the flowing should be considered in advance. The sonar transmission / reception can be affected severely in turbulent water, so please do not mount transducer behind strakes, rows of rivet, water intake, discharge port, the...
  • Page 14 Mark the two position holes should be parallel with water surface. Make sure the distance between the bottom of template and the lower edge of the transom is about 0~5mm. 0~5mm 3) Using a 5/32” bit, drill 2 holes approximate 1” (25mm) deep at the marked location.
  • Page 15 careful not assembling them reversedly. ( see the figure a-right b-wrong) 2) Put the locking nut into the slot of pivot then insert the pivot bolt hand-tighten the pivot bolt. Note Note Do not over tighten the pivot-bolt with Allen wrench otherwise you will not being able to adjust the angle of transducer Locking nut...
  • Page 16 Note: Note: Do not push the pivot into the bracket. Do not push the pivot into the bracket 4. Initial installation of transducer 4. Initial installation of transducer 1) Apply marine sealant to the 4 x 15mm screws and the two holes on transom.
  • Page 17 2) Adjust the template to make it roughly vertical to the water surface then tighten the two screws with Allen wrench 3) Press the pivot into the bracket, and then rotate the transducer to make it parallel with the water surface. Note: The pivot match the transducer by ratchets and the increment is12 degree, so in some situations you may find it impossible to adjust the transducer completely...
  • Page 18 tow holes approximate 3/8” (10mm) deep. 2) Apply some marine sealant to the hole, and then tighten the cable clamp with two screws. 3) If more than one cable clamp are needed, repeat step1 2 The template touchs the transducer Note Note As the transducer is adjustable make sure the cable between the transducer and the first clamp is not tighten.
  • Page 19 enwinding the transducer cable with other electrical wires or some electrical device that may cause interference, as this will affect the transducer’s transmission / reception of sonar signal. 5. Test th 5. Test the initial in e initial installation stallation To get a better installation of the transducer, we suggest you testing the initial installation and adjust the transducer according to the test outcome.
  • Page 20 information on the screen. If the sonar display comes out normal, then speed up your boat. Always observe the sonar display during the course. If signal losing or abnormal sonar display happens when the boat run at a certain speed note the speed of your boat 3) Adjust the transducer in a small scope and run the boat at the noted speed (step 2).
  • Page 21 2) As soon as you believe having found the best mounting location of the transducer, release the pivot from the template, then mark the third hold with a pencil. The third hole 3) Using a 5/32” bit, drill a hole appreciated 1” (25mm) deep at the marked position.

  • Page 22: Shoot-Thru-Hull Installation

    Shoot-thru-hull installation (for T810 transducer) Shoot-thru-hull installation (for T810 transducer) Transom installation is the most widely used method to install the transducer. However in some situation you also could use Shoot-thru-hull transducer installation. Which, compared with Transom installation, is more convenient and fast.
  • Page 23 chosen area(see the following figure). Resin Inner hull Flotation material Epoxy Outer hull Warning: Warning: contact your boat dealers to get the full specifi- cations of your boat. And never try to remove any materials from the inner hull before you completely know about the composition of your hull.
  • Page 24 epoxy is solidified, fill the remaining space with resin. And then the installation of transducer is finished. With the shoot-thru-hull installation, the transducer will not be able to adjust as soon as it is fixed. So, test before final installation is necessary. 2.
  • Page 25 speed and choose another location for the transducer. 5) Repeat step 4 until you get the best mounting location for the transducer. 3. The Permane 3. The Permanent Sho nt Shoot-Thru-Hull installation ot-Thru-Hull installation 1) make sure the surface of the chosen location is clear dry and free of any oil, then sand the mounting surface of transducer with 100 grit sandpaper until it looks very clean and flat.
  • Page 26 the hull. 5) Press the transducer into the epoxy of the sanding area on the hull with a slight twisting motion, forcing any air bubbles out from underneath. Make sure the face of the transducer will be parallel with the hull after you finish all the above job.

  • Page 27: Ice Fishing Installation

    Ice / bank fishing installation (for T910 transducer) Ice / bank fishing installation (for T910 transducer) Adjust Adjusting the f ing the float loat It is very important to adjust the location of the transducer under the water. The transducer must be adjusted so that it is a minimum of 150 mm away from the float.

  • Page 28: Using The Transducer

    2. Adjust the float so that it is 150 to 250 mm away from the transducer. 3. Replace the rubber stopper. To prevent accidental loss of the stopper, always press the rubber stopper firmly into the float before tossing the transducer into the water. Using the transducer Using the transducer 1.

  • Page 29: Ice Fishing

    Ice fishing It is usually difficult to find the appropriate fishing position when doing ice fishing, yet this product (NAKI8850B) will make things easy. To achieve the best performance for ice fishing, it is highly recommended that you cut a hole through the ice and place the Fish Finder directly in the water.
  • Page 30 1. Find an appropriate position on the ice surface. Clear away snow to expose the ice surface, making sure the surface is smooth. 2. Spray a small amount of liquid water on the ice and set the sensor on the water allowing the unit to freeze to the ice.

  • Page 31: Boat Fishing

    electronics. Boat fishing Boat fishing There are three ways of using the Fish Finder from a boat: 1. Toss the sensor into the water as said in the previous instructions. 2. “Shoot-Thru” the hull of a boat: coat the hull face below of the sensor with Vaseline and press it against the hull bottom with a twisting motion.
  • Page 32 methods do not work on all hulls and you may have to place the sensor directly in the water for proper operation. Note: T he “shoot thru” capability of the Fish Finder does not apply to all boats. The hull must be made out of solid fiberglass, or a maximum of 3 mm aluminum, and be in direct contact with the water, with no air pockets.

  • Page 33: Operational Panel Basic

    Operational Panel Basic Operational Panel Basic (1) Transducer plug (8) Sensitivity Reading (2) Depth Reading (9) Battery Strength (3) Water surface line (10) Power Key (4) Temperature Reading (11) Ent Key (5) Fish Icon (12) Menu and Exit Key (6) Bottom (13) Down Arrow Key.

  • Page 34: Display

    Display Display 1. Understand 1. Understanding th ing the display e display Water surface Depth reading line Temperature reading Sonar information scroll from right to Fish icon left Bottom Sensitivity Depth range Battery strength (1) Depth reading: indicate water depth (2) Temperature reading: indicate atmosphere temperature (3) Sensitivity: the curren sensitivity setting (4) Water surface line: display the position of water surface...

  • Page 35: Depth Range

    (7) Depth range: the current Depth range setting (8) Battery strength: indicate the remained battery strength The detection graph is shown from the right corner from top to down. It would scroll forwards to left continuously. The most present and newest signals are displayed on the rightmost screen.

  • Page 36: Water Surface Line

    change in depth. New returns graphed at a different scale will not match up with the historic data already graphed at a higher or lower scale. 3. Water surface line 3. Water surface line The water surface line indicate the displayed position of water surface on the screen, which is very helpful for you to estimate the depth of detected fish.
  • Page 37 Underwater conditions vary greatly, so some experience is needed to get the most benefits of your fishfinder. Use the message displayed in the screen as a helpful tools for your judgment, thus you could exert the full function of your fishfinder.

  • Page 38: Operation

    Menu O Menu Operation Instr peration Instruction uction The menu setting of NAKI8850B is convenient and friendly. You can get various function setting by simple operation. 1) Power key: Power on / Power off Note: Note: to shut off the unit, press the Power key and keep it for 3s, then release it.
  • Page 39 Note: Note: when you enter into a menu setting, pressing Ent key, then you are able to change the setting and the frame line of current menu will look thicker then non-setting. see following: thicker non-setting setting To exit the setting condition, press ENT key again. 3) MENU &...

  • Page 40: Sensitivity

    Sensitivity Sensitivity Sensitivity determines how echoes will be displayed on the screen. Increasing the sensitivity will make you see more details on the screen. In such situations when you see too much clutter on the screen, decreasing the sensitivity will play an effect.

  • Page 41: Chart Speed

    1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Sensitivity option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to increase / decrease the value 5) Press ENT to confirm the setting. 6) Press EXIT to exit.

  • Page 42: Shallow

    To achieve better images, try adjusting the Chart Speed level to match the actual condition: stationary, drifting slowly or running you boat at different speed. To set the Chart Speed: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Chart Speed option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to 5) Press ENT to confirm the setting.

  • Page 43: Depth Range

    To set the Shallow: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Shallow option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to increase / decrease the value 5) Press ENT to confirm the setting.

  • Page 44: Fish Id

    5) Press ENT to confirm the setting. 6) Press EXIT to exit. Fish I h ID. D. Fish ID control the way the detected target is displayed on the screen. 1) If Fish ID is on, a fish icon will be displayed when some fish and other object is detected.

  • Page 45: Units

    and omits other negligible sonar information. To know as more as possible what’s under your boat, we suggest you turn off the Fish ID, and only study the sonar returns which is displayed as archs. To set the Fish ID.: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to...

  • Page 46: Backlight

    Celsius / Feet Celsius / Meter To set the Units. . : 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Units. option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to change the value.

  • Page 47: Contrast

    select Backlight. option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to change the value. 5) Press ENT to confirm the setting. 6) Press EXIT to exit. Contrast Contrast Contrast is used to let you get a most suitable display when you operate the unit.

  • Page 48: Load Dft

    Load D d DFT Load DFT is used to restore to the factory settings. To set the Load DFT: 1) Press MENU to enter into menu setting, 2) Use the Up / Down Arrow to select Load DFT option. 3) Press ENT to confirm selecting 4) Use the Up / Down Arrow to change the option.

  • Page 49: Trouble Shooting

    Trouble shooting Trouble shooting 1. Nothing Ha 1. Nothing Happens ppens When I turn the Power On. When I turn the Power On. a) Make sure that you have installed a good set of batteries and aligned them as per the diagram within the battery compartment.
  • Page 50 face of the sensor might help. d) Electrical noise from the boat's motor can interferes with the sonar, which will cause some weaker signals being eliminated. e) Please check the battery voltage. The unit's transmitter power will decrease due to the voltage drop. And this will reduce its ability to find the bottom or targets.
  • Page 51 smooth flow of water. b) Electrical noise from the boat's motor can interferes with the sonar, which will cause some weaker signals being eliminated. Try increasing the Noise Reject level or routing Fishfinder”s power and the transducer cable away from the electrical source. 5.
  • Page 52 Such cluttered display maybe caused because: a) The water is too low b) The water is too turbid c) There are so much debris in the water...

  • Page 53: Maintenance

    Maintenance Maintenance With a view to making most of your Fishfinder, we reco- mmend you follow the steps bellow and carry out maint- enance. 1. For the case 1. For the case Cleaning the sonar unit’s outer case (except for the screen) with a cloth dipped mild detergent solution, and then wipes it dry.

  • Page 54: Guarantee Conditions

    concentrated air in hot days can pose damage to internal electronic parts. Guarantee Conditions Guarantee Conditions 1. We assure you this product is free from defects in materials and workmanship. The warranty coverage is One Year from the date of purchase, during which if the unit fails to perform as described in the product’s written specifications, we will repair or replace it free of charge.

  • Page 55: Specfications And Feature

    Specifications and feature Specifications and feature 1. Specifications: 1. Specifications: 1) Display Display: 3.0in / 76mm, FSTN LCD Display Resolution: 128 x 64 (H ×W) Pixels Display Contrast: 0~100% Adjustable Range Backlight: On / Auto Visible in strong sunlight 2) Sonar Depth Capability: 100m Sonar Frequency: 190KHZ Sonar Beam Angle: 45°...

  • Page 56: Features

    IPX7 Level Sealed and waterproof casing design 4) Power Power Supply: 4 × AAA Alkaline Batteries Handheld Battery Life: 20 Hours Continuous Use Handheld Power Off Automatically In 10 Minutes Without Any Using. 2. Features 2. Features 1) Switchable Fish Identification mode 2) Sensitivity: 0~100% Adjustable Range 3) Chart Speed: 0~100% Adjustable Range 4) Multi level Depth Range...

  • Page 57: Contact Us

    Contact Us Contact Our Resource Center in any of the following days: By telephone: Monday - Friday: 8.am. to 5:30 pm. (Central Standard Time) 0086 25 84680809 Or by e-mail: Typically we respond to you in 2 business days support@goyachting.cn For direct shipping, our address is: No.508, Heyan Road, Nanjing, 210038, China...
  • Page 59 www.goyachting.cn...
