Summary of Contents for zSpace 200
-

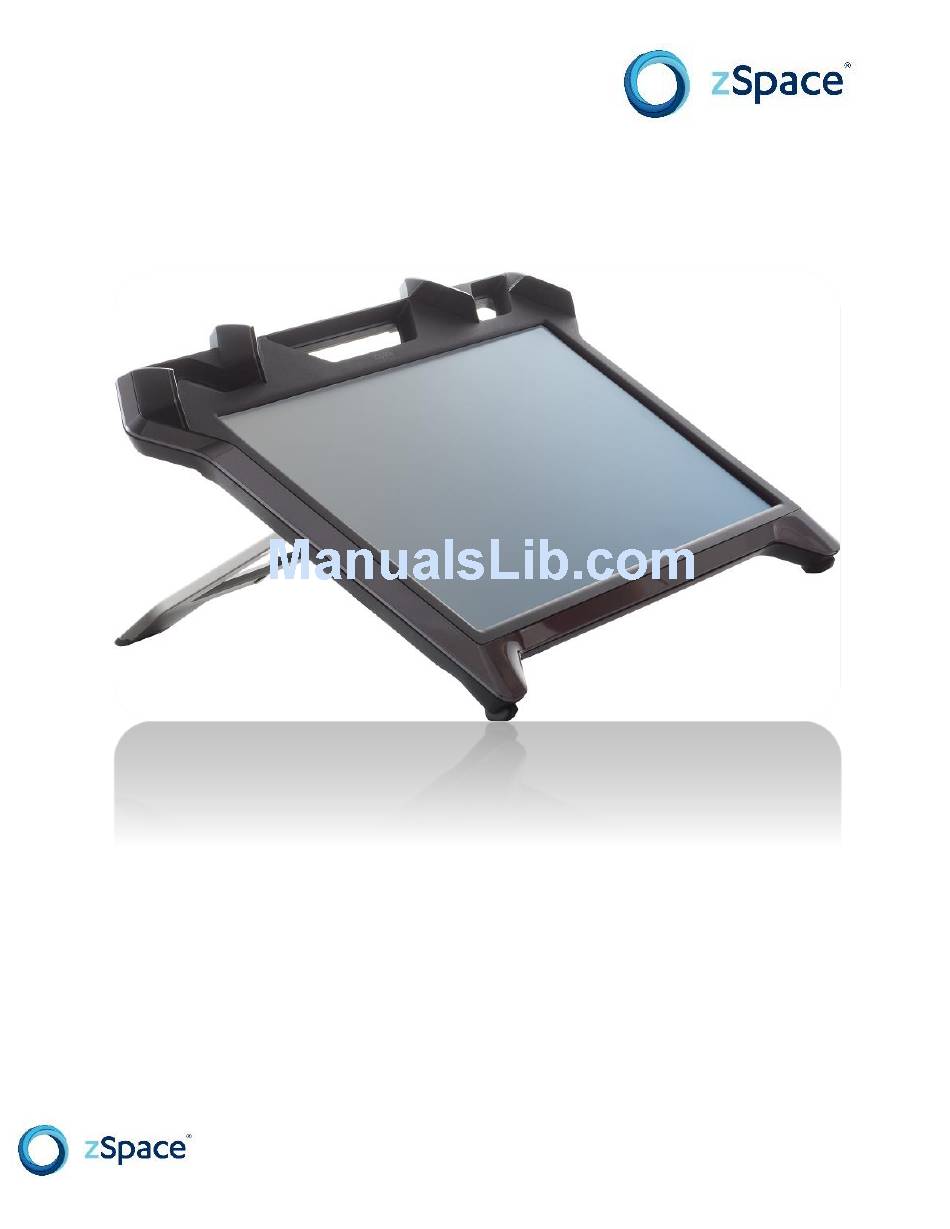

Page 1: User Manual
200 User Manual www.zSpace.com... -
Page 2: Table Of Contents
Contents The zSpace 200 System ..........................3 Contents of the zSpace System Box ......................3 Parts of your zSpace ..........................3 Side panel ..............................4 Rear panel ..............................5 Technical Specifications ..........................5 How zSpace works ............................6 Head tracked stereoscopic display ......................6 Stylus Interaction ............................ -
Page 3: The Zspace 200 System
Integrated stand Tracked Eyewear: In order to use your zSpace system in stereoscopic mode (3D) you will need to wear the tracked eyewear. These eyewear include small reflectors to tell the system where your eyes are located as well as polarized lenses. -
Page 4: Side Panel
The stand works by adjusting the angle then pulling it down to lock it in place. To release, push it upwards from the base, then readjust to any of the preset angles (30°, 45°, 60°). Side panel On/Off switch USB Ports 770-00007-01 www.zSpace.com 08122014... -
Page 5: Rear Panel
USB for to computer inputs peripherals The primary connections between the PC and the zSpace are the DisplayPort connector and the USB Type B. A cable is included in the system for each of these. Technical Specifications Resolution 1920*1080 Full HD Stand 30°, 45°, 60°, Variable with VESA... -
Page 6: How Zspace Works
How zSpace works zSpace has many features to enable a compelling user experience. Head tracked stereoscopic display The head tracked display enables the left and right images of the display to focu on your eyes wherever they move within the tracking zone. This capability ensures a comfortable virtual experience. -
Page 7: System Requirements
DVI-D (Dual Link) or DisplayPort output connections 1920x1080 resolution @ 120hz 2GB of on-board memory or better There are a few key items that dictate what graphics cards can be used to drive your zSpace: Quad-Buffer-Stereo Minimum 2 GB Video RAM ... -
Page 8: Application Graphics Requirements
Nvidia Quadro and AMD FirePro only: EchoPixel All other applications will work in full screen mode across all specified Radeon, FirePro and Quadro GPUs, with varying performance. For specific recommendations on hardware for a given application, please contact zSpace. 770-00007-01 www.zSpace.com 08122014... -
Page 9: Monitor Stands
Monitor stands zSpace 200 is built with an integrated stand that supports 30, 45 and 60 degree viewing angles. In addition, zSpace includes a 100*100 mm VESA mount that allows for attachment to a monitor stand. This allows for zSpace to be mounted to a flexible monitor arm or stand that can support any angle. -
Page 10: Software For Your Zspace System
Software for your zSpace system A purchase of a zSpace system includes the purchase of a license to zSpace’s Core software. This Core software enables a PC to control the zSpace hardware, along with providing various base applications that enable you to use zSpace effectively.
