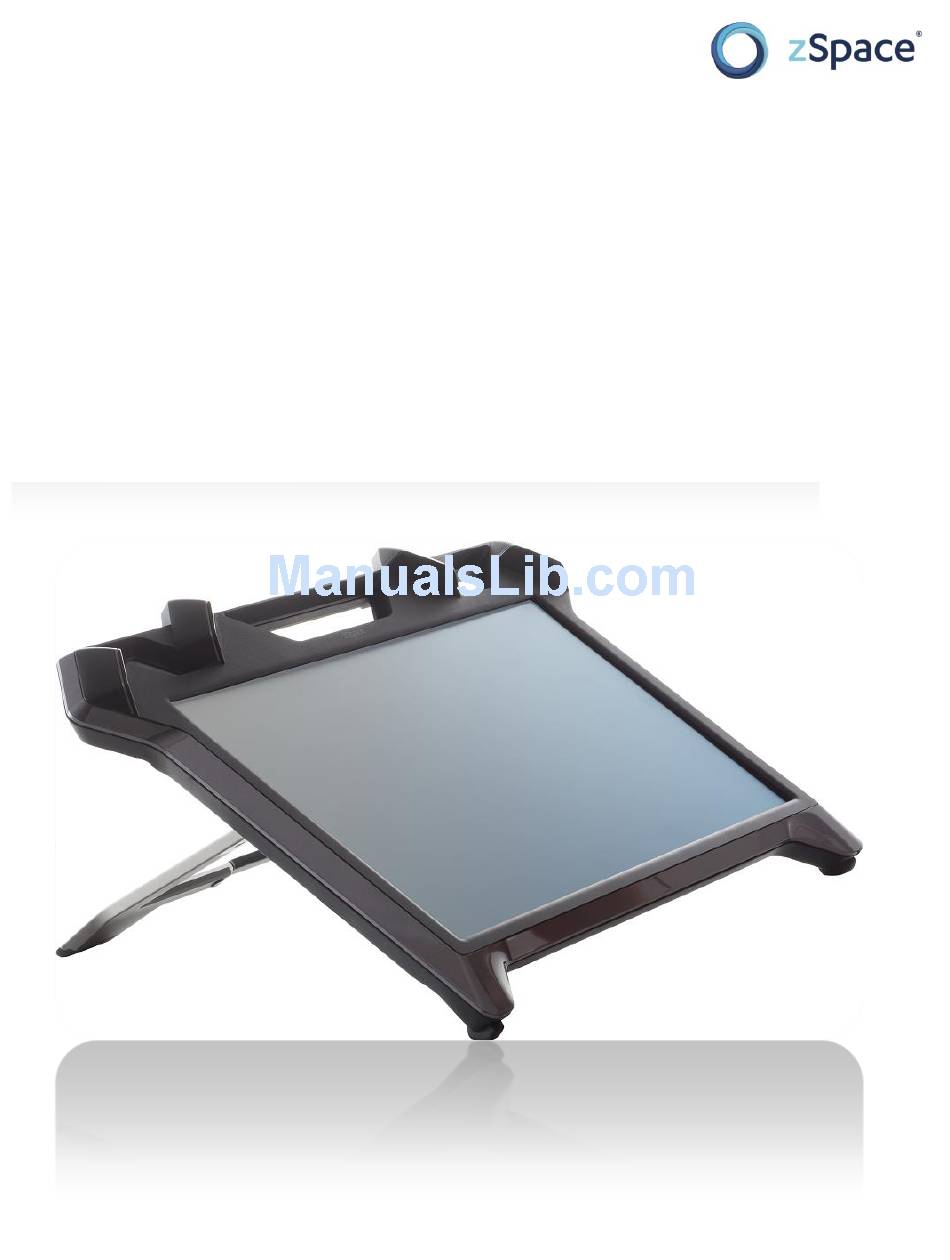

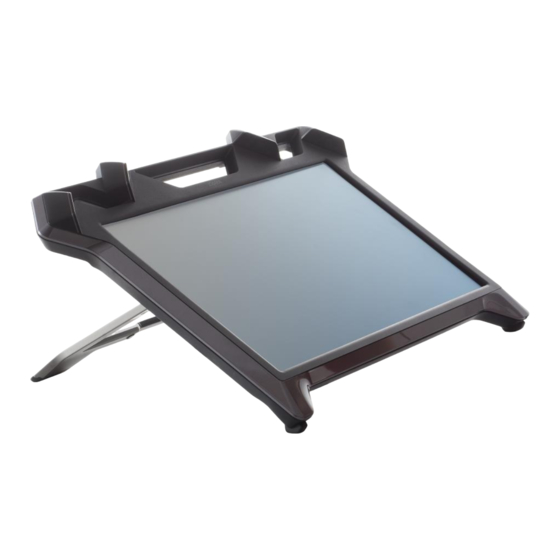

- Page 1 200 User’s Guide zspace.com zSpace 200 User’s Guide 770-00010-01 Rev A...
- Page 2 Inc. All other trademarks are the property of their respective owners. © zSpace, Inc. 2015...
-
Page 3: Table Of Contents
Contents The zSpace 200 System 1 Contents of the zSpace System Box Parts of Your zSpace System 2 Side Panel Rear Panel How zSpace Works Head-Tracked Stereoscopic Display Stylus Interaction System Requirements 6 Minimum Recommended zSpace Graphic Card (GPU) Requirements... -
Page 4: The Zspace 200 System
1 Pair tracked polarized clip-ons 1 Pair non-tracked 2D glasses (for observers) 1 Power supply for zSpace display Integrated DisplayPort and USB Type A to Type B cable for connecting the zSpace display to the PC 1 Quickstart guide... -
Page 5: Parts Of Your Zspace System
System Components Eyewear In order to use your zSpace system in stereoscopic mode (3D), you need to wear the tracked eyewear. This eyewear includes polarized lenses and small reflectors to tell the system where your eyes are located. Your zSpace system includes another pair of glasses without the reflectors. An observer can wear these and share your experience without interfering with the tracking. -
Page 6: Side Panel
To adjust the angle, pull down to unsnap, pull to desired angle, then pull down to lock in place. To release, push it upwards from the base, then readjust to any of the preset angles (30°, 45°, 60°). Side Panel The Side of the zSpace 200... -
Page 7: Rear Panel
Rear Panel The Back of the zSpace 200... -
Page 8: How Zspace Works
Head-Tracked Stereoscopic Display The head-tracked display enables the zSpace system to display the left and right images for a stereoscopic display. The images adjust as your eyes move within the tracking zone. This capability ensures a comfortable virtual experience. -
Page 9: System Requirements
Intel Core i3 processor, 4 GB RAM, Radeon R9 265 GPU Recommended Intel Core i5 Processor, 8 GB RAM, FirePro W5000 GPU zSpace Graphic Card (GPU) Requirements NVIDIA Quadro series, AMD FirePro series, or AMD Radeon R9 or better desktop or mobile GPU with the following support: ... -
Page 10: Application Graphics Requirements
EchoPixel: Requires NVIDIA Quadro or AMD FirePro Most other applications will work in full screen mode across all specified Radeon, FirePro, and Quadro GPUs, with varying performance. For specific recommendations on hardware for a given application, please check the application’s download page on the zSpace website. -
Page 11: Monitor Stands
Monitor Stands zSpace 200 has an integrated stand that supports 30, 45 and 60 degree viewing angles. zSpace 200 Adjustable Angles... - Page 12 Make sure your monitor stand can support the weight of the zSpace display, as it is slightly heavier than a conventional monitor of the same diagonal width (24”). The zSpace display weighs 8.8 kg (17 lbs). The addition of a zView armature may also impact weight or angle, so be sure to verify stability when using peripherals.
-
Page 13: Setting Up Your Zspace System
Setting Up your zSpace System Upgrading from a zSpace 100 If you are upgrading from a zSpace 100 to a zSpace 200, you will need to update the zSpace System Software, described in Software and Firmware on page 11. -
Page 14: Software And Firmware
Plug in all the cables. Refer to the illustrated Quickstart Guide that comes in the box with your zSpace system. You can also download a copy from http://zspace.com/setup. Note: You may see warning or error messages that the USB drivers are not installed yet. This will automatically correct itself once the drivers install. - Page 15 Before you install the new version, uninstall the current version of the System Software. Important Note: If you are upgrading from a zSpace 100, make sure you back up the C:\ProgramData\zSpace application folders before you uninstall the System Software version 3.
-
Page 16: Verifying Setup
Follow the instructions on screen. Pay close attention to the icons on screen that tell you whether to wear the glasses or use the stylus for each test. If a test fails, the System Check ends, and a message box displays a link to the zSpace support site for further information. - Page 17 The second test checks the stereo in the system. Put on the zSpace eyewear and indicate if the panel on the right has depth and dimension. If so, click on Yes. If not, click on No. The third test checks the zSpace eyewear. Put on the eyewear with markers, and click on Next. When the crosshairs appear on screen, move your head to move the crosshairs into all of the circles, one by one.
-
Page 18: Software For Your Zspace System
Software for your zSpace System A purchase of a zSpace system includes the purchase of a license to zSpace’s Core software. This Core software enables a PC to control the zSpace hardware, along with providing various base applications that enable you to use zSpace effectively. -
Page 19: Safety Instructions
Failure to follow the instructions might void the limited warranty agreement, in which case zSpace will not be responsible for replacing or repairing the product. Disregarding specific safety instructions may also cause injury and serious damage to health. -
Page 20: Basic Operation
zSpace disclaims any and all liability to users for any dizziness, nausea, headaches and/or other sensations of physical discomfort or illness that a user may experience as a result of use of the zSpace system. ... -
Page 21: Caring For Zspace
Caring for zSpace Keep the zSpace display’s surface clean. Use an anti-static or slightly damp cloth with light pressure. Regular cleaning will help prolong the life of the screen surface. Avoid cleaning products with heavy alcohol-based cleaning agents, especially on the screen. -
Page 22: Recycling (Weee) And Rohs
Recycling (WEEE) and RoHS We request you recycle your zSpace system when replacing it with a newer product or when any hardware component reaches the end of its useful life. Please bring all materials to appropriate recycle centers in your community or region. -
Page 23: Appendix A: Specifications
Appendix A: Specifications Resolution 1920*1080 Full HD Display Area 20.5” H * 11.5” V, 23.6” D Rise Time/Fall Time Tr: 1.3 ms Tf: 4.3 ms Contrast Ratio 2D: 1000:1 3D: 100:1 Power Requirements 12 VDC, External Power Adapter: 100-240 VAC 50/60 Hz... -
Page 24: Appendix B: Certifications
Consult the dealer or an experienced radio/television technician for help. Modifications: Any modifications made to this device that are not approved by zSpace, Inc. may void the authority granted to the user by the FCC to operate this equipment. -
Page 25: Appendix C: Limited Warranty
Dead- or Defective-on-Arrival. In the event a product completely fails to function or exhibits a defect in materials or workmanship within the first forty-eight (48) hours of installation but no later than thirty (30) days after the date of purchase, and this is verified by zSpace, it will be considered dead- or defective-on-arrival (DOA) and a replacement shall be provided prior to zSpace receiving the defective product (“Advance Exchange”), but only if Customer provides a purchase order number, credit card number, or other method of... - Page 26 MAINTENANCE OR USE OF ITS PRODUCTS. zSpace shall not be liable under this warranty if its testing and examination disclose that the alleged defect or malfunction in the product does not exist or was caused by Customer’s or any third person’s misuse, neglect, improper installation or testing, unauthorized attempts to open, repair, or modify the product, or any other cause beyond the range of the intended use, or by accident, fire, lightning, POWER CUTS or outages, other hazards, or acts of God.
