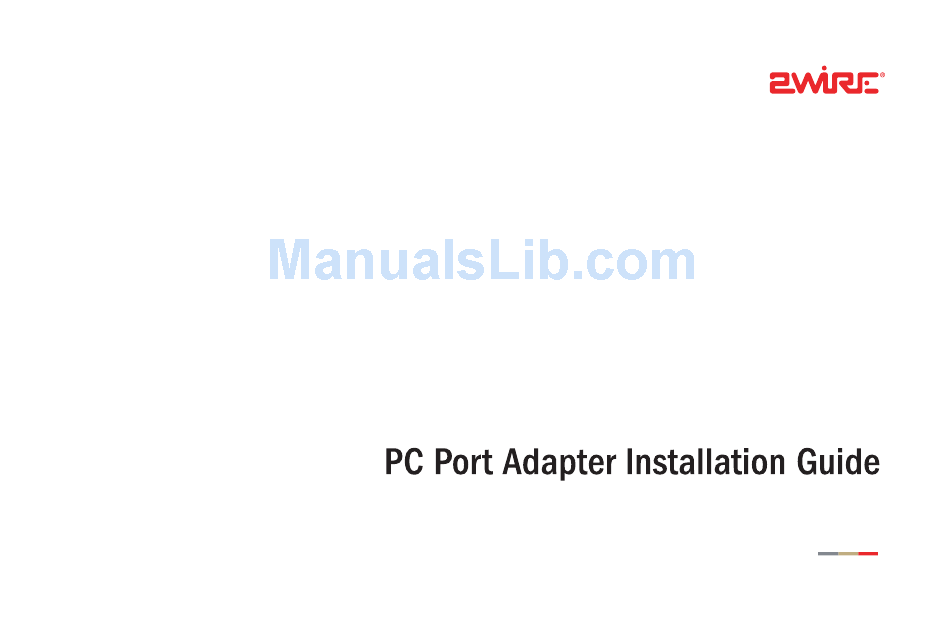

2Wire PC Port Adapter Installation Manual

Pc port usb to hpna adapter
Hide thumbs Also See for PC Port Adapter:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for 2Wire PC Port Adapter

Summary of Contents for 2Wire PC Port Adapter

  • Page 2 Notice to Users ©2004 2Wire, Inc. All rights reserved. This manual in whole or in part, may not be reproduced, translated, or reduced to any machine- readable form without prior written approval. 2WIRE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED...
  • Page 3 Following are the steps needed to complete the PC Port installation: Step 1 - Install the PC Port adapter into a USB port on your computer. Step 2 - Connect the telephone cable. Step 3 - Install the adapter device driver.
  • Page 4 Step 1: Install the PC Port adapter Power off your computer. Insert the PC Port adapter into an available USB port on your computer.
  • Page 5 Non-DSL Broadband Service (for example, Cable or Fiber) Installation First PC Note: The first PC on the network must be connected to the 2Wire gateway via Ethernet, USB or wireless. It cannot be connected via HPNA; however, if you are connecting additional PCs to your network via HPNA, you must connect the phone line from the 2Wire Gateway’s HPNA port to a...
  • Page 6 Secondary PCs Power off the computer. Connect one end of the telephone cable to the adapter port, the other end to the phone jack.
  • Page 7 You will need to connect the telephone cable to the phone line filter (filters are sold separately). Refer to the following table for a description of filter types and installation. Note: The filter examples shown below are 2Wire DSL Filters. Filter Type If Sharing Wall Jack with Phone •...

  • Page 8: Installing Drivers For Windows Xp

    Step 3: Install the adapter device driver Installing drivers for Windows XP With your computer powered on, insert the 2Wire Driver CD into your CD-ROM drive. When the Found New Hardware Wizard window opens, select Install the software and click automatically (Recommended) to continue.
  • Page 9 Windows loads the drivers from the CD on to your computer. When the Completing the Found New Hardware Wizard screen opens, click . The driver installation is complete. Finish...

  • Page 10: Installing Drivers For Windows 2000

    Installing Drivers for Windows 2000 With your computer powered on, insert the 2Wire Driver CD into your CD-ROM drive. When the Found New Hardware Wizard window opens, click to continue. Next...
  • Page 11 The next window prompts you to install device drivers. Select Search for a suitable driver for my , and click device (recommended) Next 4. When the Locate Driver Files window opens, deselect the checkbox, select Floppy disk drives checkbox, and click CD-ROM drives Next...
  • Page 12 When the Driver Files Search Results window opens, click Next When the Completing Found New Hardware Wizard window opens, click Finish...

  • Page 13: Installing Drivers For Windows Me

    Installing Drivers for Windows ME Power on your computer. Insert the 2Wire Driver CD into your CD-ROM drive. When the Add New Hardware Wizard window opens, select Automatic search for a better , and click driver (Recommended) Next After the driver files are copied, click...

  • Page 14: Installing Drivers For Windows 98 Se

    If the System Settings Change window opens, click to restart your computer. Your installation is complete. Installing Drivers for Windows 98 SE Power on your computer. Insert the 2Wire Driver CD into your CD-ROM drive. When the Add New Hardware Wizard opens, click to continue.
  • Page 15 When the next window opens, select Search for the best driver for your device , and click (Recommended) Next Deselect the checkbox, Floppy disk drives select the checkbox, and click CD-ROM drive Next...
  • Page 16 Verify that The updated driver (Recommended) radio button is selected and click Next Windows locates the best driver for your device. Click to continue. Next...
  • Page 17 When the Insert Windows installation CD window opens, remove the 2Wire Driver CD, and insert your Windows installation CD. Click . Remove the Windows installation Finish CD from the CD-ROM drive, and insert the 2Wire Driver CD. If the System Settings Change window opens, click to restart your computer.
  • Page 18 Installing Drivers for MacOS 10.2 Power on your computer. Insert the 2Wire Driver CD into your CD-ROM drive. If you have set up an administrator name and password, the authenticate screen opens. Enter your administrator name and password and click...
  • Page 19 Open the 2Wire USB folder from the CD and click the . Click 2Wire USB Driver Continue Accept or decline the License Agreement. Click to continue your PC Port Accept installation. Selecting will end your Decline installation.
  • Page 20 Select Easy Install. If Easy Install is not already selected in the 2Wire USB Driver window, select it from the pull-down menu. After the USB driver has been copied to your computer, you are prompted to restart your computer.
  • Page 21 Establish your PC Port connection. From the Apple menu, select System , then click Preferences Network Verify that Ethernet adapter (en1) is selected in the Show field. If it is not, select it from the pull-down menu. When the New Port Detected message displays, click Your Macintosh computer Note:...
  • Page 22 Click to save your configuration Apply changes.
  • Page 23 Installing Drivers for MacOS 8.6 to 9.x Power on your computer. Insert the 2Wire Driver CD into your CD-ROM drive. Mac OS recognizes the PC Port and asks if you would like to load the software over the Internet. Click to continue.
  • Page 24 Open the 2Wire USB folder from the CD and click the 2Wire USB Driver Click Continue Accept or decline the License Agreement. Click to continue Accept your PC Port installation. Selecting will end your installation. Decline...
  • Page 25 Select Easy Install. If Easy Install is not already selected in the 2Wire USB window, select it from the pull-down menu. After the USB driver has been loaded on your computer, you will be prompted to restart your computer. Your PC Port installation is complete.
  • Page 26 From the Apple menu, select Control , then Panel TCP/IP Set the Connect via field to 2Wire PC Port. In the configure field, ensure that Using DHCP Server is selected. If it is not, select it from the pull-down menu and close the window.

  • Page 27: Regulatory Information

    Regulatory Information FCC Statement This device has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC rules. These rules are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications.
