Lindy 38218 User Manual

Lindyc6 hdmi receiver premium, 100m with hdbaset technology
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
C6 HDMI Receiver Premium, 100m
with HDBaseT Technology
User Manual
Eng li sh
No. 38218
www.lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (September 2014)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 38218 and is the answer not in the manual?

Questions and answers

Related Manuals for Lindy 38218

Summary of Contents for Lindy 38218

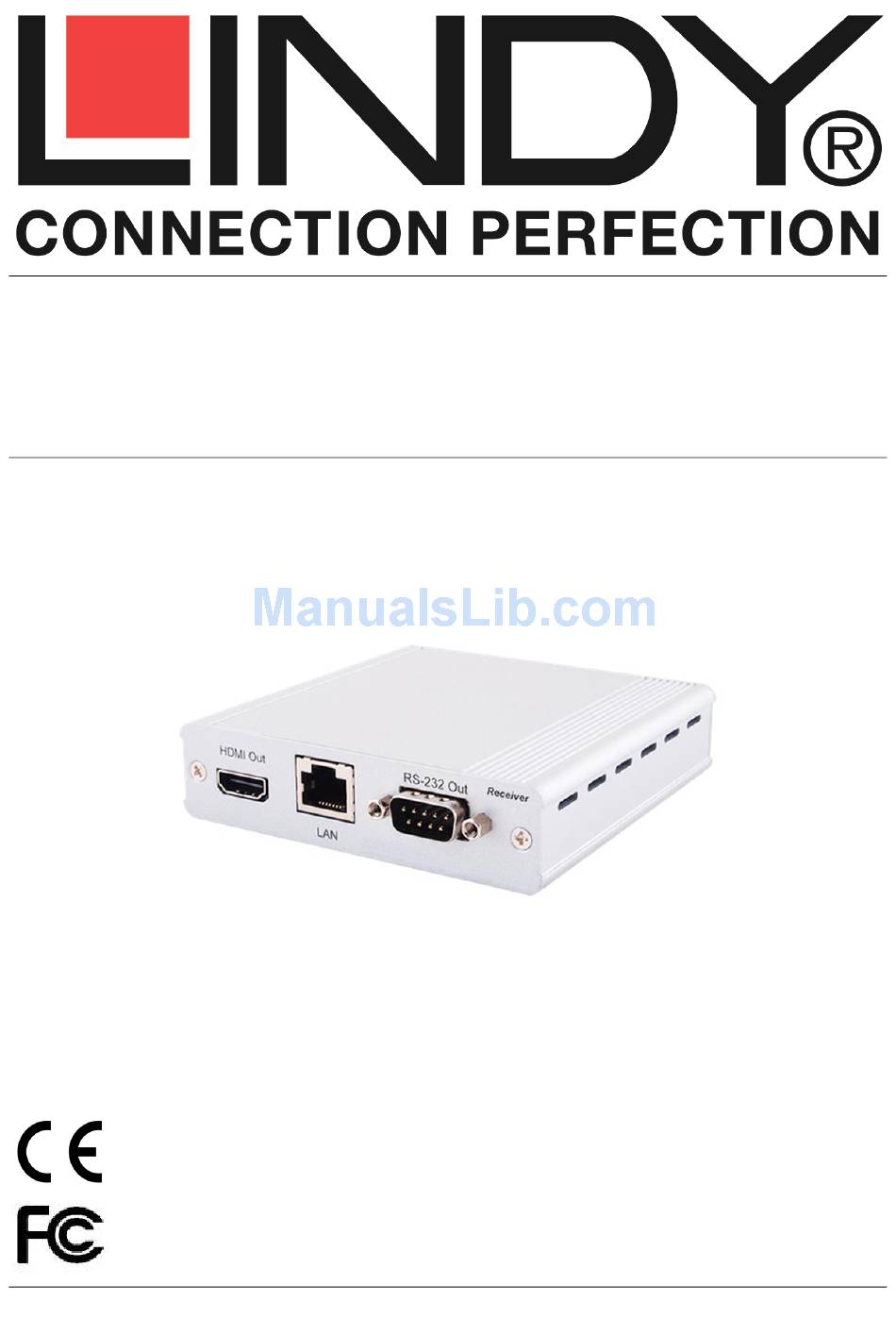

  • Page 1 C6 HDMI Receiver Premium, 100m with HDBaseT Technology User Manual Eng li sh No. 38218 www.lindy.com Tested to Comply with FCC Standards For Home and Office Use! © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (September 2014)
  • Page 2 !!! IMPORTANT !!! Only use a direct Cat.5e/6/7 cable connection between the HDBaseT ports. Do not connect these ports to Network or Ethernet equipment or any active components...

  • Page 3: User Manual

     C6 HDMI Receiver Premium  IR Blaster Cable  IR Extender Cable  LINDY Manual Specification  Input ports: 1 x HDBaseT RJ-45 Female, 1 x 3.5mm IR In  Input resolution: 480i – 1080p60 including 1080p 3D ...
  • Page 4 User Manual English Overview & Operation 1 HDMI Out Connect to a HDMI equipped display/projector’s HDMI input. 2 LAN Connect to a TV or games consoles Ethernet port to provide network/internet access. 3 RS232 Connect to a device which is controlled via RS232 command using a D-Sub 9 way female cable (not included).
  • Page 5 User Manual English 4. For additional Infrared remote signal functionality, connect the included IR Blaster/Receiver Cables to the Matrix and Receiver units as required (see Connection Diagram). 5. At the Matrix side, place the IR Blaster in front of the HDMI source devices IR receiver. At the remote side, place the IR Receiver in a location where it may easily receive the signal of your IR remote.
  • Page 6 User Manual English Troubleshooting RS-232 Protocols Assignment TX / RX TxD / RxD RxD / TxD There is no display on the screen.  Check that the DC plug and jack used by external power supply are firmly connected.  Check that the Cat.5e/6/7 cable is plugged in correctly and that the Link Status LED is lit.
  • Page 7 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.

  • Page 8: Recycling Information

    EU ha tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No 38218 Edition, September 2014 www.lindy.com...
