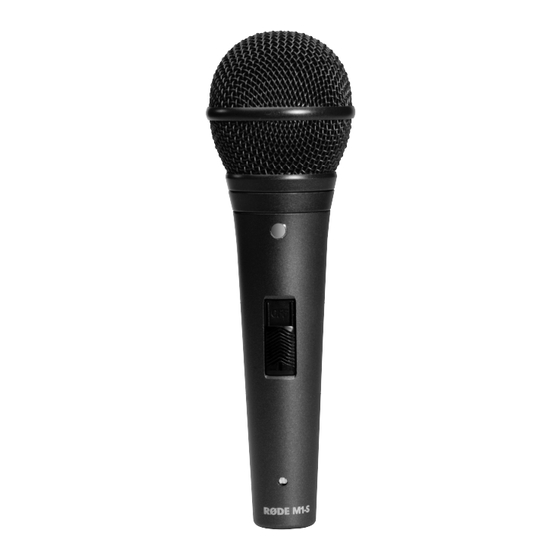

RODE Microphones M1-S Instruction Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
M1-S
Instruction Manual
www.rodemic.com
( EMC, LVD )

Advertisement

loading

Related Manuals for RODE Microphones M1-S

Summary of Contents for RODE Microphones M1-S

  • Page 1 M1-S Instruction Manual www.rodemic.com ( EMC, LVD )
  • Page 2 M1 has become the live mic of choice for countless performers and venues worldwide. The M1-S offers the same performance and durability of the M1, with the addition of a lockable switch that allows the user the freedom to control their own audio.

  • Page 3: Specifications

    Specifi cations Acoustic Dynamic Principle: Polar Pattern: Cardioid (see graph) Frequency 75Hz ~ 18,000Hz Range: (see graph) Output 320Ω Impedence: Sensitivity: -56dB ± 2 dB re 1V/Pa (1.6mV @ 94 dB SPL) @ 1 kHz Output 3-pin XLR balanced output Connection: between pin 2(+), pin 3(-) and pin 1 (ground)
  • Page 4 Specifi cations Frequency Response Polar Response Accessories RM1 stand mount (with thread adaptor), ZP1 zip pouch, M3 screw and fl at screwdriver - 4 -...
  • Page 5 Feedback rejecting pick-up pattern • Ten Year warranty* Using the M1-S • The M1-S comes complete with a microphone stand-mount (RM1). This should be used to attach the microphone to a good quality stand. The stand-mount includes a thread adaptor allowing connection to either 3/8”...
  • Page 6 • The M1-S features an XLR security lock to minimise theft. To engage the locking system, simply tighten the locking screw at the rear base of the microphone when the XLR cable is connected.
  • Page 7 Using the M1-S • The M1-S switch features a lock to prevent any chance of accidental disabling during performance. Position 1 Position 2 Position 3 Mic is off Mic is on Mic is on (unlocked) (unlocked) (locked) To lock the microphone on, simply rotate the small screw at the base of the switch to the horizontal position while it is in the ON position.

  • Page 8: Warranty

    Warranty microphones are warranted for one year from date of purchase. You can extend that to a full ten years if you register online at www.rodemic.com. The warranty covers parts and labour that may be required to repair the microphone during the warranty period.
