Manual
(Download – CamOneTec.com)
Version: 1.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity and is the answer not in the manual?

Questions and answers

Summary of Contents for CamOne Infinity

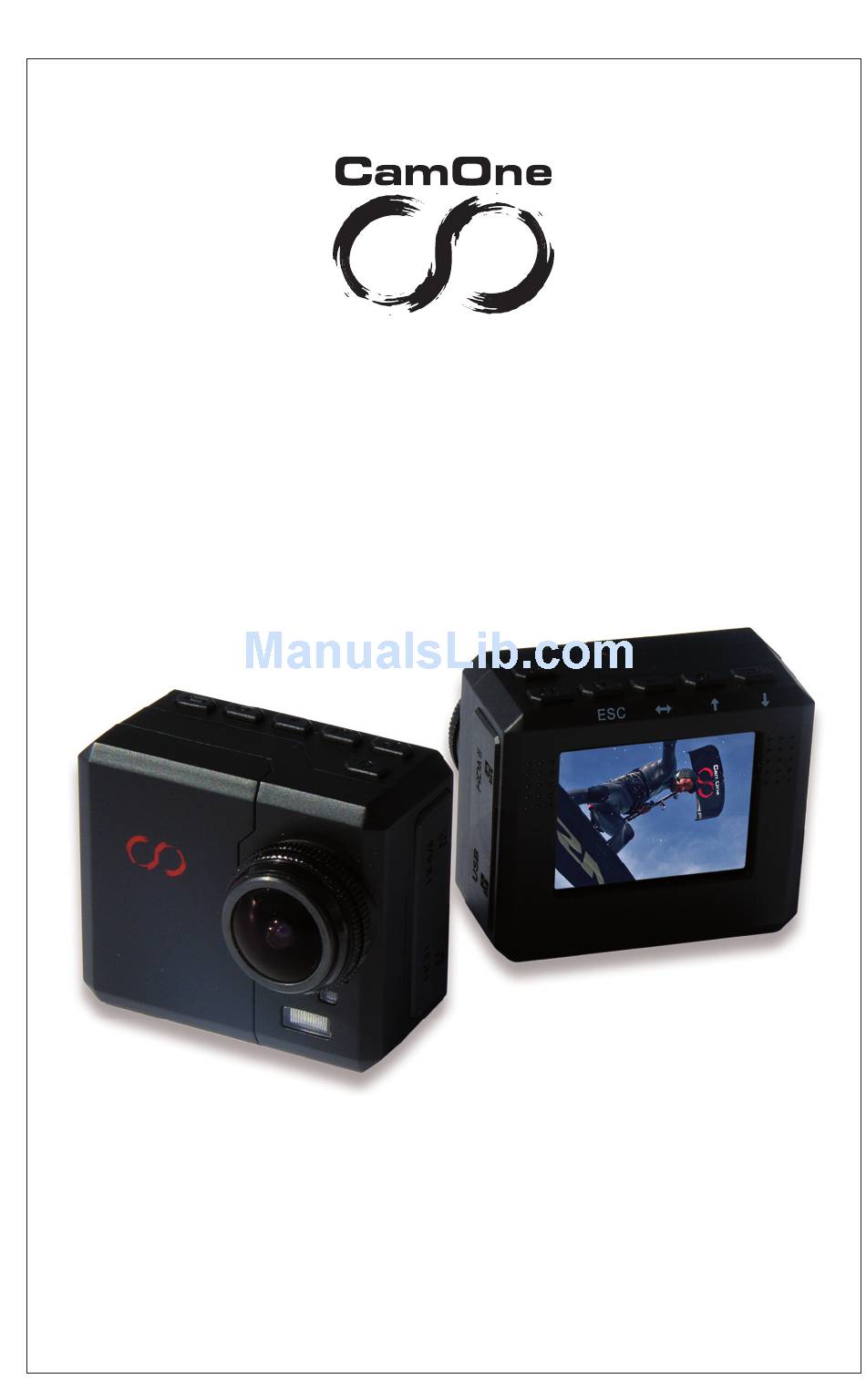

  • Page 1 Manual (Download – CamOneTec.com) Version: 1.05...
  • Page 2: Content Of The Box

    & images Content of the Box Please check the completeness before using the product. CamOne infinity DiveBox Battery Manual Pouch Ten-2-Ten Adaptor USB-Cable USB-AV-Cable M-Mount Handlebar Mount Extension long Extension short Helmet Mount with belt Flat Mount Curved Mount Adhesive pad big &...
  • Page 3: Table Of Contents

    turn on video & images Index Content of the Box Preparation Insert/replace Battery Charging the Battery Functional Diagram Main Functions Compatible Memory Cards Inserting/Removing the micro SD Card Switching on the Camera Icons (Camera Status) Setup Menu Using the DiveBox and different Mounts Photo / Video Recording Underwater Recordings Video Timelapse...
  • Page 4: Preparation

    CamOne Tec will not be responsible in any case for any consequential or direct problems that will lead to a loss of recorded or edited data. Furthermore, CamOne Tec will not guarantee the content in case the recording or saving is not working properly. The above limitations are also valid in case the unit has been repaired.
  • Page 5: Functional Diagram

    turn on video & images Functional Diagram The USB comport has the following setup: » AV-Out » 5V IN » Data input » Signal IN Key Panel Battery cover Lens Port Cover Microphone Status LEDs Front LED Screen OCB-Contacts Wifi/2,4 GHz Module Tripod thread Due to limitations in the technology of the display production, single or few dark or light dots might appear.
  • Page 6: Main Functions

    & images Main Functions The buttons of the CamOne infinity are multifunctional On/Off Light button Menu button Switching through 3 submenus Play button Photo button Video button Replay Photo function Video function Switching through submenus Switching through submenus...
  • Page 7: Compatible Memory Cards

    turn on video & images Compatible Memory Cards Only use Micro-SDHC-Cards ranked "Class4" or higher. The camera can be used with cards up to 32 GB. The recommended cards are "FCO Rapid Rush" cards at a minimum size of 8 GB. Using a 32 GB card allows a recording time of 4,5 hours at highest resolution.
  • Page 8: Icons (Camera Status)

    turn on video & images Icons (Camera Status) According to the configurations, different icons will appear on the display: Video/Photo recording Duration Timestamp Battery status Photo/Video System time Memory cards Remaining capacity Resolution Quality The Timestamp is available in Photo and Video mode. The card slot in use is indicated by a blinking icon.
  • Page 9: Setup Menu

    turn on video & images Setup Menu Please press the M-Button for 3 seconds to enter the setup. The menu is divided into 3 categories that can be selected by the different tabs (Photo, Video and System settings). By pressing the M-Button you will enter the next tab. To exit the menu, press the M-Button for several seconds.
  • Page 10: Using The Divebox And Different Mounts

    turn on video & images System Settings Here you can perform the main settings. Languages: Choose between German, English, French, Spanish, Italian, Dutch, Norwegian or Russian Date: Year-Month-Day. Switch through menu using the M-Button Time: Hour:Minute. Switch through menu using the M-Button Auto Screen Off: Screen will be switched off to save battery: Off, 30, 60 or 120 Sec.
  • Page 11: Photo / Video Recording

    Underwater Recordings For optimal recordings underwater turn the lens 95° counterclockwise by 95° (see picture) By turning the lens the CamOne infinity is adjusted to the refraction of the water. This makes the recordings 0° brighter and more brilliant. Video Timelapse »...
  • Page 12: Photo Interval

    turn on video & images Photo Interval » Press the "M-Button" to enter the Setup Menu » Choose the photo menu and then "Photo Interval". You can choose between: Off, 3 or 5 photos. » Confirm the requested function » Leave the menu. By pressing the record button the camera will release the intervals.
  • Page 13: Copy/Transfer Video Files (Ms Windows)

    The videos can be watched easily on your PC. We recommend the free VLC- Player. It can be downloaded on vlc-player.org Copying files from the CamOne infinity to your computer: » Connect the camera with the USB-Cable. » Connect the USB-Cable with your PC.
  • Page 14: Using External Modules

    With the supplied Ten2Ten Adaptor you can easily connect the camera with many accessories of the FlyCamOne HD family. Make sure to always Plug in the adaptor to the USB plug of the cam and connect the accessories. Following accessories are compatible with the CamOne infinity: Picture Functions Art.
  • Page 15: Exchanging The Lens (Optional)

    300 m. Wifi-Module The Wifi-Module enables you to control the CamOne infinity completely with a smartphone. The live picture is showing on the phone display. By using your own COIN27 access point the module is working in the nature as well.
  • Page 16: Technical Data

    turn on video & images Technical Data Operating Voltage: 5 V (USB) / 3,7 V (LiPo-Battery, 800 mAh) Consumption: 250 – 450 mAh (depending on camera settings) Size: 49 x 42 x 34 mm Weight: 77 g, incl. battery Battery: 3,7 V 800 mAh LiPo Format: MPEG4 or MOV...
  • Page 17: Faq

    turn on video & images Error Reason Solution The camera switches itself off The battery is not charged. Charge the camera with USB for at after start. least 3 hours. Unable to switch ON the The battery is not inserted Check the contacts.
  • Page 18: Accessories

    CamOne infinity DiveBox COIN12 4260033041982 CamOne infinity Handlebar Mount COIN13 4260033041999 CamOne infinity Ten-2-Ten Adaptor COIN14 4260033042545 CamOne infinity Connector 1x long / 1x short COIN16 4260033042569 CamOne infinity M-Mount COIN17 4260033042576 CamOne infinity Helmet Mount COIN18 4260033042583 CamOne infinity Flat Mount...
  • Page 19: Safety Advice

    turn on video & images Safety Advice Before you start using the camera please read the manual and safety advices carefully. WARNING Li-Po BATTERY Mishandling the battery may cause an explosion, fire and smoke including damage of health or goods. It will also reduce battery performance. Never charge a damaged Li-Po battery pack.
  • Page 20 turn on video & images CamOneTec.com...
