CamOne Infinity 1080p Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
for download at www.CamOnetec.com
Vers.: 1.02
CamOneTec is a Division of ACME the game company GmbH, Germany
"FlyCamOne", "CarCamOne" and "CamOne" are registered Trademarks of ACME the game company GmbH, Germany
© copyright 2011 by CamOneTec

Advertisement

Table of Contents
loading

Related Manuals for CamOne Infinity 1080p

Summary of Contents for CamOne Infinity 1080p

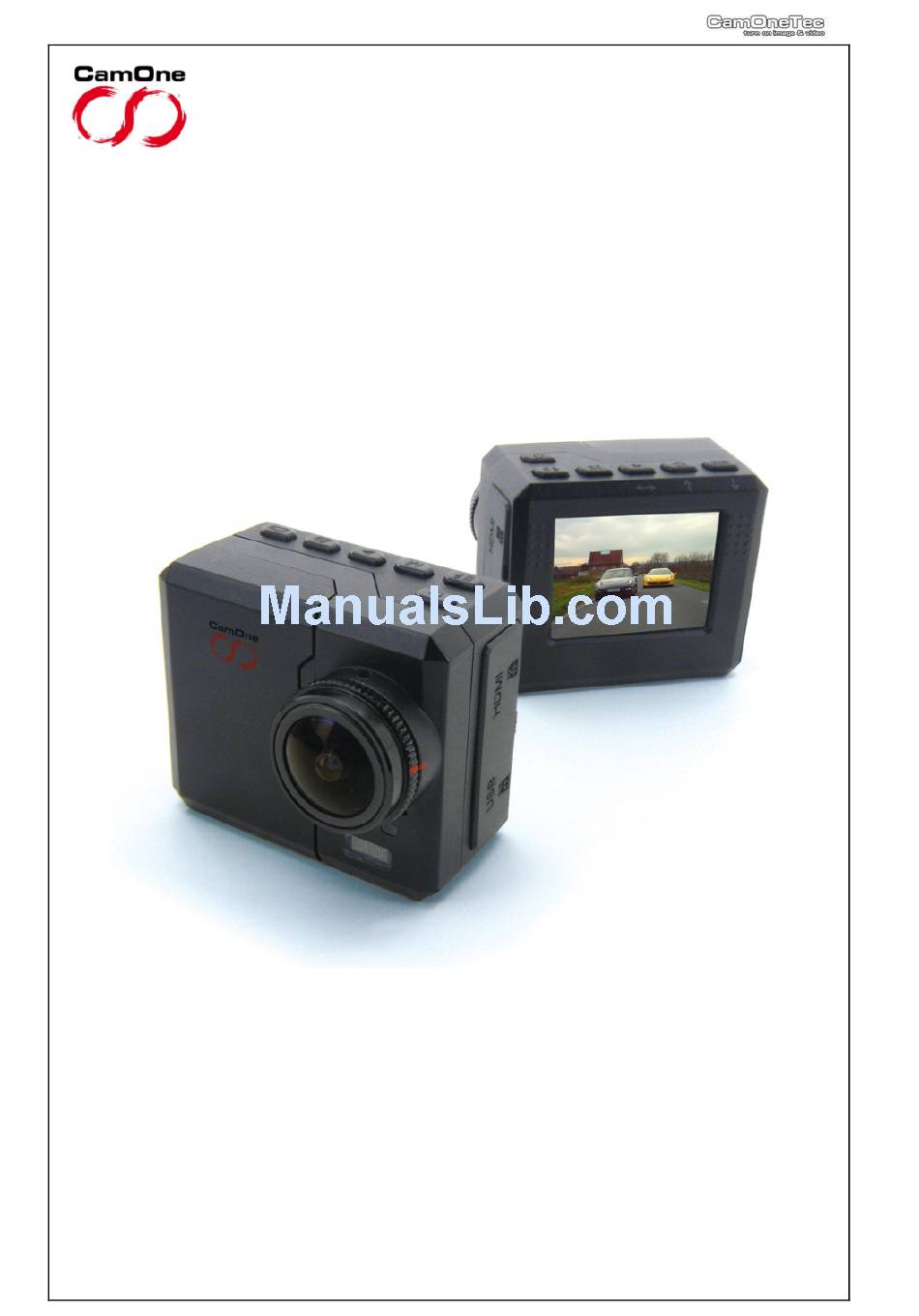

  • Page 1 Manual for download at www.CamOnetec.com Vers.: 1.02 CamOneTec is a Division of ACME the game company GmbH, Germany "FlyCamOne", “CarCamOne” and "CamOne" are registered Trademarks of ACME the game company GmbH, Germany © copyright 2011 by CamOneTec...

  • Page 2: Safety Advice

    Safety advice WARNING: SERVICE & SUPPORT Follow these instruction to prevent damage of CamOneTec the unit:  DO NOT USE UNPROTECTED IF RAIN OR by ACME WATER. PREVENT CONTACT WITH ANY Industriestr. 10a KIND OF LIQUIDS 33397 Rietberg  USE RECOMMENDED ACCESSORIES Germany ONLY ...

  • Page 3: Content Of Box

    Content of Box Check the completeness before using the product CamOne Infinity Camera 1080p USB-Cable USB –AV-Cable Ten-2-Ten Adaptor Battery DiveBox Long connector Short connector Bike Mount M-Mount Helmet Mount Universal Mount Velcro Pad small Velcro Pad big Manual...

  • Page 4: Insert The Battery

    Charging the battery The inside battery is not fully charged when being purchased. Please charge the battery before you are going to use the CamOne Infinity the first time! Connect the camera with your computer using the included USB-cable. The charging process is indicated by the red LED light which switches to green as soon as charging is finished.

  • Page 5: Functional Diagram

    Functional diagram The USB comport has the following setup: -AV-Out -5V IN -Signal IN for external Start/Stop (CarCamOne-Cable / Motion sensor) -GPS-Module / Video transmitter Set data input Due to limitations in the technology of the display production, single or few dark or light dots might appear.
  • Page 6 Key Panel – Interface Overview...

  • Page 7: Compatible Cards

    Compatible cards Only use Micro-SDHC-Cards rank „Class4“ or higher. The camera can be used with cards up to 32GB. The recommended cards are "FCO Rapid Rush" cards at a minimum size of 8GB. Using a 32GB card allows a recording time of 4,5 hours at highest resolution.
  • Page 8 Icons at the Display Due to the different configurations, you will see various icons on the display:...

  • Page 9: Setup Menu

    SETUP Menu Please press the M- Button for 3 seconds to enter the setup. The menu is divided in 3 categories that can be selected by the different tabs (Photo, Video and system settings). By pressing the M- Button you will enter the next tab. Photo-Menu Here you can select all necessary settings for photo recordings.

  • Page 10: Using The Divebox And Different Mounts

    -Auto Power off: Select the Auto off function: Off, 60 Sec., 120 Sec. or 300 Sec. -Motion detection: Off, low, medium or high -Flip picture: normal or 180° flipped -Image mirroring: normal or mirrored -Light Frequency: 50/60Hz - Before you start recording indoor, choose the correct frequency: Europe, Asia and Australia: 50Hz America: 60Hz...

  • Page 11: Time-Lapse Recording

    Time lapse recording Press the „M-Button“ to enter the setup menu. Choose the video menu and then „Time lapse“. You can choose between: 1 FPS, 6 FPM, 2 FPM or 1 FPM. Confirm the requested function and leave the menu. By pressing the record button you can start the video.

  • Page 12: Playback Of Videos And Photos

    Playback of Videos and Photos To watch your recorded data, press the „Play“ button. You have the choice between photos and videos. Choose this with the Photo and Video button. Confirm your choice by pressing the Play button. To playback the recordings, press „Play“. The display shows the name of the files. Playback on the TV Connect the camera with your TV by using a HDMI Cable and switch to the corresponding channel.
  • Page 13 Replacing the lens (optional) To replace the lens, twist off the two screws on the picture shown. Unscrew the lens. FPV-Kopf für den Please pay attention that no dust or dirt get into the cam. Screw in the replacement lens. Check the sharpness with a TV.

  • Page 14: Firmware Update

    Firmware Update To get the most out of your camera, install the latest software (Firmware). The firmware version of your camera is shown in the system settings. Download the ZIP file from our homepage first. Unzip the file on the main root of the memory card.

  • Page 15: Troubleshooting

    Troubleshooting Error Reason Solution Camera switches off Battery is not charged Charge the camera for at least immediately. correctly. 4 hours. Unable to switch ON the Battery is not plugged Check connection between camera correctly. camera and battery. Battery is defective. Replace the battery.
  • Page 16 CamOne Infinity HD Accessories Art‐No.:  EAN  Item  FCHD02   4260033 049520  FlyCamOne HD Screen 2,5"; 150cm cable FCHD03   4260033 049537  FlyCamOne HD Transmission Set 5.8GHz; Range 300m  COIN08   4260033041975  CamOne Infinity Battery LiPo 3,7V 900mAh COIN10     CamOne LinX 2.4GHz Digital Remote  FCHD15  4260033049650  FlyCamOne HD GPS Module FCHD16   4260033 049667  FCHD Rapid Rush 16GB Micro SD‐Card FCHD32  4260033 049827  FCHD Rapid Rush 32GB Micro SD‐Card FCHD43  4260033048578  USB Power adaptor 110‐220V  FC3104   4260033 048721  5.8GHz Shield antenna + 500m ...get inside at www.camonetec.com...
