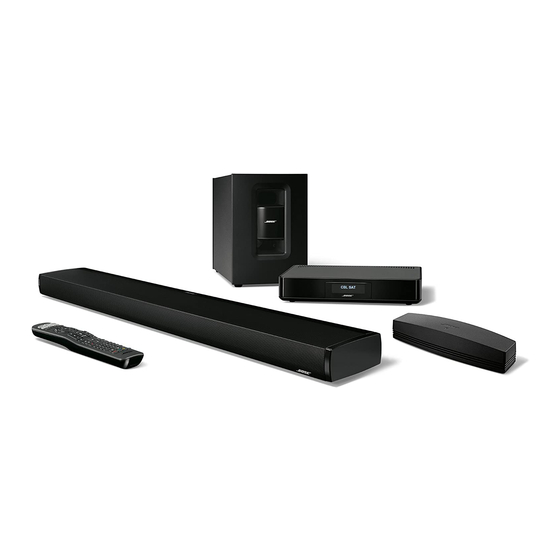

Bose cinemate 130 home theater system owner's guide
Hide thumbs
Also See for CineMate 130:
- Owner's manual (100 pages) ,
- User manual (6 pages) ,
- Quick start manual (2 pages)
Related Manuals for Bose CineMate 130
Summary of Contents for Bose CineMate 130
-
Page 1: Home Theater System
CineMate ® home theater system Owner's Guide │ Guía del usuario │ Notice d’utilisation... -
Page 2: Important Safety Information
Please check your local building codes for the correct type of wire and cable required for in-wall installation. Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. -
Page 3: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment. - Page 4 Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. ©DTS, Inc. All Rights Reserved. SoundTouch and the wireless note design are trademarks of Bose Corporation in the U.S. and other countries. Wi-Fi is a registered mark of the Wi-Fi Alliance.
-
Page 5: Table Of Contents
Contents Introduction About your CineMate 130 home theater system............7 ® System Features ......................7 Introducing SoundTouch™ from Bose ..............7 ® Unpacking the system ......................8 Placement guidelines ......................9 Setting Up the Acoustimass Module ® Attaching the rubber feet to the Acoustimass module ..........10 Connecting the Acoustimass module to power ............. - Page 6 Test your HDMI™-connected sources for CEC ............23 Program the remote to control your source ............24 Source selection ........................25 Select a source connected to the Bose system ............ 25 ® Select a source connected to your TV ..............25 Universal source buttons and console connectors ............
-
Page 7: About Your Cinemate ® 130 Home Theater System
™ powerful control. • Simply add additional systems at any time for a multi-room listening experience. • Wide selection of Bose audio systems lets you choose the right solution for any room. English - 7... -
Page 8: Unpacking The System
The appropriate power cords for your region are supplied. Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Refer to the contact sheet in ® the carton. 8 - English... -
Page 9: Placement Guidelines
Introduction Placement guidelines To avoid wireless interference, keep other wireless equipment away from the system. Place the system outside of and away from metal cabinets, away from other audio/video components and away from direct heat sources. Acoustimass • Stand the Acoustimass module on its rubber feet along the same wall ®... -
Page 10: Setting Up The Acoustimass
Setting Up the Acoustimass Module ® Attaching the rubber feet to the Acoustimass module Attach the rubber feet to the Acoustimass module to protect your floor. Turn the Acoustimass module upside down onto a soft surface to protect it from being damaged. Attach the rubber feet to the bottom of the Acoustimass module. -
Page 11: Connecting The Acoustimass Module To Power
Setting Up the Acoustimass Module ® Connecting the Acoustimass module to power Plug the power cord into the connector on the Acoustimass module. Plug the power cord into an AC (mains) outlet. English - 11... -
Page 12: Setting Up The Console
Blu-ray Disc player or game system, from your TV. ™ Insert one end of the Bose HDMI cable into the TV connector on the console. ® Insert the other end of the HDMI cable into your TV’s HDMI connector. -
Page 13: Tvs Without An Hdmi™ Arc Connector
If your TV does not have an HDMI ARC connector, you may need to make a secondary connection to the console with an optical, coaxial or analog stereo audio cable. Without this secondary connection, you may not hear audio from the Bose system. ®... -
Page 14: Connecting To Non-Hdmi™ Compatible Sources
Setting Up the Console Connecting to non-HDMI™ compatible sources If your source is non-HDMI compatible, connect it to your TV using audio and video cables (available separately). Refer to your TV owner’s guide for more information. Tip: If your source has IN and OUT audio connector panels, use audio OUT. Audio-only sources If your audio-only source, such as a media or CD player, is non-HDMI compatible, connect it to the console’s optical, coaxial or analog connector. -
Page 15: Setting Up The Soundbar
Setting Up the Soundbar Connecting the soundbar Insert one end of the speaker cable into the Speaker Connection connector on the console. Insert the other end of the speaker cable into the connector on the soundbar. English - 15... -
Page 16: Attaching The Optional Extension Feet To The Soundbar
Wall mounting the soundbar You can mount the soundbar on a wall. To purchase the WB-135 Wall Mount Kit, contact your local Bose dealer or visit www.Bose.com CAUTION: Do not use any other hardware to mount the soundbar. 16 - English... -
Page 17: Connecting The System To Power
Connecting the System to Power Connecting the soundbar to power Plug the power cord into the connector on the soundbar. Plug the power cord into an AC (mains) outlet. Connecting the console to power Plug the power cord into the Power connector on the console. -
Page 18: Starting Up The System
Starting Up the System Installing the remote control’s batteries Slide open the battery compartment cover on the back of the remote control. Insert the two provided AA (IEC-LR6) 1.5V batteries. Match the + and – symbols on the batteries with the + and – markings inside the compartment. Slide the battery compartment cover back into place. -
Page 19: Finishing Setup
Finishing Setup Checking for sound Power on your TV. If you are using a cable/satellite box or other secondary source, power on this source. Tip: If your secondary source is connected to your TV, select the appropriate TV input. You may need to use a different remote. Power on the system. -
Page 20: Running The Adaptiq ® Audio Calibration
Finishing Setup Running the ADAPTiQ audio calibration ® The ADAPTiQ audio calibration customizes the sound of the system to the acoustics of your listening area by taking five audio measurements. To perform an audio calibration, you need 10 minutes when the room is quiet. Put the ADAPTiQ headset on your head. -
Page 21: Using The System
System menu. Toggles between SoundTouch ™ wireless adapter (available separately) Source selection connector Powers on/off the Selects a source Bose system ® connected to your TV Powers on/off a selected source Navigation pad Lists recorded Displays the Internet... -
Page 22: Programming The Universal Remote Control
Using the System Programming the universal remote control You can use the remote to control your TV, cable/satellite box, DVD or Blu-ray Disc player, game system, DVR or other auxiliary source. ™ Consumer Electronics Control The system supports Consumer Electronics Control (CEC). CEC allows you to control multiple HDMI -connected sources without programming the remote. -
Page 23: Test Your Hdmi™-Connected Sources For Cec
Test your HDMI™-connected sources for CEC Test each of your sources for CEC using the remote control. Note: Your HDMI-connected source may not support CEC. Refer to your source owner’s guide for more information. Power off the Bose system. ® Prepare your source: •... -
Page 24: Program The Remote To Control Your Source
Using the System Program the remote to control your source If your source does not support CEC, you can program the remote to control your source. Power on your source. Locate the code for your source’s brand in the Universal Remote Device Codes book (provided). -
Page 25: Source Selection
You can switch between sources by pressing the appropriate source button on the remote control. Before you begin, program the remote to control your source (see page 24). Select a source connected to the Bose system ® If your source is connected to the console and does not use CEC, follow this procedure to set the console to the appropriate mode and turn on the source. -
Page 26: Adjusting The Volume
Programming a non-Bose remote control You can program a non-Bose remote control, such as your cable/satellite box remote, to control the system. Refer to your non-Bose remote control owner’s guide or cable/satellite website for instructions. -
Page 27: Getting System Information From The Display
Getting System Information from the Display Understanding messages on the display The display on the front of the console allows you to access the System menu and shows system information and icons. Using the System menu Use the System menu to adjust audio levels, turn on/off features (such as AUTO OFF), change the language, set the coaxial, analog and optical inputs for a particular source, run ADAPTiQ , pair your Acoustimass... - Page 28 Getting System Information from the Display Display System state 9 SURROUND LEVEL NOT AVAILABLE. Changes the language on the console and ADAPTiQ ® 10 LANGUAGE 11 SET OPTICAL INPUT Sets the optical connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source. 12 SET COAXIAL INPUT Sets the coaxial connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source.
-
Page 29: Error Messages
SIDE AUX The source is not connected to the connector on Nothing connected the console. ERROR Call Bose customer service. Refer to the contact ® Call Bose sheet in the carton. Acoustimass module status indicator The status indicator on the back of the Acoustimass module provides information on system activity. -
Page 30: Care And Maintenance
• Plug the Acoustimass module, soundbar and console into a live AC (mains) outlet. • Insert the speaker cable into the Speaker Connections connector, not the Bose Link connector. ® cable into a connector on your TV labeled ARC or Audio •... -
Page 31: If Your Console Cannot Find The Acoustimass ® Module
Care and Maintenace Problem What to do Poor or • Remove all protective films from the system. distorted • Secure all cable connections on the soundbar, TV, and connected sources. sound • If you see the error message Cannot find Acoustimass: - Plug in the Acoustimass module. -
Page 32: Factory Reset The System
Care and Maintenance Factory reset the system To troubleshoot problems, reset the System menu and ADAPTiQ to the ® factory settings. Press on the remote control. until 16 FACTORY RESET appears on the display. Press Press 5. The system resets. Run the ADAPTiQ audio calibration (see page 20). -
Page 33: Cleaning
Failure to register will not affect your limited warranty rights. The warranty information provided with this product does not apply in Australia and New Zealand. See our website at www.Bose.com.au/warranty or www.Bose.co.nz/warranty for details of the Australia and New Zealand warranty. Technical information Acoustimass module ®... - Page 34 ©2014 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM715117 Rev. 00...
