10−07 Litho in U.S.A. (els)

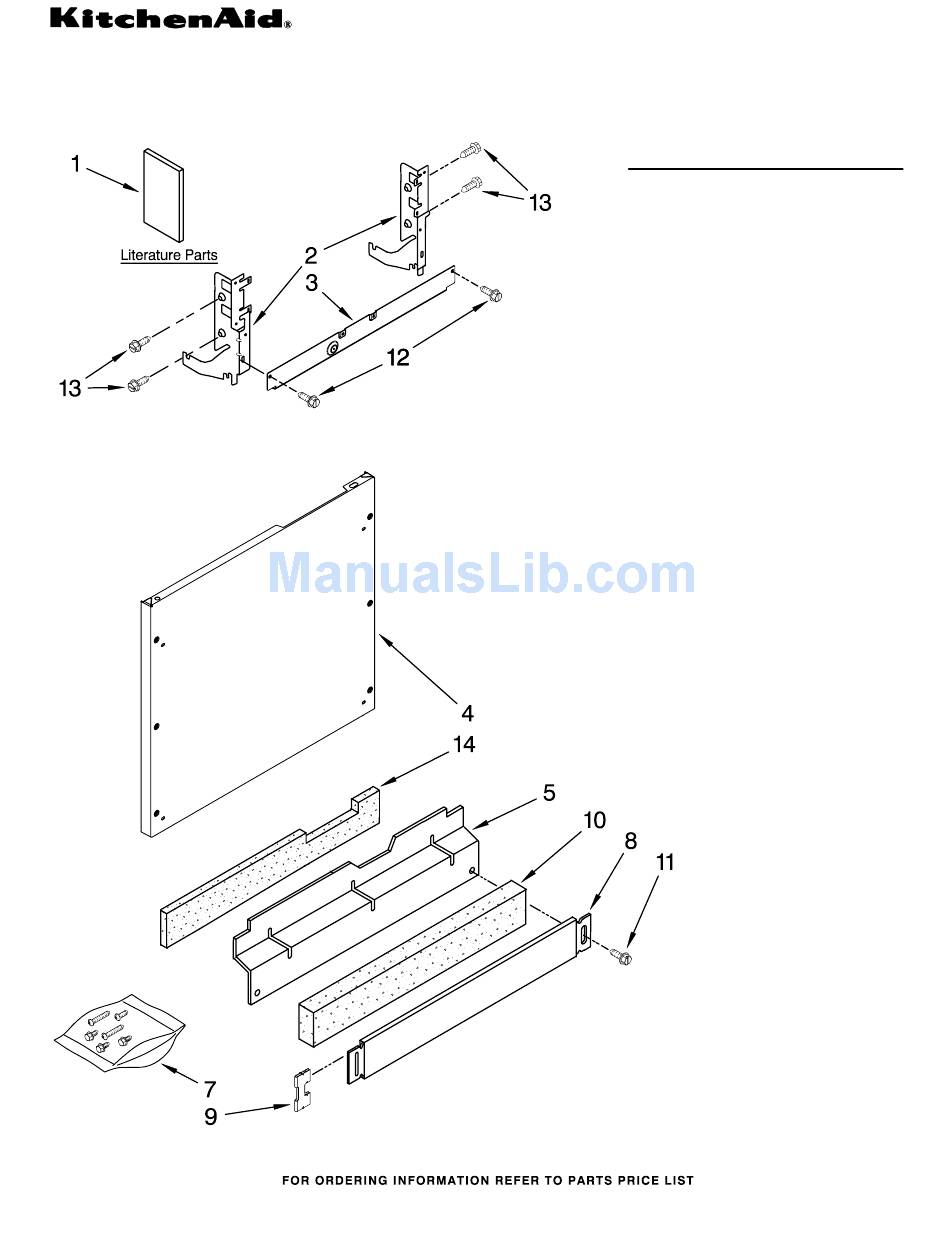

DOOR AND PANEL PARTS
For Model: KUDS03FTPA2
(Panel Ready)
1
UNDERCOUNTER
DISHWASHER
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10078153 Instructions,
Installation
W10164239 Energy Guide
W10084169 Guide, Use & Care
Spanish
W10084091 Guide, Use & Care
Enlish/French
W10130990 Tech Sheet
2
Arm, Hinge
8534854 Left
8534853 Right
3
8564886 Stiffener, Door
4
8535133 Panel, Front
5
Access Panel
(Includes #14)
8558260 Black
7
8531882 Screws, Bag
Door Assembly
8
Toe Panel
(Includes 9 & 10)
8558252 Black
9
8269016 Clip, Ground
10 W10073550 Insulation,
Toe Panel
11
302868 Screw
12
304392 Screw
13
3400071 Screw
14 W10073540 Insulation,
Access Panel
Part No. W10163064 Rev. A
Advertisement
Related Manuals for KitchenAid KUDS03FTPA2
Summary of Contents for KitchenAid KUDS03FTPA2
- Page 1 DOOR AND PANEL PARTS 10−07 Litho in U.S.A. (els) For Model: KUDS03FTPA2 (Panel Ready) Illus. UNDERCOUNTER DISHWASHER Part DESCRIPTION Literature Parts W10078153 Instructions, Installation W10164239 Energy Guide W10084169 Guide, Use & Care Spanish W10084091 Guide, Use & Care Enlish/French W10130990 Tech Sheet...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION Console Assembly (Includes Insert) W10084178 Black 8524447 Cable, Ribbon 8546546 Clip, BI−Metal 4 W10078079 User Interface 661663 BI−Metal 3369051 Screw 7 W10077360 Latch Assembly 8 W10084141 Control Assembly 9 W10134019 Switch, Door... - Page 3 3 W10084288 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 8572611 Vent Assembly (Also Order Item 6) W10163064 For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 8269259 Gasket, Vent 7 W10077877 Deflector, Vent (Also Order Item 6)
- Page 4 LOWER WASHARM AND STRAINER PARTS For Model: KUDS03FTPA2 Illus. Part 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower (Panel Ready) DESCRIPTION Rear Feed (Also Order Item 3) Sprayarm (Also Order Item 3)
-
Page 5: Heater Parts
W10163064 HEATER PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced. - Page 6 FILL, DRAIN AND OVERFILL PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part 8268892 Lever, Overfill 8531412 Hose, Inlet 8531325 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 8563405 Fill Valve 304392 Screw 8268909 Switch, Overfill 8545946 Standpipe, 8531743 Gasket, Flat 9741998 Nut, Standpipe 13 W10077871 Float &...
- Page 7 TUB AND FRAME PARTS For Model: KUDS03FTPA2 (Panel Ready) W10163064...
- Page 8 TUB AND FRAME PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 1 W10084283 Tub Assembly 8574123 Barrier, Moisture 3 W10112096 Door Seal 4 W10082838 Plug Tub 8572661 Actuator Assembly 6 W10082769 Motor, Wax 8269110 Seal, Cabinet 8573061 Strain Relief...
- Page 9 PUMP AND MOTOR PARTS For Model: KUDS03FTPA2 (Panel Ready) W10163064...
- Page 10 PUMP AND MOTOR PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 8535760 Motor Assembly...
- Page 11 UPPER RACK AND TRACK PARTS For Model: KUDS03FTPA2 (Panel Ready) W10163064...
- Page 12 UPPER RACK AND TRACK PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 8539235 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268653 Adjuster Assembly 8270138 Wheel 8268703 Axel, Adjuster 8281156 Screw 9744566 Tine Row...
- Page 13 UPPER WASH AND RINSE PARTS W10163064 For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold 7 W10082832 Hanger...
- Page 14 LOWER RACK PARTS For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION 8519680 Dishrack, Lower Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10082868 Wheel & Transport Assembly 8562044 Basket, Silverware 8531314 Retainer, Tine Row 8519682 Tine Row 7 W10078227 Pivot, Tine Row...
- Page 15 Drain Hose 3385556 12 Ft. Vinyl Touch−Up (4oz.) 676453 White 676455 Grey 4396853 Silver Atlantis Moisture Barrier Kit 4396277 Kit W10163064 For Model: KUDS03FTPA2 (Panel Ready) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit 4396603 Meteorite PAINT, PRESSURIZED SPRAY (12 oz.)
