KitchenAid KUDS03FSBL3 Parts List

Undercounter dishwasher
Hide thumbs

Advertisement

Quick Links

For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
5−07 Litho in U.S.A. (els)

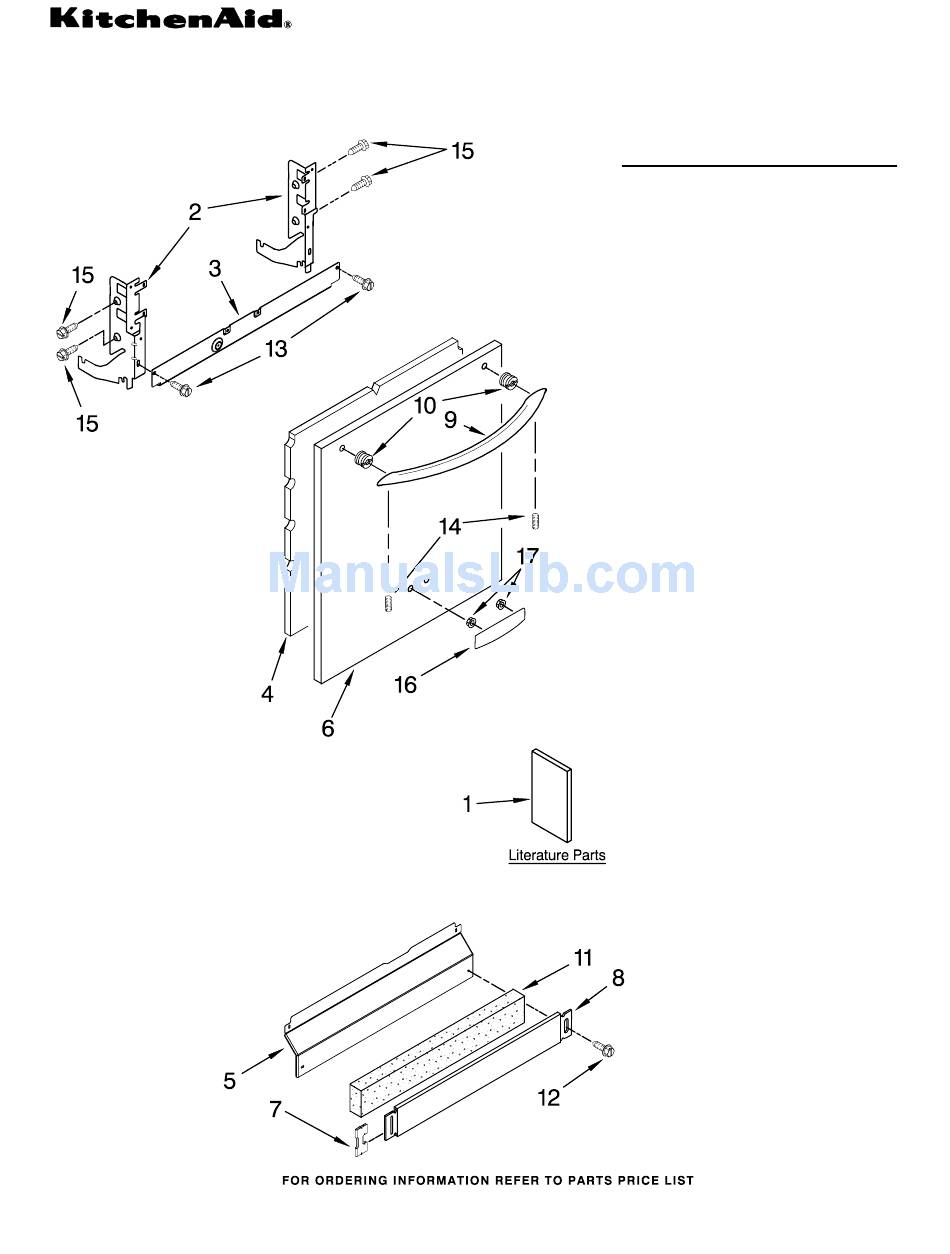

DOOR AND PANEL PARTS
(Black)
(White)
1
(Biscuit)
(Stainless)
Illus.
Part
No.
No.
1
8574116 Instructions,
W10102692 Energy Guide
8574093 Guide, Use & Care
W10077956 Guide, Consumer
W10082651 Tech Sheet
2
8534854 Left
8534853 Right
3
8564886 Stiffener, Door
4
8542577 Insulation, Door
5
8573255 Black
8573256 White
8573257 Biscuit
6
W10021900 Black
W10021910 White
W10021920 Biscuit
W10021930 Stainless
7
8269016 Clip, Ground
8
8558252 Black
8558253 White
8558254 Biscuit
9
W10083936 Black
W10083937 White
W10083938 Biscuit
W10083935 Stainless
10
8564951 Stud, Mounting
11 W10073550 Insulation,
12
302868 Black
3400836 White
3400865 Biscuit
13
304392 Screw
14
8534008 Screw
15
3400071 Screw
16
W10021860 Black
W10021870 White
W10021880 Biscuit
W10021850 Stainless
17
2004333 Nut
Part No. 8194574 Rev. B
UNDERCOUNTER
DISHWASHER
DESCRIPTION
Literature Parts
Installation
Reference
Arm, Hinge
Access Panel
Panel, Full Front
(Includes Items
4,10,16 & 17)
Toe Panel
(Includes Items
7 & 11)
Handle
(Includes Item 14)
Toe Panel
Screw
Nameplate

Advertisement

loading

  Related Manuals for KitchenAid KUDS03FSBL3

  Summary of Contents for KitchenAid KUDS03FSBL3

  • Page 1 DOOR AND PANEL PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 5−07 Litho in U.S.A. (els) (Black) (White) (Biscuit) UNDERCOUNTER DISHWASHER (Stainless) Illus. Part DESCRIPTION Literature Parts 8574116 Instructions, Installation W10102692 Energy Guide 8574093 Guide, Use & Care W10077956 Guide, Consumer...
  • Page 2: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) Illus. Part DESCRIPTION (Includes Insert) W10083825 Black W10083826 White W10083833 Biscuit W10083827 Stainless 8546546 Clip, BI−Metal 3400412 Screw 661663 BI−Metal 3369051 Screw (6) 6 W10077984 Latch Assembly 8575276 Control,...
  • Page 3 DOOR AND LATCH PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 Illus. Part DESCRIPTION 3369051 Screw, Door 8281217 Screw 8530900 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 8572611 Vent Assembly (Also Order Item 6) 8194574 (Black)
  • Page 4 LOWER WASHARM AND STRAINER PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) Illus. Part 8572307 Wash Arm Assembly 8268343 Cap, Internal 8268340 Seal, Sprayarm 8268342 Hub, Lower (White) (Biscuit) (Stainless) DESCRIPTION Rear Feed (Also Order Item 3) Sprayarm (Also Order...
  • Page 5: Heater Parts

    For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 8194574 HEATER PARTS (Black) (White) (Biscuit) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced.
  • Page 6 FILL, DRAIN, AND OVERFILL PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) (Biscuit) (Stainless) Illus. Part 1 W10070120 Wire, Jumper 2 W10041920 Hose, Inlet 3 W10041900 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 8563405 Fill Valve...
  • Page 7 TUB AND FRAME PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) (Biscuit) (Stainless) 8194574...
  • Page 8 TUB AND FRAME PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) Illus. Part DESCRIPTION 1 W10053130 Tub Assembly 8574123 Barrier, Moisture 3 W10112096 Door Seal 8270119 Plug Tub (2) 8269110 Seal, Cabinet 8573061 Strain Relief 8270021 Mount, Door 3367670 Screw...
  • Page 9 PUMP AND MOTOR PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) (Biscuit) (Stainless) 8194574...
  • Page 10 PUMP AND MOTOR PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 8268383 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 8535760 Motor Assembly...
  • Page 11 UPPER RACK AND TRACK PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) (Biscuit) (Stainless) 8194574...
  • Page 12 UPPER RACK AND TRACK PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) Illus. Part DESCRIPTION 8561731 Dishrack, Upper 8531344 Housing, Adjuster W10077838 Right Hand W10077839 Left Hand 8268653 Adjuster Assembly 8270138 Wheel 8268703 Axel, Adjuster 8281156 Screw 8562030 Tine Row...
  • Page 13 THIRD LEVEL RACK AND TRACK PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 8194574 (Black) (White) (Biscuit) Illus. Part DESCRIPTION Track Assembly 8572329 Right 8572330 Left 8564852 Stop, Track 8564899 Mount, Track 8564900 Rack Assembly (Third Level) 8564901 Basket− TLR (Stainless)
  • Page 14 UPPER WASH AND RINSE PARTS For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 (Black) (White) (Biscuit) (Stainless) Illus. Part 8559849 Feed Tube 8533889 Screw 8557720 Sprayarm, 3rd 3400920 Cover, Screw 8268354 Mount 8268356 Manifold 8268349 Hanger 8268433 Seal, Sprayarm 8268350 Probe, Manifold...
  • Page 15 For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 8194574 LOWER RACK PARTS (Black) (White) Illus. Part DESCRIPTION 8561733 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 8268713 Wheel & Transport Assembly 8531282 Basket, Silverware 8519662 Lid, Basket Center 6 W10086370 Insert, Large 8519716 Basket−Small...
  • Page 16 OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3 Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 8212489 Black Towel Bar Handle Kit 8573938 Stainless Steel Drain Hose 3385556 12 Ft.
