KitchenAid KUDS03CTBL3 Parts List

Undercounter dishwasher
Hide thumbs

Advertisement

Quick Links

10−09 Litho In U.S.A. (els) (eeb)

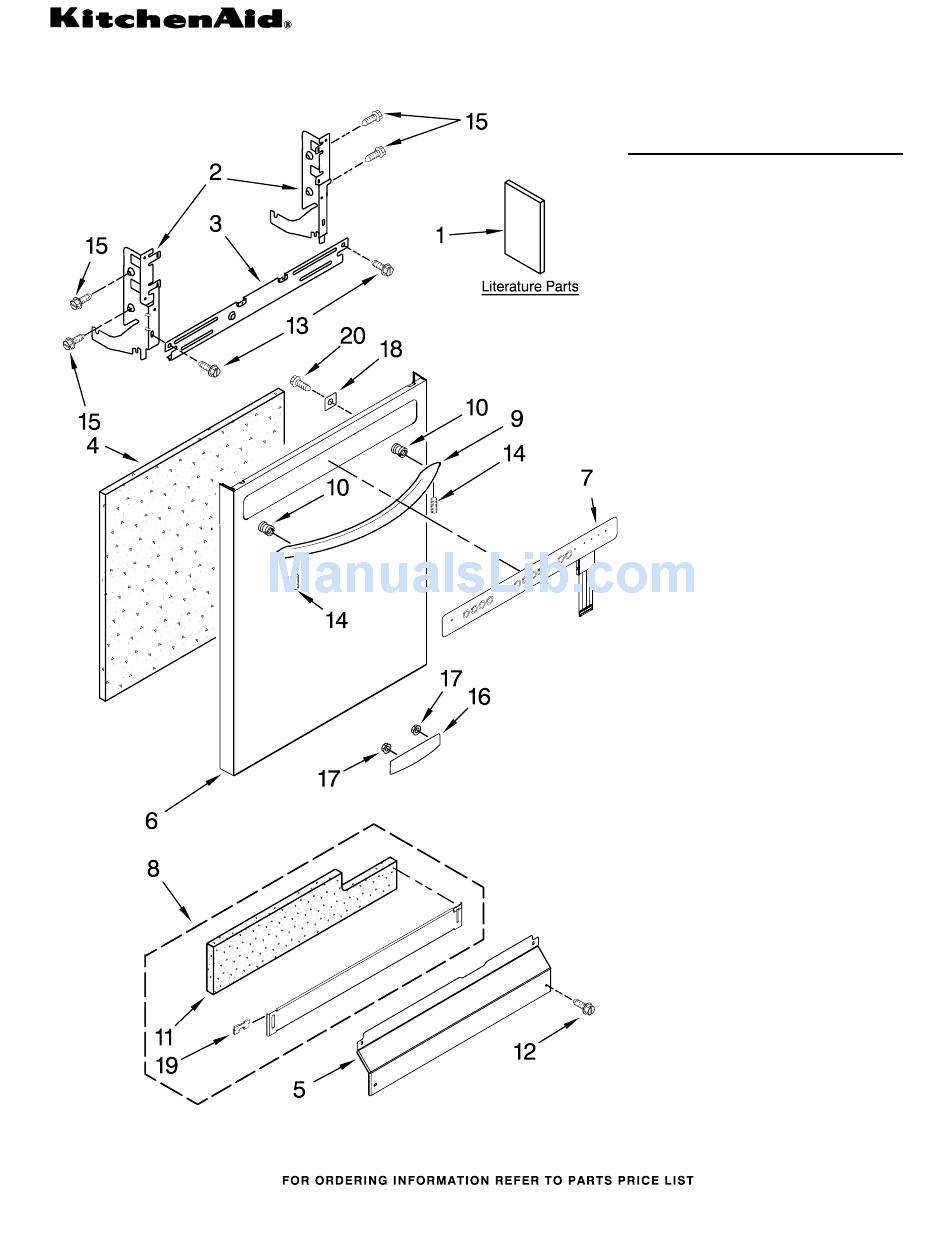

DOOR AND PANEL PARTS
For Models: KUDS03CTBL3, KUDS03CTWH3, KUDS03CTSS3
(Black)
(White)
(Stainless)
Illus.
No.
1
2
3
4 W10073520 Insulation, Door
5
6
7
8
9
10
11 W10073540 Insulation,
12
13
14
15
16
17
18 W10123421 Screw
19
20 W10133538 Plate, Backing
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
W10078153 Instructions,
Installation
W10056403 Energy Guide
W10193741 Guide, Use & Care
Spanish
W10193740 Guide, Use & Care
English/French
W10130990 Tech Sheet
Arm, Hinge
8534854 Left
8534853 Right
8564886 Stiffener, Door
Access Panel
(Includes item 18)
8573255 Black
8573256 White
Panel, Full Front
(Includes Items
4, 10, 16 & 17)
W10077999 Black
W10078000 White
W10137621 Stainless
Overlay
W10077794 Black
W10077795 White
W10077797 Stainless
Toe Panel
(Includes
Items 11 & 19)
W10205336 Black
W10205337 White
Handle
(Includes
Items 14)
W10257146 Black
W10257147 White
W10257145 Stainless
8564951 Stud, Mounting
Toe Panel
Screw
302868 Black
3400836 White
304392 Screw
8534008 Screw
3400071 Screw
Nameplate
W10021860 Black
W10021870 White
W10021850 Stainless
2004333 Nut
8269016 Clip, Ground
Part No. W10200517 Rev. B
