IEC Vertical F*C Series Installation, Operation & Maintenance Manual page 8

IEC Vertical F*C Series Fan Coils
INSTALLATION, OPERATION, & MAINTENANCE MANUAL
7. Adjust FHC, FXC, FVC units leveling legs so unit is
level. See Figure 2. Unit must be level for proper
operation and condensate drainage. (See Figure 5 for
recommended connection methods/trapping)
8. Mounting unit: Reach into unit and attach unit
to the wall using the 0.375-in. mounting holes (4)
12"
Side View

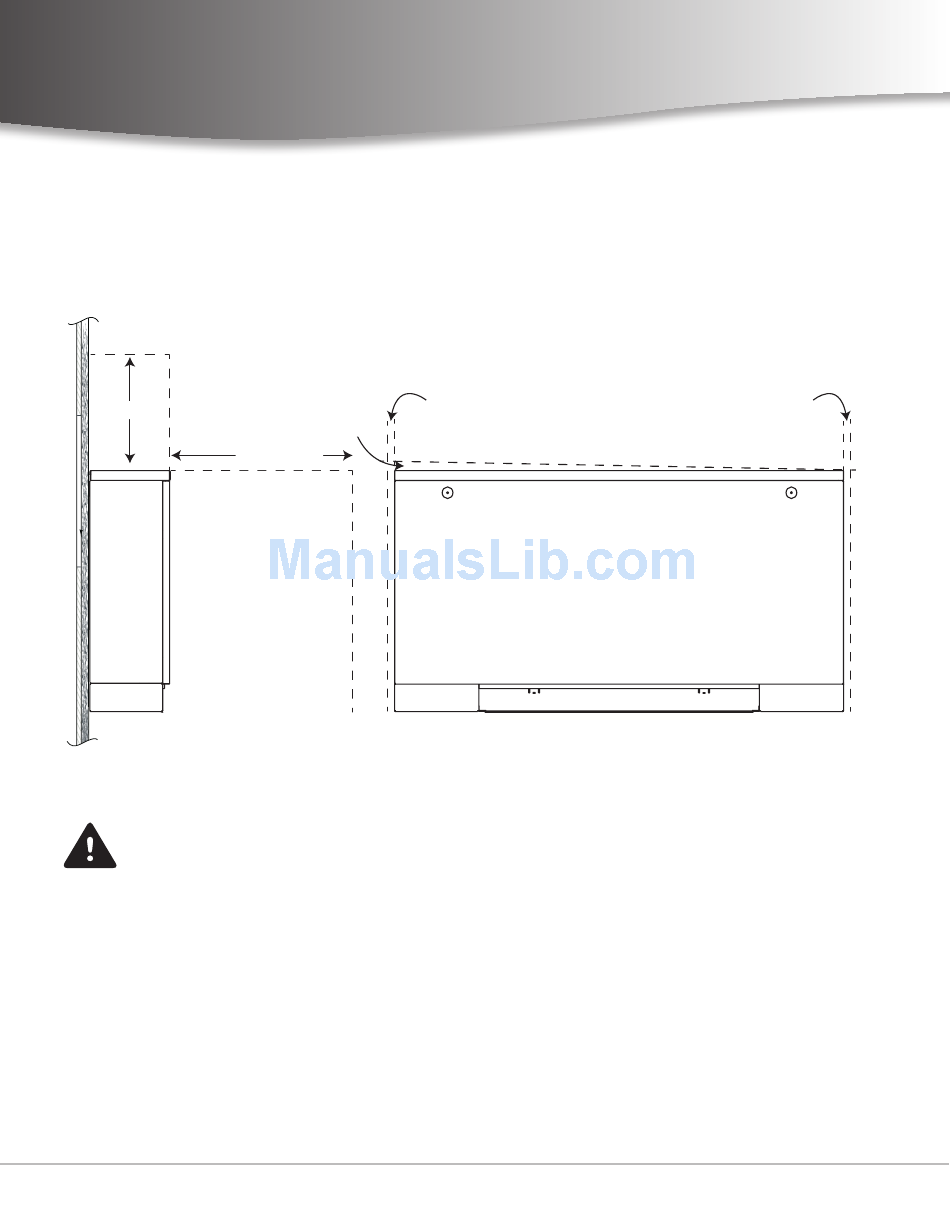

Figure 2: Clearance recommendations.
Cooling/Heating Pipe Connections
CAUTION: Residues and loose particles
resulting from manufacturing and field piping
techniques such as joint compounds, soldering flux, and
metal shavings may be present in the unit and the piping
system. Give special consideration to system cleanliness
when connecting to solar, domestic or potable water
systems.
Thoroughly review submittals and product literature
detailing unit operation, controls, and connections BEFORE
beginning the connection of the various cooling and/or
heating mediums to the unit.
All accessory valve packages shall be installed as required,
and check all service valves for proper operation. At times,
International Environmental Corporation • Vertical F*C Series Fan Coil Installation, Operation, & Maintenance Manual
8
Level Unit
±1/4"
Minimum
30" Minimum
per building code
www.iec-okc.com
in top panel; do not use any other locations. The
four mounting holes and hanger slots with rubber
grommets are NOT for balancing unit.
NOTE: For any unit without a return-air duct connection,
applicable installation codes may limit unit to installation
in single story applications only.
1/2"
Front View
valve packages may be shipped loose with the equipment.
In these cases, perform a dry fit of the assemblies to ensure
proper alignment and access to the assembly components
can be utilized for maintenance and service.
If coil and valve package connections are made with a
"sweat" or solder joint, verify that no components in the
valve package are subjected to a high temperature which
may damage seals or other materials. Do not allow valve
bodies to exceed 300°F. Protect all valve and water control
assemblies with wet or damp rag wrapped around the body
during the soldering/brazing process.
Many two position electric control valves, depending on
valve operation, are provided with a manual opening lever.
Place this lever in the "open" position during all soldering or
brazing operations.
1/2"
Minimum
