IEC Vertical F*C Series Installation, Operation & Maintenance Manual page 6

IEC Vertical F*C Series Fan Coils
INSTALLATION, OPERATION, & MAINTENANCE MANUAL
5
3-3/4
E
(127)
(95)
OPTIONAL
CONTROL BOX SHOWN
(STD BOX IS 2X4)
9-1/4
(235)
11-3/4
25
(298)
(635)
4
(102)
1/2" (13) MTG. HOLES
9
(TYP. OF 4)
(229)
9-1/2
(241)
UNIT
SIZE
NOTES:
FXC
1. R.H. SHOWN, L.H. OPPOSITE.
FXC
2. ALL DIMENSIONS ± 1/4" (6).
3. PRODUCT SPECIFICATIONS ARE SUBJECT TO
FXC
CHANGES WITHOUT NOTICE.
FXC
FXC
FXC
FXC
FXC

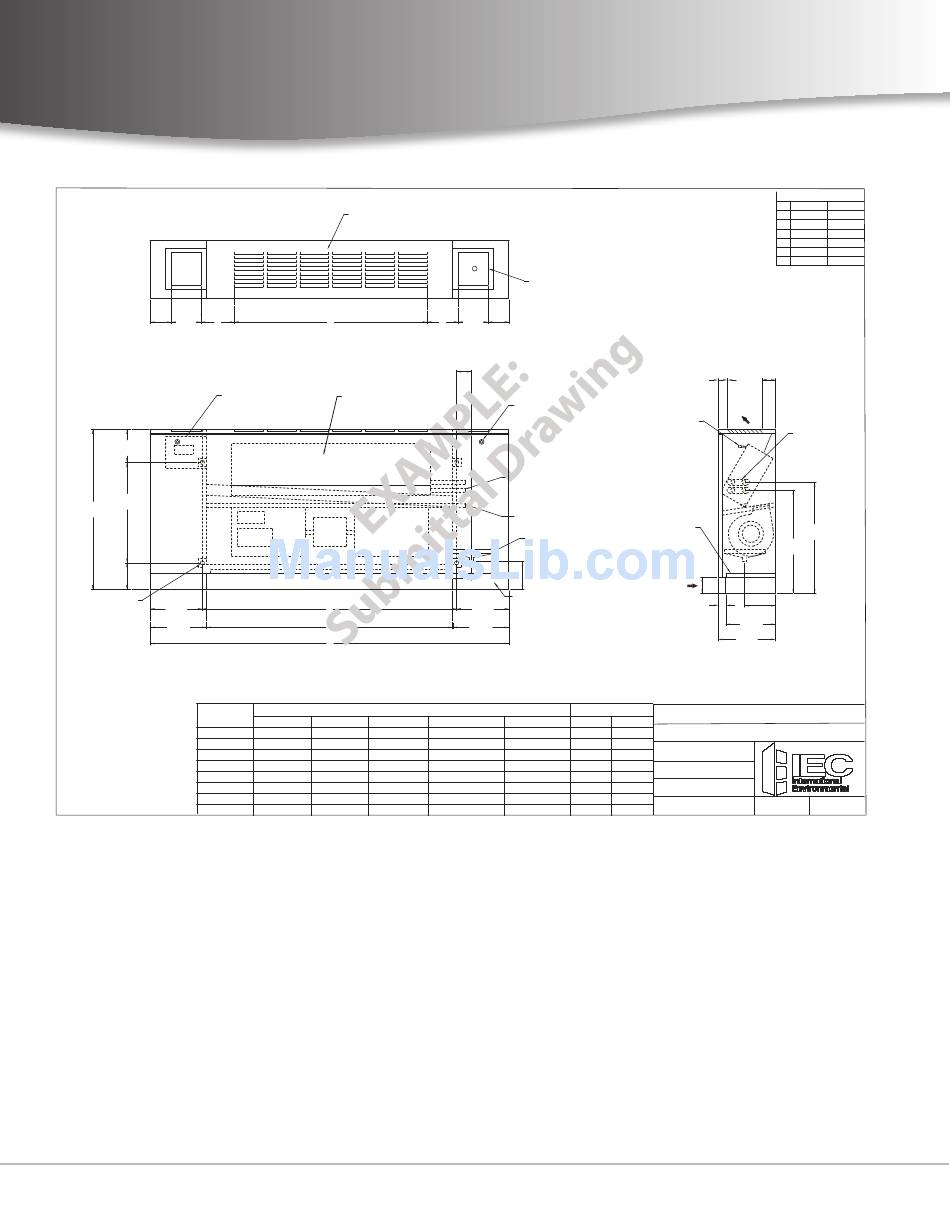

Figure 1: Example of Submittal Drawing
Depending on the options and accessories, some units
may contain delicate components that may be damaged
by improper handling. Whenever possible, all units shall
be maintained in an upright position, and handled by the
chassis or as close as possible to the unit mounting-point
locations. In the case of a full cabinet unit, the unit must be
handled by the exterior casing. This is acceptable provided
the unit is again maintained in an upright position, and no
force is applied that may damage internal components or
painted surfaces.
The equipment covered in this manual IS NOT suitable for
outdoor installations. The equipment is never to be stored or
International Environmental Corporation • Vertical F*C Series Fan Coil Installation, Operation, & Maintenance Manual
6
STANDARD STAMPED
SUPPLY GRILLE
D
TOP VIEW
REMOVABLE FRONT
ACCESS PANEL
RETURN AIR OPENING
C
MOUNTING HOLES
B
A
FRONT VIEW
DIMENSIONS-INCHES (MM)
A B C
02 41 (1041) 22 (559) 23 (584)
03 41 (1041) 22 (559) 23 (584)
04 51 (1295) 32 (813) 33 (838)
05 51 (1295) 32 (813) 33 (838)
06 61 (1549) 42 (1067) 43 (1092)
08 63 (1600) 44 (1118) 45 (1143)
10 77 (1956) 58 (1473) 59 (1499)
12 85 (2159) 66 (1676) 67 (1702)
www.iec-okc.com
CONTROL ACCESS
DOOR STD. (2)
(OPTIONS AVAILABLE)
5
3-3/4
E
(127)
(95)
2
(DIMENSION FROM MOUNTING HOLE)
(51)
1/4 TURN PANEL
FASTENER TYP.
SUPPLY & RETURN
WATER CONNECTIONS
DRAIN TROUGH
PLASTIC AUXILIARY 7X7
DRAIN PAN WITH
3/4" (19) MPT CONNECTION
4
2-1/2 (102)
(64)
(DIMENSION FROM INSIDE CASE LEG)
9
(229)
9-1/2
(241)
QUANTITY/UNIT
D E BLWR
17-1/4 (438) 3-1/8 (79) 1
17-1/4 (438) 3-1/8 (79) 1
26 (660) 3-3/4 (95) 2
26 (660) 3-3/4 (95) 2
39 (991) 2-1/4 (57) 2
39 (991) 3-1/4 (83) 2
52-1/8 (1324) 3-5/8 (92) 4
61 (1549) 3-1/4 (83) 4
installed where it may be subjected to a hostile environment
such as rain, snow, or extreme temperatures.
Before, during, and after installation, take specific care to
prevent foreign material such as paint, plaster, and drywall
dust from being deposited in the drain pan, on the motor
or blower wheels and cooling/heating coils. Failure to do
so may have serious adverse effects on unit operation,
and in the case of the motor and blower assembly, may
result in immediate or premature failure. All manufacturers'
warranties are void if foreign material is allowed to be
deposited in the drain pan or on the motor or blower wheels
of any unit. Some units and/or job conditions may require
some form of temporary covering during construction.
