OPERATING MANUAL
ONDA S CASH REGISTER IS AVAILABLE IN CONFIGURATION FOR
OUTLETS WITH AVAILABILITY OF THE ELECTRICAL POWER
Contents of the package
ONDA S
o
This use manual (user's manual)
o
Manufacturer's declaration of conformity
o
o
AC/DC 230Vca – 12Vcc 3A feeder and related network cable
Available optional accessories
E.J. (electronic journal) on MMC RCH original memory support
o
Drawer
o
The content of this manual is strictly confidential.
Any copies or reproductions are prohibited
This manual is subject to regular amendments and updating by RCH.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RCH ONDA S
Summary of Contents for RCH ONDA S
- Page 1 AC/DC 230Vca – 12Vcc 3A feeder and related network cable Available optional accessories E.J. (electronic journal) on MMC RCH original memory support Drawer The content of this manual is strictly confidential. Any copies or reproductions are prohibited This manual is subject to regular amendments and updating by RCH.
-
Page 2: Table Of Contents
6.13 DRAWER IMPULSE PROGRAMMING..........30 OPERATING MANUAL 6.14 DISPLAY LCD CONTRAST PROGRAMMING ........31 6.15 DISPLAY LCD LIGHTING PROGRAMMING.........32 INDEX 6.16 KEY SOUND ..................33 6.17 DELETE PLU ..................33 1. GENERAL DESCRIPTION..........6 6.18 PROGRAMMING RECAPITULATION.............1 SECURITY NORMS AND REGULATIONS..........7 6.19 PLU RECAPITULATION................1 2. - Page 3 14. ERROR MESSAGES LIST........72 7.12.2 NOT PAID....................53 15. LEGISLATION AND WEEE SYMBOL....... 77 7.12.3 OTHERS PAYMENTS .................53 7.12.4 MIXED PAYMENTS................54 7.12.5 LAST SALE VIEWING .................55 7.12.6 LAST TWO SALES TOTAL AMOUNT..........55 7.13 CASH COUNTER RECEIVE AMOUNT AND PAID OUT......56 7.14 ALPHANUMERICAL STRING ...............57 8.
-
Page 4: General Description
(as an example, your business logo) with a high operating speed. It feeder may damage the machine or prevent its proper operations. • Do not place ONDA S in unstable surface. It may fall and seriously get does not require any ink ribbon as in the case of traditional printers, thus, avoiding a troublesome regular replacement operation, achieving a decrease of damaged. - Page 5 The machine must undergo a revision (preventive maintenance) at least once a year or, in any case, not over one year from the date of the last service ONDA S fiscal cash register is equipped with thermal printer. Therefore it performed as resulting from the fiscal book.
-
Page 6: Main Features
• Date/Time scanner. • Heading messages and OPTIONAL KIT: courtesy receipt • Store logo: 1 entered through • PC Software • Cash drawer • Halo logo: 1 entered through • MMC RCH original memory PC and 4 of default support... -

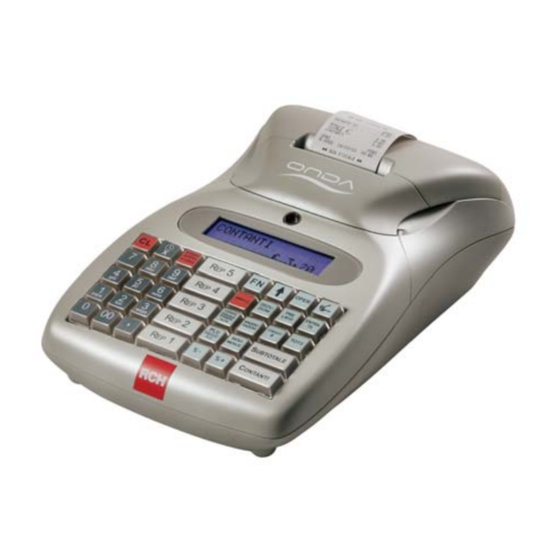

Page 7: View Of The Machine
4 KEYPAD VIEW OF THE MACHINE A keypad that allows manually performing all the fiscal functions guarantees ECR operations. The following configuration is proposed as FRONT VIEW LATERAL RIGHT VIEW standard. However, it may freely be changed by placing the keys into different positions or by adding other departments. -
Page 8: Keys Function
Name Function definition [ 7 ] = character “7” or “SPACE” [ 0 ] = charater “0”, or (in sequence) “ / . : , ; ’ - = ( ) % & ! ? + * @ ” NUMERICAL The numerical keypad allows entering numerical and alphanumerical information, useful to print the fiscal KEYPAD... -
Page 9: Display And Viewing
5. DISPLAY AND VIEWING Key utilised to print and view the Subtotal of a receipt. ONDA S is supplied with two displays, one on the clerk’s side and the other on SUBTOTAL If pressed outside a fiscal transaction would calculate TOTAL the customer’s side. -
Page 10: Keypad Locking
To avoid any involuntary recording or to prevent the non-authorised To access the menu programming enter keys 4 and KEY personnel from using ONDA S without, necessarily, switching off the cash • Move from a function to the other using the key [%+] forward and [%-] counter, use procedure “0”... -
Page 11: Departments Programming
F) Associate a VAT code to the **** WARNING **** VAT CODE ? The data programmed with the following functions are department and press [KONTANT] memorised onto the RAM memory. After an upgrade action (see chapter 6.5). or a total reset, all programmings are lost. G) Using key %+ and %- enable or AUTO CLOSE ? not enable the single entry on the... -
Page 12: Payment Types Programming
PAYMENT TYPES PROGRAMMING 6.4 CLERKS PROGRAMMING With ONDA S it is possible to use three different Totals for the payment. In PRG (4 + KEY) press [%+] until Clerks is displayed. Press KONTANT In PRG (4 + KEY) press [%+] until Payments is displayed. -
Page 13: Vat Programming
VAT PROGRAMMING 6.7 PERCENTAGE OF DECREASE In PRG (4 + KEY) press [%+] until VAT % is displayed. Press KONTANT In PRG (4 + KEY) press [%+] until Discount % (Decrease Percentage). to start programming: Press [KONTANT] to start programming the value to associate A) Enter a value from 1 to 7 and to key [%-] : VAT CODE? -
Page 14: Date/Time
YEAR: DESCRIPTION ? then press [KONTANT] the numerical keypad, by entering a 2012 < RCH S.P.A. >01 max of 24 characters, and then press [KONTANT]. (See chapter 4) D) Choose through the keys D) Enter a value from 0 to 23... -
Page 15: Receipt Foot Programming
6.11 RECEIPT FOOT PROGRAMMING 6.12 CUSTOMER’S MESSAGES PROGRAMMING In PRG (4 + KEY) press [%+] until Footer Logo is displayed. This programming allows programming up two courtesy lines (max 24 Press [KONTANT] to start programming: characters per line) that will be printed three lines under the fiscal receipt Move through the keys [%+] and and to program also a sliding message on the customer’s side display. -
Page 16: Drawer Impulse Programming
D) Set up the value in seconds 6.14 DISPLAY LCD CONTRAST PROGRAMMING AUTO SHOW that allows automatic In PRG (4 + KEY) press [%+] until LCD Contrast is displayed. DATE / TIME displaying of the date and time Press [KONTANT] to start the programming: after a certain number of seconds the cash counter is idle, then A) Slide the keys [%+] and [%-] to... -
Page 17: Display Lcd Lighting Programming
6.15 DISPLAY LCD LIGHTING PROGRAMMING 6.16 KEY SOUND In PRG (4 + KEY) press [%+] until LCD backlight is displayed. Such In PRG (4 + KEY) press [%+] until Key Beep is displayed. programming allows choosing whether the displays must remain always Press [KONTANT] to start the programming: lighted or not. -
Page 18: Programming Recapitulation
7. RECORDING (REG) 6.18 PROGRAMMING RECAPITULATION In the following chapter there are illustrated a series of instructions and In PRG (4 + KEY) press [%+] until Setting Summary is displayed. Press most common examples to issue the fiscal receipt. [KONTANT] to get the printout of the programming done. To perform such operations it is required to position in REG “recording”... -
Page 19: Sales Trough Departments
To sell 7.2 SALES TROUGH DEPARTMENTS an article carrying a pre set price press directly the department key. The memorised price will be displayed. The departments may be customised by programming in PRG mode (see Example, Department 2 (with set price 50,00) chapter 6.1), or may be customised through the connection to the PC using the optional software. -
Page 20: Multiple Quantities Recording
MULTIPLE QUANTITIES RECORDING SALES THROUGH PLU PLU are articles that may be programmed and identified by a barcode. To To record multiple quantities enter X/ after entering the quantity to program the PLU see chapter 6.2, or for the loading from PC, use the multiply. -
Page 21: Change Calculation
CHANGE CALCULATION DEDUCTIONS After the several recording, enter the amount received from the customer To deduct enter the amount to deduct and press the key [MINUS]. and close the transaction with a closing total. Example, Price 40,00 department 1, deduction of 5,00 Example, Price of 89,00 at department 3, CASH 100,00 Enter: Enter:... -
Page 22: Percentage Discount
PERCENTAGE DISCOUNT The percentage discount onto the Sub-total is performed once the With ONDA S it is possible to discount as a percentage on each product recording of the articles is completed by pressing the key [SUBTOTAL] or on the entire amount after SUB-TOTAL. -
Page 23: Percentage Increase Onto Subtotal
The display shows the increase done to PLU. 7.10 GOODS REFUND Press the key [KONTANT] to close the receipt. It is possible to return the goods to the wished department by pressing The receipt issued will be the following: the key [REFUND]. Automatically the ECR ask to make a KOPIA receipt; push key [KONTANT] to print the copy. -
Page 24: Voids And Cancellations
7.11.2 CANCELLATION KEY 7.11 VOIDS AND CANCELLATIONS Different manners of corrections after the sale of one or more articles on Through the key [EC] (CANCEL) it is possible to cancel the last sale Department or PLU are possible. The keys that may be used are the recorded onto the Department and PLU. -
Page 25: Void Transaction
7.11.3 VOID TRANSACTION 7.11.4 RECEIPT VOID TRANSACTION The key [VOID] is used to reverse an amount from a department The key [VOID RECEIPT] is used to fully cancel the current receipt. previously recorded within the same receipt. Therefore, it cancels any previously recorded amounts. Example, recording PLU2, PLU5, and PLU8 and void of PLU2. -
Page 26: Payment Modalities
7.12.4 MIXED PAYMENTS 7.12 PAYMENT MODALITIES With ONDA S mixed payments are possible, (as an example, a partial With ONDA S different ways to pay are possible: payment in CHEQUES and the remaining payment by cash). • KONTANT payment To make a mixed payment, at the end of the recordings of the articles, •... -
Page 27: Last Sale Viewing
7.12.5 LAST SALE VIEWING 7.13 CASH COUNTER RECEIVE AMOUNT AND PAID OUT It is possible, once the receipt is closed, to retrieve on display the amount Receipts and withdrawals from the cash counter are possible (example of the last sale just pressing the key [KONTANT]. cash counter fund), respectively using the key [INCOMES] (Received Always with closed receipt it is possible to know on display the change to amount) and [WITHDRAWAL] (Paid out). -
Page 28: Alphanumerical String
[KONTANT]. - - - - - - - - - - - - - - - - - - - ONDA S prints the following data in the same layout of the Daily Resett: MOMSFRITT 80,00 TL. -
Page 29: Departments Daily Reading
DEPARTMENTS DAILY READING CLERKS DAILY READING In the clerks daily reading, the number EJ FISKAL EJ FISKAL X S:A DAG RAPP In the daily departments reading, it is X S:A BITRÄDEN of the receipts issued and the daily printed the number of the pieces VRG 01 1,00 sales values are printed by clerk. -
Page 30: Daily Hourly Reading
Periodic VAT X FINANS S:A • the three manners available, both for Daily HOURLY receive amount and paid out. ONDA S Performing the following printouts of the electronic journal (E.J.): KONTANT 20,00 • prints each amount and related number Full E.J.: Sale Receipts... -
Page 31: Daily Reset
Totals BET. 04 0,00 (BET.4) Q. Financial BET.05 69,00 ONDA S prints the data related to the daily sold items, increasing the (BET.5) Q. VÄXELKASSA 50,00 counter of the fiscal daily report and updating the Adding Machines. Q. 1 UTBET 100,00 Enabling the printout of the not fiscal reports (refer to chapter 6.8) it is... -
Page 32: Electronic Journal Readings
Press [KONTANT]. ------------------------ Full E.J. KOPIA 0,00 TRÄNING 0,00 ------------------------ ONDA S starts the full printout of the electronic Journal. If required, use Z VARUGRUPPER VRG 01 442,00 the key [CL] to exit the current printout. (VRG 1) DEPARTMENTS VRG 02... -
Page 33: Graphic Logo
NETTO 1 2,73 MOMS 1 10.0% 0,27 may be printed at the end of the With ONDA S it is not necessary to move manually from the solar time to TL. MOMS 0,27 receipt (refer to chapter 6.11 TOTALT SEK 3,00 the summer time or vice versa. -
Page 34: Replacement Of The Paper Roll
Switch on ONDA S, enter in Z mode (3 + KEY ) and slide the menu with upper part to lift the cover the key +% up to the item “ E.J. Initialling ”. -
Page 35: Filling Up The Label
It Indicates that the MMC entered is other than the type supplied by RCH. Enter only MMC supplied by RCH. • Do not operate the MMC if the ONDA S feeder is insufficient “MMC ALREADY USED! [CL] " • Do not remove MMC when transferring the data or while the It Indicates that the (electronic journal) inserted is not brand new. - Page 36 Read again chapter 12 of the operating manual. balance. Should the problem continue, contact RCH service centre. "OVERFLOW RECEIPT [CL] " "CUTTER ERROR [CL] " The amount of the current receipt has exceeded the allowed It indicates the presence of paper stuck in the cutter.
- Page 37 It indicates that it is not possible to subject the cash counter to taxes, as fiscal memory has not the series number. “DISPLAY LCD NOT CONNECTED" It indicates that the display is disconnected: Contact RCH service centre to control the display. “ERROR MEMORY RAM."...
- Page 38 15. LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components. The crossed dustbin symbol on the device means that it should not be disposed of with other household wastes at the end of its working life.
Need help?
Do you have a question about the ONDA S and is the answer not in the manual?
Questions and answers

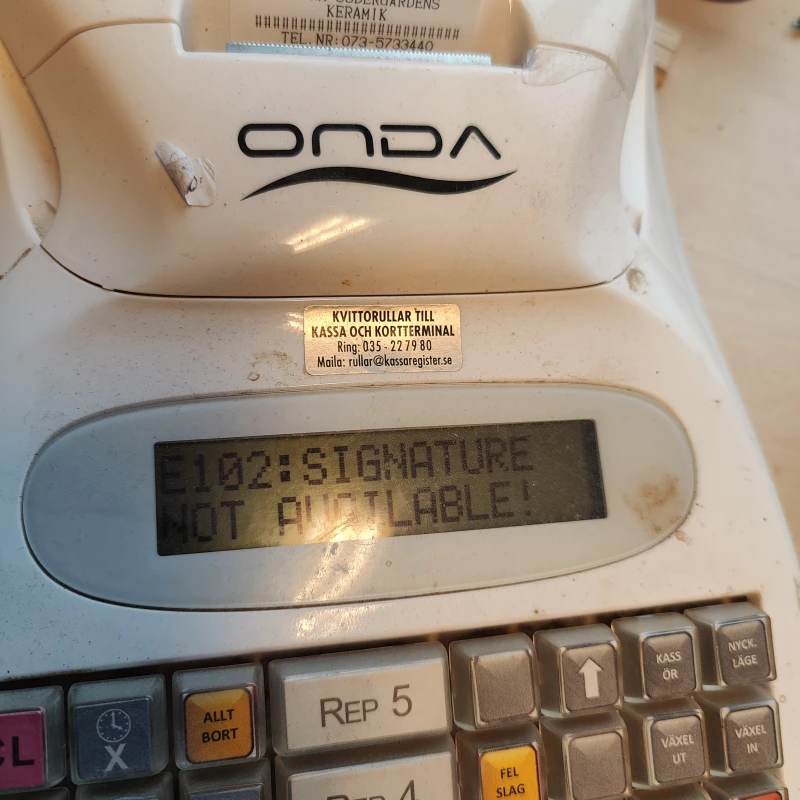

Jag har felmeddelande e102 på min onda s
