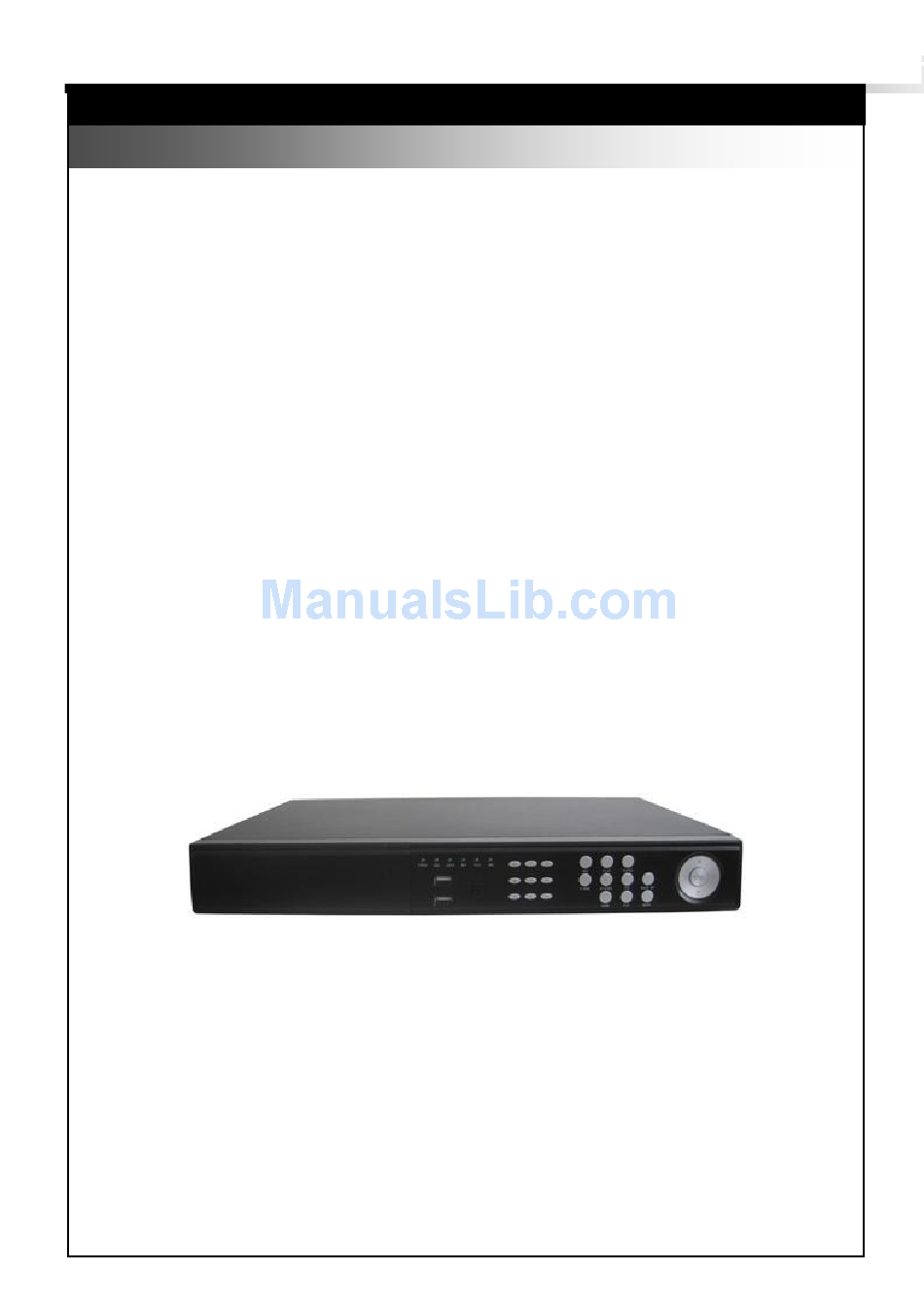

- Page 1 User Manual PZ0060 / PZ0061 /PZ00 62v0.01 ─ 4/8/16 CH DVR ─ This document contains preliminary information and subject to change without notice.
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 PACKING DETAIL AND INSTALLATION _____________________ 5 1-1 PACKING__________________________________________________ 5 1-2 Hard Disk Installation _______________________________________ 5 1-3 DVD-RW Installation ________________________________________ 7 CHAPTER 2 PANEL LOCATION _______________________________________ 9 2-1 FRONT PANEL CONTROLS __________________________________ 9 2-2 16CH REAR PANEL CONNECTORS _____ Error! Bookmark not defined. 2-3 8CH REAR PANEL CONNECTORS ____________________________ 11 2-4 4CH REAR PANEL CONNECTORS ___________________________ 12 CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS _________________ 13... - Page 4 5-2.1.1 CRITERIA SETUP FOR EVENT SEARCH_____________ 46 5-2.2 TIME SEARCH _______________________________________ 48 5-3 AP Software Installation and Setup __________________________ 48 5-4 AP Software Operation _____________________________________ 50 CHAPTER 6 SPECIFICAITONS _____________________________________ 52 CHAPTER 7 MOBILE APPLICATION INSTALLATION AND USAGE _________ 55 7-1 Mobile Application Installation and Operation for Symbian System.
-
Page 5: Chapter 1 Packing Detail And Installation
CHAPTER 1 PACKING DETAIL AND INSTALLATION 1-1 PACKING 1. DVR 2. Quick Start 3. IR Remote Control 4.Batteries x2 5. CD 6. Hard Disk Mount x2 7. Screws x20 8. Power Adaptor 9. Power Cord 10. SATA Cord 2pcs 11.IDE to SATA Cable 12. - Page 6 Step 2) Place the HDD on the HDD plate and screw it as indicated.
-
Page 7: Dvd-Rw Installation
Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference. 1-3 DVD-RW Installation Step 1) Remove the front cover from DVR. - Page 8 Step 2) Put the DVD-RW into the DVR as indicated by the arrow. Step 3) Screw the bottom of the DVR as indicated to fix the DVD-RW. Step 4) Connect the power and the SATA cables.
-
Page 9: Chapter 2 Panel Location
CHAPTER 2 PANEL LOCATION 2-1 FRONT PANEL CONTROLS Control Keys Description ○ Start or stop recording. ○ Play back in normal speed. PLAY ○ Press , to pause playback. PAUSE ○ Display the search menu. T-SRH ○ HDD status STATUS ⑥... -
Page 10: 16Ch Rear Panel Connectors
○ In LIVE mode, display with picture in picture format. ○ In LIVE mode, press to display menu. In PLAYBACK mode, MENU ／ ○ In SETUP mode, press to reduce value. In PLAYBACK mode, press to play rewind. ○ In SETUP mode, press to move cursor up. In PLAYBACK mode, press to SLOW slow down. -
Page 11: 8Ch Rear Panel Connectors
2-3 8CH REAR PANEL CONNECTORS BNC port to display full screen image of all installed cameras in ○ SPOT monitor sequence. ○ MAIN monitor BNC port for the main monitor. ○ VIDEO IN BNC input ports for cameras, 8 in total. RCA input port for audio signal. -
Page 12: 4Ch Rear Panel Connectors
2-4 4CH REAR PANEL CONNECTORS BNC port to display full screen image of all installed cameras ○ SPOT monitor in sequence. ○ MAIN monitor BNC port for the main monitor. ○ VIDEO IN BNC input ports for cameras, 4 in total. RCA input port for audio signal. -
Page 13: Chapter 3 Live, Playback And Ptz Operations
CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS The IR remote control and mouse operate differently under each mode; this chapter describes the functions of them under three different modes: LIVE, PLAYBACK and PTZ. 3-1 LIVE Mode You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode. - Page 14 Main menu. Search menu. Backup menu. PTZ mode. Turn on/off recording. Playback. Resting the cursor on this icon will bring up the following five display icons. FREEZE. PIP, picture in picture ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display.
-
Page 15: Playback Mode
Video loss detected on the channel USB device detected DVD burner is detected Connected to the LAN cable. Timer recording is on Red：Timer is set and recording has been started White：Timer is set but recording has not yet been started AUTO-seq is on 2X zoom in is on Freeze is on, screen is frozen... - Page 16 Table 3-2.1 Remote control functions under the PLAYBACK mode Button Description ENTER / MODE Switch to full screen, quad, 9-channel or 16-channel display. MENU / Turn on/off PAUSE. PLAY Play back at normal speed. / SLOW Play back at slower speed. The speed will be slowed to 1/2, 1/4, 1/8, 1/16 by each pressing of the button till the slowest limitation of 1/16 of the normal speed.
-
Page 17: Ptz Mode
「▼ / ■」stop playback Playback channel by channel with snap shot display Full screen display Quad display 9-channel display Zoom-in display Note：4CH will show quad display; 8 CH will show quad display and 9-channel display. 3-3 PTZ Mode Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the down right side of screen. - Page 18 FOCUS - PTZ focus-out. IRIS + PTZ iris-open. IRIS - PTZ iris-close. ＊ TOUR Activate PTZ pre-set tour. Setup the Preset location PRESET+ Press “PRESET” key first then two-digit number; DVR will set the current Number PTZ location at entered preset number. Go to Preset location PLAY+ Press “PLAY”...
-
Page 19: Chapter 4 Main Menu Setup
Below functions need support from specific PTZ manufacturer. Please check user manual of your PTZ for more detail. AUX 1,「AUTO」Key ＋ Number key「1」 AUX 2,「AUTO」Key ＋ Number key「2」 AUX 3,「AUTO」Key ＋ Number key「3」 AUX 4,「AUTO」Key ＋ Number key「4」 AUX 5,「AUTO」Key ＋ Number key「5」 AUX 6,「AUTO」Key ＋... - Page 20 Delete the last character. Enter to identify the password. It will enter the set up menu, If the password is verified. Space key Table 4-0.2 The operation of remote control under the setting menu Item Description Switch to different options under one item Switch to different items MENU Save setup and back to LIVE mode...
-
Page 21: Record Setup
4-1 RECORD SETUP Item Description Select STOP to stop recording or OVERWRITE to reuse the HDD when HDD is full 「 Stop 」 ： Stop Recording HDD FULL 「 Overwrite 」 ： Start to overwrite that begin from the oldest data of HDD, and continue to record. -
Page 22: 4-1.1 Quality & Frame Rate Setup
4-1.1 Quality & Frame Rate Setup ： Note 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. Item Description Normal setup/ Select recording mode event setup Resolution Select recording resolution: 320x240, 720x240, 720x480 Record Type You can setup quality and FPS separately for record type. Check/uncheck the box enable/disable selected channel recording Quality Select quality: Lowest/ Low/ Normal/ High/ Highest... -
Page 23: Event Setup
4-2 EVENT SETUP Item Description Motion Setup Enter to set up motion detection Sensor Setup Enter to set up sensor detection 4-2.1 MOTION SETUP Item Description Check the box to Enable/Disable popup screen function for all Motion Popup channels. When motion is detected in LIVE mode, the detected channel image will pop up in full screen display. -
Page 24: 4-2.1.1 Motion Area Setup
Drag the white bar or press ◀ ▶ to set up Object Size from value 1 to 15 for each channel. The lower value Object Size you set the higher sensitivity it will be. Value set up as 1, the motion will be detected easiest. Drag the white bar or press ◀... - Page 25 Item Description Sensor Popup Check the box to Enable/Disable popup screen function for all channels. When Sensor is detected in LIVE mode, the detected channel image will pop up in full screen display. All Off Set all sensor off All Low Set all sensor polarity low All High Set all sensor polarity high...
-
Page 26: Schedule Setup
4-3 SCHEDULE SETUP Except from starting recording manually, you can also setup the recording time by week s and schedule including normal, motion detect, and sensor detect recording type. Item Description Page Each page provides 10 schedules for setup. 5 pages in total. Holiday Setup Enter to setup holiday, up to 50 days, other than weekends,. -
Page 28: Camera Setup
4-4 CAMERA SETUP Item Description You can setup independently for each channel. Mask Check the box to Enable/Disable mask function for LIVE mode Drag the bar or press ◀ ▶ to adjust Sharpness of your camera from Sharpness value 1 to 255. The default value is 128. Drag the bar or press ◀... -
Page 29: Account Setup
4-5 ACCOUNT SETUP The Account Setup menu is used to provide role-based permission independently setting for each user (maximum of 4 users) to access DVR over network. The default admin account and password is “admin” and “123456” The default password remains the same after firmware upgrade, however, it requires 8-digits for password length when you setup a new one Item Description... -
Page 30: 4-5.2 User Picture Setup
4-5.2 User Picture Setup User can select picture wished to be changed to from hard drive. ： Note 4CH DVR will display 4 channels and 8CH DVR will display 8 channels. -
Page 31: Networking Setup
4-6 NETWORKING SETUP Item Description Connect type Setup mode for network connection: (DHCP、LAN、ADSL). HTTP Setup Enter to set up HTTP DDNS Setup Enter to set up DDNS Mail Setup Enter to set up mail 4-6.1 NETWORKING SETUP There are three ways to connect to the network as followed. 4-6.1.1 DHCP When DHCP is selected, IP address will be assigned by DHCP server automatically. -
Page 32: 4-6.1.3 Adsl
Item Description IP Address Enter IP address provided by ISP Subnet Mask Enter IP address of Subnet Mask provided by ISP Gateway Enter IP address of Gate way provided by ISP Enter DNS address provided by ISP. (Note: The correct DNS address must be entered for DDNS function). -
Page 33: 4-6.2 Http Setup
4-6.2 HTTP Setup Item Description Enable HTTP Check to enable HTTP server. Users can remotely access into the Server DVR over the network if the HTTP function is activated. Port Enter a valid port value from 1 up to 65000. The default value is 80. Auto Assign each channel with its maxima accessible fps Chanel number... -
Page 34: 4-6.4 Mail Setup
Item Description Enable DDNS Enable/disable DDNS function. Enter the registered SMTP Server: DDNS Server DYNDNS.ORG、NO-IP.ORG、CUSTOM.COM、3322.ORG、 I-DVR.NET＊ SMTP Server Enter the completed registered SMTP Server. (Including username + Server) If the user name is h.264 and you choose i-dvr as your server, you should enter: h.264.i-dvr.net User Name... -
Page 35: Ptz & Rs485 Setup
Item Description Enable E-mail Check the box to enable/disable E-mal Notification function. Notification SMTP Server Enter to set up SMTP Serve name. User Name Enter to set up User Name. Password Enter to set up Password. Sender E-mail Enter to set up e-mail address of receivers. Receiver E-mail Enter to set up e-mail addresses for up to 10 receivers individually. -
Page 36: System Setup
Enable PTZ Click the box to Enable/Disable PTZ function for each channel. Protocol Set up the protocol of PTZ cam. The supported protocol are PELCO-P, PELCO-D, KND, LI-LIN, SAMSUNG, LG, AVTECH. ◀ ▶ PTZ ID Click or press to set up PTZ ID. The valid ID value is from 1 to 64. -
Page 37: 4-8.1 Display Setup
only responds when “DVR3” button has been pressed beforehand. Display Setup Enter to set up Display Date/Time Setup Enter to set up Date/Time Enter to set up Buzzer & Relay Device Setup Enter to set up Spot Spot Setup ＊ Default ID is ID1. If remote control malfunctions, please press, “DVR1” button to renew corresponding DVR ID. -
Page 38: 4-8.2 Date/Time Setup
4-8.2 DATE/TIME SETUP Item Description Hour Format 12HOURS/ 24HOURS Date Format MM-DD-YY/DD-MM-YY/YY-MM-DD Date/Time Position Choose the position of Time and Date display Change Date & Time Setup time and date of DVR Time Zone Setup Set up GMT and Daylight Saving Time. Internet Time Setup Setup automatic synchronization with internet server 4-8.2.1 CHANGE DATE &... -
Page 39: 4-8.2.2 Time Zone And Daylight Saving Time Setup
4-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP Set up time zone and activate Daylight Saving Time function according to user‟s DVR location. Item Description Select Time Zone Enter to modify GMT from GMT- 13 to GMT+ 13 Daylight Saving Time Turn on/ off Daylight Saving Time 4-8.2.3 INTERNET TIME SETUP Synchronize your DVR time with internet time server. -
Page 40: 4-8.4 Spot Setup
Item Description Key Tone Enable/Disable keystrokes. Enable/Disable buzzer operation when the alarm is triggered for Buzzer sensor, motion and vloss (Video Loss). Enable/Disable the signal to be sent to the RELAY OUT blocks Relay when the alarm is triggered for sensor, motion and vloss. 4-8.4 SPOT SETUP... -
Page 41: Utility Setup
The DVR has two modes of video output; one is main video output, the other is spot video output. SPOT setup is for controlling the order of channels the system cycles through in SPOT mode. User can monitor every channel in the SPOT mode. Item Description Channels display in spot for three different modes:... -
Page 42: Diagnostic
Item Description Select to enter hard disk initialization menu. Please stop HDD Initialization recording before entering this menu. Enter the menu, system will show all the data (model ,volume ) of HDD that installed in DVR. Check the HDD you‟d like to initialize then press “Start”. -
Page 43: Chapter 5 Backup & Search
Item Description Version The current firmware version of DVR The connected IP address of DVR. If disconnected from network, the screen will display” NETWORK DISCONNECT”. MAC Address of DVR HDD Status HDD number Volume HDD Capacity Used Rate Percentage of space used on HDD. Shows HDD status. -
Page 44: Search Setup
Item Description From The start time of backup file The end time of backup file Device Select USB, CD/RW or PC as the backup device Free Space The available space in your backup device. (not available for PC backup) Refresh Recalculate the available space of backup device. - Page 45 Item Description Event Search Event search menu Time Search Enter time search menu...
-
Page 46: 5-2.1 Event Search
5-2.1 EVENT SEARCH The DVR automatically records events with type, time and channel information included. If there is recording data for an event, a yellow signal will be shown on the left side of time information. Rest your cursor under the line and press “enter”, or left click your mouse to playback the recording data. - Page 47 search. ： Note 4CH DVR will display 4 channels and 8CH DVR will display 8 channels.
-
Page 48: 5-2.2 Time Search
5-2.2 TIME SEARCH TIME SEARCH can search for the specific time of recording data to playback. Press “Enter” or left click on the desired date to playback. Note that dates with recording data are marked with a red square “ “System will start playing back according to the date you selected. - Page 49 Step One：Enter the IP address of DVR in IE browser Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456. Other related setup about user account and password, please check “4-5 Account Setup. “ Step Three: Click on the link to start downloading the AP software.
-
Page 50: Ap Software Operation
Step Five: If you choose to run the software, Start window will be shown up. Please enter information of login DVR: IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step Six: You‟ve logged into the DVR ：... - Page 51 Please check Table 6-2.1 for detail information and Table 6-2.2 for minimum system requirements for “DVRemoteDesktop.exe” operation. Table 6-2.3 is corresponding to Ethernet cable bandwidth. Please take this table for future references when applying for Internet bandwidth or connecting to Internet. Table 5-4.1 Toolbar of AP software Record data to your PC, including LIVE and Playback.
-
Page 52: Chapter 6 Specificaitons
Intel: 91Xseries, 94Xseries, 96Xseries, G3Xseries, or G4Xseries, etc. Or visit: http://en.wikipedia.org/wiki/Intel_GMA Table 5-4.3 Network Bandwidth Requirement Reference Quality Highest Normal Lowest Resolution 16CH 6.9~7.9Mfps 3.7~5.8Mfps 1.2~2.4Mfps 6.5~8.2Mfps 3.6~5.8Mfps 1~2.6Mfps 6.6~8Mfps 3.8~6Mfps 1.4~3Mfps 6.2~7.6Mfps 3.6~5.7Mfps 1.2~2.5Mfps 16CH 3.6~5.4Mfps 1.9~3.5Mfps 890K~1.7Mfps 3.3~5.6Mfps 1.8~3.7Mfps 900K~1.6Mfps 3.4~5.1Mfps... - Page 53 720 X 576, 720 X 288, 352 X 288 Independent Quality Lowest/ Low/ Normal/ High/ Highest each channel Setup by “minute” as unit Schedule Mode Manual / Event (Motion, Sensor) / Schedule By resolution, fps and quality Method Setup fps and quality separately for normal and event recording 3.
- Page 54 Monitoring Environment Web / Client Software(CMS) Max. client Supporting multi-client (5 clients accessible) 12. OTHERS Embedded Linux Live、Record、Playback、Network、Backup Multi Task Pentaplex Front Keys / Remote Control / 1-to-8 Remote Control Device Control (Optional) Virtual Keyboard / Mouse / AP Software PC Viewer Direct monitoring of DVR‟s HDD on PC Numbers of event list...
-
Page 55: Chapter 7 Mobile Application Installation And Usage
CHAPTER 7 MOBILE APPLICATION INSTALLATION AND USAGE You can remotely monitor all channels of DVR through your mobile device. The required mobile application is from DVR manufacturer and it supports mobile OS for both Windows mobile 5.0 above and Symbian. Please confirm network function of DVR has been activated before mobile connection: Main menu ... -
Page 56: 7-1.2 Mobile Application Operation
7-1.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to run a file called “DVRH264”. Select “Menu” at the right lower corner of your mobile screen, 4 commands, Login Add Modify and Delete, will show up. -
Page 57: 7-1.2.3 Modify The Login Information Of Dvr
Network connectivity will take some time. It‟ll be affected by networking environment and bandwidth flow. Live image will show up after a successful connection. PS. The Live can n ot be displayed in your mobil e when the recodin g is off in local DVR. 7-1.2.3 Modify the Login Information of DVR “Modify”... -
Page 58: 7-1.3 Live Monitoring Operation
7-1.3 Live Monitoring Operation This paragraph describes some operation under the LIVE monitoring mode in your mobile device. 7-1.3.1 Scroll the Image You can use the keypad on your mobile device to scroll the image if it‟s oversized. Action Scroll Up Scroll Left Scroll Right Scroll Down... -
Page 59: 7-1.3.3 Channel Display
7-1.3.3 Channel Display Select “Single” under the “Menu”, there will be all channels of your DVR in list for you to choose. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. 7-1.3.4 Size of Image The screen size of different mobile device can be different. -
Page 60: Mobile Application Installation And Operation For Windows Mobile System
: Video loss Select the “Alarm” under the “Menu” to switch this function on or off. 7-2 Mobile Application Installation and Operation for Windows Mobile System There are two kinds of applications for Window Mobile OS: JPEG compression and H.264 compression. -
Page 61: 7-2.2 Mobile Application Operation
7-2.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to run files named “Jrviewer” and “H264Pocket”. This application allows you to remotely logon and monitor DVR. Press “OK” to bring up the operation menu, see below chart to further information. -
Page 62: 7-2.3 Operation Under The Live Monitoring
7-2.3 Operation under the LIVE monitoring. After successful logon the DVR, press “View” to bring up operation menu. You can choose the channel, resize the image, choose the quality, and turn on/off the status b ar, alarm, full screen display….etc 7-2.3.1 Operation uner the LIVE monitoring for Jrviewer Item Function... -
Page 63: 7-2.3.2 Operation Under The Live Monitoring For H264 Pocket
on the status bar if there is event such as motion detected, sensor triggered and video loss to be detected on any channel. You can also uncheck the “Status Bar” to inactivate this function. Icon Description Motion Detect Sensor Trigger V-Loss Alarm through your mobile device can be triggered if there is event to be detected. -
Page 64: Chapter 8 Cms Installation And Usage Guide
Alarm through your mobile device can be triggered if there is event to be detected. You Alarm Alarm can also uncheck the “Alarm” under the “View” to inactivate this function. You can choose one channel to display in full Full Screen Full screen display screen by check this function. - Page 65 4. Select “Next”, and then select “Browse” to change installation path if needed. To check available space on hard disk, please select “Disk Cost” then please select “Next” to the next step. 5.”Confirm Installation” window shows. Select „Next’ then the installation starts. 6.
-
Page 66: Cms Login And Environment
8-2 CMS LOGIN AND ENVIRONMENT To enter CMS, the administrator‟s user name and password are required. The defaults are „admin‟ and „123456‟. After successful login, the following image shows on your screen:... -
Page 67: Dvrs, Groups & Events
③ ① ② ④ ⑤ 步驟5: 完 成 步 驟 4 後 ， ① DVRs, Groups & Information about DVRs, groups and events. 將 會 有 See “9-3 Information List” for more detail. Events 一 對 話 ② PC information Information about local PC‟s hard disk, volume, recording...etc. -
Page 68: 8-3.2 View Event Logs
connected DVR will show its image in main display. See “9-6.2 DVR Administration” for further information. On the Group list, double left click on a group will show live image from the channels of the group in the main display. See “9-6.3 for Group Administration” for further information. Left-clicking on a connected DVR will expand/collapse status of its all channels as below: Icon Description... -
Page 69: Local Pc Information And Control
8-4 Local PC Information and Control Located at the left lower corner of the screen, please see the chart below: Icon Function Description Shows the ratio of available space / HDD capacity of HDD info C:\ drive (where CMS is installed). Volume PC volume or playback volume control bar. -
Page 70: 8-5.1 Audio Control
8-5.1 Audio Control In live mode, you can turn on/off the audio signal of Ch1~Ch4: 「 」Audio signal is On 「 」Audio signal is Off Turn on/off by clicking on the graphical icon, please note there can allow only one cha nnel‟s audio signal to be on at one time. -
Page 72: 8-5.3 Ptz Control
8-5.3 PTZ Control In the main display, right click on the channel will bring up PTZ control panel as below. Icon Description 8 direction key Rotate the PTZ ZOOM+：Zoom in ZOOM : Zoom out Setup the PTZ spot as pre-set FOCUS+ : Focus in FOCUS-：Focus out Move to pre-set N. -
Page 73: Operation Bar
8-6 Operation Bar 10 Operations to be listed as below: Table 9-6.1 description of 10 operations: Icon Description User Administration. Please see “9-6.1 User administration” DVR Administration. Please see “9-6.2 DVR Administration” Group Administration. Please see “9-6.3 Group Administration” eMap Administration. Please see “9-6.4 eMap Administration”. Remote Playback. - Page 74 should assign proper authority to each user. These user accounts can be deleted or edited later on. Select “OK” to save the setup. Icon Description Add a user account. The default authority is with none permission. Delete a user account.
-
Page 75: 8-6.2 Dvr Administration
8-6.2 DVR Administration DVR connections can be added to or deleted from the CMS and their information can be edited. DVR‟s channel names can be entered here or downloaded from the DVR by pressing „From DVR‟. Select “OK” to save the information. 8-6.3 Group Administration A „Group‟... -
Page 76: 8-6.4 Emap Administration
4. Click “OK” to return to the previous window. 5. Select a display mode. 6. Drag a channel from the lower left panel into the main display to a preferred location. Or, change the channel location in the main display by mouse dragging. 7. -
Page 77: 8-6.5 Remote Play
Steps to follow: 1. Click and a path for the picture will be prompted. 2. Select a picture, click OK and the picture will show in the right panel. 3. Drag channels in the left lower corner onto the picture to any position. 4. -
Page 78: 8-6.6 Hdd Playback
Icon Description Start playing. Pause. Fast forward. Fast rewind. 8-6.6 HDD Playback You can directly play the recording data in the HDD that‟s uninstalled from DVR by CMS. See the picture below, the left part of screen is recording data in list that‟s separated by hour and the right part is main display. -
Page 79: 8-6.8 Event Playback
Icon Description Start Playback. Pause. Stop playback. Fast forward. Fast rewind. 8-6.8 Event Playback Event recordings on the DVR can be played back in CMS. Steps to follow: 1. Select a DVR and a display mode. 2. Select a date. 3. -
Page 81: 8-6.9 Snapshot Data
8-6.9 Snapshot Data It can display all the snapshots you‟ve taken in line in “Snapshot Data”. You can review, delete or save as other files here. 8-6.10 Recording Data It can play all the recording files you‟ve recorded in line in “Recording Data”. You can play or delete them here. -
Page 82: Appendix I I-Dvr.nrt Registration
APPENDIX Error! Reference source not found. I-DVR.NRT REGISTRATION DDNS Registration on I-DVR.NET In the package of each DVR, you will find a sticker shows account information including username and password that allows users to login I-DVR.NET for registration. To register DDNS on I-DVR.NET, please follow the steps as shown. Step 1. -
Page 83: Appendix Ii Db 26 Definition (For 16Ch Dvr Only)
APPENDIX Error! Reference source not found. DB 26 Definition (For 16CH DVR only) First pin Read Line NUM. WIRE COLOR NUM. WIRE COLOR BLUE SENSOR 4 ORANGE GREEN SENSOR 5 RS 485_B YELLOW SENSOR 6 BROWN RLY1_NO ORANGE SENSOR 7 BLACK RS485_A SENSOR 8... -
Page 84: Appendix Iii Record Mode Comparison
If it‟s connected externally to sensor device (such as infrared sensor), please connect t he positive charge of equipment to the sensor (1~16) needed to be triggered and conn ect the negative charge to any of GND cable (1, 2, 10.) APPENDIX III Record Mode Comparison Comparison between different setups while in Default Record mode and after it‟s been switched.
