KitchenAid KUDK03ITWH1 Parts List

Kitchenaid undercounter dishwasher door and panel parts
Hide thumbs

Advertisement

For Models: KUDK03ITBL1, KUDK03ITWH1, KUDK03ITBT1, KUDK03ITBS1
8−07 Litho in U.S.A. (els)

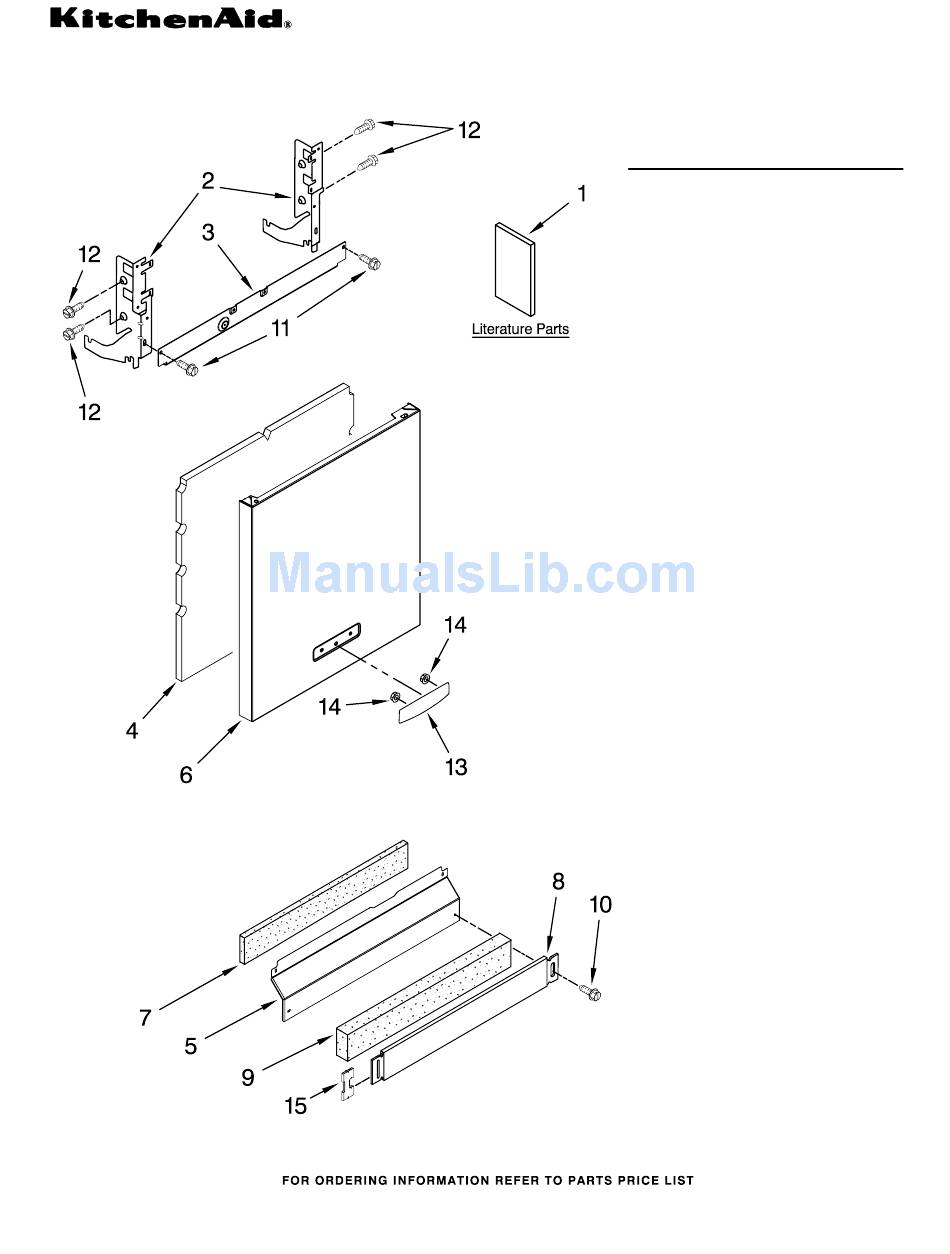

DOOR AND PANEL PARTS
(Black)
(White)
(Biscuit)
Illus.
No.
1
2
3
4
5
6
7 W10073540 Insulation,
8
9 W10073550 Insulation,
10
11
12
13
14
15
1
UNDERCOUNTER
DISHWASHER
(Stainless)
Part
No.
DESCRIPTION
Literature Parts
W10078153 Instructions,
Installation
W10111124 Energy Guide
W10084169 D/W User
Instructions,
Spanish
W10084091 D/W User
Instructions,
English/French
Reference
W10082651 Tech Sheet
Arm, Hinge
8534854 Left
8534853 Right
8564886 Stiffener, Door
8542577 Insulation, Door
Access Panel
(Includes Item 7)
8558260 Black
8558261 White
8558262 Biscuit
Panel, Full Front
(Includes Items
4, 13 & 14)
W10077995 Black
W10077996 White
W10077997 Biscuit
W10137620 Stainless
Access Panel
Toe Panel
(Includes
Items 9 & 15)
8558252 Black
8558253 White
8558254 Biscuit
Toe Panel
Screw
302868 Black
3400836 White
3400865 Biscuit
304392 Screw
3400071 Screw
Nameplate
W10021860 Black
W10021870 White
W10021880 Biscuit
W10021850 Stainless
2004333 Nut
8269016 Clip, Grounding
Part No. W10161574 Rev. A
