PTZ Optics 20X-IP User Manual

Hd video conferencing ip-camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PTZ Optics 20X-IP
User Manual
V3.1.1
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20X-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PTZ Optics 20X-IP

Summary of Contents for PTZ Optics 20X-IP

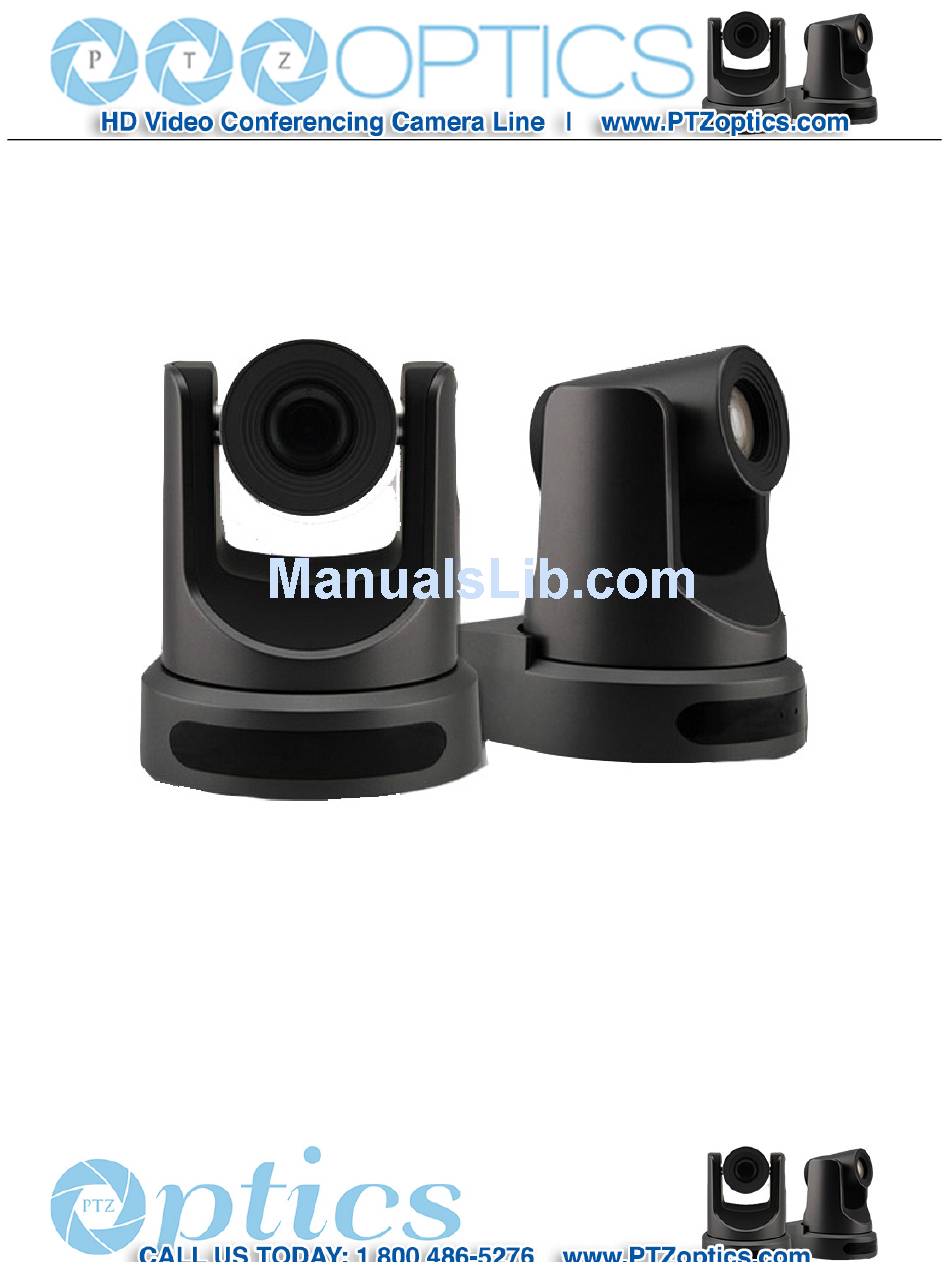

  • Page 1 PTZ Optics 20X-IP User Manual V3.1.1 (English)
  • Page 2 Preface Thanks for using this HD Video Conferencing IP-Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: n...

  • Page 3: Table Of Contents

    Contents 1、 Note ································································································ 3 2、 Supplied Accessories ············································································· 4 3、 Quick Start ························································································· 5 4、 Features ···························································································· 8 5、 Product Specification ············································································ 9 6、 Main Unit ························································································ 10 7、 IR Remote Controller Explanation ··························································· 11 8、 Use IR Remote Controller ····································································· 13 9、...

  • Page 4: Note

    Note l Electric Safety Installation and operation must accord with electric safety standard. l Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. l Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ...... 1PCS Power cord ........1PCS RS232 cable ......... 1PCS Remote controller ......1PCS User manual ....... 1PCS...

  • Page 6: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 7 Step2. Setting of the bottom switches Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode’. SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080i60 1080i50 720p60...
  • Page 8 the item [MENU] -> [RESTORE DEFAULT] -> [Restore]. Set the value [Yes], press [HOME] button to restore the factory default settings. RESTORE DEFAULT Restore Change Value [Home] OK [Menu] Back...

  • Page 9: Features

    Features 1. The camera provides a high performance in low illumination situations, particularly suitable for which room's lighting is not very well. 2. With maximum resolution of 1920 x 1080 and output frame rate up to 30 frames / sec, this camera provides high-definition as well as fluent video.

  • Page 10: Product Specification

    Product Specification Video Format 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL Video Output Interface HDMI,HD-SDI,CVBS Tilt Speed Range 1.7° ~ 69.9°/s Sensor Type CMOS,1/3 inch Vertical Flip&Mirror Support Effective Pixel: 2.12 million; Sensor Pixel Preset Total Pixel: 2.20million Scanning Mode Progressive Preset Accuracy ≤0.1°...

  • Page 11: Main Unit

    Main Unit 1. Audio LINE IN Interface 8. RS232 OUT jack 2. Audio LINE OUT Interface 9. Network 3. CVBS Interface 10. HDMI Interface 4. Dip switches 11. HD-SDI Interface 5. System select switch 12. USB2.0 6. RS485 jack 13. DC 12V jack 7.

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption standby mode approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 13 [MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object) 6. Camera Select Buttons Press the button corresponding to the camera you want to operate with the remote controller. 7. # Button 8. Pan/Tilt Control Buttons Press arrow buttons to perform panning and tilting.

  • Page 14: Use Ir Remote Controller

    USE IR Remote Controller...
  • Page 15 When the camera is working, you can use remote 2. Zoom controller to perform panning, tilting, zooming and focusing, store and call back preset positions. Button Instruction： 1. In this instruction, ‘press the button’ means the press and relax the two actions. Such as ‘press [HOME] button’...
  • Page 16 3. Focus Control Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues 1. To store a preset position: The users should press and stops as soon as the button is released.
  • Page 17 [*]+[＃]+[F3]: Address3 [*]+[＃]+[F4]: Address4 Press any of the numeric buttons 0-9 directly to recall stored preset positions and settings. Note: No action is executed if a relative preset position is not stored. 7. Camera Selection Press the button corresponding to the camera you want to operate.

  • Page 19: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND IR OUT 7.IR OUT 7.NC 8.NC...
  • Page 20 VISCA Network Configuration...

  • Page 21: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface. RS232   C ommunication   C ontrol   Ø The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s.
  • Page 22 VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Command Function Command Packet Comments z0 4y FF Return when the command is accepted. ACK/Comletion (y: Socket No.) Messages z0 5y FF Return when the command has been Completion (y: Socket No.) executed.
  • Page 23 focus. Part 2 Camera Control Command Command Function Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard)
  • Page 24 Manual 8x 01 04 35 05 FF Manual Control mode OnePush trigger 8x 01 04 10 05 FF One Push WB Trigger Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain Down 8x 01 04 03 03 FF...
  • Page 25 Down 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position 8x 01 04 33 02 FF CAM_BackLight Back Light Compensation On/Off 8x 01 04 33 03 FF Auto 8x 01 04 50 02 FF CAM_NR(2D)Mode ND2D Auto/Manual Manual...
  • Page 26 (high speed) Down 8x 01 06 01 VV WW 03 02 FF WW: Tilt speed 0x01 (low speed) to 0x14 Left 8x 01 06 01 VV WW 01 03 FF (high speed) Right 8x 01 06 01 VV WW 02 03 FF YYYY: Pan Position Upleft 8x 01 06 01 VV WW 01 01 FF...
  • Page 27 Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF p: Color Hue setting 0h (− 14 dgrees) to CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF Eh ( +14 degrees Part 3 Query Command Inquiry Command List Command Command packed...
  • Page 28 y0 50 02 FF CAM_BacklightMode 8x 09 04 33 FF y0 50 03 FF CAM_Nosise2DMode y0 50 02 FF Auto Noise 2D 8x 09 04 50 FF y0 50 03 FF Manual Noise 3D CAM_Nosise2DLevel 8x 09 04 53 FF y0 50 0p FF Noise Reduction (2D) p: 0 to 5 CAM_Noise3DLevel...
  • Page 29 ab: Factory Code(00: VHD, 01:MR, 08:T) cd: Hardware Version mnpq: ARM Version y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF rstu: FPGA Version mn pq rs tu vw FF vw: Camera model 01: C Type 02: M Type 03: S Type y0 50 00 FF 1920x1080i60...
  • Page 30 y0 50 00 FF Mode0 CAM_ModeInq 8x 09 04 A6 FF y0 50 02 FF Mode2 CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit p: Dynamic Hot Pixel Setting (0: 0ff, CAM_DHotPixelInq 8x 09 04 56 FF y0 50 0q FF level 1 to 6) y0 50 01 FF...
  • Page 31 pp: R_Gain qq: B_Gain r: WB Mode s: Aperture tt: AE Mode CAM_CameraBlockIn y0 50 0p 0p 0q 0q 0r 0s tt 0u vv 8x 09 7E 7E 01 FF u.bit2: Back Light ww 00 xx 0z FF u.bit1: Exposure Comp. vv: Shutter Position ww: Iris Position xx: Bright Position...
  • Page 32 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 33 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...

  • Page 34: Menu Setting

    Menu Setting...
  • Page 35 1. MENU EXPOSURE Press [MENU] button to display the main menu on Mode Auto the normal screen, using arrow button to move the cursor ExpCompMode to the item to be set. Press the [HOME] button to enter the Backlight corresponding sub-menu. Gain Limit Anti-Flicker MENU...
  • Page 36 Bright mode) BG: Blue gain. Optional items: Iris: Aperture value. Optional items: F1.8, 0~255（Effective only in Manual mode） F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F11.0, RG Tuning: Red gain fine-tuning, Optional Close（Effective only in Manual, AAE mode） items: -10~10（Effective only in Auto, Indoor, Outdoor Shutt: Shutter value. Optional items: 1/30,1/60, mode）...

  • Page 37: Noise Reduction

    P/T/Z IMAGE Luminance SpeedByZoom On Contrast AF-Zone Center Sharpness AF-Sense Flip-H Flip-V B&W-Mode Gamma Default Select Item Select Item Change Value Change Value [Menu] Back [Menu] Back Luminance: Brightness adjustment. Optional SpeedByZoom: The depth of field scale switch, items: 0 ~ 14 Optional items: On, Off Contrast: Contrast adjustment.
  • Page 38 NOISE REDUCTION SETUP NR2D-Level 3 Language NR3D-Level 3 Protocol VISCA D-HotPixel V_Address V_AddrFix Net Mode Serial Baudrate 9600 Select Item Select Item Change Value Change Value [Menu] Back [Menu] Back NR2D-Level: 2D noise reduction. Optional Language: menu language, Optional items: EN, items: Off, Auto, 1 ~ 5 Chinese NR3D-Level: 3D noise reduction.
  • Page 39 4800, 9600 8. RESTORE DEFAULT Move the cursor to the Restore Default item in the main menu and press [home] button, RESTORE DEFAULT menu appears, as shown in the following figure. RESTORE DEFAULT Restore? Change Value [Home] OK [Menu] Back Restore: Confirm restore factory settings.

  • Page 40: Operating Environment

    Equipment Setup and internet connection 1. Operating Environment Operating System: Windows 2000/2003/XP/vista/7 Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect internet camera to your internet or to your PC directly via internet cable. 2) Turn on DC12V power.
  • Page 41 Setup IP address 1.1 Connect IP Camera to internet (or PC), then turn on the power on IP Camera, shown as above. IP address can be searched via update software(software upgrading tool,named upgrade_En.exe in small CD in package). shown as below: Run upgrade_En.exe (UPGRADE v1.8) by CD-Rom, click [Search].The software will show the current LAN camera's IP address, subnet mask number, network gateway number and camera MAC serial number etc, shown as below: If IPC IP address and PC IP address not in the same internet segment, upgrade_En.exe can modify IP address, subnet...
  • Page 42 Click “config” then go to below:...
  • Page 43 Enter new IP in "IP" bar, subnet mask in "Mask" bar, Gateway,First DNS, MAC address,and click “Set”. Shown as above.(For example: if your PC IP is 192.168.1.88, then camera IP must be 192.168.1.xx, the first, second, third number must keep the same) NOTE IP camera default IP address"192.168.100.88", user "admin", password "admin".
  • Page 44 2.2 Input login name and password, click "confirm", then pop up below window, language select button on the left bottom:...

  • Page 45: Ip Camera Accessed/Controlled By Wan (Internet)

    ！ NOTE If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to http://4dx.pc6.com/xy/vlcplayer.zip,pop out the download window, click“Save”. Then Install VLC (player software), After installation,login again,will show as above: IP Camera accessed/controlled by WAN (internet) 1.

  • Page 46: Vlc Stream Media Player Monitoring

    Dynamic DNS visit camera 1.1 Camera accessed by dynamic DNS Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link：http://hostname :port number For example, setup host computer name: youdomain.f3322.org, camera port number: 554, Access link should be: http://youdomain.3322.org:554 ！...

  • Page 47: Ip Camera Parameter Setup

    1.2 Input URL address: rtsp://ip: port number/1 (Main stream); rtsp://ip: port number/2(sub stream)(When RTSP port number default value is 554,then can be omitted as rtsp://ip/1 or rtsp://ip/2) IP Camera parameter setup Homepage introduction...
  • Page 48 1.1 Menu All pages include 2 menu bars: Real time monitoring: displaying video image Parameter setup: with function buttons 1.2 Video viewing window Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is. Double click viewing window, will show full-screen, double click again, will return to initialized size.
  • Page 49 select corresponding speed and click direction button to realize PTZ speed up or speed down. 3) Zoom In/Zoom out: for zooming in or zooming out, Focus In/ Focus Out: Focusing on distant objects or Focusing on close objects. 4) Set/Call: When PTZ turn to expected position, can set up a number of preset that user want. click "Set"...
  • Page 50 Video format Support 50HZ(PAL)and 60HZ(NTSC),and Dial priority three formats. Video Coding Support baseline and mainprofile format Resolution Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
  • Page 51 Maximum frame rate: User can specify the size of the frame rate, generally, the frame rate greater, the image more smooth; Frame rate is smaller, the more sense of beating. Bit Rate: Code stream control way: Constant bit rate: video coder will be coding according to preset speed Variable bit rate: video coder will adjust the speed based on preset speed to gain the best image quality.
  • Page 52 Brightness Image bright 0~100, slider control, on the right shows the corresponding numerical. Default 43. Saturation Saturation 0~100, slider control, on the right shows the corresponding numerical. Default 50. Contrast Contrast0~100, slider control, on the right shows the corresponding numerical. Default 57. Sharpness Sharpness0~100, slider control, on the right shows the corresponding numerical.
  • Page 53 Audio Type Audio type AAC Sample rate Sample rate 44.1 K and 48 K,selectable. Bit rate Bit rate 96k,128k,256k,selectable Input Type line in only Input VolL The volume of the left channel Input VolR The volume of the right channel Button Press "apply"...
  • Page 54 Work Mode Work Mode RTSP Reboot Click the "Reboot" button, system restart. User and password The user can modify the password (letters and Numbers only) Apply / Cancel Modify password and click the "apply" button to the login page, press "cancel" button to cancel password change.
  • Page 55 Lan Settings   Default the IP address is 192.168.100.88, The MAC address can be modified. Port Settings   IP address identifies the network device, the device can run multiple web applications, each network program using network port to transmit data, so data transmission to be carried out between the port and port. Port setting is to set up WEB SERVER program using which port to transmit.
  • Page 56 RTSP Port   Network camera support RTSP protocol, use the VLC tools broadcast. TCP Port   Support TCP protocol, default port: 5678. Apply / Cancel   Modify network parameters then press "Apply" button to modify network parameters, press "Cancel" button to cancel network parameters. Device Information,please click “information”...

  • Page 57: Network Control

    Network Control 1. View from Web browser (better in IE) l To view from web browser, firstly need to check camera IP address. There are 2 methods to check: Method 1: press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
  • Page 58 Method 2: Open “upgrade_En.exe”, change IP and click “Set”...
  • Page 59 Once IP changed, need to restart the camera. 2 methods to restart as below: Method 1: Turn off and turn on manually to restart camera Method 2: On web page, find “System” and click “Apply” (when under remote controlling environment, better use this method)
  • Page 60 PTZ ON IP NETWORK This model currently supports various PTZ control methods, including RS232, RS485, IR remote control, HTTP CGI, and TCP protocol. The following is the detailed description about HTTP CGI and TCP Protocol control methods. 1. TCP Protocol Method This model implements TCP server inside, there is a port configurated by Web for receiving the connection from TCP client,the TCP port number is 5678.
  • Page 61 Home 81 01 06 04 FF Reset 81 01 04 3F 00 PP FF osition Number(==0x00-0x59, Preset position 81 01 04 3F 01 PP FF 0x64-0xFE) Recall 81 01 04 3F 02 PP FF 2. HTTP CGI Method This camera integrated with web server inside, support CGI related with PTZ. 2.1 Pan and Tilt control URL format as below: http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[pan speed]&[tilt speed] More descriptions:...
  • Page 62 [action] including: posset, poscall; [position number]: 0-89,100-254.

  • Page 63: Maintains And Trouble Shooting

    Maintenance and Troubleshooting Camera Maintains l If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet. l Use soft cloth or tissue to clean the camera cover. l...

  • Page 64: Copyright Notice

    1. Access to the network with PC can test whether network works, in this way to get rid of cable failure, network failure caused by PC virus until the PC can be Ping. 2. Disconnect IP Camera with network, IP Camera and PC are connected, according to the proper operations to re-set the IP address.
  • Page 65 All contents of this manual, whose copyright belongs to our company. Cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice 2014/11...
