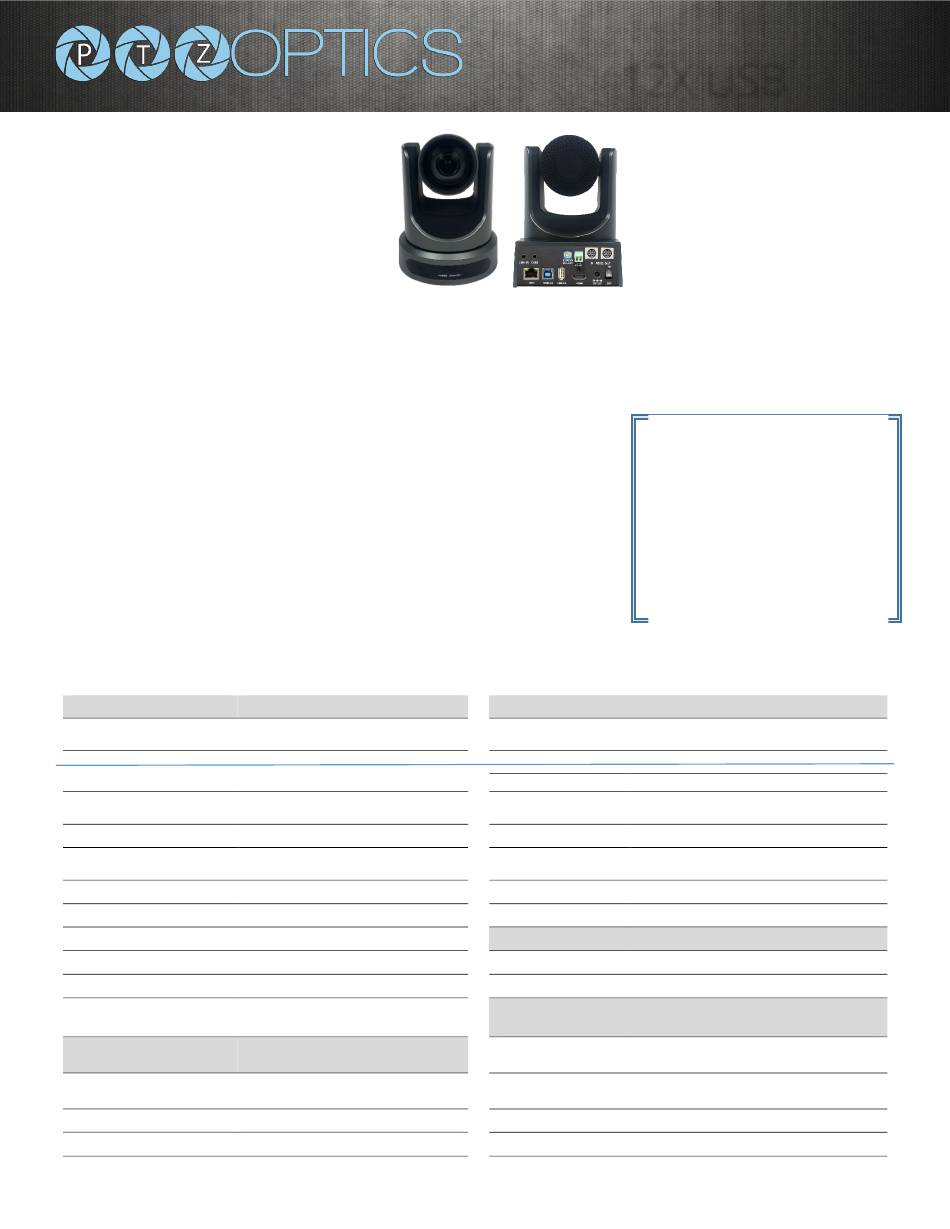

PTZ Optics PT12X-USB-WH-G2 Quick Start Manual

PTZOPTICS
Broadcast & Conference Camera
The PTZOptics 12X-USB is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With
support for USB 3.0, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high
definition video signals for broadcast, recording, or video conferencing applications.
KEY FEATURES
● 72.5 degree wide-angle lens.
● High performance in low light scenarios with Wide Dynamic Range.
● Full 1920x1080p HD Resolutions up to 60 frames per second.
2D and 3D noise reduction with our latest "low noise CMOS sensor".
●
● UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
●
● HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
RTMP & RTSP IP streaming
●
● 5-year warranty
● Photobooth capable
Camera & Lens
Video Sensor
Frame Rates
Frame Rates (CVBS)
Focal Length
Lens Zoom
Field of View
Min Lux
SNR
Vertical Flip & Mirror
Horizontal Angle of View
Working Environment
Pan & Tilt Movement
Pan Movement
Tilt Rotation
Presets
Please check PTZOPTICS.com for the most up to date version of this document
Share Your Vision
1/2.7" CMOS, 2.07 Megapixels
1080p-60/50/30/25, 1080i-60/50,
720p-60/50/30/25
576i-30, 480i-30
12x, F3.5mm-42.3mm, F1.8-F2.8
12x
72.5°
0.05 Lux (@F1.8, AGC ON)
≥55dB
Supported
6.9° (tele) to 72.5° (wide)
Indoor
±170°
Up: 90°, Down: 30°
10 via IR (255 via Serial or IP)
®
12X USB
WHAT'S IN THE BOX
Video Output HDMI, USB 3.0, IP Streaming, CVBS
Interface
Network Interface RJ45
Audio Interface Line In, 3.5mm (USB & IP Stream Only)
Communication RS-232, RS485, PELCO-D/P, UVC 1.5
Interface
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
Interface
USB 3.0 Interface USB 3.0 (Requires Quad Core Processor)
USB 2.0 Interface Future Use
Electrical Index
Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC)
Physical Specifications
Dimensions (mm) 142W x 164H x 160D (198H max w/
Tilt)
Box Dimensions 9" x 9" x 10" | 229mm x 254mm x
229mm
Camera Weight 3.15 lbs. (1.43 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
Model Number:
PT12X-USB-GY-G2 (gray)
PT12X-USB-WH-G2 (white)
http://ptzoptics.com/usb/
12X Zoom USB 3.0 Camera
Power Adapter + Cord
USB 3.0 Cable
IR Remote Control
RS-232C Cable
Quick Start Guide
(2) AAA Batteries
Rear Board
Rev. 1.6 6/21
