Tecsun DR-920 User Manual

Download this manual

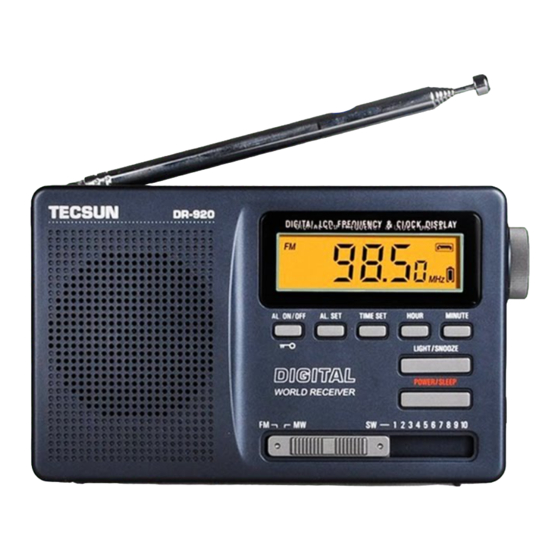

USER'S MANUAL TECSUN DR-920

DIAGRAM & FUNCTION INDICATION

1. LCD DISPLAY

2. TUNING KNOB

3. HOUR / 12/24 HOUR

4. MINUTE

5. LIGHT/ SNOOZE

6. POWER / SLEEP

7. BUZZER / RADIO

8. BAND INDICATOR

9. BAND SELECTOR

10. TIME SET

11. AL. SET

12. AL. ON/OFF

13. ANTENNA

14. SUPPORTING RACK

15. VOLUME

16. EARPHONE JACK

17. EXTERNAL POWER JACK

18. HAND STRAP

19. BATTERY COMPARTMENT

Need help?

Do you have a question about the DR-920 and is the answer not in the manual?

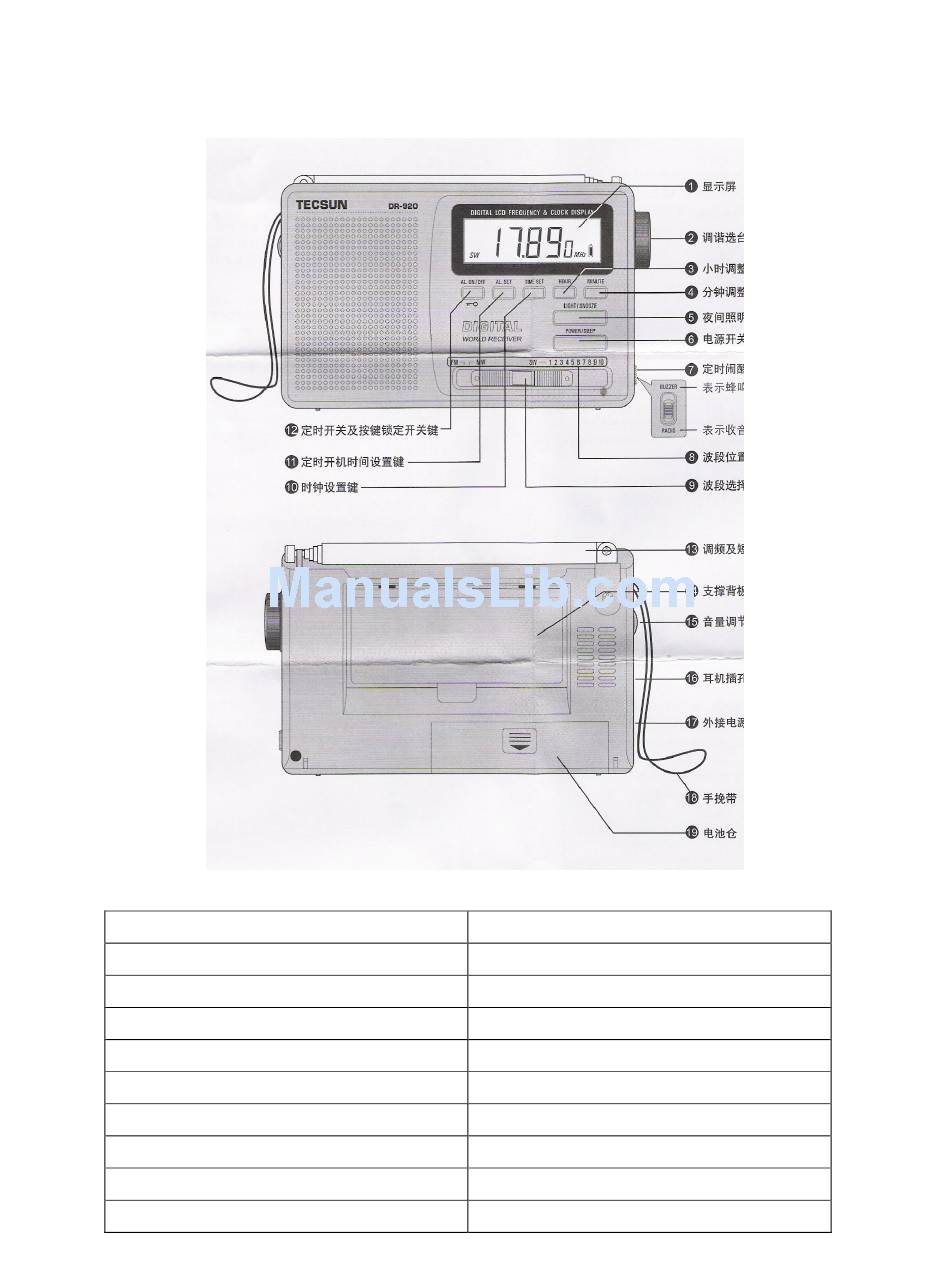

Page 1 USER’S MANUAL TECSUN DR-920 DIAGRAM & FUNCTION INDICATION 1. LCD DISPLAY 11. AL. SET 2. TUNING KNOB 12. AL. ON/OFF 3. HOUR / 12/24 HOUR 13. ANTENNA 4. MINUTE 14. SUPPORTING RACK 5. LIGHT/ SNOOZE 15. VOLUME 6. POWER / SLEEP 16.
Page 2 1. POWER ON The radio uses two AA1.5V batteries, please put the new batteries in the battery slot according to the polarity. Press and hold the Power (6) button until you see “On” display on the screen. 2. RADIO Turn the band selector (9) to the required band from FM , AM or SW 1-10. Rotate the Tuning Knob (2) to search for the station.
Page 3 Buzzer Switch the BUZZER/RADIO button to BUZZER. When it arrives the preset time , you will hear beeping sound and it will stop in 30 minutes. Note : (i) You can turn on or off the alarm function by pressing the AL ON/OFF (12) button once. (ii) The volume of the beeping sound cannot be set.
Page 4 The radio accepts 3-6V external power (>=150mA) . Please make sure the polarity of negative. TECHNICAL INDEX Frequency Range : FM 76-108 MHz AM 525 - 1610 KHz SW 5.95 – 21.85 MHz Noise Limit Sensitivity FM ≦ 10uV AM ≦ 1.5mV/m SW ≦...
