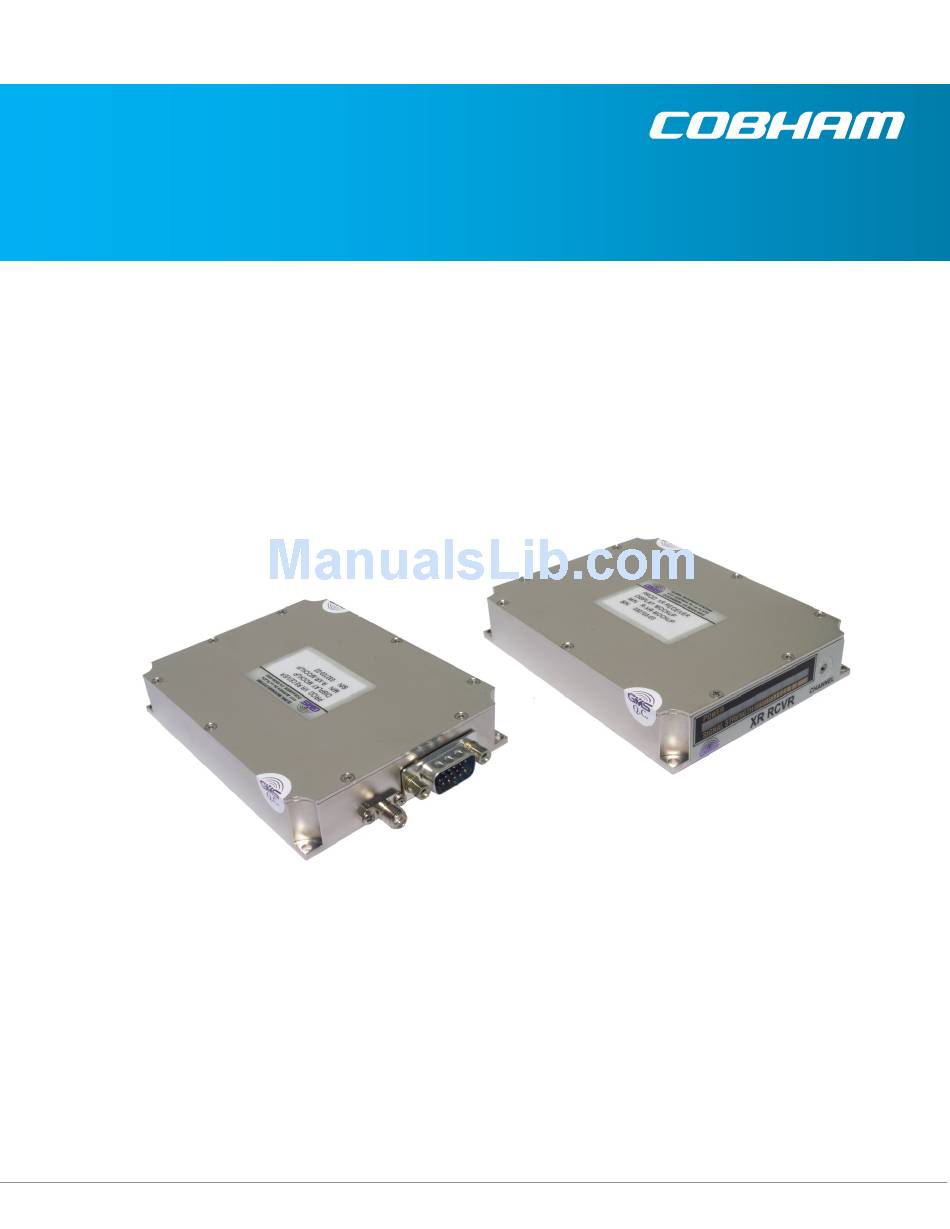

- Page 1 User’s Manual The most important thing we build is trust. XR Series Receiver Cobham Surveillance GMS Products 1916 Palomar Oaks Way Ste 100 Carlsbad, CA 92008 100-M0037X2 04/15/2010 T: 760-496-0055 F: 760-496-0057 www.cobham.com/gms...
- Page 2 Audio ........................................ 4 Video ........................................ 4 Serial Port Interface .................................. 4 Specifications for XR Series Frequency Agile Receivers ................5 RF ........................................5 Power........................................ 5 Video ........................................ 5 ...
-
Page 3: Revision History
Revision History Version Date Main Changes from Previous version Created by 04/25/05 Initial Release 02/24/10 Change doc format 100-M0037X2 3 of 6 www.cobham.com/gms... - Page 4 The XR Series of receivers from GMS, are advanced technology microwave receivers capable of operation at 1.7 – 6.0 GHz. The XR Series demodulates one video and two audio signals from a composite analog RF source. The XR Series is fully synthesized and operated at 16 pre-programmed channels.
- Page 5 Specifications for XR Series Frequency Agile Receivers Frequency Range 1.7 – 6.0 GHz standard (Consult factory for additional frequencies) Frequency Stability 0.005% Noise Figure 5 dB typical Dynamic Range 75 dB Sensitivity -80 dBm 50 Ώ Input Impedance Power Voltage...
- Page 6 Appendix A - Cable Assembly 100-M0037X2 6 of 6 www.cobham.com/gms...
