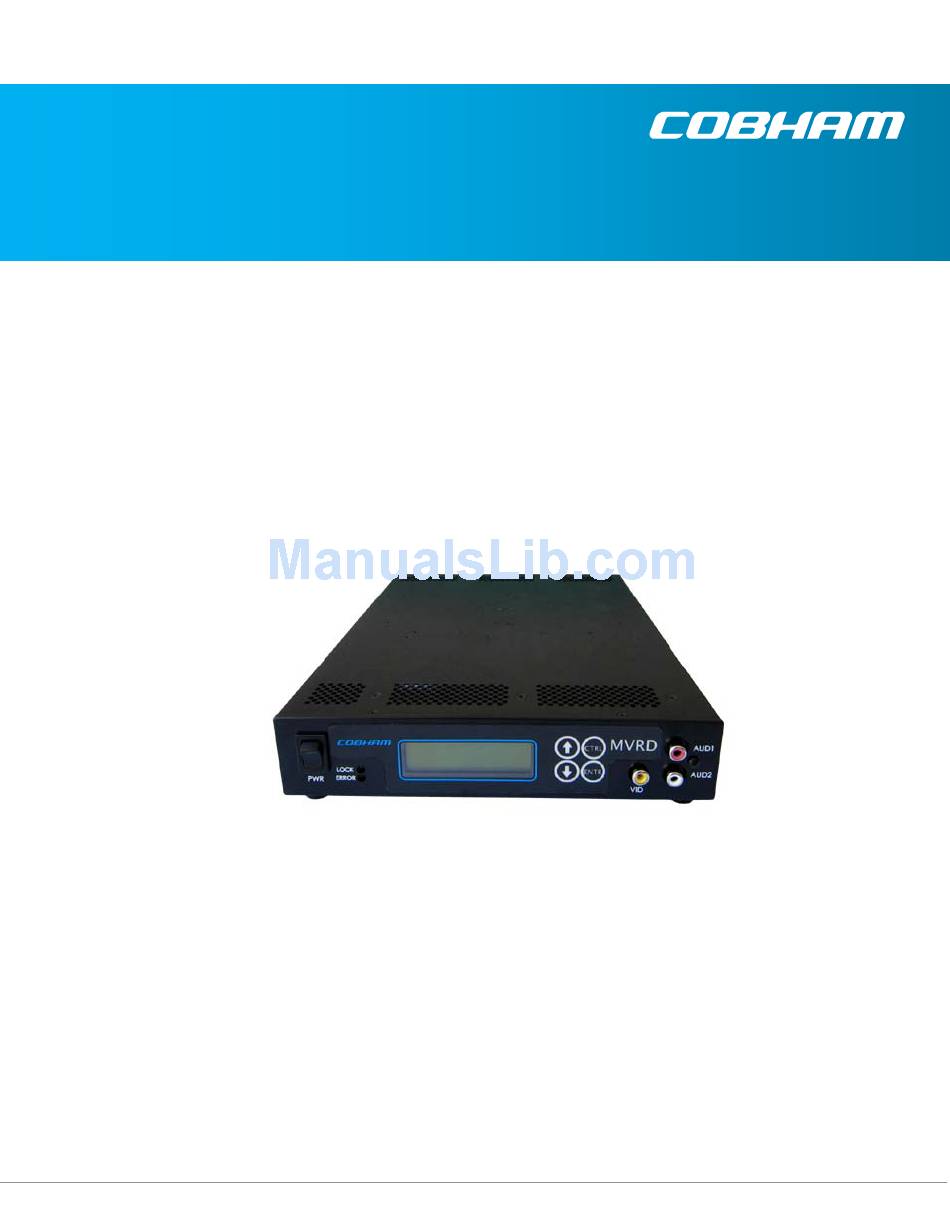

- Page 1 User’s Manual The most important thing we build is trust. Messenger VETA Receiver Decoder (MVRD) Cobham Surveillance GMS Products 1916 Palomar Oaks Way Ste 100 Carlsbad, CA 92008 100-M0145X2 06/10/2010 T: 760-496-0055 F: 760-496-0057 www.cobham.com/gms...
-
Page 2: Table Of Contents
VETA Configurator Functions ............................20 Initial Check Out ..................................21 Deploying and Operating the MVRD ..........................21 Using of the On Screen Display ............................23 Hardware Overview ................................24 100-M0145X2 2 of 36 www.cobham.com/gms... - Page 3 List of Appendixes Appendix A – Default Settings C2-Band ............................33 Appendix B – Configuration Map ............................... 34 Appendix C – Troubleshooting Section ............................35 Appendix D – References ..................................36 100-M0145X2 3 of 36 www.cobham.com/gms...
-
Page 4: Revision History
Revision History Version Date Main Changes from Previous version Created by 02-24-2010 Initial Release 06-11-2010 Genlock and Embedded Audio are added 100-M0145X2 4 of 36 www.cobham.com/gms... -
Page 5: Acronyms
Messenger 2 Transmitter Mbps Megabits per second Messenger Digital Link Modulation Error Rate MPEG Moving Picture Experts Group MVRD Messenger VETA Receiver Decoder NTSC National Television System Committee Phase Alternation Line QPSK Quadrature Phase Shift Keying Quadrature Amplitude Modulation Radio Frequency... -
Page 6: Introduction
This manual provides information on how to operate the MVRD (Messenger VETA Receiver Decoder) as well as pertinent technical information related to the overall system. -
Page 7: Safe Operating Procedures
Operate within the environmental limits specified for the product. Only authorized, trained personnel should open the product. There are no functions that required the User to gain access to the interior of the product. 100-M0145X2 7 of 36 www.cobham.com/gms... -
Page 8: General System Information
3. General System Information The MVRD (Messenger VETA Receiver Decoder) receives and demodulates DVB-T 2k carriers’ signals with bandwidths of 6, 7 or 8 MHz; additionally, optional 1.25 or 2.5 MHz RF bandwidths with 400 carriers allow both increased reception range and larger quantity of simultaneous A/V links to operate in the same frequency band. -
Page 9: Understanding Configurations
16 Config-s in the Main Window of Control Software. The parameters in Current Config-s can be edited in the MVRD menu using the PC Control application. Any modifications made to system settings will be saved in the current Config. All changes that are applied saved permanently. 100-M0145X2 9 of 36 www.cobham.com/gms... -
Page 10: Mvrd Local Control
4. MVRD Local Control Introduction As with all GMS Cobham surveillance products, the MVRD uses “Set-Up Groups”/ “Profiles” (Up to 16) to allow the receiver to be completely pre-configured by Administrators prior to deployment. These set- up groups define all of the operating parameters (e.g. frequency, bandwidth, FEC, Decryption On/Off) available to the users. -
Page 11: Figure 1 - Main Display & Control Displays
Lower left 10 characters – If Video is Present shows the video format. VID: – Is Video Present in the Program? Next character shows Y when the system is processing a TS and N when it is not. Cobham MVRD AVC Decoder MAIN MENU 1.075 FW VERSION... -
Page 12: Main Rf Screen
If the unit is in ASI mode, this screen is not displayed. When the RX is in RF reception mode this status display shows the signal strength of each of two RF channels consequently with a dBm reading at the end of the second line. 100-M0145X2 12 of 36 www.cobham.com/gms... -
Page 13: Figure 2 - Status Menu
Figure 2 – Status Menu 100-M0145X2 13 of 36 www.cobham.com/gms... -
Page 14: Decoder Status
Setup Menu This menu can be accessed from the Main Display by pressing CNTR button twice. The flow chart of MVRD Status Menu is shown in Figure 3. It consists of three submenus described below. 100-M0145X2 14 of 36 www.cobham.com/gms... -
Page 15: Receiver Setup
If the receiver in ASI Input mode, this will only lead to Setup and then Main Manu. 4.5.1 RX Input Source In this submenu the user can select the input mode – RF or ASI In. 100-M0145X2 15 of 36 www.cobham.com/gms... -
Page 16: Rx Configuration
STATUS menu Genlock screen shows if Genlock is locked, if it is ON, OFF, or in AUTO mode, if a reference signal is present (and the format), and the output video format the decoder is decoding. 100-M0145X2 16 of 36 www.cobham.com/gms... -
Page 17: Program Setup
Selected Program Selected program submenu contains information about the following PID-s: PCR, Video, Audio and PMT. These items are displayed one line at the time and are continuously cycled until the CTRL key is pressed. 100-M0145X2 17 of 36 www.cobham.com/gms... -
Page 18: Figure 4 - Program Menu
SELECTED PRG: 01 MODE: AUTO/MANUAL PCR PID: 0x..VIDEO PID: 0x..AUDIO PID: 0x..PMT PID: 0x..CTRL [ENTR] FOR SETUP MENU ENTR CTRL [ENTR] FOR MAIN MENU ENTR CTRL Figure 4 – Program Menu 100-M0145X2 18 of 36 www.cobham.com/gms... -
Page 19: System Menu
System Menu The flow chart depicting the System Menu is shown in Figure 5. System Menu displays Versions for Firmware Components, Hardware Version and unit serial number. Figure 5 – System Menu 100-M0145X2 19 of 36 www.cobham.com/gms... -
Page 20: Remote Control
Control can only change 16 preset configurations. Administrator has access to all MVRD receiver parameters. GMS provides “Default Settings file” that easily can be loaded into the unit. Changes to set- up groups can be made with the VETA Receiver software. 100-M0145X2 20 of 36 www.cobham.com/gms... -
Page 21: Initial Check Out
5m typically, further if the transmitter is greater than 1W in power). Figure 6 shows a basic MDL configuration wireless link. The steps necessary to setup the configuration shown are stated below: Figure 6 – Basic MDL Setup 100-M0145X2 21 of 36 www.cobham.com/gms... - Page 22 If the TX and RX are physically too close to each other, the RX may overload causing no or distorted Video. You may move the TX & RX further apart. If the red LED stays on and the green led goes off, recycle power. If it persist contact Cobham/GMS. 100-M0145X2 22 of 36...
-
Page 23: Using Of The On Screen Display
Check Quality of Link. Switch on the transmitter and confirm that SNR is 6 or greater and that power level is at least –92dBm or greater. This represents approximately a 5dB margin. Failure of the link will occur when the power level reaches –97dBm or the SNR reaches 3dB. 100-M0145X2 23 of 36 www.cobham.com/gms... -
Page 24: Hardware Overview
PMT (Program MAP Table) indicates services that are not present in the TS Incompatible Compression Type – Cannot decode the incoming data. Internal HW/FW Error – Will output a code that is meaningful to factory personnel. 100-M0145X2 24 of 36 www.cobham.com/gms... -
Page 25: A/V Connectors
AUD1, AUD2 Signal: Audio, Balanced Connector Type: XLR-M, 3 pin 7.2.3 RF1 and RF2 RF1 & RF2 – Receiver RF Inputs Connector Type: SMA-F Maximum Operational Input: -20 dBm Damage Level: > = +17 dBm 100-M0145X2 25 of 36 www.cobham.com/gms... -
Page 26: Misc I/O
Signal: Video, Composite Connector Type: RCA-F Y, Pr, Pb Signal: Video, Component Connector Type: RCA-F 7.2.7 HD-SDI/SDI SMPTE standardized Serial Digital Interface (High or Standard Definition) Source: Follows active selection of TS source. Connector Type: BNC-F 100-M0145X2 26 of 36 www.cobham.com/gms... -
Page 27: Asi In
However, it does an acceptable job of converting normal video from a camera. Note: Future enhancements will allow all the operating modes to be supported. Using breakout cables 7.4.1 Power Cable w/AC/DC Power Supply 100-M0145X2 27 of 36 www.cobham.com/gms... -
Page 28: Mvrd Ctrl Cable
Note: you can wire directly to the DC Power connector to run the MVRD off of DC. 7.4.2 MVRD CTRL Cable Use 780-C0456 to connect from the MISC I/O circular connector to USB connector on the Personnel Computer (PC) that shall be used to control the MVRD. 100-M0145X2 28 of 36 www.cobham.com/gms... -
Page 29: Specification
Output: DVB-ASI input can be reformatted for streaming and output at the same time that it is being decoded. AVC Decoder (Video, 2 Audio) General Compatibility Standard: MPEG-4 AVC/H.264 Baseline Profile Plus Interlace Support Bit streams Accepted: AVC video in MPEG TS per ISO/IEC 13818-2 100-M0145X2 29 of 36 www.cobham.com/gms... - Page 30 Sample rates supported: 32, 44.1, 48 KHz Sample rate out: 48 KHz # embedded Audio: 4 (2 stereo pairs) Audio types supported: MPEG2 layer 1 and 2, or ADPCM (Future Option) Embedded audio control: Selectable, .type./disable 100-M0145X2 30 of 36 www.cobham.com/gms...
- Page 31 AVC Mode: 4 Mono or 2 Stereo Pairs MEPG-2/4 Mode: 2 Mono or 1 Stereo Pairs Analog Audio Out Output Type: Balanced, 2 channel pairs (+/-), Left/Right Connectors: Qty 2 – XLR-M Qty 2- p/o High density 15-pin D-sub, female 100-M0145X2 31 of 36 www.cobham.com/gms...
- Page 32 720p@ 59.94 fps–Ref 720 tri-level sync @ 59.94 fps 720p @ 60 fps – Ref 720 tri-level sync @ 60 fps *: Option **: In Development. This feature will be supplied as a field FW update, when available. 100-M0145X2 32 of 36 www.cobham.com/gms...
-
Page 33: Appendix A - Default Settings C2-Band
NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC NTSC Blue Screen on no Video MPEG4 deblocking Filter On screen Display Auto Spect Detect Descrambling LNB Power Power up Video Format 100-M0145X2 33 of 36 www.cobham.com/gms... -
Page 34: Appendix B - Configuration Map
Appendix B – Configuration Map M2T Group Number MVRD Group Number M2T Group Number MVRD Group Number GP10 GP11 GP11 GP12 GP12 GP13 GP10 GP14 GP12 GP15 GP10 GP16 GP11 GP17 GP12 GP18 GP10 GP19 GP10 GP12 GP20 100-M0145X2 34 of 36 www.cobham.com/gms... -
Page 35: Appendix C - Troubleshooting Section
The standard setting is 2.3Mb/s. However enabling audio, particularly the high quality audio modes, will reduce the video bit rate substantially. Therefore ensure an appropriate audio mode is selected or audio is fully disabled. 100-M0145X2 35 of 36 www.cobham.com/gms... -
Page 36: Appendix D - References
Appendix D – References For more detailed information on GMS products described in this manual, download the manuals below from GMS’ WEB site (www.cobham.com/gms) of contact GMS customer Service department. Operations Manual, VETA Receiver 100-M0087 Operations Manual, VETA Receiver SW 100-M0131 ...
