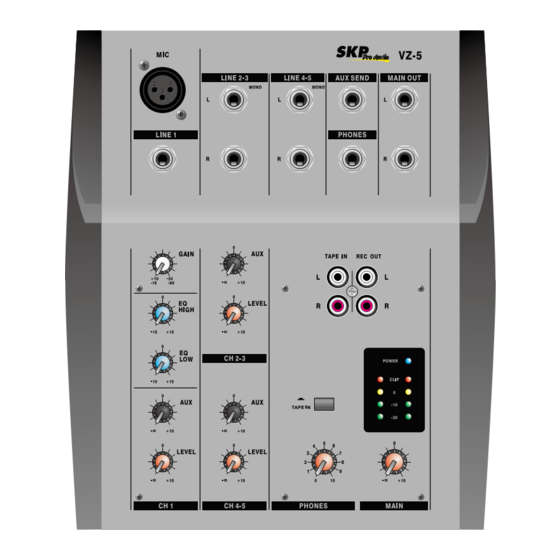

- Page 1 VZ-5 5 CHANNEL STEREO MIXER ENGLISH OWNER MANUAL...
-
Page 2: Table Of Contents
INPUT CHANNEL SECTION----------------------------------------------------------------------3 MASTER SECTION----------------------------------------------------------------------------------4 POWER SECTION------------------------------------------------------------------------------------5 INSTALLATION----------------------------------------------------------------------------------------5 CONNECTIONS----------------------------------------------------------------------------------------7 APPENDIX-----------------------------------------------------------------------------------------------8 BLOCK DIAGRAM-------------------------------------------------------------------------------------9... - Page 3 Ultra low noise 5 Channel Mic / Line Mixer 1 Mono Input Channels with silver plated XLRs and balanced Line Inputs 2 Stereo Input Channels with balanced TRS Jacks Balanced Inputs for highest signal integrity Ultra-musical 2-band EQ on all channels 1 Aux Send per channel for external effects and monitoring Highly accurate 4 segment Bargraph Meters Rugged design Power Supply ensures superior signal integrity...
-
Page 4: Input Channel Section
A. IN PUT CHANNEL SECTION 1. XLR Microphone Jacks These jacks accept typical 3-pin XLR inputs for balanced and unbalanced signals. They can be used in conjunction with microphones- such as professional condenser, dynamic or ribbon microphones - with standard XLR male connectors, and feature low noise preamplifiers, serving for crystal clear sound replication. -
Page 5: Master Section
5. LOW This control is used to give a shelving boost or cut+/-15 dB to low frequency (80 Hz) sound.This will adjust the amount of bass included in the audio of the channel,and bring more warmth and punch to drums and bass guitars. - Page 6 18 19 11. Tape In (L and R) T h e f i rs t o f t h e s e i n p u t s accommodates RCA cables from such devices as tape and CD players. The line from this feed is directed to the Tape In mixing bus, before being fed through to the Main L/R mixing bus.
-
Page 7: Power Section
18. AUX SEND JACK This is a send output jack. 19. PHONES This stereo output port is suited for use with headphones, allowing monitoring of the mix. The audio level of this output is controlled using the Phones/Control Room control. 20. -
Page 8: Connections
E. CONNECTIONS You will need a lot of cables for different purposes - see the following figures to make sure you have got the right ones. Unbalanced equipment may be connected to balanced inputs/outputs. Either use mono 1/4" jacks or connect ring and sleeve of TRS jacks. -
Page 9: Appendix
F. APPENDIX Specifications Inputs >90 dB Total Channels Microphone Preamp E.I.N. (150 Balanced Mono Mic / Line <-129.5 dB ohms terminated, max gain) Channel Stereo Line Channel THD (Any output, 1KHz +14dBu, Tape Input Stereo RCA <0.01% 20Hz to 20KHz, channel inputs) Outputs CMRR (1 KHz - 6OdBu, Gain at 2x 1/4”... -
Page 10: Block Diagram
G. BLOCK DIAGRAM... - Page 12 WWW.SKPAUDIO.COM...
