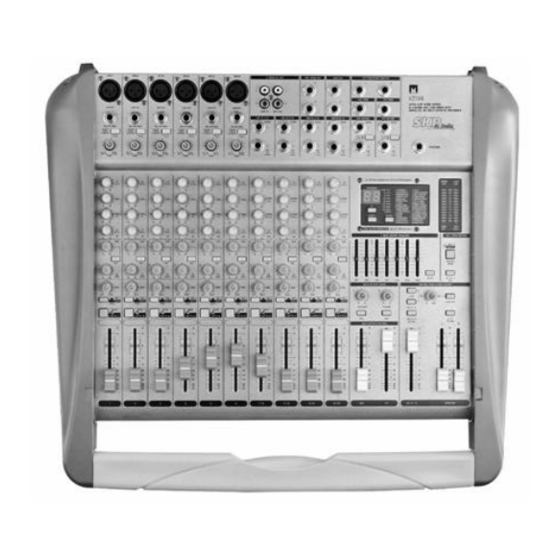

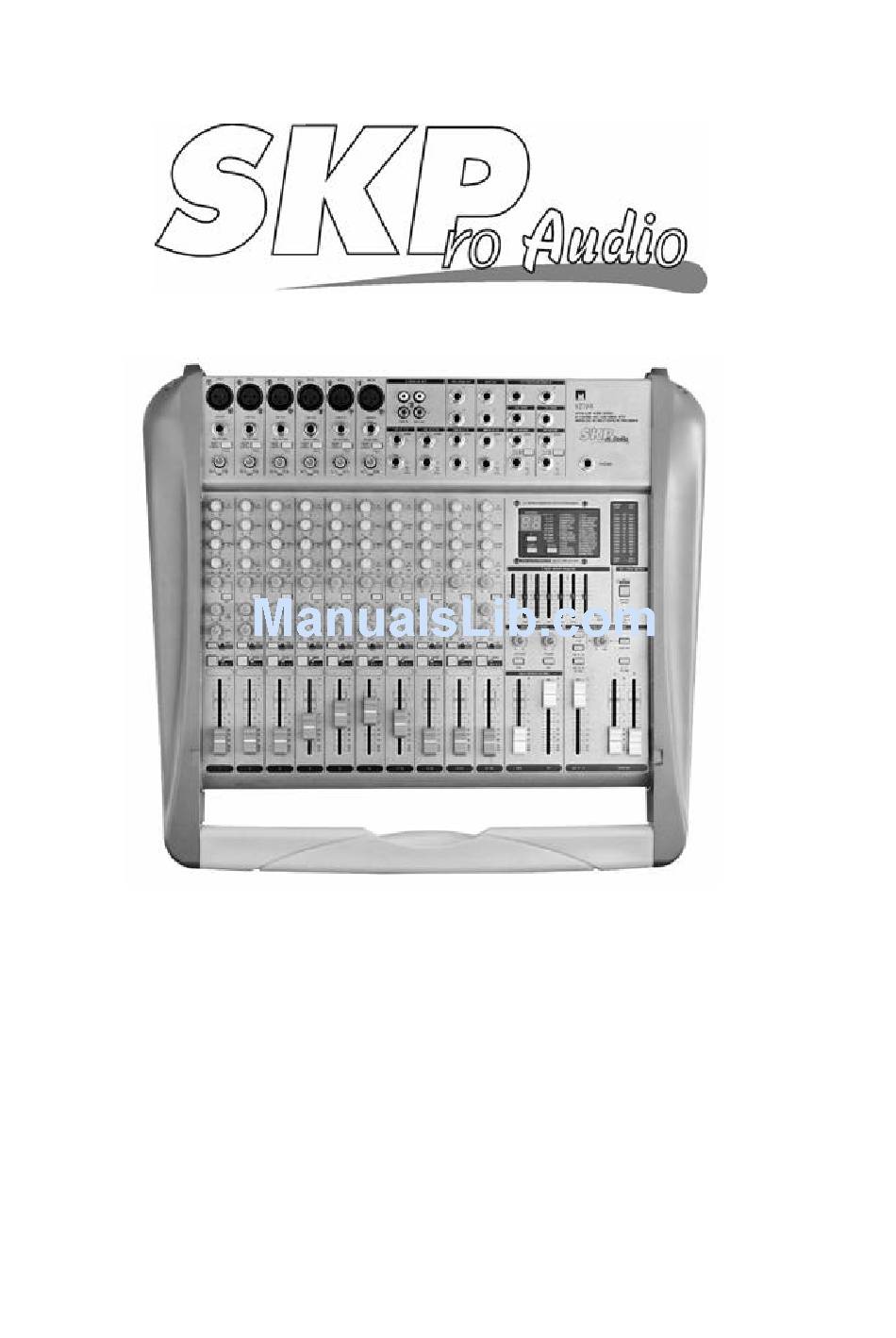

- Page 1 VZ 114 / VZ 194 User’ s Manual ( English Version )
- Page 2 BRIEF INSTRODUCTION: VZ SERIES MIXERS ARE SOUND IN FUNCTION, ADVANCED IN WORKMANSHIP AND SMALL IN SIZE. ADOPTING THE ADVANCED SMT TECHNOLOGY MAKES TH E SIZE OF THE MIXERS MUCH SMALLER AND IMPROVES THE RELIABILITY AND S/N RATIO OF THE MIXERS. IT IS VERY EASY TO MOVE BECAUSE THEIR UNIQUE HANDLES.
- Page 3 A. CHANNEL SECTON All channels of powered mixers & mixing consoles are the same. Therefore, this manual shows the control function of only one channel. (1) MICROPHONE Electronically Microphone input accepts a standard XLR male connector. 1.GROUND=shield, 2.HOT=signal input, 3.COLD=ground(shield). You can use max 10-60dB according to signal level by GAIN control.
- Page 4 USING BY 1/4"standard line connector, You can use unbalance(tip/signal) and balance(tip/ring/signal). It can be connected with keyboards or other electric instruments. Tip=positive Ring=negative Sleeve=gro und. (3) LOW CUT This switch, when push, cut the input signal below 75Hz. (4) GAIN CONTROL Adjust input sensitivity from 10dB to 60dB with the 60dB pad switch in the out position and -40dB to +10dB when the 60dB pad switch is pushed.
- Page 5 (24) HI MID Adjusting the knob, you can have up to 15dB cut and boost at 3KHz mid and hi frequency. (25) LO MID Adjusting the knob, it has up to 15dB cut and boost at 500Hz mid and low frequency.
- Page 6 B. MASTER SECTION (1) FX PROCESSOR DIRECT IN The external signals can be connected with the DSP input (2) AUX SEND Aux signal output jack (3) FX SEND FX signal output jack (4) AUX RETURN FX output signal return jack (5) FX RETURN FX output signal return jack (6) DIGITAL EFFECTS PROCESSOR...
- Page 7 C. REAR PANEL (1) CHANNEL INSERTS Pre-fader/pre -EQ tip=send/Ri ng=return (2) ALT3-4 INSERTS (3) ALT 3-4 OUTPUTS (4) MAIN INSERTS (5) MAIN OUTPUTS(UNBALANCED) (6) MAIN OUTPUTS(BALANCED) (7) BALANCED MAIN OUTPUT LEVEL SWITCHES Via the switches, you can choose between the two different operating level settings- 10dBV and +4dBU.
- Page 8 VZ 112 VZ 174A VZ114 VZ194 Mono input channels Mic input Electronically balanced, Electronically balanced, Electronically balanced, Electronically balanced, discrete£¬ input discrete£¬ input discrete£¬ input discrete£¬ input configuration configuration configuration configuration Frequency response 10Hz to 60KHz ±3dB 10Hz to 60KHz ±3dB 10Hz to 60KHz ±3dB 10Hz to 60KHz ±3dB Distortion (THD&N)
