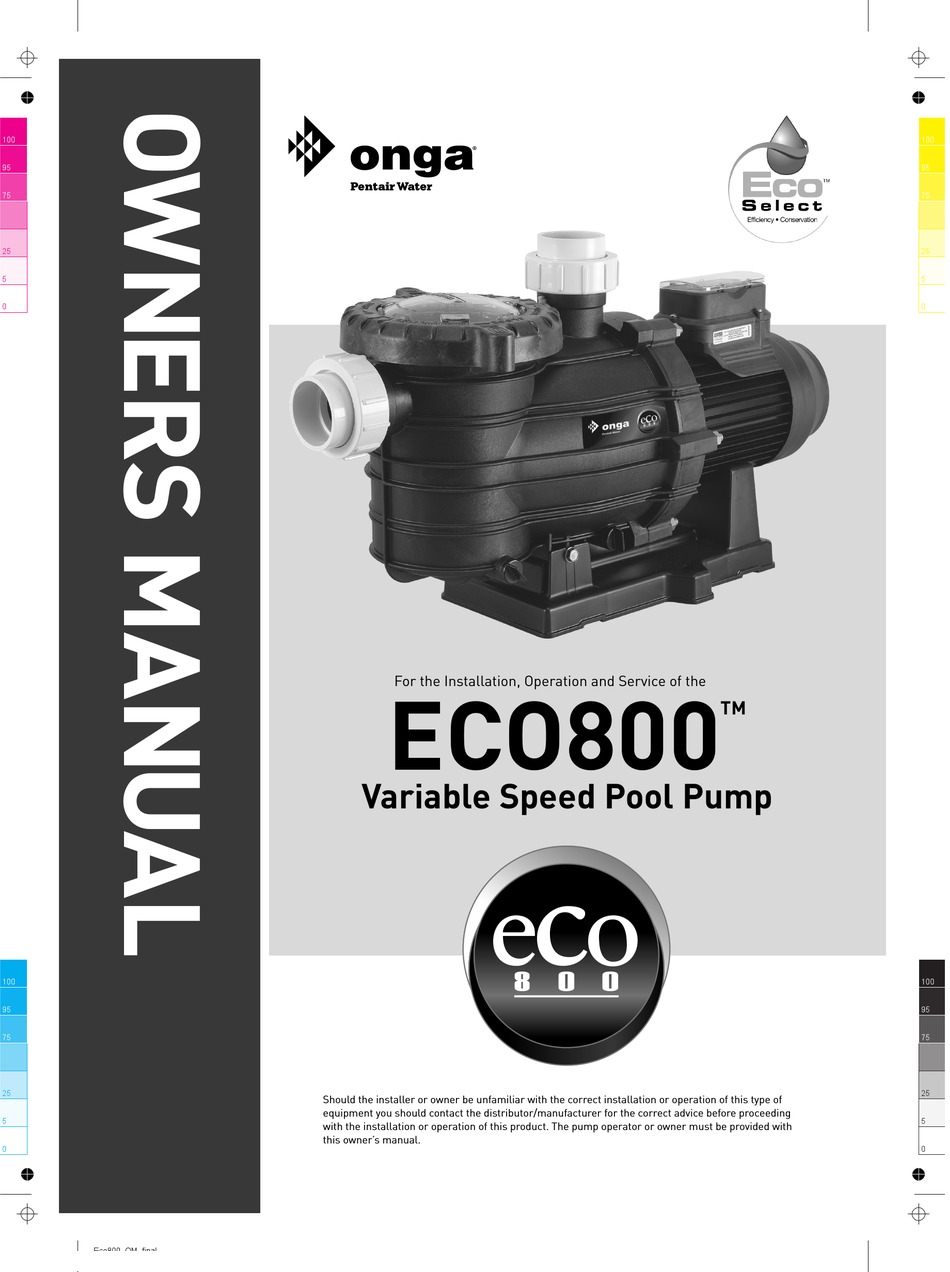

For the Installation, Operation and Service of the
ECO800
Variable Speed Pool Pump
e
Should the installer or owner be unfamiliar with the correct installation or operation of this type of
equipment you should contact the distributor/manufacturer for the correct advice before proceeding
with the installation or operation of this product. The pump operator or owner must be provided with
this owner's manual.
c
o
8 0 0
TM
100
95
75
25
5
0
100
95
75
25
5
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for onga ECO800

Summary of Contents for onga ECO800

  • Page 1 For the Installation, Operation and Service of the ECO800 Variable Speed Pool Pump 8 0 0 Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product.
  • Page 2 Onga and Pentair Onga has been servicing the Australian and New Zealand markets with the highest quality water movement products for just over 40 years. Established in 1967, Onga has a product to meet your every water need. Onga is part of the Pentair group, a global leader in swimming pool, spa and aquatic equipment.

  • Page 3: Table Of Contents

    Table of Contents 8 0 0 Page Features and Benefits Technical Information Model Data Hydraulic Performance Dimensions Installation Pump Positioning Piping Pool Outlets Electrical Equipotential Bonding Operation Priming the Pump Speed Selection Variable Speed Adjustment Service & Maintenance Troubleshooting Troubleshooting Guide 11,12 Motor Flash Codes Spare Parts...

  • Page 4: Features And Benefits

    Features & Benefits 8 0 0 The Onga Eco800 is the ideal pump for new or existing pools. Utilising advanced hydraulic design and the latest technology in permanent magnet, variable speed motors, the Onga Eco800 has the perfect combination of efficiency and performance. The Onga Eco800 delivers energy savings and the power when you need it.

  • Page 5: Technical Information

    Technical Information 8 0 0 ECO800 Model: RPM: 1450RPM (default factory setting) 2400RPM (default factory setting) High 2800RPM (default factory setting) Adjustable Range: 1000-2850RPM Electrical Rating: 230-240V 50Hz single phase Rated Current: Low: 1.3A (max) Med: 4.4A (max) High: 6.5A (max)

  • Page 6: Hydraulic Performance

    Technical Information 8 0 0 Hydraulic Performance Onga ECO800 Performance Chart 16.0 14.0 2800RPM 12.0 2600RPM 2800RPM 10.0 2600RPM 2400RPM 2400RPM 2200RPM 2200RPM 2000RPM 2000RPM 1800RPM 1800RPM 1600RPM 1600RPM 1450RPM 1450RPM 100.0 200.0 300.0 400.0 500.0 Flow (L/min) Dimensions 637mm...

  • Page 7: Installation

    Children should be supervised to ensure that they do not play with the pump. The Eco800 is electrically connected. Ensure that it is isolated from electrical supply during installation and any subsequent service work. 1. Plan the position of the pump...

  • Page 8: Pool Outlets

    Installation 8 0 0 3. Pool Outlets a) The pump suction system must provide protection against hazard of suction entrapment or hair entrapment/entanglement. The pool outlet piping must be in accordance with the latest AS1926.3 standard b) Suction outlet covers and skimmers must have been tested and found to comply with the latest AS1926.3 standard or ASME/ANSI specification for Suction Fittings.

  • Page 9: Operation

    Freezing conditions will damage the unit, as water expands as it freezes. Ensure that the Eco800 is located so that it is not prone to freezing, or ensure that the product is disconnected and dried of water during cold conditions.

  • Page 10: Speed Selection

    Operation 8 0 0 2. Speed selection The Onga Eco800 comes pre-programmed with the following default speeds: Press for low speed Press for medium speed Press for high speed 1450RPM 2400RPM 2800RPM High Filtration and Cleaning with a Backwashing water circulation suction cleaner filter.

  • Page 11: Service & Maintenance

    It is essential for the longevity of the pump that regular service and maintenance be carried out. The Onga Eco800 incorporates high velocity moving parts and is pumping water containing harsh pool chemicals. Some parts which will wear during the normal operation and expected life of the pump.

  • Page 12: Troubleshooting

    Troubleshooting 8 0 0 The Onga Eco800 should only be serviced by certified Pentair service agents. For best results and to ensure warranty is not void, insist on use of only genuine Pentair service parts. To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove plug from power outlet before working on pump.
  • Page 13 Troubleshooting 8 0 0 TROUBLESHOOTING GUIDE (continued) SYMPTOM CAUSE REMEDY No water coming from pump Prime the pump. Check that there are no Air ingress to system. air leaks in the suction piping or fittings. (pump is working). Ensure the strainer lid is airtight and fitted securely.

  • Page 14: Motor Flash Codes

    Troubleshooting 8 0 0 The variable speed motor is a sophisticated and highly technical device. Should a fault occur with the motor, it cannot be serviced and must be replaced by a certified Pentair service agent.service agent or similarly qualified personnel in order to avoid a hazard. Warranty is void if unauthorised modifications are made to any component.

  • Page 15: Spare Parts

    Spare Parts 8 0 0 Description Part Number ECO800 801301 MOTOR (405695) SLINGER See Motor SCREW 3/8"UNC x 1" HEX SS See Motor Fasteners Kit 801279 MOTOR FASTENERS KIT (INCLUDES ITEM 3x4) C3-184P SEAL PLATE 801428 MECHANICAL SEAL 800900 MECHANICAL SEAL (25 PACK)
  • Page 16 8 0 0 IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return Warranty Form to Pentair Australia - please retain for your records. Purchased From ........................Purchase Date........Serial No......Model No......Head Office Pentair AU/NZ: 1-21 Monash Drive,...
