Pool Pumps
Owner's Manual
An earth leakage or residual current
protection device must be fitted to all installations.
Should you the installer or owner be unfamiliar with the cor-
rect installation or operation of this type of equipment you
should contact the distributor/manufacturer for the correct
advice before proceeding with the installation or operation
of the product.
1
Advertisement
Table of Contents
Related Manuals for onga LTP400
Summary of Contents for onga LTP400
- Page 1 Pool Pumps Owner’s Manual An earth leakage or residual current protection device must be fitted to all installations. Should you the installer or owner be unfamiliar with the cor- rect installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of the product.
- Page 2 In fact, wherever people need to move water from one point to another - whether in leisure industry, horticulture, agriculture or in and around the home - Onga is a byword for reliability, value for money and technological innovation. So why does Onga lead its field? Here are a few simple reasons ...
-
Page 3: Technical Data

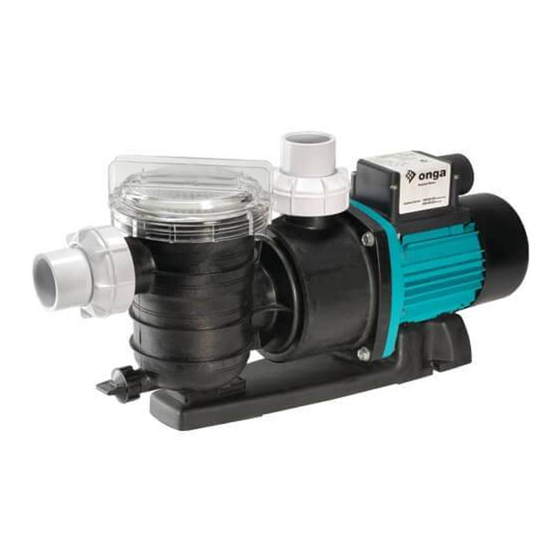

These instructions are a guide only. Users not familiar with pool equipment should seek advice from suitably qualified persons with experience in pool equipment installation. Models LTP400, LTP550, LTP750, LTP1100 (½hp) (¾hp) (1hp) (1½hp) The Leisure Time range of pool pumps are ideal for domestic swimming pool and spa applications. -
Page 4: Installation
INSTALLATION The fittings on these pool pumps are constructed of ABS. Some PVC jointing compounds are incompatible with ABS possibly causing failure to the product. Check compound suitability prior to use. All glued fittings and pipe work should be allowed to dry to atmosphere for 24 hours before closing installation. -
Page 5: Operation
240 volt single phase are supplied as standard with built- in thermal overload protection and are designed to plug direct into a 10 amp domestic power supply socket to local electrical authority specifications. Onga recom- mends that an earth leakage/residual current protection device must be fitted to all installations. -
Page 6: Priming Pump
OPERATION (Continued) Priming Pump: In a flooded suction system (water source higher than pump), the pump will fill itself with water when suction and discharge valves are opened. Water will be at the top of the hair and lint pot lid. If pump is not in a flooded suction system, unscrew and remove hair and lint pot lid;... -
Page 7: Service And Maintenance
Failure to fix this may result in premature product failure. NOTE: Onga recommend the use of silicon based lubricant on all ‘O’rings. The only routine maintenance needed is inspection/cleaning of leaf basket. Debris or trash that collects in basket will choke off water flow through the pump. Follow instructions below to clean leaf basket: 1. -
Page 8: Removal Of Pump For Servicing
Remove pump and take to your nearest authorised Onga service agent or call: 1800 664 266 (Australia) 0800 664 269 (New Zealand) If the need arises to contact an Onga service agent please have all details avail- able including model and serial number, date of purchase and particulars of fault. -
Page 10: Troubleshooting Guide
‘O’ring before Casing ‘O’ring is worn re-tightening. Replace the ‘O’ring Mechanical Seal needs if leaking persists. replacing Replace the mechanical seal and lip seal if fitted. - Should problems persist please contact your nearest Onga service agent. - Page 11 Onga Product Warranty Onga warrants that, when this product is used for the purpose it was designed, is correctly housed and vented against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of the original purchase.
- Page 12 The product is to be forwarded by the customer freight paid to Onga. Infield service by an authorised Onga Service Agent will incur a travel, removal & reinstallation fee to adjudicate on warranty issues. Authorised warranty will be free of charge for the first 12 month period from date of the first consumer purchase.
- Page 13 Please do not return Warranty - Retain for your records. Purchased From Purchase Date Serial No Model No Ask your local Onga retail outlet about the extensive family of Onga products Rakes Great White Automatic Pool Cleaners Zelbrite Telepoles...
- Page 14 801202- 08/07/2003...
