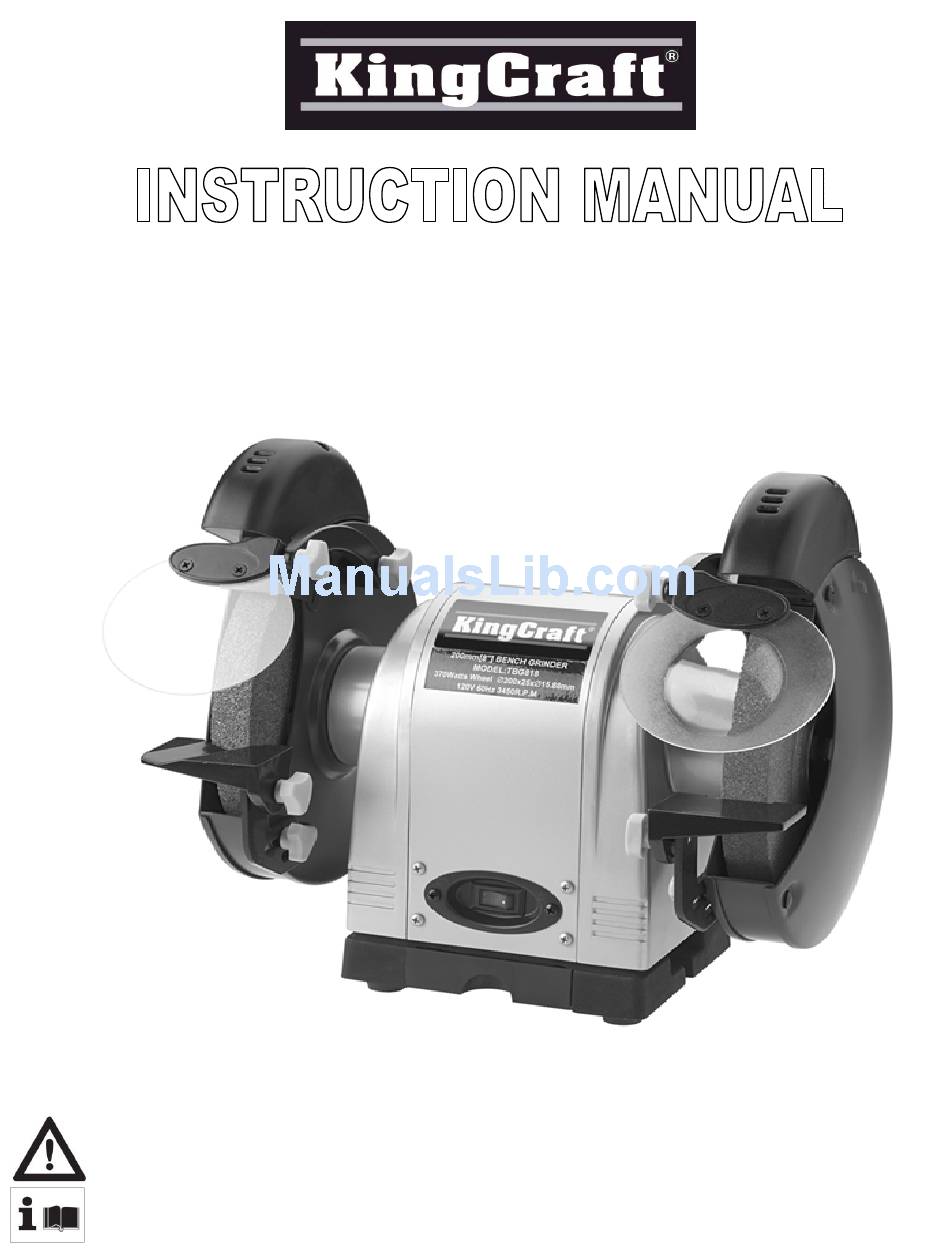

- Page 1 8” Bench Grinder Item# 6318-06 Model # TBG818 PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Important Safeguards P. 2-4 Rules for Safe Operation General Safety Rules P.6,7 Contents of Packaging List of Main Parts, Technical Specifications Features P. 10 Assembly P.10-12 Operation P.13-14 Maintenance P.14-15 Warranty Information P.16 Warranty Card P.17 The purpose of safety symbols is to attract your attention to possible dangers. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. Safe operation of this power tool requires that you read and understand this operator's manual and all labels affixed to the tool. Safety is a combination of common sense, staying alert, and knowing how your bench grinder works. - Page 4 ■ MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instructions for light bulbs and grinding wheel. ■ NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Disconnect all tools when not in use, before servicing, or when changing attachments, wheels, etc. ■...
- Page 5 ■ NEVER reach to pick up a work piece, a piece of scrap, or anything else that is in or near the grinding path of the wheel. ■ AVOID AWKWARD OPERATIONS AND HAND POSITIONS where a sudden slip could cause your hand to move into the wheel. ALWAYS make sure you have good balance.
-
Page 6: Rules For Safe Operation
RULES FOR SAFE OPERATION SAVE THESE INSTRUCTIONS WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints, •... -
Page 7: General Safety Rules
GENERAL SAFETY RULES WARNING! Read, understand and save all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 8 TOOL USE AND CARE 1. Use clamps or other practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. 2.
-
Page 9: Contents Of Packaging
CONTENTS OF PACKAGING WARNING: If any parts are missing, do not operate this tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury. Note: If any parts are damaged or missing, do not attempt to plug in the power cord and turn the switch on until the damaged or missing parts are obtained and are installed correctly. -
Page 10: Technical Specifications
6. Grinding Wheel Right 14. Auto ON Work Light Left 7. Work Rest Right 15. Spark Deflector Left Coolant Tray TECHNICAL SPECIFICATIONS: Item Number 6318-06 Wheels Model Number TBG818 Diameter 8” Rating Voltage 120 Vac Thickness 1” Frequency 60Hz Arbor Hole 5/8 in. -
Page 11: Features
FEATURES KNOW YOUR BENCH GRINDER Before attempting to use your new tool, familiarize yourself with all operating features and safety requirements. Carefully read this operator’s manual before using your grinder. ON/OFF SWITCH Your Bench Grinder features a front access On/Off switch for convenience and safety. MOTOR Powered by a precision-built electric induction motor, your bench grinder has sufficient power to handle tough grinding jobs. - Page 12 SPARK DEFLECTOR Spark Deflector is attached to the Bench Grinder. If necessary, adjust the spark deflectors to within 1/16 in. (1.6 mm) of the grinding wheel. Tighten screws securely. WARNING: Always spin the wheel by hand before turning on the grinder to make sure the spark deflector doesn’t hit the grinding wheel.
- Page 13 WARNING: Always make sure your bench grinder is securely mounted to a workbench or an approved work stand. Failure to do so could result in an accident resulting in possible serious personal injury. MOUNTING TO WORKBENCH If your bench grinder is to be used in a permanent location, it is recommended you secure it to a workbench or other stable surface.
-
Page 14: Operation
OPERATION WARNING: Do not attempt to operate this tool until you have read thoroughly and understand completely all instructions, safety rules, etc. contained in this manual. Failure to comply can result in accidents involving fire, electric shock, or serious personal injury. -
Page 15: Maintenance
CHISELS AND SCREWDRIVER BLADES When sharpening chisels and screwdrivers, work rest should support the chisel at the correct angle against the wheel. WARNING: Always disconnect the bench grinder from the power source before performing any assembly or adjustment. Failure to do so could result in accidental starting resulting in possible serious personal injury. -
Page 16: Environmental Protection
WORK LIGHT BULB REPLACEMENT To remove work light bulb, gently push the bulb into the socket and turn counterclockwise. To install the new bulb, gently push the bulb into the socket and turn clockwise. NOTE: To help prolong the life of the grinding wheel you may want to purchase a WHEEL DRESSER at your local hardware store. -
Page 17: Limited Warranty
LIMITED WARRANTY Thank you for purchasing a top quality KingCraft product. This KingCraft 8” Bench Grinder item #6318-06 was tested and meets our stringent quality standards. This product is warranted to be free from manufacturing defects in original materials, including original parts, and workmanship until October 8, 2008 or 2 years with proof of purchase. -
Page 18: Warranty Card
WARRANTY CARD Kingcraft 8” Bench Grinder, item # 6318-06, model # TBG818 In case you find this product to be defective please send it within the warranty period to our service center. To avoid transport damages please send the product in the original packaging.
