PRODUCT REFERENCE GUIDE
Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in
this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand
all the warnings and safety guidelines before use.
Important: READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF PRODUCT.
KEEP INSTRUCTIONS FOR FUTURE USE.
FURTHER INFORMATION
In Australia/New Zealand
www.valco.com.au
In North America only
www.valcobaby.com
info@valcobaby.com
1800 610 7850
Due to our policy of continuous product
development, this product is constantly
evolving. It is possible that some features or
procedures outlined here have changed since
this document was written. If you are unsure
of any procedure shown here, please contact
us via the web at info@valco.com.au to obtain
the most up to date information before use.
Include the batch number, which can be found
on a sticker on the frame.
All pictures and diagrams herein are provided
for illustration purposes only.
Actual product, colour or fabric may vary.
VALCO BABY reserves the right to modify or
alter any specification or colour without notice
or obligation to modify any product previously
purchased

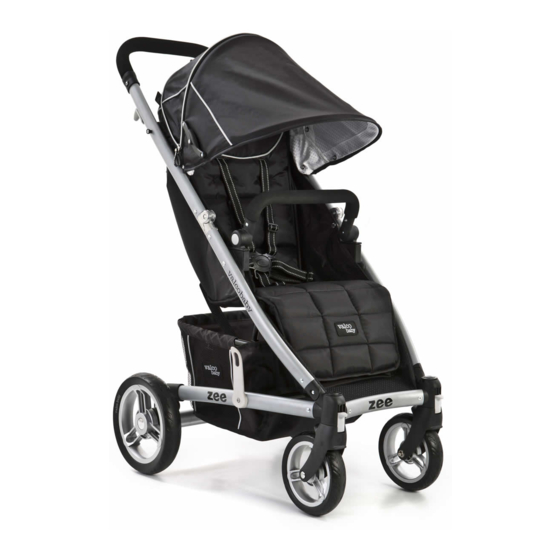

Stroller
© Copyright VE 2011
vs051211
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Valco baby ZEE
Summary of Contents for Valco baby ZEE
- Page 1 Stroller PRODUCT REFERENCE GUIDE Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand all the warnings and safety guidelines before use.
- Page 2 ASSEmbly FIGURE A - CONTENTS 1. Remove the stroller from the carton and dispose of all packaging thoughtfully. Check SEAT contents. FIGURE B - OPENING BASKET 2. Release frame lock on side of stroller frame. HOOD BRAKE 3. Lift the stroller handle upward over 180° until it locks into a straight line.
- Page 3 FIGURE D - ATTACHING THE BASKET 7. Align the basket frame with the open tubes at the rear of the seat. Simultaneously pressing in the locking buttons, slide the basket frame into the housing until the buttons lock into place. IMPORTANT: When basket is locked into place - the locking buttons (pins) will pop through the holes.
- Page 4 FIGURE H - BUMPER BAR 19. Insert the front bar ends into the nylon housings located on either side of the frame. Be sure that the bar is securely engaged. click 20. Adjust the front bar by simultaneously pressing the button on the bar housing and swivelling the bar to the uppermost position.
- Page 5 FIGURE M - FOLDING YOUR STROLLER 31. To ensure maximum compactness, prior to folding your stroller: - fold the hood closed back against the handle - incline the seat upright and gently push inward forward of the seat frame - lower the bumper bar - remove all contents from the basket Locate the frame release on either side of the handle.
- Page 6 FIGURE P- TETHER STRAP 36. Your stroller has been equipped with a safety tether strap. This strap has been designed to always keep your stroller within constant reach. IMPORTANT: ALWAYS SLIP THE LOOP IN THE STRAP SECURELY OVER YOUR WRIST WHENEVER A CHILD IS IN YOUR STROLLER.
- Page 7 The Bassinet clicks right into your Zee Stroller and provides a classic fully enclosed and comfy environment for your infant. CAR SEAT ADAPTORS: Click your car seat right into your Zee Stroller. bASSINET Contact info@valcobaby.com for specific models. SNACk TRAy: Clicks into your stroller with ample ‘table top’...
- Page 8 MAy Be in the iMMeDiAte ViCinity oF your stroller. • it MAy Be unsAFe to use Any ACCessories other thAn VAlCo BABy ApproVeD ones. • this proDuCt is intenDeD For DoMestiC use only. it is not intenDeD For CoMMerCiAl use.
