TOUCH-ACTIVATED ELECTRONIC CONTROLS

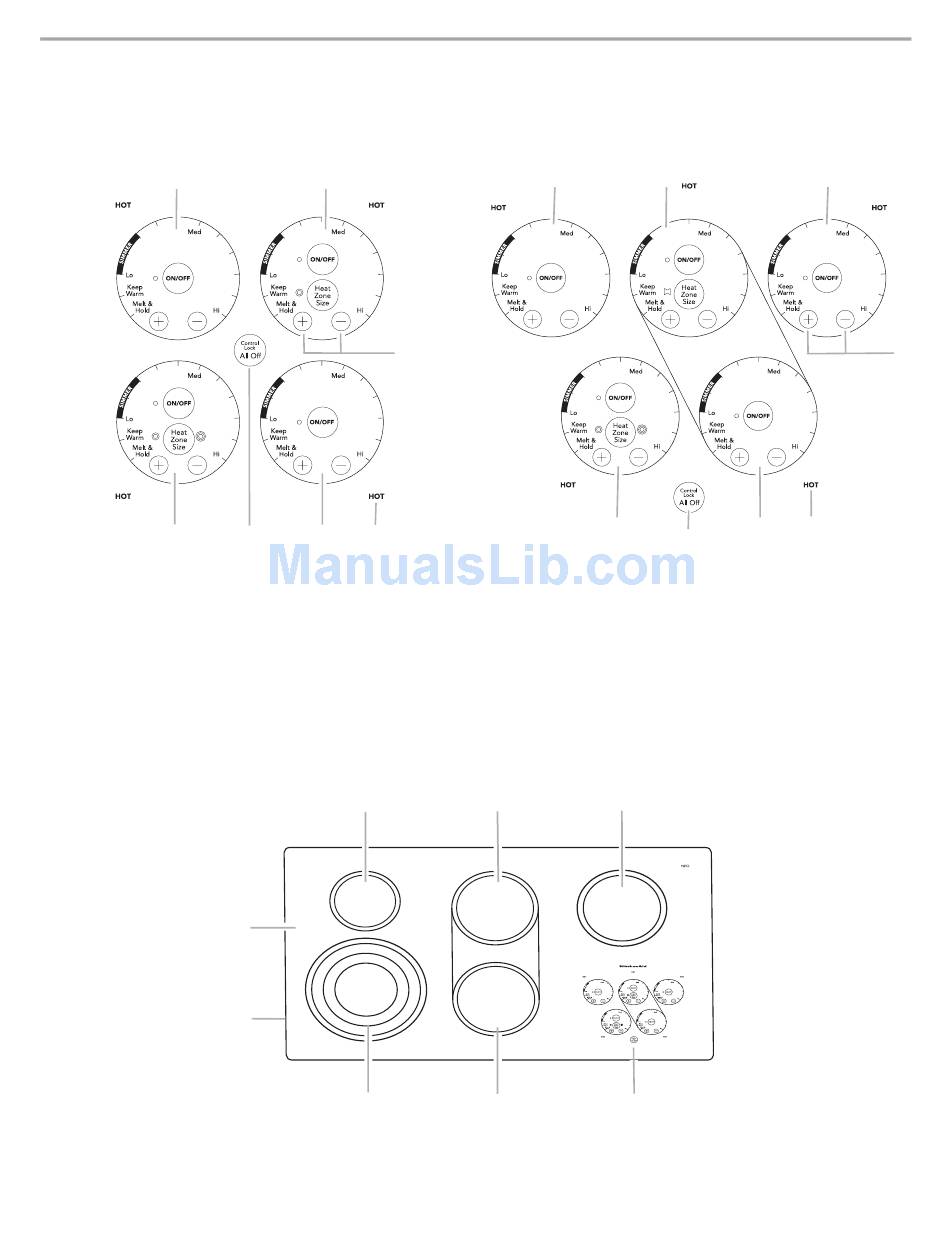

Control Panels
30" (76.2 cm) Touch-Activated Electronic Controls
A
G
A. Left rear control (simmer; keep
warm function; melt and hold
function)
B. Right rear control (simmer; keep
warm function; melt and hold
function; dual circuit element)
C. Increase/decrease temperature
control
Cooktops
36" (91.4 cm) Touch-Activated Electronic Control model shown
A. Ceramic glass cooktop (stainless steel or
painted metal trim on some models)
B. Left rear surface cooking area
C. Center rear surface cooking area (with
dual-circuit element "bridge")
PARTS AND FEATURES -
B
C
E
F
D
D. Hot surface indicator light
E. Right front control
(simmer; keep warm function;
melt and hold function)
F. Control Lock/All Off
G. Left front control (simmer;
keep warm function; melt and
hold function;
triple-circuit element)
B
A
H
G
D. Right rear surface cooking area
E. Control panel
F. Right front surface cooking area
36" (91.4 cm) Touch-Activated Electronic Controls
A
B
H
A. Left rear control (simmer; keep
warm function; melt and hold
function)
B. Center rear control (simmer; keep
warm function; melt and hold
function; dual circuit element
"bridge")
C. Right rear control (simmer; keep
warm function; melt and hold
function)
C
D
F
E
G. Left front surface cooking area
(with triple-circuit element)
H. Model and serial number plate (located
underneath cooktop on metal cabinet)
C
F
E
G
D. Increase/decrease
temperature control
E. Hot surface indicator lights
F. Right front control
(simmer; keep warm function;
melt and hold function)
G. Control Lock/All Off
H. Left front control (simmer;
keep warm function; melt and
hold function;
triple-circuit element)
D
5
