RF-Master-Set
Fitting and Operating Instructions
Translated fitting and
operating instructions
version 1.54t, 04/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-Master-Set and is the answer not in the manual?

Questions and answers

Related Manuals for CEStronics RF-Master-Set

Summary of Contents for CEStronics RF-Master-Set

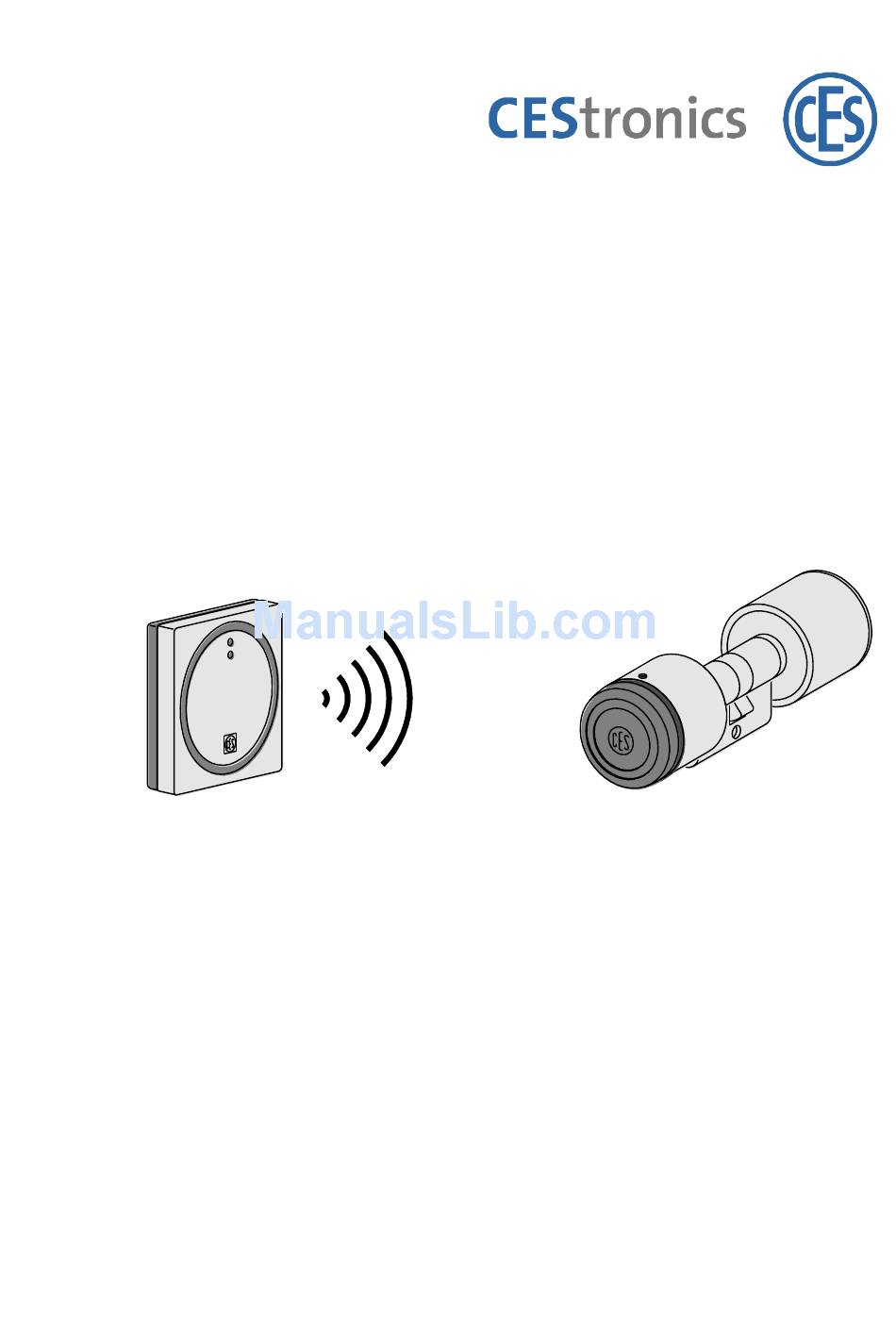

  • Page 1 RF-Master-Set Fitting and Operating Instructions Translated fitting and operating instructions version 1.54t, 04/2013...

  • Page 2: Preface

     fits,  programs,  operates, or  disposes of this RF-Master-Set must have read and understood the entire contents of these Fitting and Operating Instructions. These Fitting and Operating Instructions should be kept near the RF-Master-Set at all times.

  • Page 3: Table Of Contents

    Removing the reader ........... 25 Releasing the outside knob from the cylinder body ..29 Fitting the cylinder body ..........30 Fastening the outside knob to the cylinder body ....34 Installing the reader module in the outside knob ..... 36 RF-Master-Set...
  • Page 4 Maintenance ..............64 Spare Parts ..............64 Trouble-shooting ............65 Disposal ............... 66 Technical data ............. 67 Locking cylinder ............67 RF-Switchpoint ............69 Glossary ..............71 Overview of the signals ..........72 Notes on the manufacturer's warranty ......75 RF-Master-Set...

  • Page 5: For Your Safety

    Otherwise people may not be able to open the door in emergencies and may be injured or killed.  Only use the RF-Master-Set for door locks for which knob systems are permitted. In case of doubt, please contact the...
  • Page 6  Do not use any lubricants or oils for the RF-Master-Set.  Do not drop the RF-Master-Set on the floor, on hard surfaces or on hard objects.
  • Page 7  Only use the RF-Master-Set in rooms in which the humidity does not exceed 95 %.  Do not use the RF-Master-Set in rooms with a high level of dust formation.  Do not use the RF-Master-Set near sources of heat.

  • Page 8: Notes On The Handling Of Batteries

     Always remove leaked batteries immediately from the device. Clean the terminals before inserting new batteries. There is a danger of acid burns through battery acid!  Remove flat batteries directly from the device.  Be sure to send back the batteries to orderly disposal. RF-Master-Set...

  • Page 9: Explanation Of The Safety Notes

    DANGER notes warn against hazards that may directly result in severe or fatal injuries. CAUTION CAUTION notes warn against hazards that may result in slight or medium injuries. Attention NOTICE Attention notes warn against possible property or environmental damage. RF-Master-Set...

  • Page 10: Intended Use

    For your safety Intended use The RF-Master-Set serves to lock and unlock doors with locks for which knob systems are permitted. It is exclusively intended and may only be used for that purpose. The knob of the locking cylinder must not be used for opening the door.

  • Page 11: Ce Declaration Of Conformity

    For your safety CE Declaration of Conformity RF-Master-Set...

  • Page 12: Remarks

    This fitting and operating instructions are only valid for:  CEStronics RF-Master-Set Manufacturer The manufacturer from the RF-Master-Set is: CEStronics GmbH Friedrichstr. 243 42551 Velbert Tel: +49 (0) 2051-204-0 Fax: +49 (0) 2051-204-105 www.ces.eu Service For support in case of service please contact your CEStronics partner. RF-Master-Set...

  • Page 13: Introduction

    Mifare transponder as an (emergency) key. This means that the locking cylinder can serve as an easily installed replacement of electrical door openers or other actors without requiring any wiring on the door. RF-Master-Set...
  • Page 14 The cylinder can be controlled via the RF Switchpoint from any mobile or stationary device (such as GSM modems). Up to four locking cylinders can be connected / registered with one Switchpoint. Features of the RF-Master-Set: Locking cylinder  One freely rotating knob with reader  Mifare-Classic transponder technology ...

  • Page 15: Optional Master Media

    The SYSTEM-MASTER is also used to authorize the following additional Master media for your locking cylinders and wall terminals: PROGRAM-MASTER The PROGRAM-MASTER is used to authorize and delete the authorization of your locking media. RF-Master-Set...
  • Page 16 During the opening time, your locking device allows free access.  For the RF-Master-Set, this is the period during which the knob is coupled with the follower time. When the locking cylinder or access terminal detects the TIME- MASTER, it starts beeping at one-second intervals.
  • Page 17 If the red and the green LEDs flash alternately or simultaneously, the RF link is weak and should be checked to ensure full functionality and reliability. During the verification, the Access Point emits the same signals as the locking device.  RF-Master-Set...

  • Page 18: System Components

    Introduction System components You can purchase various locking media from a CEStronics partner to match your specific  requirements. Locking media: You can operate the locking cylinder with the following locking media:  transponder key  key fob  key fob slimLine ...

  • Page 19: Scope Of Delivery

    RF-Master-Sets and/or access terminals in one and the same locking system. In this case, you can use transponder keys for both mechanical and electronic locking cylinders from CEStronics. Scope of delivery Before fitting and commissioning, please check the contents ...
  • Page 20 Flexprint cable for the connection between the inside and the outside electronics Cylinder body Follower Electronics module with battery compartment Inside knob Battery: Type „Power one™“, „Varta PowerOne“, „Panasonic Industrial Lithium“, CR-2 Lithium, 3.0 V, 850 mAh Special fixing screw RF-Master RF-Switchpoint RF-Master-Set...
  • Page 21 14 m flat wrench Belt grip The combination tool, the flat key and the TORX bit are supplied with the RF Master Set. The tools are also  available independent of the RF Master Set and can be ordered separately. RF-Master-Set...

  • Page 22: Fitting The Locking Cylinder In A Door Lock

    Fitting the locking cylinder in a door lock Fitting the locking cylinder in a door lock NOTICE The RF-Master-Set may be damaged if not fitted properly. Only skilled personnel may fit the RF-Master-  Set. This personnel must have been trained on the product by CEStronics or a CEStronics partner.

  • Page 23: Unpacking The Locking Cylinder

    Only fit the RF-Master-Set in door locks for  which knob systems are allowed. Unpacking the locking cylinder Take the RF-Master-Set from the package and remove all  packaging material such as films, padding and packaging board. RF-Master-Set...

  • Page 24: Note On Fitting The Cylinder

    Protection against touching with tools, wires, etc., protection against internal dust accumulation, protection against splashing water from any direction As an option, your locking cylinders are also available with a weatherproof outside knob.  Please contact your professional partner. RF-Master-Set...

  • Page 25: Removing The Reader

    The locking cylinder contains sensitive electronic components that may be damaged or destroyed through static charges. Do not disassemble the RF-Master-Set in rooms  with a high built-up static charge. The reader module is fitted in the outside knob and fastened to the outside knob with two screws.
  • Page 26 NOTICE The connection cable attached to the reader module may come off when the reader module is pulled out. Be sure to exercise caution when pulling the  module out of the outside knob. RF-Master-Set...
  • Page 27 Pull the reader module out of the outside knob until you feel  the stop. Now push the reader module back into the outside knob by  about 5 mm (1) and rotate the reader module in the direction of the arrow (2). Take out the reader module carefully.  RF-Master-Set...
  • Page 28 (1) to release it from the socket of the reader module. Now pull the plug of the connection cable out of the socket  of the reader module (2). Note the fitting position of the connection cable.  RF-Master-Set...

  • Page 29: Releasing The Outside Knob From The Cylinder Body

    Release the two screws in the interior of the outside knob  with the combination tool (hexagon socket screwdriver). NOTICE The connection cable attached to the reader module may be damaged when the outside knob is pulled off. Always pull off the outside knob slowly and  carefully. RF-Master-Set...

  • Page 30: Fitting The Cylinder Body

    Remove the lids of the fitting aid on both sides.  Insert the fitting aid (1) into the profile cylinder hole (2)  until it projects on both the inside and the outside of the door lock. RF-Master-Set...
  • Page 31 Again check the position of the door fitting and the door lock  using the fitting aid. Insert the connection cable (1) from the inside into the open  end of the fitting aid (2). RF-Master-Set...
  • Page 32 Verify the proper functioning of the door lock.  If the door lock does not operate properly, please contact  the lock manufacturer. Repeat the steps described above to fit the cylinder body.  RF-Master-Set...
  • Page 33 Do not use a cordless screwdriver or drilling  machine for fitting the RF-Master-Set. Only use the tool specified for this purpose.  Insert the fixing screw into the door lock and initially screw ...

  • Page 34: Fastening The Outside Knob To The Cylinder Body

    Once the cylinder body has been fitted in the door lock, the outside knob must again be attached to the cylinder body. Proceed as follows: Thread the connection cable (1) through the opening (2) at  the bottom of the outside knob. RF-Master-Set...
  • Page 35 Fitting the locking cylinder in a door lock Push the outside knob onto the shaft at the cylinder body.  Hand-tighten the two screws in the interior of the outside  knob with the combination tool (hexagon socket screwdriver). RF-Master-Set...

  • Page 36: Installing The Reader Module In The Outside Knob

    Proceed as follows: Push the plug of the Flexprint connection cable into the  socket at the reader module, as shown in the figure. Observe the correct fitting position of the connection cable.  RF-Master-Set...
  • Page 37 The connection cable may be damaged when the reader module is inserted into the outside knob. Always push the reader module into the outside  knob slowly and carefully. Make sure that the connection cable is neither  kinked nor squeezed. RF-Master-Set...
  • Page 38 Push the reader module into the outside knob until you feel  the stop (1). Rotate the reader module while exerting a slight pressure in  the direction of the arrow (2). RF-Master-Set...
  • Page 39 Rotate the inside knob so as to verify the easy movement of  the follower. If the follower moves easily, hand-tighten the fixing screw.  Please refer to the following chapter "Operating the door lock" on how to commission the RF-Master-Set. RF-Master-Set...

  • Page 40: Operating The Door Lock

    Damaging the double knob cylinder by false door operation possible. Use only the door handle for opening and closing  the door, like shown in the illustration. Don’t open Don’t   the door open the with the door with key. the knob. RF-Master-Set...
  • Page 41 To operate the door lock from the outside, you need a locking medium that is authorized for this RF-Master-Set. Please refer to the enclosed Programming Instructions on how to authorize locking media.
  • Page 42 In this case, the outside knob is not coupled with the follower. The outside knob rotates freely but the door lock cannot be operated. RF-Master-Set...
  • Page 43 You use DESFire EV-1 locking media in two different modes: DESFire EV-1 in security mode (optional) Locking devices and locking media operating in the security mode (1) are manufactured exclusively by CEStronics and programmed with individual keys and special firmware. The data transmission between the locking device and the locking medium is encrypted.
  • Page 44 Locking media operating in the standard mode behave like any other ISO 14443 transponders. For authorization, the UID of the locking medium is used. If you manage your systems with the CEStronics software, you can use both DESFire EV-1 variants with the CEStronics software.

  • Page 45: Transport Notes

    (please refer to page 46). Only transport locking  cylinders with the reader fitted. If this is not possible,  remove the battery of the locking cylinder (please refer to page 46). RF-Master-Set...

  • Page 46: Replacing The Battery Of The Locking Cylinder

    If the battery is completely empty, the door must be opened with an Emergency Power Supply (see  page 60, Chapter "Emergency Opening"). When the battery is replaced, the programming data remain stored in the memory of the locking  cylinder. RF-Master-Set...
  • Page 47 Proceed as follows: Apply the flat key behind the inside knob as shown in the  figure. Use the belt grip to release the cover.  Release the cover of the inside knob by counter-clockwise  rotation. RF-Master-Set...
  • Page 48 The battery, the housing of the electronics module, and/or the electronics may be damaged if you try to pry out the battery with an object. Only use your hand to remove the battery.  Do not use any objects for this purpose.  RF-Master-Set...
  • Page 49 Put your finger lightly on the contact plate (1) to prevent the  battery from being pushed out. Carefully release the catch (2) in the direction of the arrow  until the contact plate is loose. Remove the contact plate.  RF-Master-Set...
  • Page 50 Replacing the battery of the locking cylinder Take the battery out of the battery compartment.  Insert the new battery with the correct polarity into the  battery compartment. RF-Master-Set...
  • Page 51 If a battery has been inserted incorrectly,  have the locking cylinder checked by a CEStronics partner. Only use batteries of the CR2 type with 3 V.  Reinstall the contact plate on the battery compartment.
  • Page 52 Manually screw on the cover (clockwise rotation).  Tighten the cover with the flat key.  Apply the flat key behind the inside knob as shown in the  figure. Fit the cover again.  RF-Master-Set...

  • Page 53: Using The Rf Switchpoint

    (2) is enabled for approx. three seconds (Standard setting: the time can be changed in the lock cylinder). Enable status is signalled by the green LED at the Switchpoint. At the locking cylinder, the enable status is signalled, the green LEDs go on as well. RF-Master-Set...
  • Page 54 "Technical Data" chapter on page 69 ff. Wait for the start-up phase of the RF Switchpoint to be  completed (about ten seconds). The RF Switchpoint is operative once the red LED has gone out for a short time (about 1 second). RF-Master-Set...
  • Page 55 RB (1). In response, the RF Switchpoint signal changes from red to green. The RF Switchpoint is now in its learning mode. The green LED will flash regularly for up to three minutes. RF-Master-Set...
  • Page 56 This is acknowledged by four short consecutive flashes of the green LED of the RF Switchpoint. If no cylinder is enabled, the red LED emits four short consecutive flashes and the previous grouping will be reset. If the enabling process fails, repeat it.  This completes the grouping. RF-Master-Set...

  • Page 57: Using The Remote Authorization

    If the contacts remain closed, the authorisation mode is extended at a 10 second interval. By closing the contacts all locking devices belonging to this group (lock cylinders, fittings) are opened,  also see page 54. RF-Master-Set...
  • Page 58 Release the knob immediately after the door has been  opened. You do not have to turn the knob back into its original position. If the authorization has been set correctly, the locking cylinder should now signal free entry with its green LEDs. Open the door.  RF-Master-Set...

  • Page 59: Lost Master Or Locking Medium

    If a Master medium has been lost, have the  locking cylinder and/or the access terminal only initialized by persons trained on the product by CEStronics or a CEStronics partner. During an initialization, all authorizations for this locking cylinder are deleted. ...

  • Page 60: Emergency Opening

    The Emergency Power Supply is not part of the scope of delivery of the locking cylinder. To order  it, please contact your CEStronics partner. NOTICE When the module is pulled out of the outside knob, the connection cable attached to the reader may be damaged.
  • Page 61 Emergency opening Release the two opposite screws on the outside knob with  the combination tool (three-square screwdriver). These screws cannot be completely screwed out but will always be held in the outside knob. RF-Master-Set...
  • Page 62 Observe the notes and instructions in the Operating  Instructions of the Emergency Power Supply. Use your authorized locking medium to open the door.  After you have opened the door, disconnect the connection  between the reader module and the Emergency Power Supply. RF-Master-Set...
  • Page 63 To fasten the reader module, hand-tighten the two opposite  screws with the combination tool (three-square screwdriver). Replace the battery of the locking cylinder after each  emergency opening (see page 46, chapter "Replacing the battery of the locking cylinder"). RF-Master-Set...

  • Page 64: Care

     avoid damage to your locking devices. Maintenance Have the RF-Master-Set serviced and its perfect functioning  verified every six months by CEStronics or by a CEStronics partner only. Replace the batteries in line with a defined maintenance  schedule.

  • Page 65: Trouble-Shooting

    The locking medium is not within the range of the reader in the outside knob of the locking cylinder. Hold the locking medium nearer to the outside knob. If the door lock still cannot be opened, please contact your CEStronics partner. RF-Master-Set...

  • Page 66: Disposal

    Ask your local authorities about recycling and/or the proper disposal of the device in line with environmental regulations. Used batteries should be delivered at a collection centre. NOTICE Incorrect disposal from empty batteries possible. Be sure to send back the batteries to  orderly disposal. RF-Master-Set...

  • Page 67: Technical Data

    Technical data Technical data Locking cylinder Outside knob (locking side) 2 Inside knob (knob side) RF-Master-Set...
  • Page 68 Service life of the battery One year at 80 locking cycles per day (30,000 locking cycles) Data transfer Encrypted, 128 Bit/AES Reading area approx. 20 mm CE-Certification EN 300 220-1; EN 300 330-1; EN 301 489-1; EN 60950-1 RF-Master-Set...

  • Page 69: Rf-Switchpoint

    Technical data RF-Switchpoint Not used yet, for future model-specific options Interface for emergency power supply Connection for enabling input, 1 × NOC (normally open contact) Connection for power supply 8–28 V AC/DC, 100 mA RF-Master-Set...
  • Page 70 8–28 V AC/DC, 100 mA Enabling input 1 × NOC (normally open contact) Permissible temperature 0 °C up to +50 °C Prohibited atmospheres Not suitable for use in corrosive atmosphere (chlorine, ammonia, lime water) CE-Certification EN 300 220-1; EN 301 489-1; EN 60950-1 RF-Master-Set...

  • Page 71: Glossary

    SYSTEM-MASTER A master medium that enables you to authorize PROGRAM-MASTERS for the system. Each system has one and only one SYSTEM-MASTER. Transponder A transponder is a wireless communication and control device that receives signals and automatically responds to them. RF-Master-Set...

  • Page 72: Overview Of The Signals

    LED green On as long as medium is within range Unauthorized Beeper 2  short programming attempt LED red 2  short Error message in case of Beeper 1  long incorrect programming LED red 1  long RF-Master-Set...
  • Page 73 RF mode Data transmission LED green 1  very short (Programming) TRACE signal good LED green 2  very short TRACE signal still LED green 1  very short usable TRACE signal bad LED red 1  short RF-Master-Set...
  • Page 74 Overview of the signals Programming with RF-Master-Set Meaning Signal type Signal Enabling learning mode Beeper 1  short, after leaving reading range On as long as medium LED green is within range Disabling learning mode Beeper 1  long, after laving...

  • Page 75: Notes On The Manufacturer's Warranty

    The information and data contained in this document are subject to change without notice. Without the express written permission by CEStronics, no part of this document may be copied or transmitted for any purpose. © 2011 CEStronics GmbH, Velbert/Germany...
