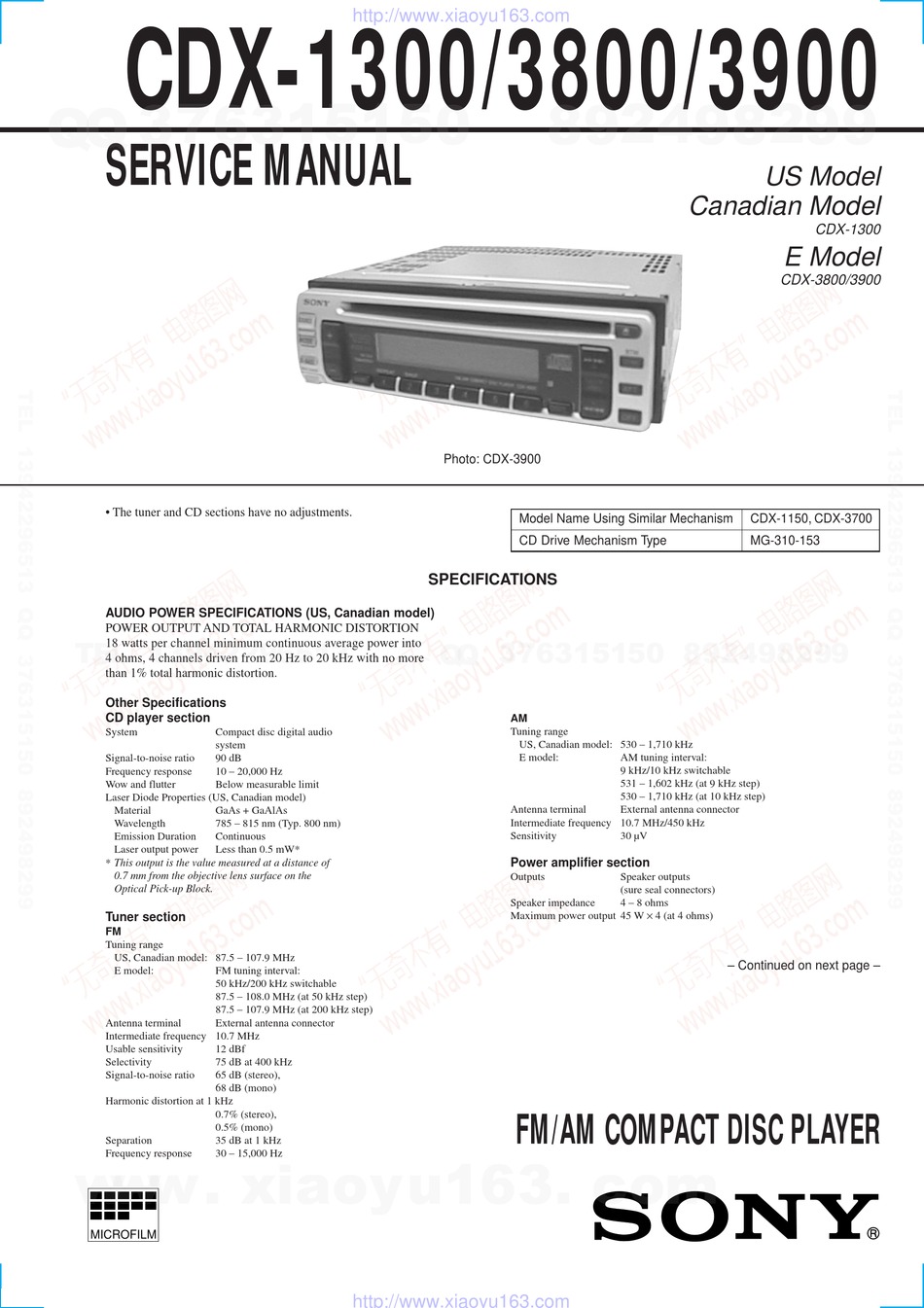

CDX-1300/3800/3900
QQ
3 7 63 1515 0
SERVICE MANUAL
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US, Canadian model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
TE
L 13942296513
18 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 1% total harmonic distortion.
Other Specifications
CD player section
System
Compact disc digital audio
system
Signal-to-noise ratio
90 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Laser Diode Properties (US, Canadian model)
Material
GaAs + GaAlAs
Wavelength
785 – 815 nm (Typ. 800 nm)
Emission Duration
Continuous
Laser output power
Less than 0.5 mW*
* This output is the value measured at a distance of
0.7 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner section
FM
Tuning range
US, Canadian model: 87.5 – 107.9 MHz
E model:
FM tuning interval:
50 kHz/200 kHz switchable
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity
12 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
www
0.7% (stereo),
0.5% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
.
MICROFILM
http://www.xiaoyu163.com
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Photo: CDX-3900
Model Name Using Similar Mechanism
CD Drive Mechanism Type
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
AM
Tuning range
US, Canadian model: 530 – 1,710 kHz
E model:
Antenna terminal
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
Power amplifier section
Outputs
Speaker impedance
Maximum power output 45 W × 4 (at 4 ohms)
FM/AM COMPACT DISC PLAYER
co
.
9 4
2 8
US Model
Canadian Model
E Model
CDX-3800/3900
CDX-1150, CDX-3700
MG-310-153
0 5
8
2 9
9 4
2 8
AM tuning interval:
9 kHz/10 kHz switchable
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
External antenna connector
30 µV
Speaker outputs
(sure seal connectors)
4 – 8 ohms
– Continued on next page –
m
9 9
CDX-1300
9 9
1

Advertisement

   Related Manuals for Sony CDX-1300

   Summary of Contents for Sony CDX-1300

  • Page 1

    CDX-1300/3800/3900 3 7 63 1515 0 SERVICE MANUAL US Model Canadian Model CDX-1300 E Model CDX-3800/3900 Photo: CDX-3900 • The tuner and CD sections have no adjustments. Model Name Using Similar Mechanism CDX-1150, CDX-3700 CD Drive Mechanism Type MG-310-153...

  • Page 2: Table Of Contents

    DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

  • Page 3: General

    http://www.xiaoyu163.com SECTION 1 GENERAL 3 7 63 1515 0 This section is extracted from CDX-3800/3900’s instruction manual. L 13942296513 u163 http://www.xiaoyu163.com...

  • Page 4: Radio

    http://www.xiaoyu163.com 3 7 63 1515 0 L 13942296513 u163 http://www.xiaoyu163.com...

  • Page 5: Connections

    http://www.xiaoyu163.com 3 7 63 1515 0 L 13942296513 u163 http://www.xiaoyu163.com...

  • Page 6

    http://www.xiaoyu163.com 3 7 63 1515 0 L 13942296513 u163 http://www.xiaoyu163.com...

  • Page 7: Disassembly

    http://www.xiaoyu163.com SECTION 2 DISASSEMBLY 3 7 63 1515 0 Note : Follow the disassembly procedure in the numerical order given. 2-1. KEY BOARD 1 P 2x10 5 claws 3 claws 2 P 2x10 4 claws 6 claws 7 back panel qs button (source) 8 KEY board qd button (+.

  • Page 8: Cd Mechanism Block

    http://www.xiaoyu163.com 3 7 63 1515 0 2-3. CD MECHANISM BLOCK 7 CD mechanism block 1 PTT 2.6x8 3 claw 2 claw 5 CNJ102 6 CN600 L 13942296513 4 CNJ103 2-4. HEAT SINK 4 heat sink 3 PTT 2.6x10 u163 2 PTT 2.6x10 1 PTT 2.6x10 http://www.xiaoyu163.com...

  • Page 9: Chassis (r) Block Assy

    http://www.xiaoyu163.com 3 7 63 1515 0 2-5. CHASSIS (R) BLOCK ASSY 3 tension spring (FL) 4 tension spring (FL) 2 chassis (R) block assy 1 screws (P 2x2.5) L 13942296513 2-6. FLOATING BLOCK ASSY 4 tension spring (SPM) 0 floating block assy 5 tension spring (angle) 3 lever (LE.L) u163...

  • Page 10: Roller Arm Assy

    http://www.xiaoyu163.com 3 7 63 1515 0 2-7. ROLLER ARM ASSY Note : When replacing the spring roller, replace the rollers at the right and left ends at the same time. 1 spring (roller) 7 roller arm assy 2 spring (roller) L 13942296513 2-8.

  • Page 11: Diagrams

    Latch input for error correction result read-in. (interruption) ILLON Illumination power control output VSS0 — Ground UNICKI SONY-BUS serial interface clock input VDD1 — Power supply pin (+5 V) UNISI SONY-BUS serial interface data input — Main system clock output (5 MHz)

  • Page 12: Block Diagram -main Section

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-2. BLOCK DIAGRAM — MAIN SECTION — DIGITAL SIGNAL/ ELECTRIC VOLUME RF AMP SERVO PROCESSOR OPTICAL IC400 IC102 IC101 PICK-UP CNP400 R-CH AUDIO OUT L OUT REAR VOL/ FADER...

  • Page 13: Block Diagram -display Section

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-3. BLOCK DIAGRAM — DISPLAY SECTION — THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

  • Page 14: Printed Wiring Boards -main Section

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-4. PRINTED WIRING BOARDS — MAIN SECTION — • Semiconductor Location Ref. No. Location (D501) D502 F-11 D503 B-13 D504 B-12 D505 B-11 D506 D-13 D507 D-13 D508 E-11...

  • Page 15

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 (LIMIT) 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 (Page 20) http://www.xiaoyu163.com...

  • Page 16: Schematic Diagram -main Section (1/3)

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-5. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • Refer to page 21 for IC Block Diagrams. 1 3 9 4 2 2 9 6 5 1 3 • Waveforms (MODE:PLAY) 1.3Vp-p...

  • Page 17: Schematic Diagram -main Section (2/3)

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-6. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • Refer to page 22 for IC Block Diagrams. 1 3 9 4 2 2 9 6 5 1 3 0.5% 2.2k...

  • Page 18: Schematic Diagram -main Section (3/3)

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-7. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 22 for IC Block Diagrams. (Page 17) 1 3 9 4 2 2 9 6 5 1 3...

  • Page 19: Schematic Diagram -display Section

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-8. SCHEMATIC DIAGRAM — DISPLAY SECTION — (Page 18) 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 Note: • Voltage is dc with respect to ground under no-signal (detuned) condition.

  • Page 20: Q Q 3-9. Printed Wiring Board -display Section

    CDX-1300/3800/3900 3 7 6 3 1 5 1 5 0 3-9. PRINTED WIRING BOARD — DISPLAY SECTION — (Page 15) 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 http://www.xiaoyu163.com...

  • Page 21

    http://www.xiaoyu163.com 3 7 63 1515 0 • IC Block Diagrams IC102 AN8835SB-E1 F CH VCBA E CH F BAL T BAL A CH VCBA B CH CCRS TE BPF RF DET RF EQ BDO DET CAGC V DET CSBRT OFFR DET OFFR 3 TENV CROSS...

  • Page 22

    http://www.xiaoyu163.com 3 7 63 1515 0 IC400 LC75374E LFIN – LFOUT – – – – LSELO LROUT – – VREF CONTROL – SHIFT – DECODER LATCH REGISTER RROUT RSELO – – – – RFOUT – RFIN 6 7 8 9 10 L 13942296513 IC700 TB2118F (EL) 24 XI...

  • Page 23: Exploded Views

    http://www.xiaoyu163.com SECTION 4 EXPLODED VIEWS 3 7 63 1515 0 NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by number in the exploded views are not supplied. mark 0 or dotted line with mark Example : •...

  • Page 24: Front Panel Section

    http://www.xiaoyu163.com 3 7 63 1515 0 4-2. FRONT PANEL SECTION not supplied (KEY board) LCD800 L 13942296513 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-035-311-02 PANEL, BACK 3-034-451-04 BUTTON (AMS) * 52 3-034-440-02 PLATE (LCD), GROUND 3-034-445-11 BUTTON (EJECT) * 53 3-034-454-01 SHEET (LCD)

  • Page 25: Cd Mechanism Section (1)

    http://www.xiaoyu163.com 3 7 63 1515 0 4-3. CD MECHANISM SECTION (1) (MG-310-153) not supplied L 13942296513 M103 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-3378-793-1 ARM ASSY, ROLLER 3-032-352-01 SPRING (ANGLE), TENSION * 102 3-032-327-02 LEVER (LE.L) X-3378-335-3 CHASSIS (M) COMPLETE ASSY 3-037-492-01 DAMPER (P) * 112...

  • Page 26: Cd Mechanism Section (2)

    http://www.xiaoyu163.com 3 7 63 1515 0 4-4. CD MECHANISM SECTION (2) (MG-310-153) M101 not supplied L 13942296513 M102 not supplied not supplied The components identified by Les composants identifiés par une mark 0 or dotted line with mark marque 0 sont critiques pour 0 are critical for safety.

  • Page 27: Electrical Parts List

    http://www.xiaoyu163.com SECTION 5 ELECTRICAL PARTS LIST 3 7 63 1515 0 NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service.

  • Page 28

    http://www.xiaoyu163.com MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3294-815-A MAIN BOARD, COMPLETE (3900) C403 1-109-982-11 CERAMIC CHIP A-3294-817-A MAIN BOARD, COMPLETE (1300) C404 1-109-982-11 CERAMIC CHIP A-3294-819-A MAIN BOARD, COMPLETE (3800) C405 1-124-779-00 ELECT CHIP 10uF...

  • Page 29

    http://www.xiaoyu163.com MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C524 1-117-681-11 ELECT CHIP 100uF CNJ103 1-770-637-11 CONNECTOR, FFC/FPC 6P C532 1-107-826-11 CERAMIC CHIP 0.1uF CNP500 1-774-701-11 PIN, CONNECTOR 16P C533 1-124-779-00 ELECT CHIP 10uF C534...

  • Page 30

    http://www.xiaoyu163.com MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IC601 8-759-443-41 IC RH5VL40AA-T1C R106 1-216-864-11 METAL CHIP 1/16W IC700 8-759-586-59 IC TB2118F(EL) R107 1-216-833-11 RES-CHIP 1/16W R108 1-216-845-11 METAL CHIP 100K 1/16W <...

  • Page 31

    http://www.xiaoyu163.com MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R451 1-220-158-11 RES-CHIP 3.6K 1/16W R613 1-216-821-11 METAL CHIP 1/16W R456 1-216-837-11 METAL CHIP 1/16W R617 1-216-833-11 RES-CHIP 1/16W R470 1-216-837-11 METAL CHIP 1/16W R618 1-216-833-11 RES-CHIP...

  • Page 32

    CDX-1300/3800/3900 MAIN MOTOR 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < VIBRATOR > ************** HARDWARE LIST X100 1-767-621-11 VIBRATOR, CERAMIC (16.93MHz) ************** X600 1-781-383-21 VIBRATOR, CERAMIC (5MHz) X601 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) 7-685-793-09 SCREW +PTT 2.6X8 (S)
