Hardware Inventory

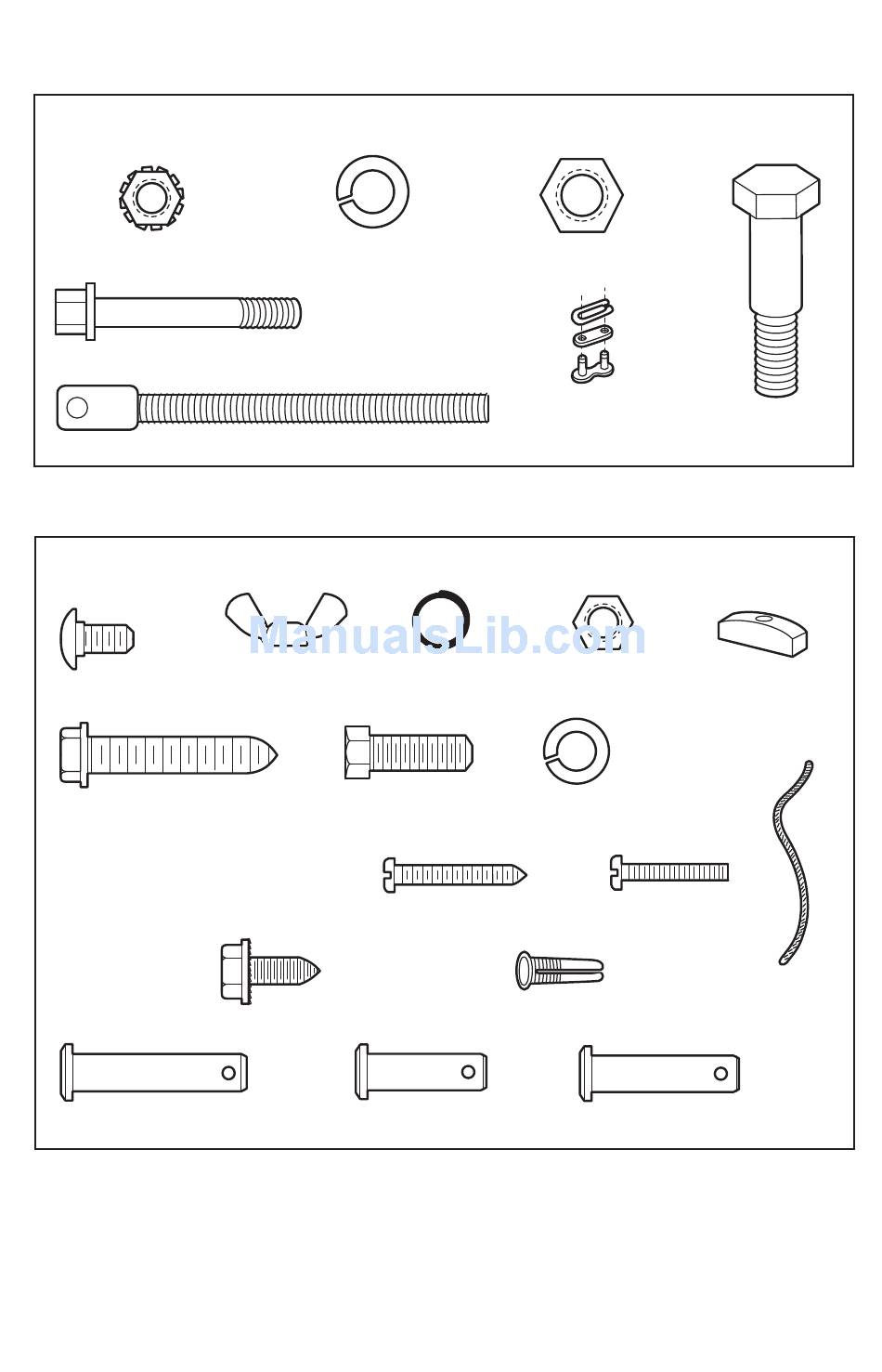

Separate all hardware and group as shown below for the assembly and installation procedures.
Lock Nut
1/4"-20
Bolt 1/4"-20x1-3/4"
Carriage Bolt
1/4"-20x1/2" (2)
Lag Screw
5/16"-9x1-5/8" (4)
Clevis Pin
5/16"x1-1/2"
ASSEMBLY HARDWARE
Lock Washer
3/8"
Trolley Threaded Shaft
INSTALLATION HARDWARE
Wing Nut
1/4"-20 (2)
Hex Bolt
5/16"-18x7/8" (4)
Self-Threading Screw
1/4"-14x5/8" (2)
Ring Nut 5/16"-18 (6)
Fastener (3)
Lock Washer 5/16" (5)
Screw 6ABx1" (2)
Drywall Anchors (2)
Clevis Pin
5/16"x1"
7
Nut
3/8"
Master
Link (2)
Handle
Insulated
Staples
(Not Shown)
Screw 6-32x1" (2)
Clevis Pin
5/16"x1-1/4"
Idler Bolt
Rope
