Basler HOUSING TRANSPAC TPH 4000 Installation Manual

Outdoor camera housing with sunshield, ip67 90 - 240 v and 24 v
Hide thumbs Also See for HOUSING TRANSPAC TPH 4000:
Table of Contents

Advertisement

Quick Links

Download this manual

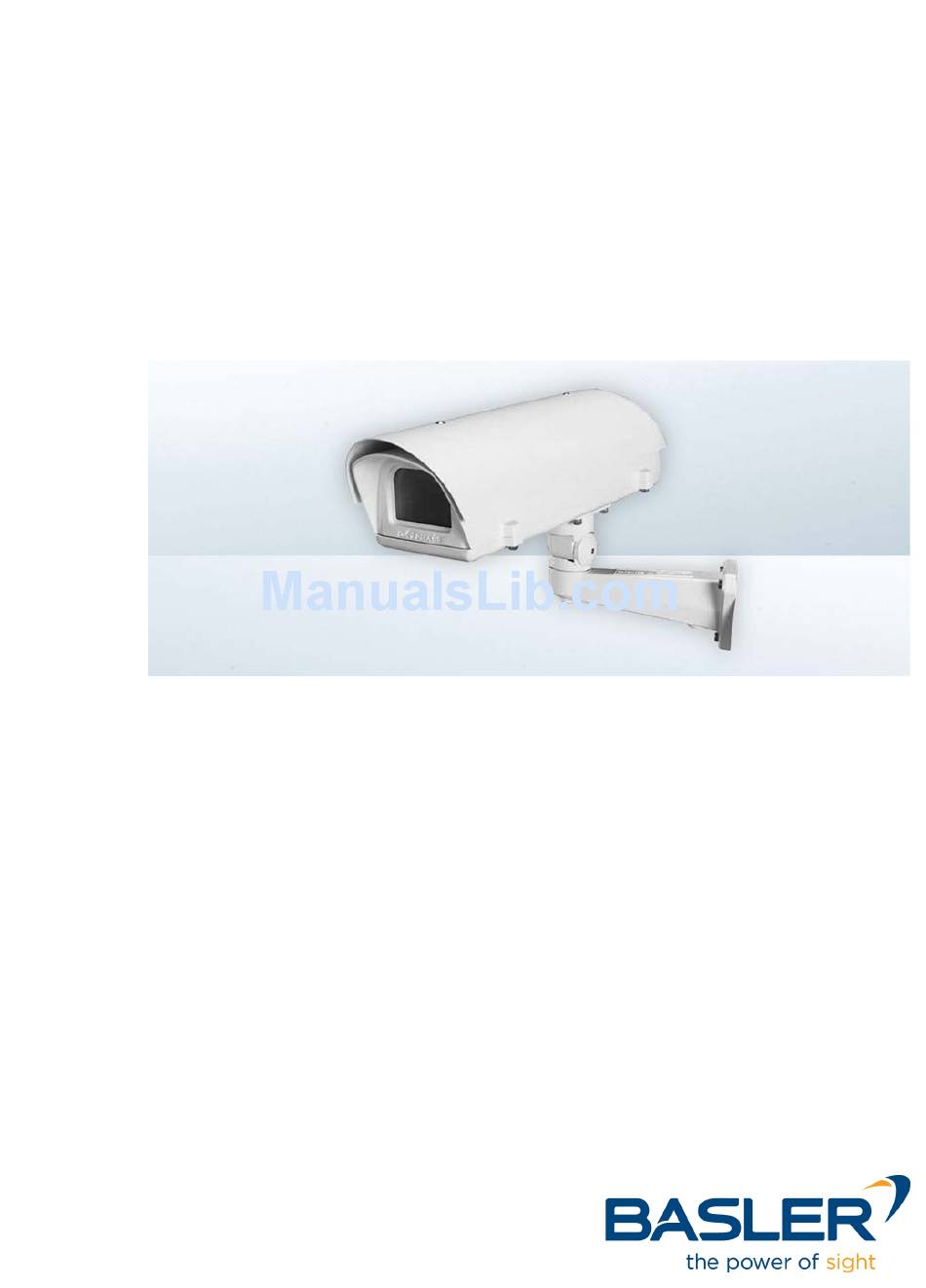

Basler Accessories

Installation Guide

HOUSING TRANSPAC TPH 4000, 90 - 240 V
and 24 V
Outdoor Camera Housing with Sunshield, IP67
Order Numbers
2000032062
2000032063
Document Number: AW001299
Version: 01
Language: 000 (English)
Release Date: 26 March 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOUSING TRANSPAC TPH 4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Basler HOUSING TRANSPAC TPH 4000

Summary of Contents for Basler HOUSING TRANSPAC TPH 4000

  • Page 1: Installation Guide

    Basler Accessories Installation Guide HOUSING TRANSPAC TPH 4000, 90 - 240 V and 24 V Outdoor Camera Housing with Sunshield, IP67 Order Numbers 2000032062 2000032063 Document Number: AW001299 Version: 01 Language: 000 (English) Release Date: 26 March 2014...
  • Page 2 Contacting Basler Support Worldwide Europe and the Middle East: Basler AG Phone: +49 4102 463 515 An der Strusbek 60 - 62 Fax: +49 4102 463 599 22926 Ahrensburg Email: support.euope@baslerweb.com Germany The Americas: Basler, Inc. Phone: +1 610 280 0171...

  • Page 3: Purpose Of This Document

    This document is designed to give an overview over the technical specifications of the Transpac TPH 4000, 90 - 240 V and 24 V, housings. It will also explain how to install a camera inside a housing of this series. This document should be used in conjunction with the respective Basler camera user’s manual.

  • Page 4: Package Contents

    Front window Thermostat Internal power supply cable Heater Camera mounting Power supply platform unit Cable gland Fig. 1: Camera Housing (Internal View) Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 5 Plastic anchors Plastic shoulder washer Large steel washer Small steel washers Socket head Hex head cap screw cap screws Not required installation L-type hex key Fig. 3: Assembly Parts Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 6 1 large steel washer  2 small steel washers  1 L-type hex key  Note that all other parts included in the package are not needed for standard installations. Housing Transpac TPH 4000, 90 - 240 V and 24 V...

  • Page 7: Dimensions (In Mm)

    Maximum dimensions (external): 405 (L) x 150 (W) x 150 (H) Maximum camera mounting space: 260 (L) x 90 (W) x 70 (H) 82.80 Fig. 5: Dimensions Wall Mount Base Housing Transpac TPH 4000, 90 - 240 V and 24 V...

  • Page 8: Technical Specifications

    Note: Check the operating temperature of the camera you are going to use as its operating temperature may differ from that of the housing. Protection Level IP67 Temper Glass Thickness 4 mm Table 1: Specifications Housing Transpac TPH 4000, 90 - 240 V and 24 V...

  • Page 9: Electrical Information

    AW00129901000 Introduction Electrical Information Fuse (Protected Earth) AC in Spare electrical terminals Fig. 7: Terminal Block Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 10 Compliant with EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Compliant with FCC Part 15:Subpart B (10-1-10 Edition) Class B CISPR 22:2008 Class B IP67 Compliant with IEC 60529 RoHS Fully compliant SVCH Fully compliant Table 2: Certifications Housing Transpac TPH 4000, 90 - 240 V and 24 V...

  • Page 11: Mounting A Camera

    The Transpac TPH 4000, 90 - 240 V and 24 V, camera housings can accommodate a variety of Basler IP and machine vision cameras. For Basler machine vision cameras, an additional camera mount is required which has to be purchased separately. Table 3 gives an overview over which camera mount is required for which camera.

  • Page 12: Preparing The Housing

    3. Lift off the camera mounting platform. The screws remain in place, still attached to the housing body. Now you can mount a camera on the camera mounting platform. Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 13 Installation Instructions by Camera Model The following figures demonstrate how to install the different camera models. When installing Basler cameras, it is recommended to use two small steel washers as well as the large steel washer in order to prevent damaging the camera.
  • Page 14 4. Twist the screw into the camera mount. 5. After positioning, tighten the screw. Step 1 Step 2 Fig. 11: Installing a Machine Vision Camera (ace GigE Shown as an Example) Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 15 2. Thread the screw-washer assembly through the camera mounting platform and the plastic pad. 3. Twist the screw into the bottom of the camera. 4. After positioning, tighten the screw. Step 1 Fig. 12: Installing an IP Camera Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 16 Mounting a Camera AW00129901000 Housing Transpac TPH 4000, 90 - 240 V and 24 V...

  • Page 17: Revision History

    AW00129901000 Revision History Revision History Doc. ID Number Date Changes AW00129901000 26 Mar 2014 Initial release of this document. Housing Transpac TPH 4000, 90 - 240 V and 24 V...
  • Page 18 Revision History AW00129901000 Housing Transpac TPH 4000, 90 - 240 V and 24 V...
