User Manual
Basler IP Fixed Dome Camera
Pole Mount Kit Installation Guide
Document Number: AW000993
Version: 01
Language: 000 (English)
Release Date: 8 April 2011
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Basler IP Fixed Dome Camera
Summary of Contents for Basler IP Fixed Dome Camera

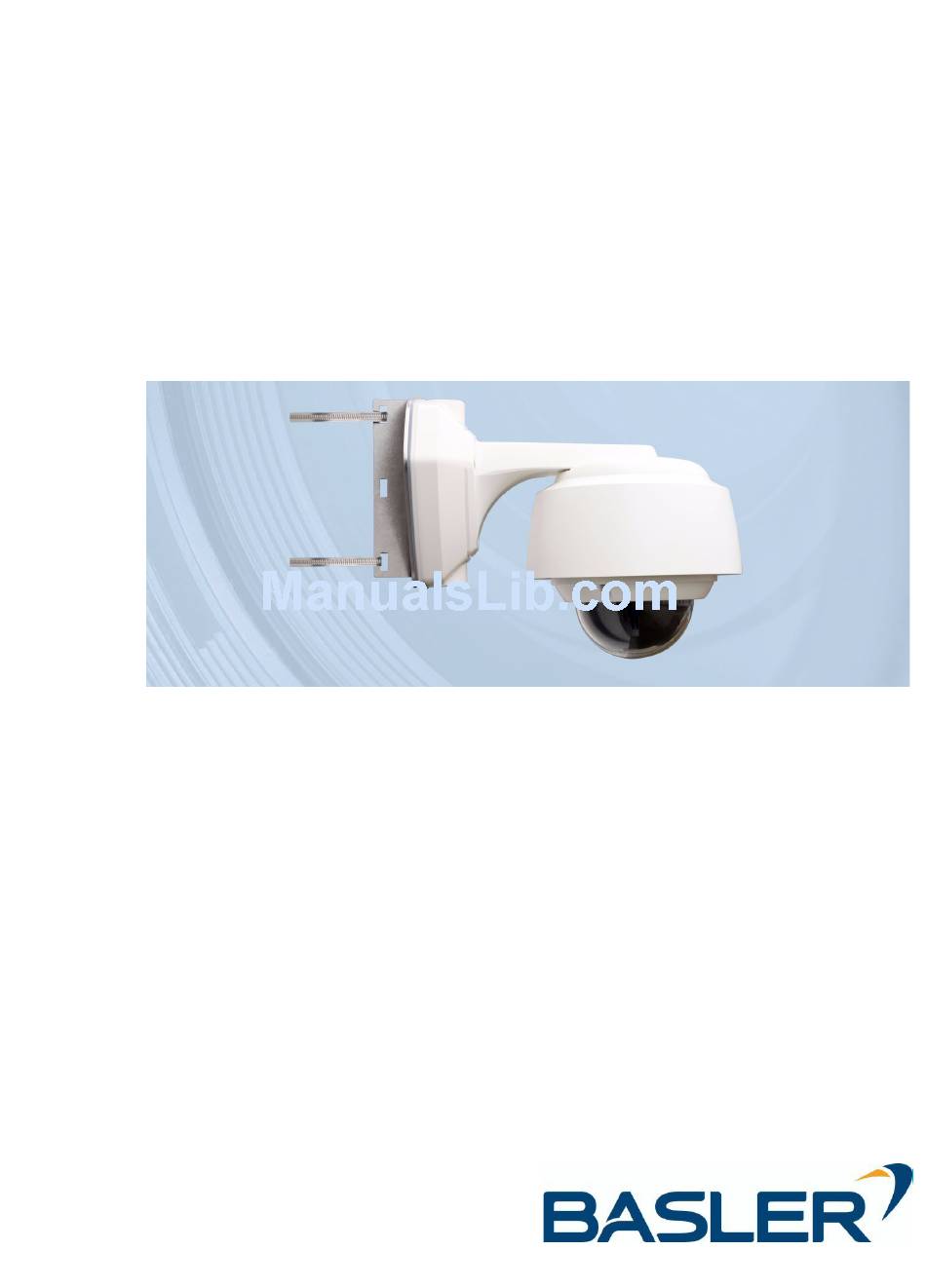

- Page 1 Basler IP Fixed Dome Camera Pole Mount Kit Installation Guide Document Number: AW000993 Version: 01 Language: 000 (English) Release Date: 8 April 2011...
- Page 2 Contacting Basler Support Worldwide Europe and the Middle East: Basler AG Phone: +49-4102-463-303 An der Strusbek 60 - 62 Fax: +49-4102-463-599 22926 Ahrensburg Email: bc.support.ip.emea@baslerweb.com Germany The Americas: Basler, Inc. Phone: +1-610-280-0171 855 Springdale Drive, Suite 203 Fax: +1-610-280-7608 Exton, PA 19341 Email: bc.support.ip.usa@baslerweb.com...
- Page 3 Document Intent The intent of this document is to help you install a pole mount kit for the Basler IP Fixed Dome Camera. This document should be used in combination with the Basler IP Fixed Dome Camera Installation Guide.
-
Page 4: Installation
If desired, you can put the hole plug in the bottom hole and route the cables in through the top. M5 x 25 Hole Screw Plug (x 4) Adapter Plate Adapter Gasket Bracket Plate Pole Bracket O-ring Threaded Nipple M5 Nut (x 4) Basler IP Fixed Dome Camera... - Page 5 Top View Side View Worm Worm Gear Gear Band Band Clamp Clamp Pole Worm Gear Band Clamp Basler IP Fixed Dome Camera...
- Page 6 This step assumes that you will be routing two cables, a network cable and a secondary cable, to the dome camera. If you will be using just one cable, the procedure is similar. Network Secondary Cables Basler IP Fixed Dome Camera...
- Page 7 7. Attach the dome camera base to the camera adapter using three M4 x 10 screws. M5 x 20 Screw Bracket (x 3) Camera Bracket Adapter Seal Gasket Adapter Plate Camera Adapter Dome M4 x 10 Camera Screw Base (x 4) M4 x 10 Screw (x 3) Dome Basler IP Fixed Dome Camera...
- Page 8 Reapply the grommet to the cable and check the cables for a snug fit in the grooves. Cables Must Fit Snugly in the Grooves Basler IP Fixed Dome Camera...
- Page 9 11. Slide the cap nut up to the end of the threaded nipple and screw the cap nut onto the nipple. Nipple 12. Follow the instructions in the Basler IP Fixed Dome Camera Installation Guide to complete the dome camera installation. Basler IP Fixed Dome Camera...
- Page 10 Pole Mount Kit Installation Guide Basler IP Fixed Dome Camera...
