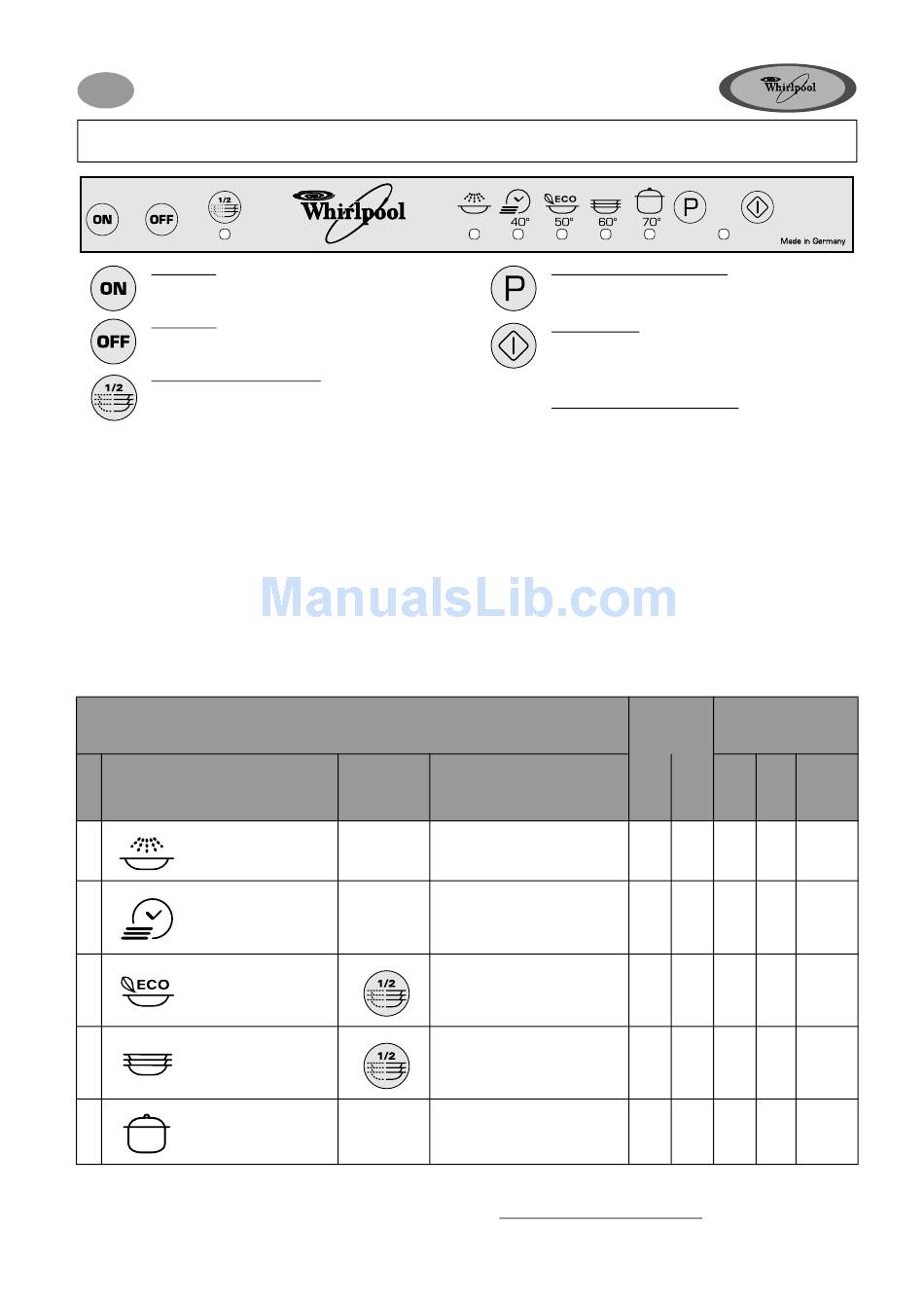

GB
W 75
On button
Off button
Half Load/Multizone button
Half load can be used for the top and bottom
racks. Select the programme then press the "Half
load" button. The indicator lights up, and goes off
at the end of the programme.
This function can be used with the programmes
indicated in table 1.1.
P
Programmes
1
Pre-Rinse
2
Quickwash 40°C
2)
3
Eco
4
Daily
5
Intensive
1)
Programme data obtained in conformity with European standard EN 50242. The data may vary according to different loads,
different extra functions, different sensor settings (for sensor programmes only), different water supply temperatures, different
water hardnesses, different power supply voltages, etc.
2)
Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories: for more detailed
information on the conditions of the EN comparison test and other tests, contact the following address:
"nk_customer@whirlpool.com".
Whirlpool is a registered trademark of Whirlpool USA
Before using the dishwasher, read the
installation and maintenance instructions carefully!
1. OVERVIEW
Table 1.1.

Programme chart

Selectable
extra
functions
cold
Crockery to be washed later.
Lightly soiled crockery, without dry
food residuals.
Normally soiled crockery. Energy
50°C
saving programme.
60°C
Normally or heavily soiled crockery.
Recommended programme for
70°C
heavily soiled crockery, particularly
suitable for pots and pans.
Programme selection button
Press the button (repeatedly) until the indicator
of the required programme lights up.
START button
The indicator lights up during operation, flashes if
a fault occurs and goes off at the end of the
programme.
START button RESET function
Press this button for at least 2 seconds and the
started programme and the extra functions
selected are cancelled. The main fault indications
(repeated flashing of the START indicator) can be
cancelled with a Reset. Also see Section 5 "What
to do, if...".
Detergent
dispenser
Loading instructions
large small Litres kWh Minutes
Consumption
5.0
0.02
10 ±
X
13.0
0.70
30 ±
X
X
15.0
1.05
165 ±
X
X
16.0
1.35
120 ±
X
X
17.0
1.65
145 ±
5019 396 01121
1)
1)
1)
1)
1)
1)
1
