Whirlpool W7I HT40 TS Daily Reference Manual

Daily Reference Guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please
register your appliance on: www.whirlpool.eu/register

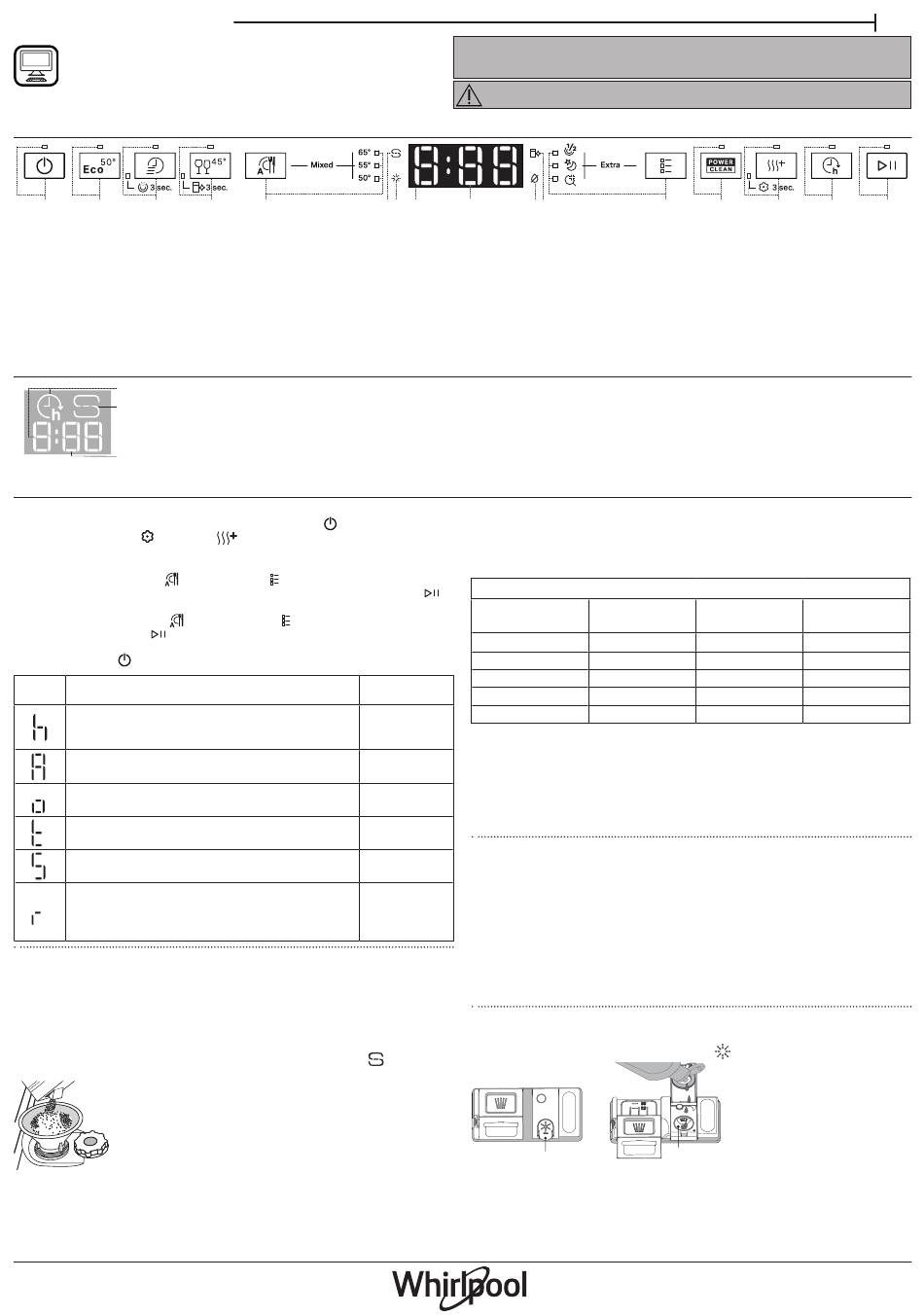

CONTROL PANEL
1 2 3
1. ON-OFF/Reset button with indicator light
2. Eco program button with indicator light
3. Rapid program button with indicator light/ Prewash program - 3 sec. press
4. Crystals program button with indicator light/ Self-Clean program
- 3 sec. press
5. Auto programs buttons with indicator lights - Auto Intensive 65°/
Auto Mixed 55°/ Auto Fast 50°
6. Salt reservoir empty indicator light
7. Rinse Aid reservoir empty indicator light
DISPLAY ON THE FLOOR
1
2
1. Delay Time on the floor - indicator of the time left to the start of the cycle, when the Delay option is set
2. Salt reservoir empty - indicator light on the floor
3. Remaining Time on the floor - indicator of the time left to the end of the cycle
3
FIRST TIME USE
SETTING MENU
1. Switch on the appliance by pressing the ON-OFF
2. Hold the Settings (Extra Dry
a beep and the display shows „SEt".
3. After one second the first available setting (letter „h") will be displayed.
4. Press Auto programs / Extra options buttons to scroll through the
list of available settings (see table below), then press START/Pause
view and change the value of currently selected setting.
5. Press Auto programs / Extra options
press START/Pause
to save the new value.
6. To change another setting, repeat points 2 and 5.
7. Press ON-OFF
or wait 30 seconds to exit the menu.
LETTER SETTING
Water Hardness Level
(see "SETTING THE WATER HARDNESS"
and "WATER HARDNESS TABLE")
Rinse Aid Level
(see "ADJUSTING THE DOSAGE OF RINSE AID")
NaturalDry (see "OPTIONS AND FUNCTIONS")
"1" = On, "0" = Off
Time on the floor (see "OPTIONS AND FUNCTIONS")
"1" = On, "0" = Off
"1" = On, "0" = Off
Factory Settings
Press START/Pause to restore to the factory
default all the values of the settings included in
the settings menu.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and the
machine's functional components.
The salt reservoir is located in the lower part of the dishwasher (under the
lower rack on the left side).
• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.
• Salt must be filled when the SALT REFILL indicator light
trol panel is lit.
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Position the funnel (see figure) and fill the salt reservoir
right up to its edge (approximately 0,5 kg); it is not
unusual for a little water to leak out.
3. Only the first time you do this: fill the salt reservoir
with water.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly so that no detergent can get into
the container during the wash program (this could damage the water
softener beyond repair).
Run a program every time as soon as you completed refilling the salt
reservoir to avoid corrosion.
4 5
button.
) button for 3 seconds, until you hear
to change the value, then
0 | 1 | 2 | 3 | 4 | 5
Sound
Before using the appliance carefully read Safety
and Installation Instructions. More information about your product
After installation, please remember to remove all transport protection
6 7 8 9 10 11
8. Display
9. Program number and remaining time indicator
10. Closed water tap indicator light
11. DESCALE indicator light
12. Extra options buttons with indicator lights - Half Load/ Silent/ Sani Rinse
13. Power Clean® option button with indicator light
14. Extra Dry option button with indicator light / Settings - 3 sec. press
15. Delay option button with indicator light
16. START/Pause button with indicator light
Setting the water hardness
To allow the water softener to work in a perfect way, it is essential that
the water hardness setting is based on the actual water hardness in your
house. This information can be obtained from your local water supplier.
The factory setting is "3". See „WATER HARDNESS TABLE".
to
Level
1 (Soft)
2 (Medium)
3 (Average)
VALUES
4 (Hard)
(Default - in bold)
5 (Very hard)
1 | 2 | 3 | 4 | 5
To change, follow instructions in section „SETTING MENU".
Only use salt that has been specifically designed for dishwashers.
After the salt has been poured into the machine, the SALT REFILL indicator
light switches off.
If the salt container is not filled, the water softener and the heating
1 | 0
element may be damaged as a result of limescale accumulation.
Use of salt is recommended with any type of dishwasher detergent.
1 | 0
WATER SOFTENING SYSTEM
1 | 0
Water softener automatically reduces water hardness, consequently
preventing scale buildup on the heater, contributing also to better cleaning
efficiency. This system regenerates itself with salt, therefore it is required
to refill the salt container when empty. The frequency of regeneration
-
depends on the water hardness level setting - regeneration takes place once
per 4-6 Eco cycles with the water hardness level set to 3. The regeneration
process occurs at the beginning of the cycle with additional fresh water.
• Single regeneration consumes: ~3L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled
when the RINSE AID REFILL indicator light
on the con-
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the appliance tub.
available on website: docs.whirlpool.eu
parts from the dishwasher.
12 13
Water Hardness Table
°dH
German degrees French degrees
0 - 6
7 - 11
12 - 16
17 - 34
35 - 50
A
B
EN
14 15 16
panel - W11602471
°fH °Clark
English degrees
0 - 10 0 - 7
11 - 20 8 - 14
21 - 29 15 - 20
30 - 60 21 - 42
61 - 90 43 - 62
in the control panel is lit.
1. Open the dispenser B by
pressing and pulling up the
tab on the lid.
2. Pour in the rinse aid (max. 110
ml), making sure it does not
overflow from the dispenser.
If this happens, clean the spill
immediately with a dry cloth.
1
