Edgewater Networks 4300T Series Quick Start Manual

Converged network appliance
Hide thumbs Also See for 4300T Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

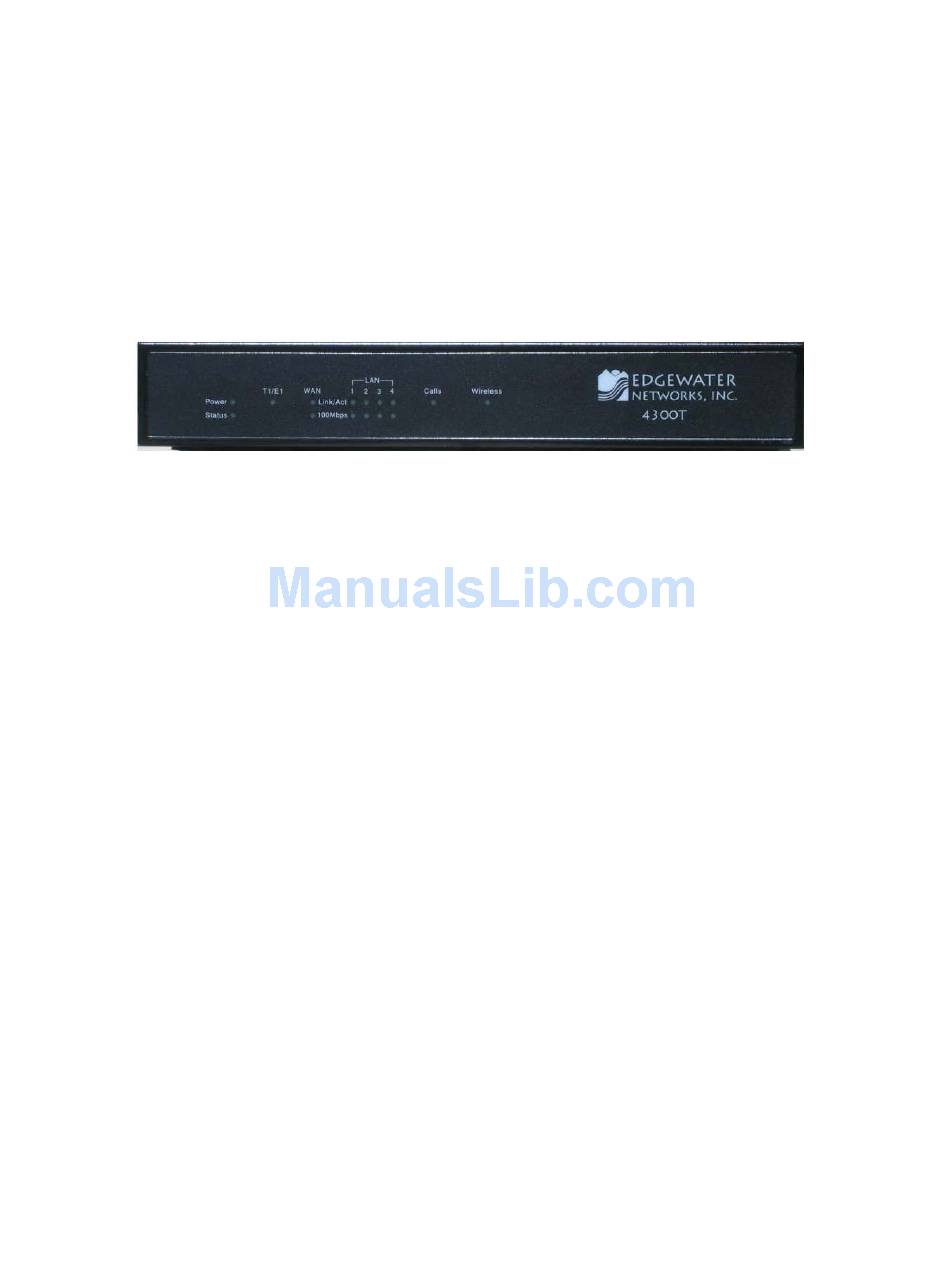

4300T Series

Converged Network Appliance

Quick Start Guide

This guide helps you to install and connect to the 4300T Series
converged network appliance. You may then use the online
help files to configure the 4300T to meet the specific needs of
your environment.
This guide also provides an example of a typical 4300T Series
deployment that can be used as a guideline for your
installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4300T Series and is the answer not in the manual?

Questions and answers

Related Manuals for Edgewater Networks 4300T Series

Summary of Contents for Edgewater Networks 4300T Series

  • Page 1: Converged Network Appliance

    4300T Series Converged Network Appliance Quick Start Guide This guide helps you to install and connect to the 4300T Series converged network appliance. You may then use the online help files to configure the 4300T to meet the specific needs of your environment.
  • Page 2 Before you begin you must have: o A computer with a web browser (Microsoft Internet Explorer or Netscape Navigator) o At least 1 ethernet cable o The following information supplied by your VoIP service provider IP address of the WAN interface T1 frame format Layer 2 protocol (PPP, Frame Relay/DLCIs or HDLC) IP address of the Softswitch...
  • Page 3 Step 1 – connect all of the cables • Connect an ethernet cable between LAN port 4 on the 4300T and your computer’s ethernet port. • Connect a cable between the T1/E1 WAN port on the 4300T and the T1 demarcation unit provided by your service provider.
  • Page 4 Step 2 – connect to your 4300T The 4300T is shipped with a pre-configured IP address on its LAN port of 192.168.1.1. To connect to the 4300T, do the following: • Configure your PCs ethernet adapter to use an IP address of 192.168.1.2 and a subnet mask of 255.255.255.0.
  • Page 5 Step 3 – plan your configuration Suggested Deployment A typical 4300T installation uses the integrated CSU/DSU in the 4300T to terminate a T1 WAN connection. The LAN ports of the 4300T are then used for connection to PCs, servers, IP phones or other layer 2 ethernet switches. The diagrams below show typical deployments for both service provider and enterprise applications.
  • Page 6 • DHCP server and FTP/TFTP relay. These features are used to simplify and expedite the IP configuration of phones and PC’s. This also includes VoIP signaling gateway information (MGCP). • Passive call quality monitoring and test tools. • VoIP survivability is an orderable software option that provides local call switching for SIP clients during a WAN link failure or lost of connectivity to a centralized softswitch or IP PBX.
  • Page 7 The 4300T provides the following services: • WAN/LAN IP routing • NAT/PAT translation for IP phones. This allows a single public IP address to be used on the WAN link to represent all of the private IP addresses assigned to the LAN IP phones. •...
  • Page 8 As needed Please visit our website at www.edgewaternetworks.com or contact the Edgewater Technical Assistance Center at 408.351.7255 for additional information or assistance. 2730 San Tomas Expressway, Suite 200, Santa Clara, California 95051 info@edgewaternetworks.com All rights reserved. Copyright© 2004, Edgewater Networks, Inc.
